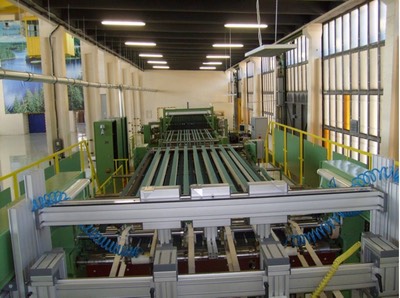

KSF04 - STRECKER BRUDERHAUS SYNCHROFLY SHEET CUTTER

SPECIFICATION

1. Make and Model:  Strecker Bruderhaus 1450 with two delivery sections (2 pieces of Secondary belts & layboys).
2. Production:            Capable for paper and board
3. Original Age:          1976
4. Modernization:        Full repairing and modernization in 2007-2008 (Made by Keski-Suomen Finanssi Oy)
5. Width of the cutter: 1,450 mm
6. Cross cutting:         Synchro cross cutting capable for paper and board 40- 600 gsm. Knife load 800 Gsm.
7. Size change:          Auto sheet length changing system length 400 - 1700 mm.
8. Cutting accuracy:   Electric sheet length control +-0,3 mm
9. Speed:                   Speed 250 m/m.

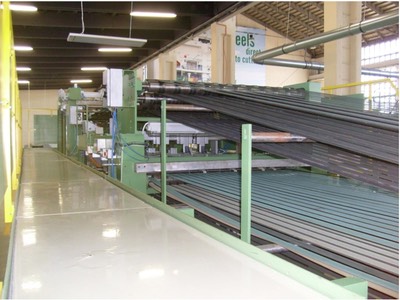

10. Overlapping section:  Vacuum overlapping section.
11. Reject gate:            Faulty sheet control with reject gate
12. Pallet change:         Auto non-stop pallet change system

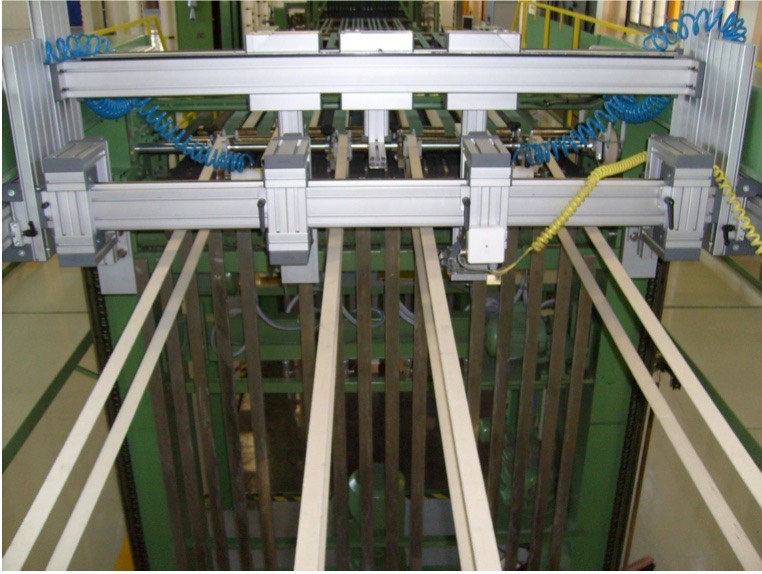

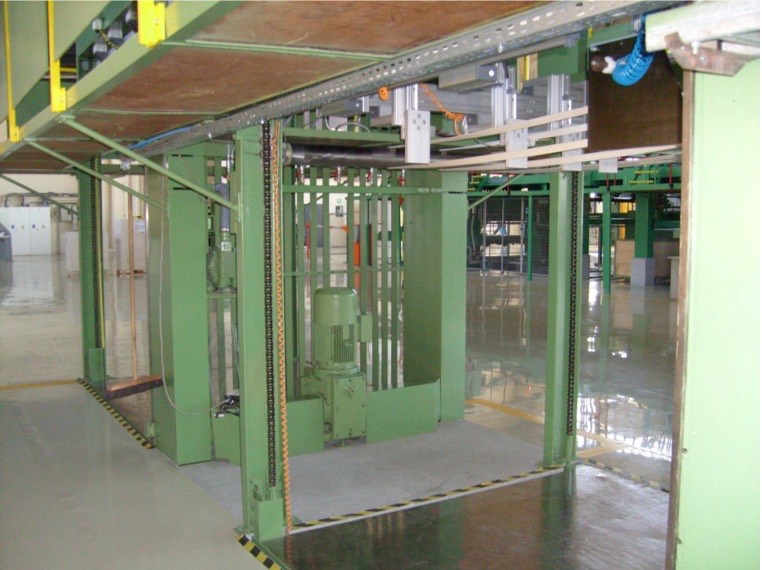

13. Layboy:                  4 side joggers and back board. Sinking hydraulic layboy with capacitive sensor for pallet height.
14. Tab Inserters:          3  Tab Inserters

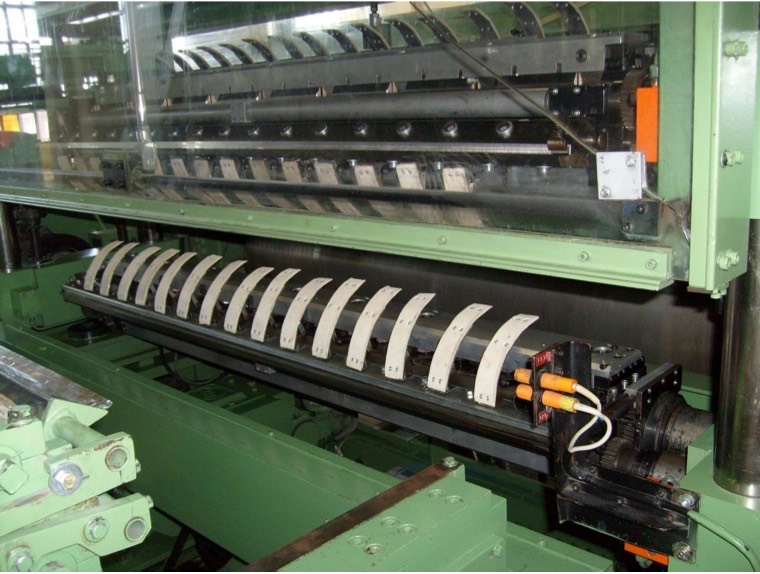

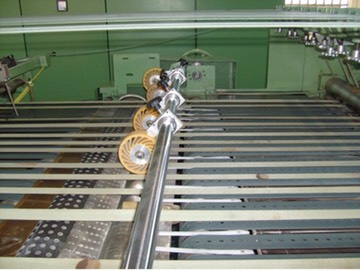

15. Slitters:                    Three (3) slitters.

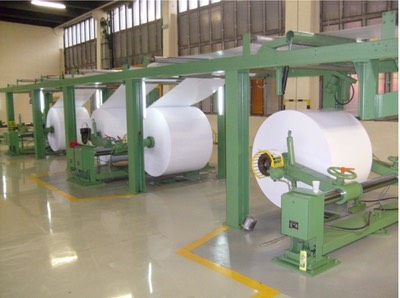

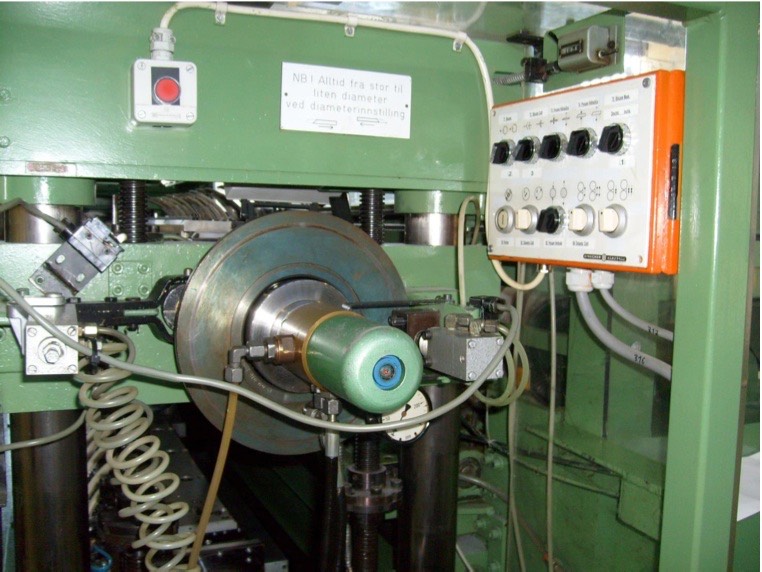

16. Unwind:                   Six (6) shaft less pick-up unwind stands. Air cooled disc breaks with pneumatic adjustments. Reel core 3-6”, reel dia 1500 mm, reel weight 2000 kg.
17. Lead roll system:     Complete lead roll system.

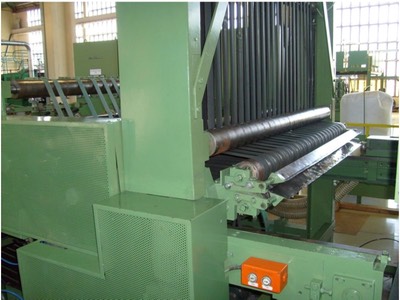

18. De curling units:        Six (6) rolling bar-type de curlers for paper (dia 12 mm and one for board (60 mm).
19. Electric:                     Complete electric system basing on PLC Siemens S5 380 V 50 Hz
20. Side trim system:       Complete side trim system with shredder, tubes and blower.
21. Condition:                  The line is in excellent condition. Can be test run at any time. Any special overhauling or repairing are not needed.
22. Location:                    Poland
23. Test run:                     Can be test run with paper or board at any time

• NB 1: All tenders subject to the standard terms and conditions (Click Here)
• NB 2: All tenders to be received by 3PM CET at ceo@saxonmachinery.com or by post to

                  Keski-Suomen Finanssi Oy,

                  Sääksmäentie 1

                  FI-37600 Valkeakoski

                   Finland.

                   Attention:  The CEO - Saxon Machinery Ltd.

• NB 3: The successful tenderers must be removed their machinery from site at the latest date of 15th of September at 12pm midday.
• Terms of payment: Payment 50% within 5 bank days of a successful bid being confirmed. The balance outstanding to be paid prior to commencement of dismantling.
