MECHANICAL PULP LINE, Voith Andritz, 30,000 TPY
Debarking line
1. General
- The plant herein described is for the production of mechanical pulp (SGW) from poplar and birch wood, maximum annual output of 30,000 Tons.
- Mechanical pulp can be successfully used for the production of paper grades to be printed such as newsprint, roto-offset, decor paper, base paper for coating application, board.
- The sludge can be sold as secondary product, distributed to local farmers as fertilizer
- The plant was stopped in August 2014 due to the critical conditions and negative expectations of the paper industry.
- Most of the equipment has been provided by VOITH and ANDRITZ
- The plant has alway been properly serviced and over the last three years consistent investments have been performed in order to provide the system with high efficiency
2. Other information
- The equipment is in very good mechanical conditions and available for dismantling
- Located in Europe
- Sale not affected by any geographical restrictions
- Visits welcomed prior to written consent of the Seller
- The mill is in voluntary liquidation procedure
- SAXON MACHINERY Ltd. is the preferred company appointed for the sale of assets, the best conditions ever only and exclusively through SAXON
3. Commercial conditions & services
The plant is sold with the clause “as is where is”.
Dismantling and other additional services are not included in the scope of supply and selling price. Payment conditions to be agreed with the Seller directly.
The selling price is available upon request, prior to registration of customer and signature of a compulsory non disclosure agreement.
Financing through SAXON MACHINERY Ltd. available for qualifying companies. For further information, please contact us.
Complete package available upon request (purchase of assets, dismantling service, shipment, civil engineering, process engineering, project management, delivery of new parts, installation, start-up, training and trouble shooting services).
4. Documents
- Pictures herein included
- Drawings, operating and maintenance handbooks, electrical diagrams and other technical documents available after the sale has been finalized.

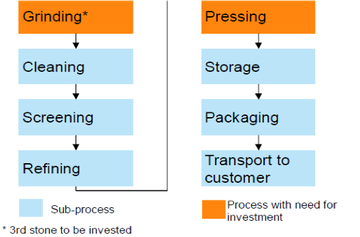

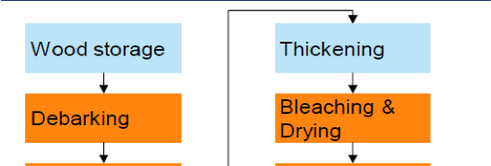

5. Description of the process
6. Description of equipment
- (2) De-barker lines CAMBIO
- (2) VOITH Grinders type 3G 110 with 2 Marelli motor 1.6 MW - 6 kV (1966, completely overhauled in 2012 and 2013
- (1) VOITH Vibrating screen
- (3) VOITH screens V20 and (2) V10 (1985, 1996)
- (1) ANDRITZ Disc Filter 3711/08 (thickener) completely overhauled by Andritz in 2011
- (3) VOITH Refiners 800 diameter 750 kW
- (2) VOITH Double Wire Press (1 meter, 1966)
- (1) VOITH Pulper Type VSZS 4 (1980, completely overhauled in 2013)
- (5) Tanks with VOITH completed of propeller mixer
- (1) PESSA hydraulic press for 5 bales forming
- (1) DIMA MECCANICA wrapping machines (2007)
- (1) VOITH Omniscreen with screen basket C - bar (1986)
- (1) ANDRITZ Mixer Type HCM3HH 19665/1 (2006)
- (1) BELLMER HS Bleaching tower (87/3040 – D 3500) with 4 TIGLER screws
- FMW equipment for grinders automatic charge of log (1991)
- (1) THUNE screw press SP 45
- (1) VOITH vibrating screen

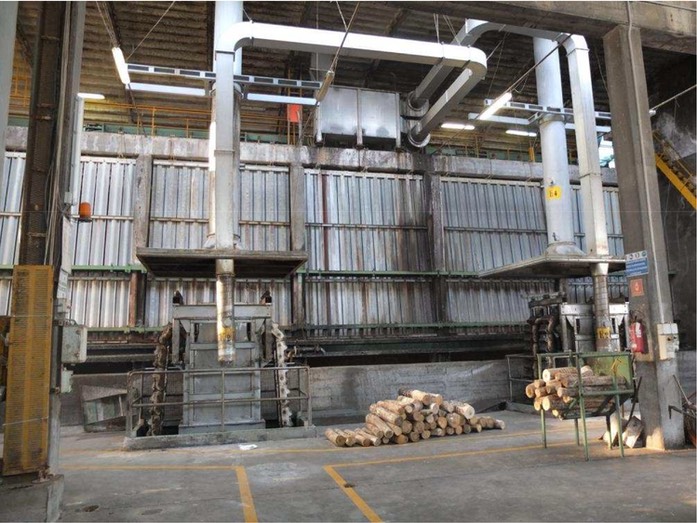

Top of Grinders in AISI steel
Grinders

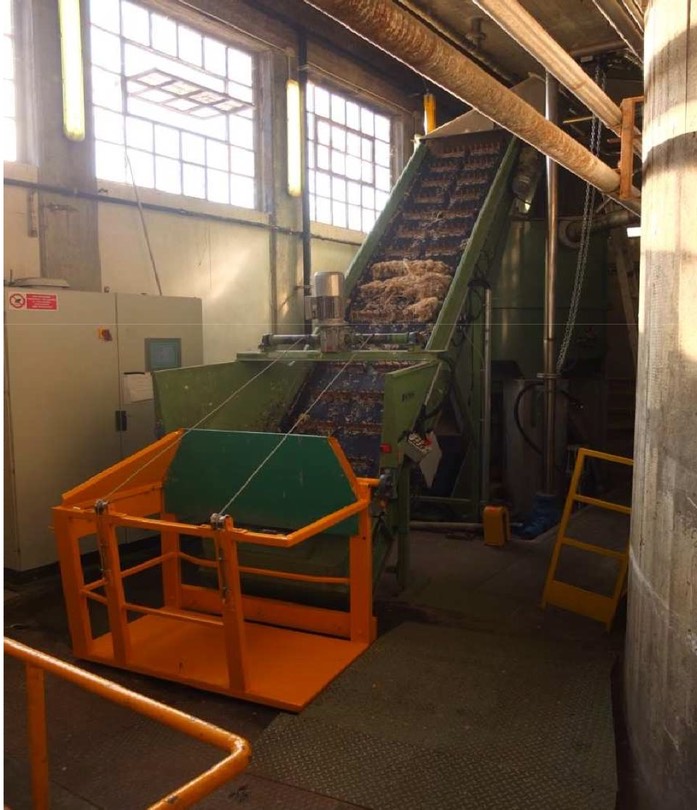

Pulpers

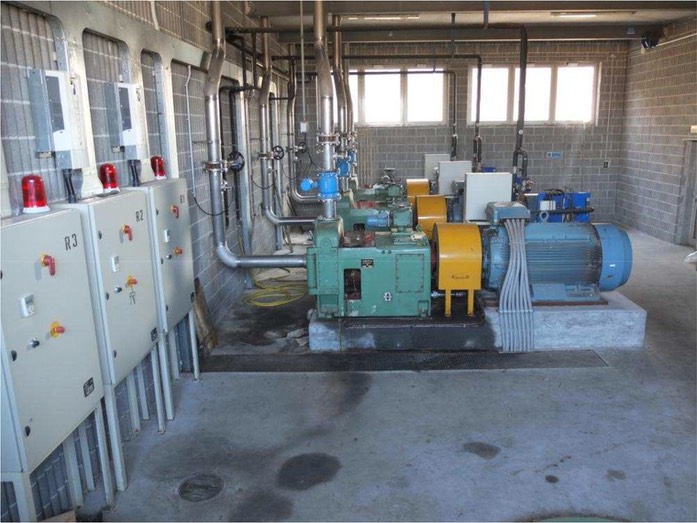

Refiners

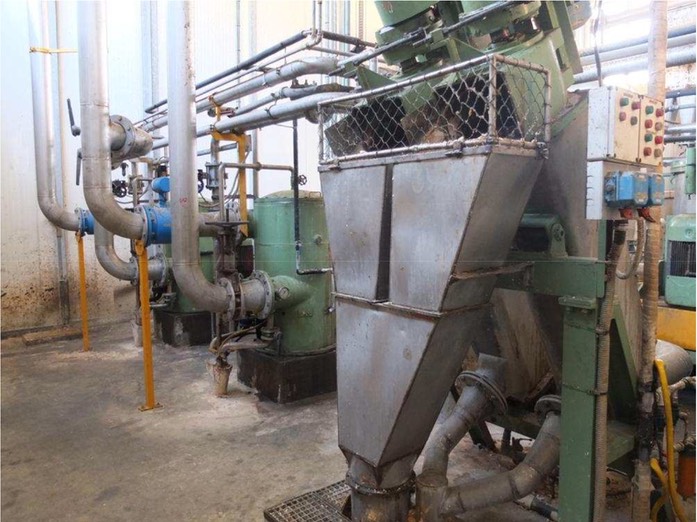

Screens and Screw Presses

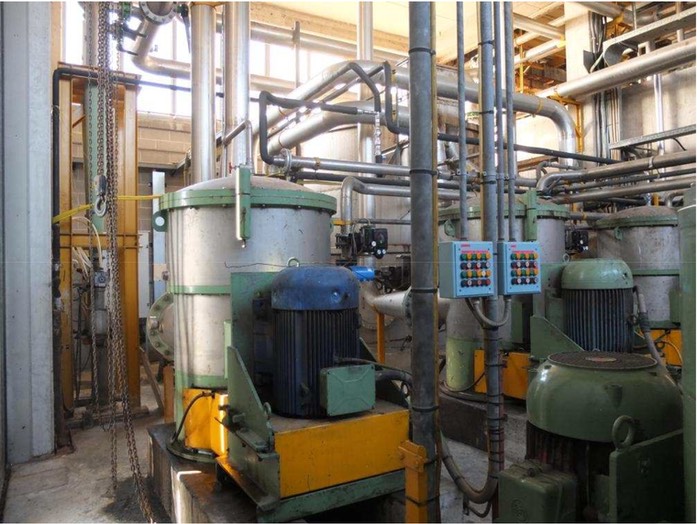

Pressure Screens

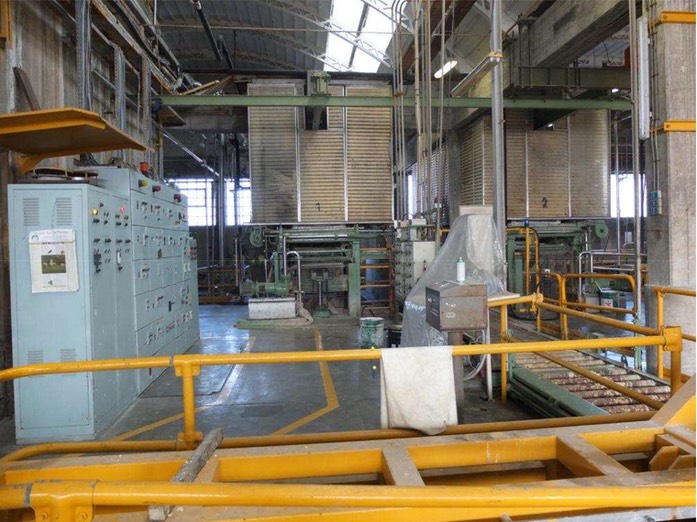

Dewatering Presses & Layboy

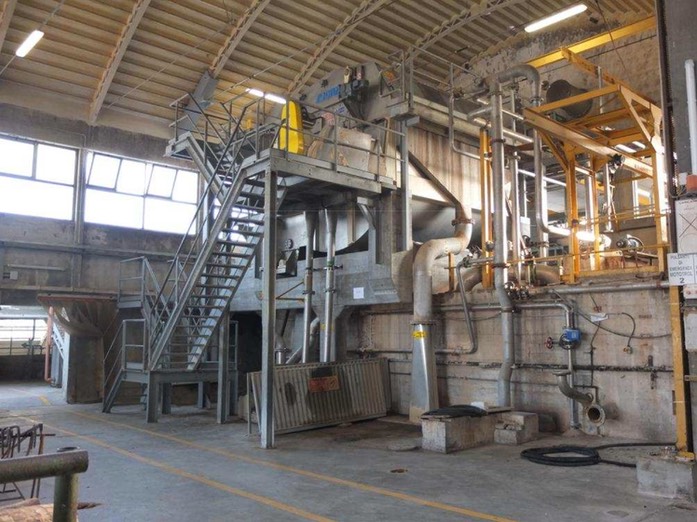

Disc Thickener

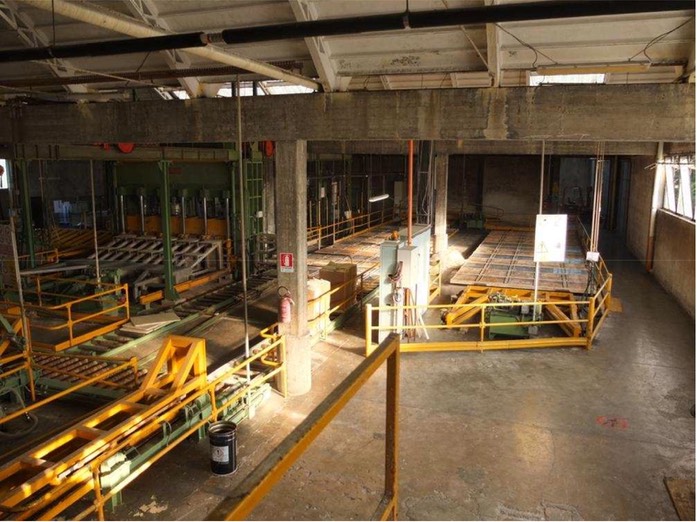

Bale Press and Storage
