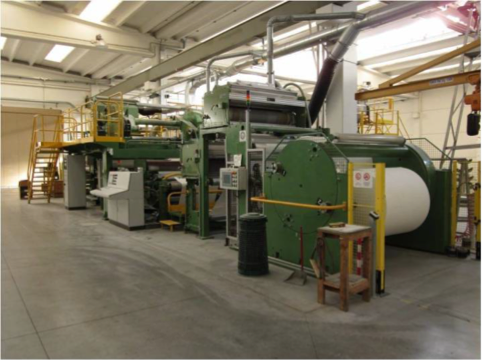

SM2030 - Extrusion coater, 1,500mm, 500m/min
- Manufacturer: ROTOMEC
- Model: EC550
- Year: 2008
- Overhaul/renovation: in 2008-2010
- Width (mm): 1500
- Coating/lamination units: 1
- Coating/lamination unit 1 description: chill roll diam. 700 mm
- extruder output 560 kg/h
- extruder diam. 120 mm
- automatic head Cloeren (built in 2010) wiht thickness control
- edge slitting device
- thickness control brand Electronic System
- 1 rotogravure unit (built in 2010) width 1400 mm for primer application on Alu foil.
- 1 gas burner
- Treatment: brand Mero (built in 2009)
- Primary unwinder description: Duplex automatic (built in 2008) reels diam. 1300 mm
- Secondary unwinder description: Non stop type reels diam. 800 mm
- Rewinder description: Double type reels diam. 1200 mm
- Speed: 500 m/min.
- Product structure / Materials: pe coating substrates + LDPE laminates
- Additional informations: mechanical speed: 500 mt/min.
- machine like new. It can be seen running.
