SM2072 - 1,200mm COATER/EXTRUDER, Reifenhauser, single coating head, 150m/min
Description of the Machine and Accessories
Manufacturer: REIFENHAUSER
Model:
Year: 1994
Width (mm): 1200
Coating/lamination units: 1

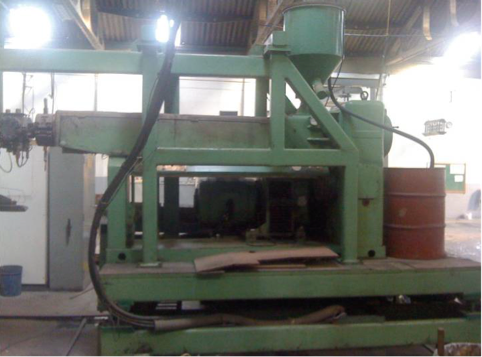

Coating/lamination unit 1 description: extruder screw 90 mm
extruder position: horizontal

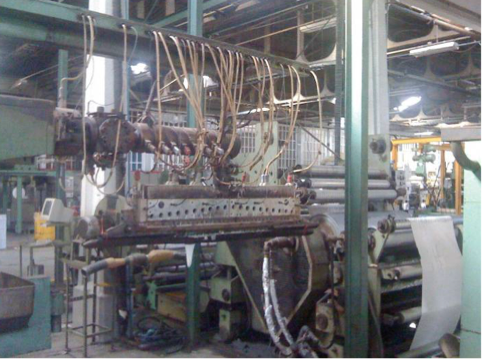

flat die Reifenhauser, 1200mm width
5 cooling units
feeding unit: neumatic
Primary unwinder description: double shaft, reel diam, 800 mm
Secondary unwinder description: single shaft, reel diam. 500 mm
Rewinder description: double shaft , reel diam. 800 mm
Speed: 150 m/min.
Product structure / Materials: Aluminium, PEL/ PEAD/ PEBD/ PET / PAPER
Additional informations: Rotogravure printing group brand Profama for continuous printing and possibility also to varnish.
Machine dimensions: height 3,5 m - width 8 m - length 12 m.
