KSF02 - MASSON SCOTT THRISSELL 3 DRW SYNCHROFLY SHEET CUTTER

1. Manufacture:                               Masson Scott Engineering Limited, UK 1980
2. Modernized and fully repaired:     2007-2008/ KSF (Keski-Suomen Finanssi Oy)
3. Type of the machine:                   3 DRW / 1000 Synchro
4.  Produced for:                             Coated and uncoated Board & Paper
5.  Working width:                           2200 mm ( 320mm – 2200mm )
6.  Sheet length:                              450mm – 1800mm
7.  Running speed:                          Max speed 300
8. Electric:                                       Siemens BTJ Systems, PLC Siemens S 5, CPU 115, 380V
9. Cutting knives:                             Synchrofly, load 800 gsm

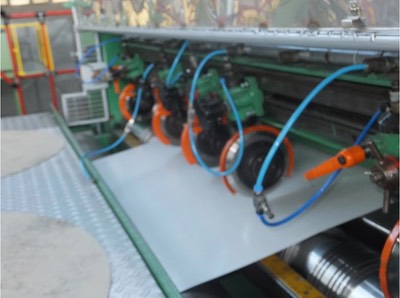

10. Slitters:                                        Masson type slitters of 5 pieces
11. Reject gate:                                 Auto reject gate

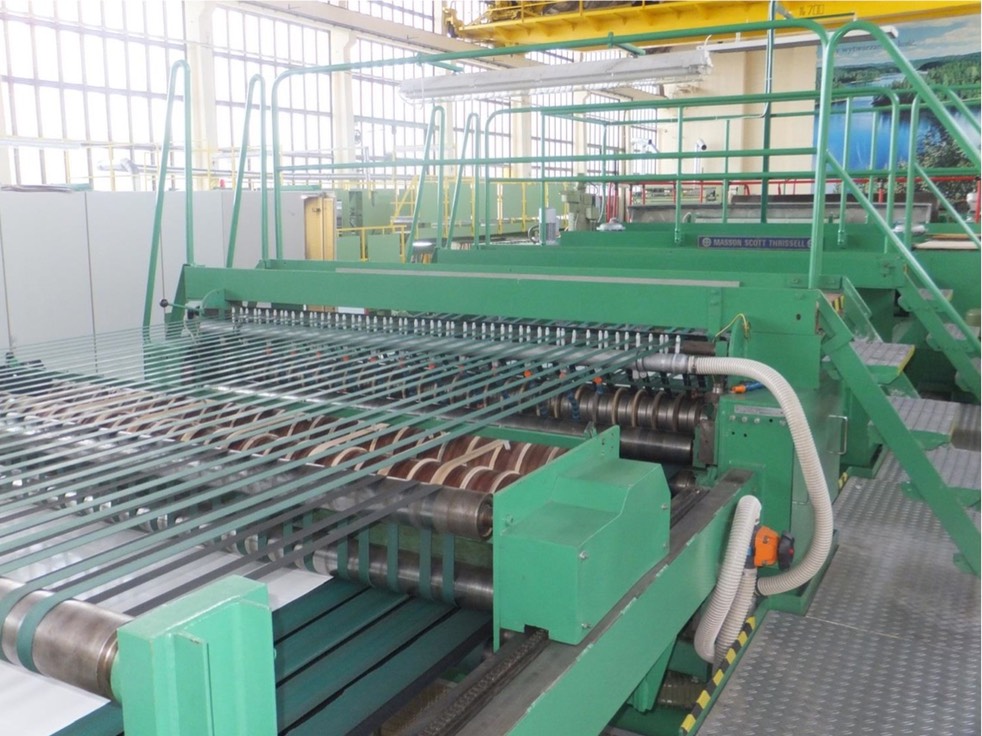

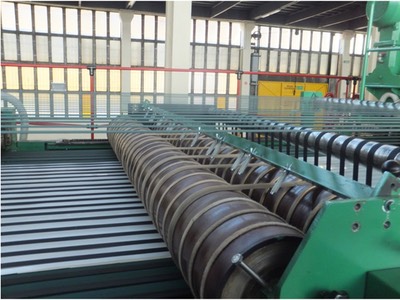

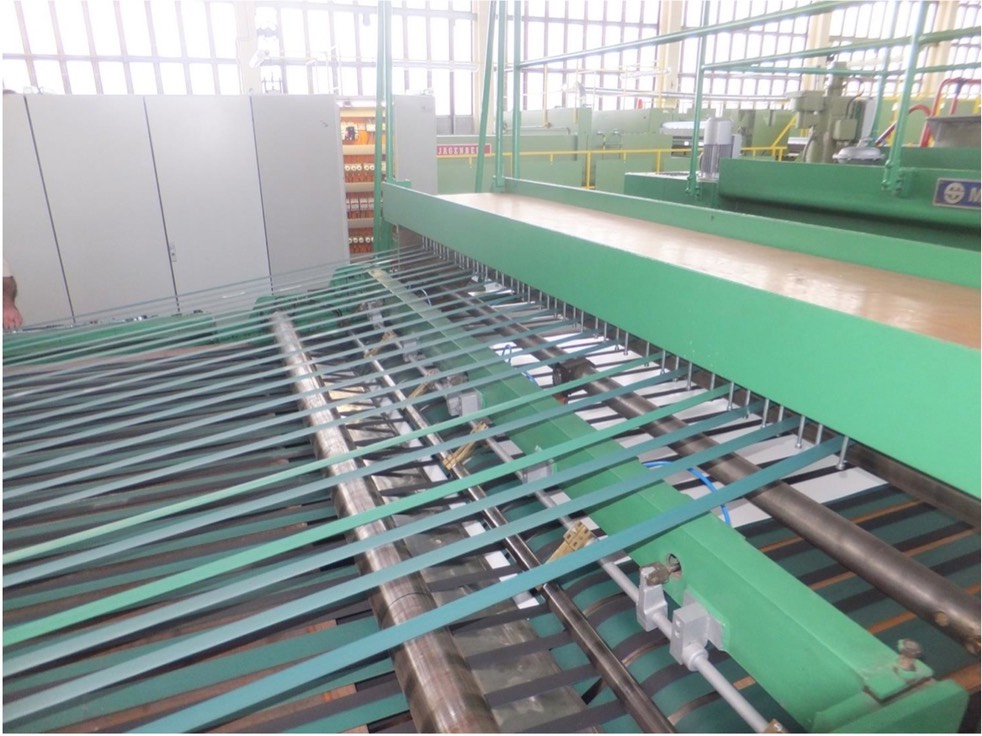

12. Overlapping and conveyor belts:  Masson type overlapping section with conveyor belts.
13. Layboy:                                        Hydraulic sinking layboy with semi automatic layboy by KSF Oy 2008.
14. Pallet change:                              Non-Stop Masson pallet change

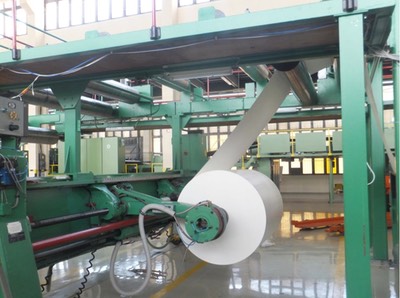

15.  Unwind:                                      Double Shaft less Masson unwind for 2 reels, reel dia 1900 mm ).Wichita water cooled brakes (2 brakes/one reel).
16. Repairing work done 2008 for the machine:
    1. Inthecutterhead:gearboxandgearwheelscheckedandmaintained
    2. infeedpressreconditionedthoroughly
    3. Mostofthebearingshavebeenchanged
    4. the top and bottom belts changed to new ones
    5. all parts repaired well
17. Modernization work done 2008:
    1. New layboy with side plates and back board
    2. New neprolls
    3. New semi-auto size change-system for side plates and backboard.
    4. The new drive and conveyor belts

SPEED TABLE OF MASSON THRISSEL 3 DRW

sheet length             speed m/min

450                          107

 550                         162

 650                         205

 750                         236
