REWINDER, Italconvert, 2,700mm,Toilet roll & kitchen towel, 350m/min
Complete line for production of toilet paper and kitchen towels in working condition
Core winder by Hobema
Produced in 1977
Type: LK III
Speed 30m/min.
Inside diameter of the Core 45 mm
Electrical cabinet overhauled in 2003
Full documentation in German
Two unwinders,
Two stripes of 180 gsm

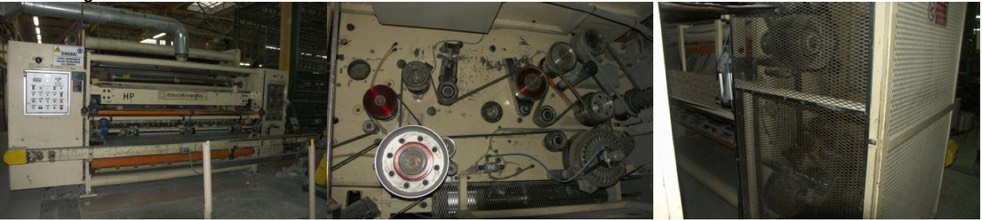

Rewinder for toilet paper and kitchen towels by Italconverting
type – 24.10 E
produced in 1997
double embossing system micro/macro (steel to rubber)
1 unwinder
tail sealer
max mother reel diameter 1500 mm
max working width 2700 mm
max working speed 350 m/min
log diameter 90–130 mm
log wrapper by Cassoli
speed 8 logs/min mechanical glue dosage

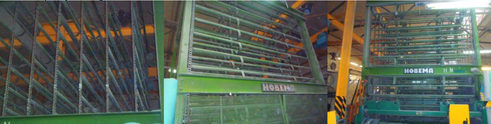

Log accumulator by Hobema
type – 05 produced in 1977 capacity 138 logs
Log Saw by Perini
Type – Pc 444/c
90 cuts per minute
Two lanes
Blade diameter – Ø 610 mm,
Grinding Wheel for sharpening – ceramic cup ø 150 mm Supply voltage – 380 V
Log cutting length – 90 – 225 mm, mechanical adjustment Range of diameters for log cutting - ø 90 - ø 120mm

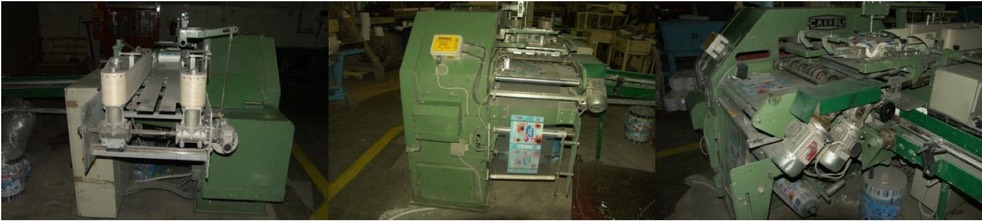

Wrapping MACHINE by Cassoli
type – RA 2CIV
Speed 15-20 packs/min Wrapping configuration 2/4/6 rolls Thickness of foil 30-50 microns
