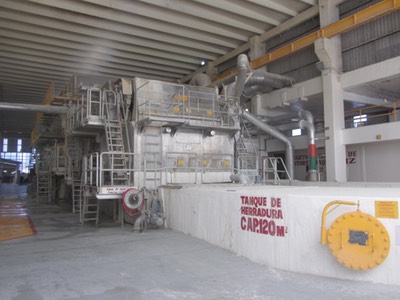

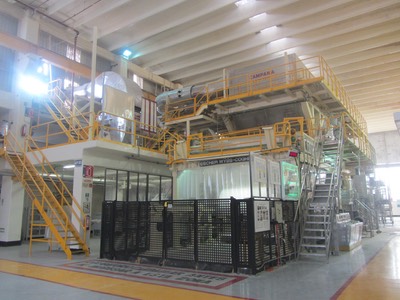

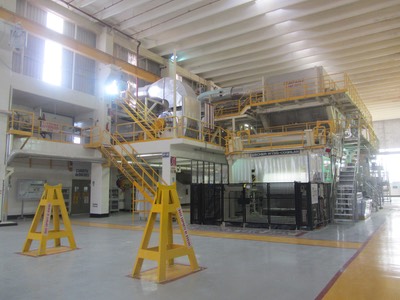

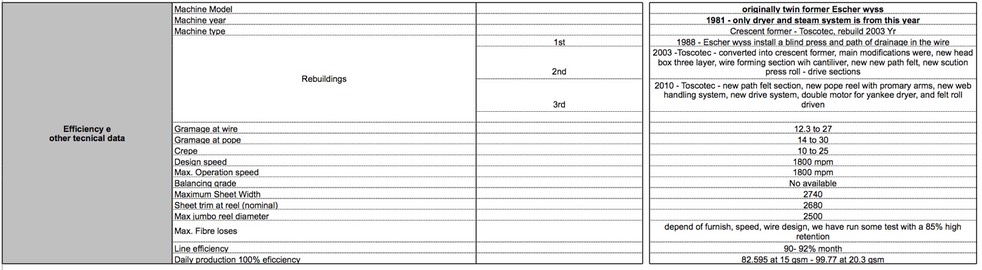

Tissue Machine, 2,700mm trim Esher Wyss/ Toscotec, Crescent Former, 90 tn/day , 1800 mpm

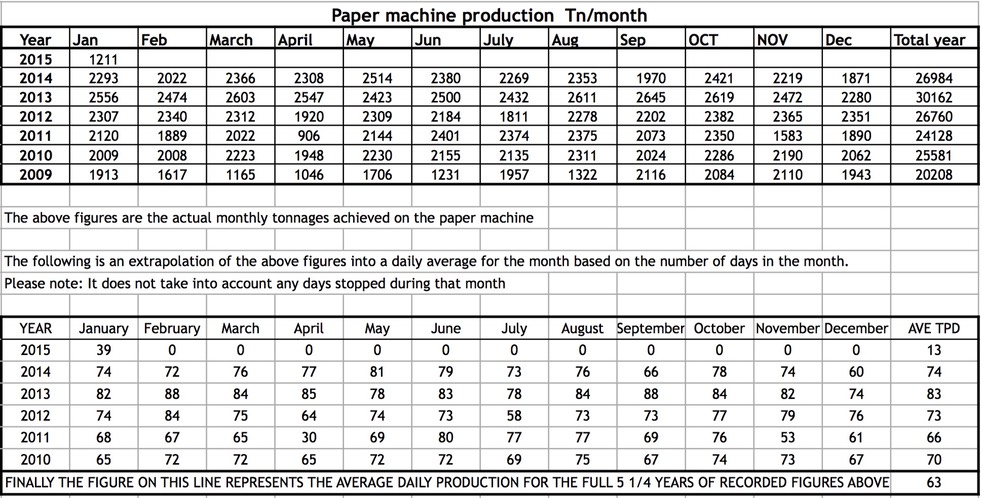

In good condition, the paper machine was shut down January 19tn, as a result of a business decision. PR last few months of operation was 90%, This paper machine is actually dismantled except the Yankee Dryer,
The main characteristics are:

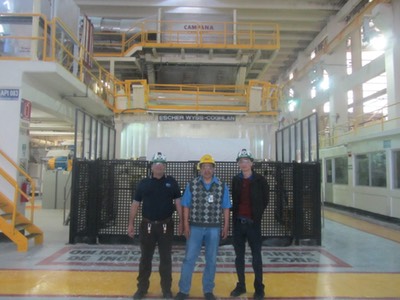

- Ribbon Yankee dryer 4570 mm diameter, 3250 width, design pressure is 125 PSI, operation pressure is 106 PSI, Escher Wyss of 1981, steam injection system, condensates extraction system, flash tank, condensator , thermo compressor valve, safety steam system, natural gas feeding system.

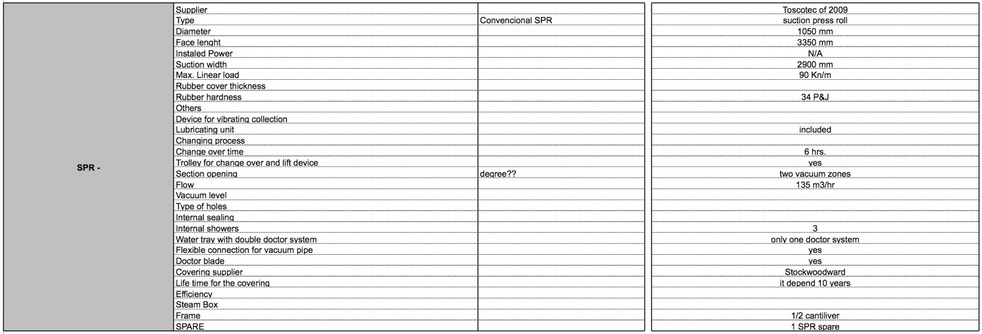

- Suction roll, Toscotec, 1050 mm Diameter, 3350 mm, suction zone width 2900 mm, two vacuum zones, including spare, 2009.

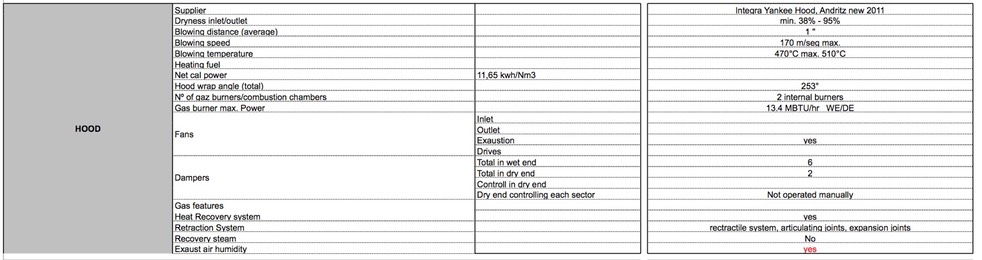

- Integra Yankee Hood, Andritz, with retractile system, including, exhaust fan, articulating joints, expansion joints, heat recovery system, 2 internal burners, rebuild 2009.

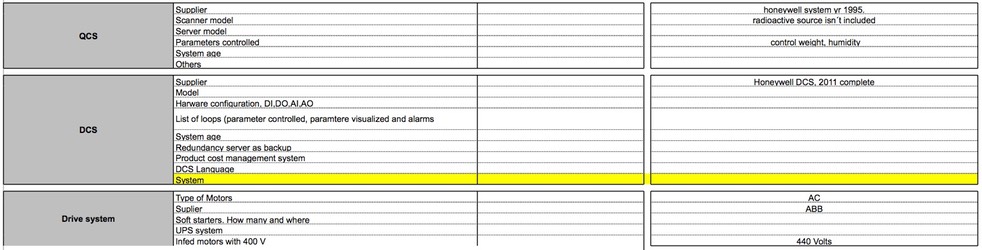

- Measurex system to control weight, humidity and caliper, (radioactive source isn´t included), yr 1995.

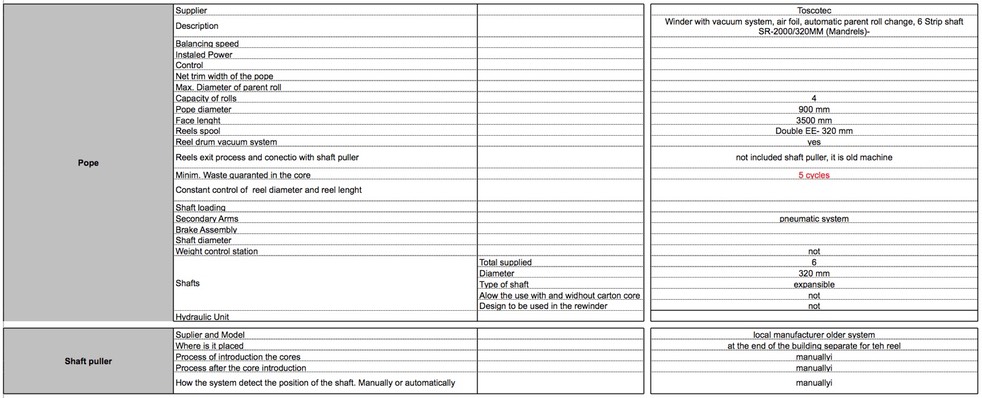

- Winder with vacuum system, air foil, automatic parent roll change, 6 Strip shaft SR-2000/320MM (Mandrels)-
- Felt rolls, couch pit, rolls, felt control Toscotec, rebuilt 2009.
- Crescent former section Toscotec, rebuild 2003 Yr.

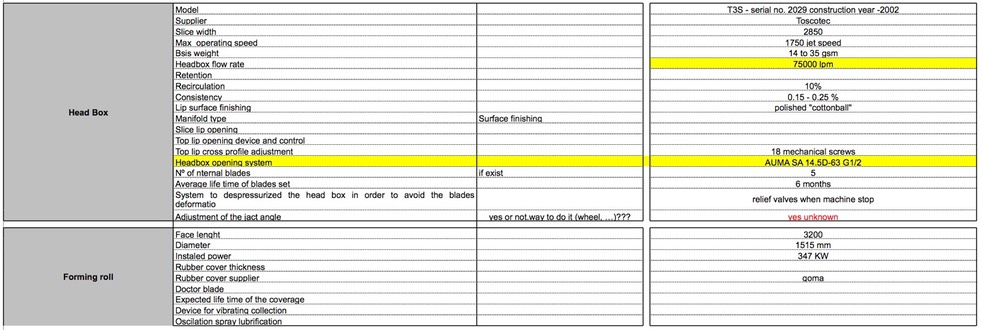

- Tri-layer head box by Toscotec from 2003, SS.

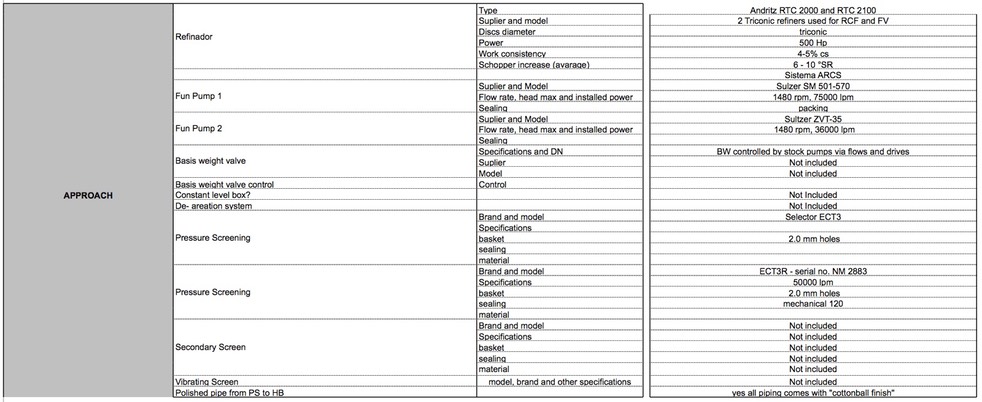

- Fan pump 1, Sultzer MN501/570, 1480 rpm, 50000 lpm, ABB 1000 HP motor.
- Fan Pump 2, Sultzer ZVT-35, 1480 rpm, 36000 lpm, Siemmens 500 KM motor, 2003.

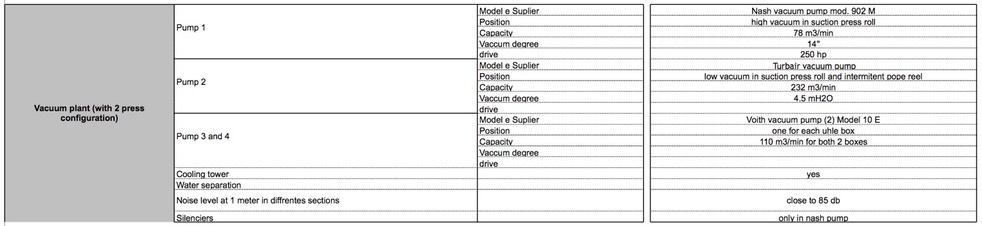

- Nash vacuum pump
- Turbair vacuum pump
- Voith vacuum pump (2)
- Honeywell DCS, 2011 complete.
- Manual Control panel.
- Cleaning Doctor with electro mechanic EMO III D22783 oscillator.
- Creping Doctor.
- Steam shower
- ST3R Toscotec pressured screen, 50000 lpm, 1.6 mm holes, 75 KW, 2.83 m2 screening area.
- ST3R Toscotec pressured screen, 50000 lpm, 1.6 mm holes, 75 KW, 2.83 m2 screening area.

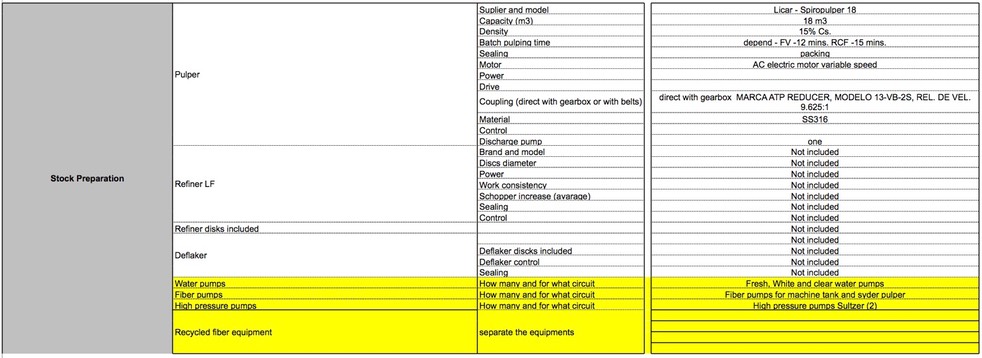

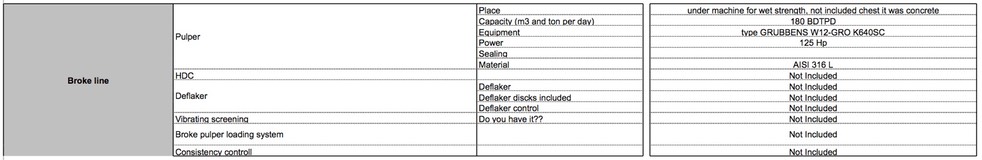

- Syder pulper complete.
- Showers complete.
- High pressure pumps Sultzer (2)
- Hydraulic units 4.

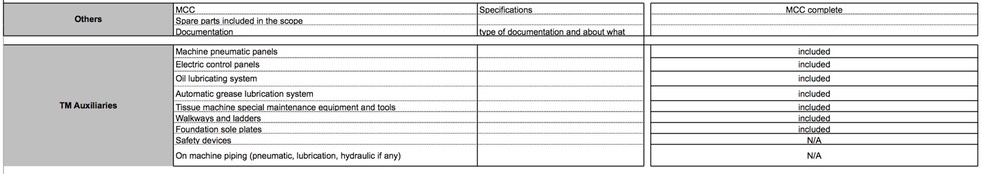

- MCC complete.
- Yankee spray system complete.

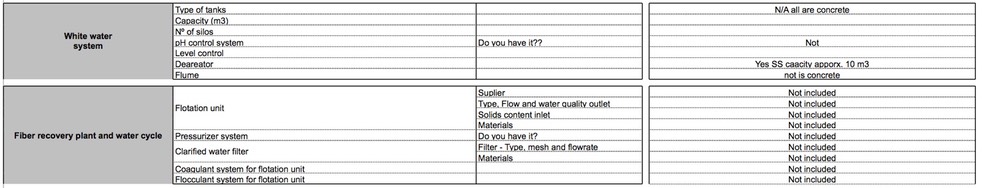

- Fresh, White and clear water pumps.
- Fiber pumps for machine tank and syder pulper
