SM4054 - RECYCLED FIBRE PLANT 450 TPD – EXCLUSIVE SALES PARTNER

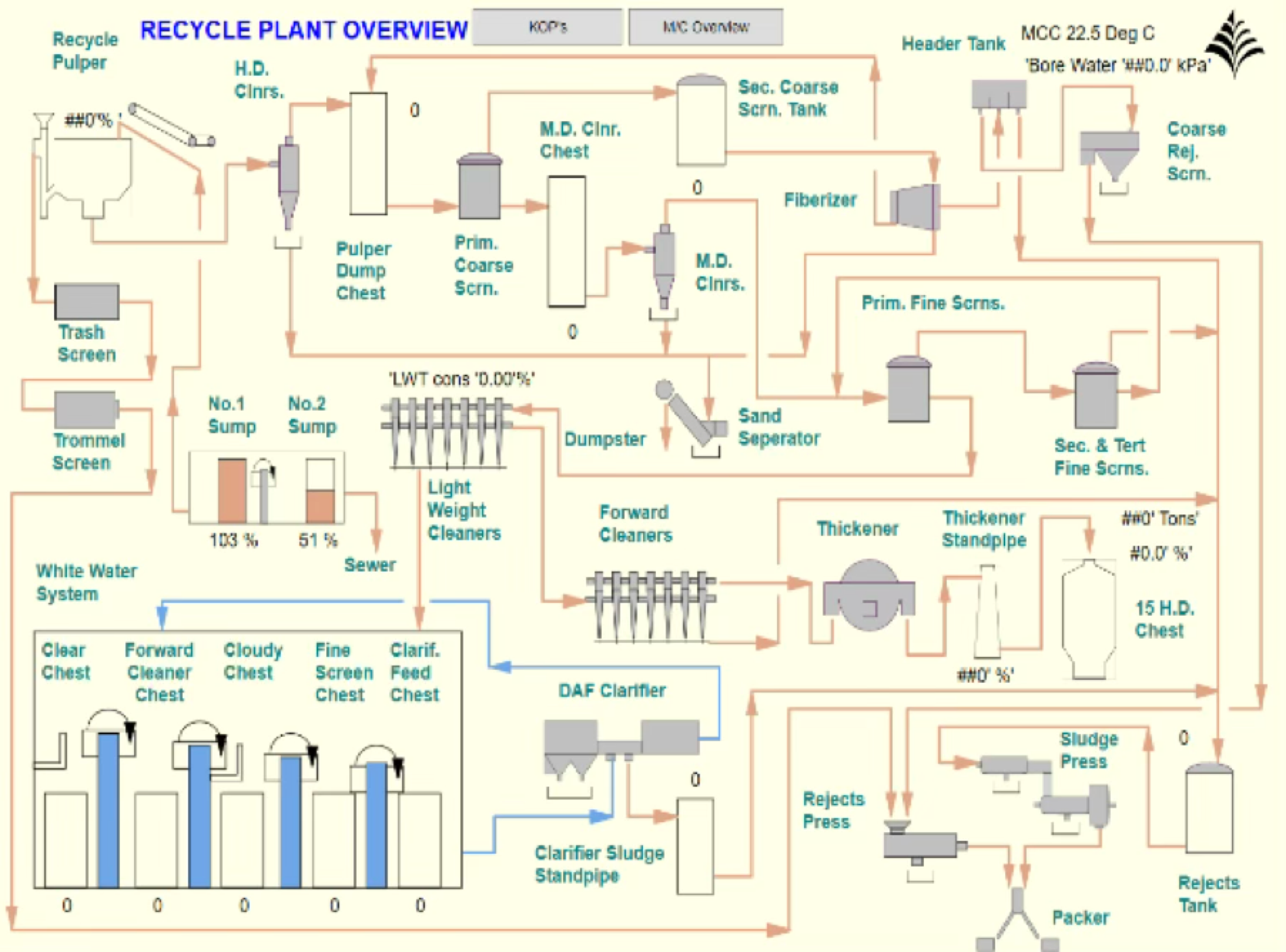

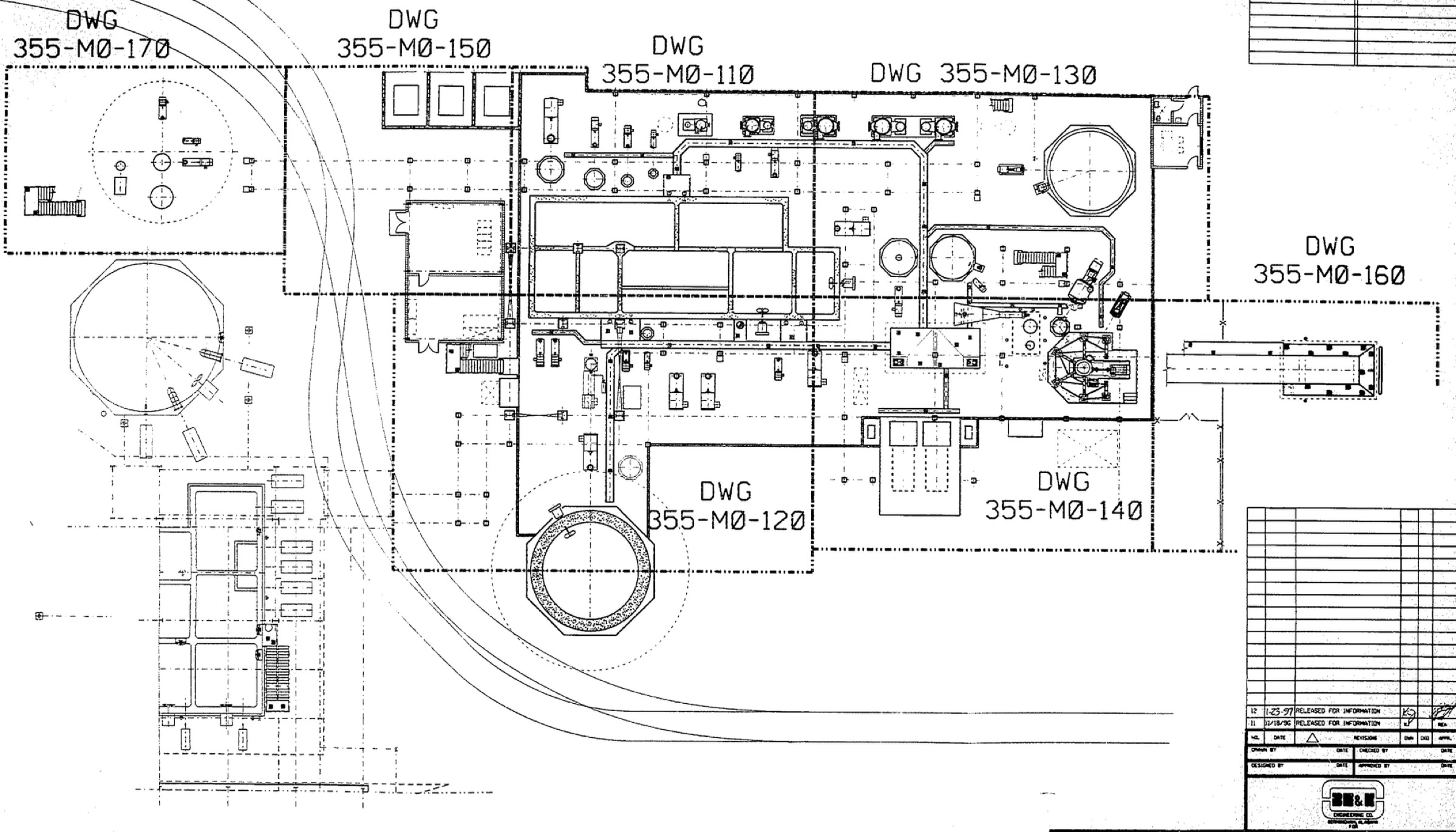

BASIS OF DESIGN
450T/Day
~ 12% consistency
80% OCC / 20% MWP

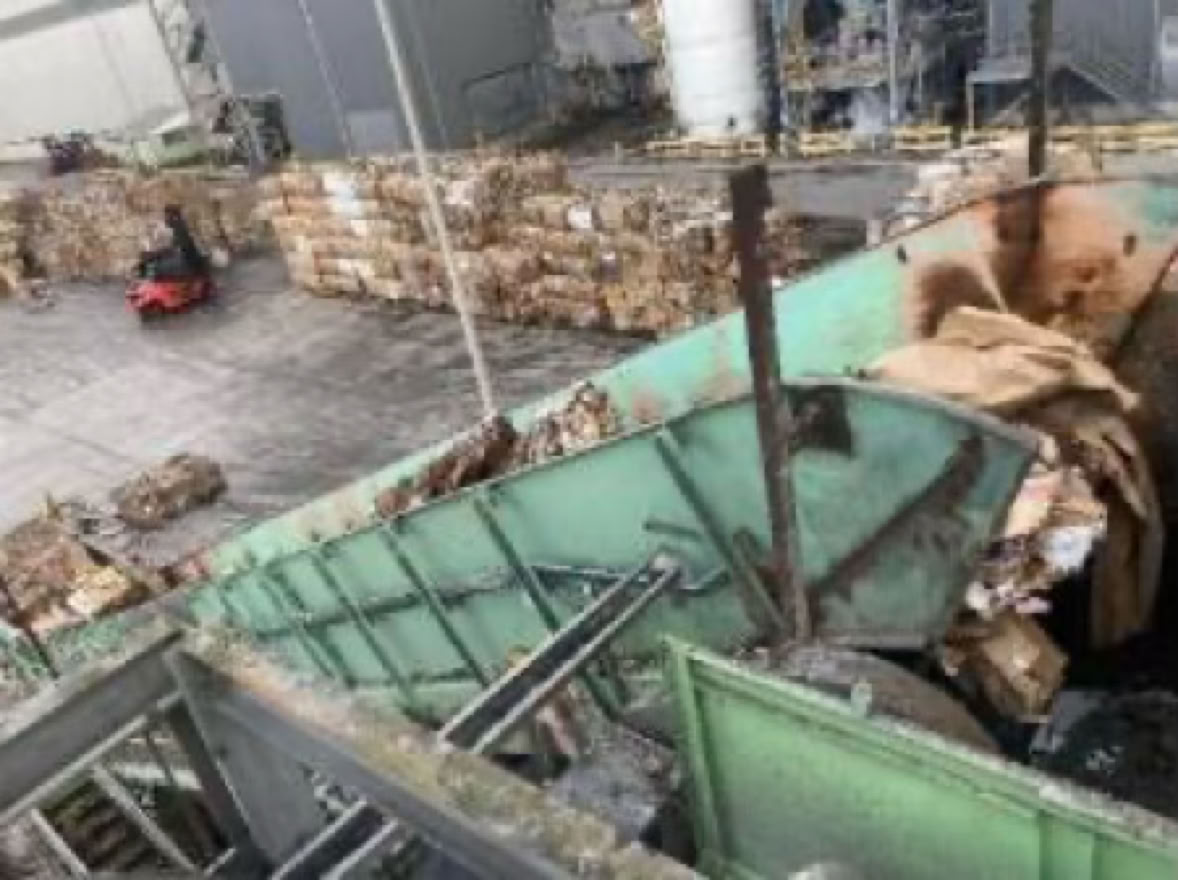

Conveyor

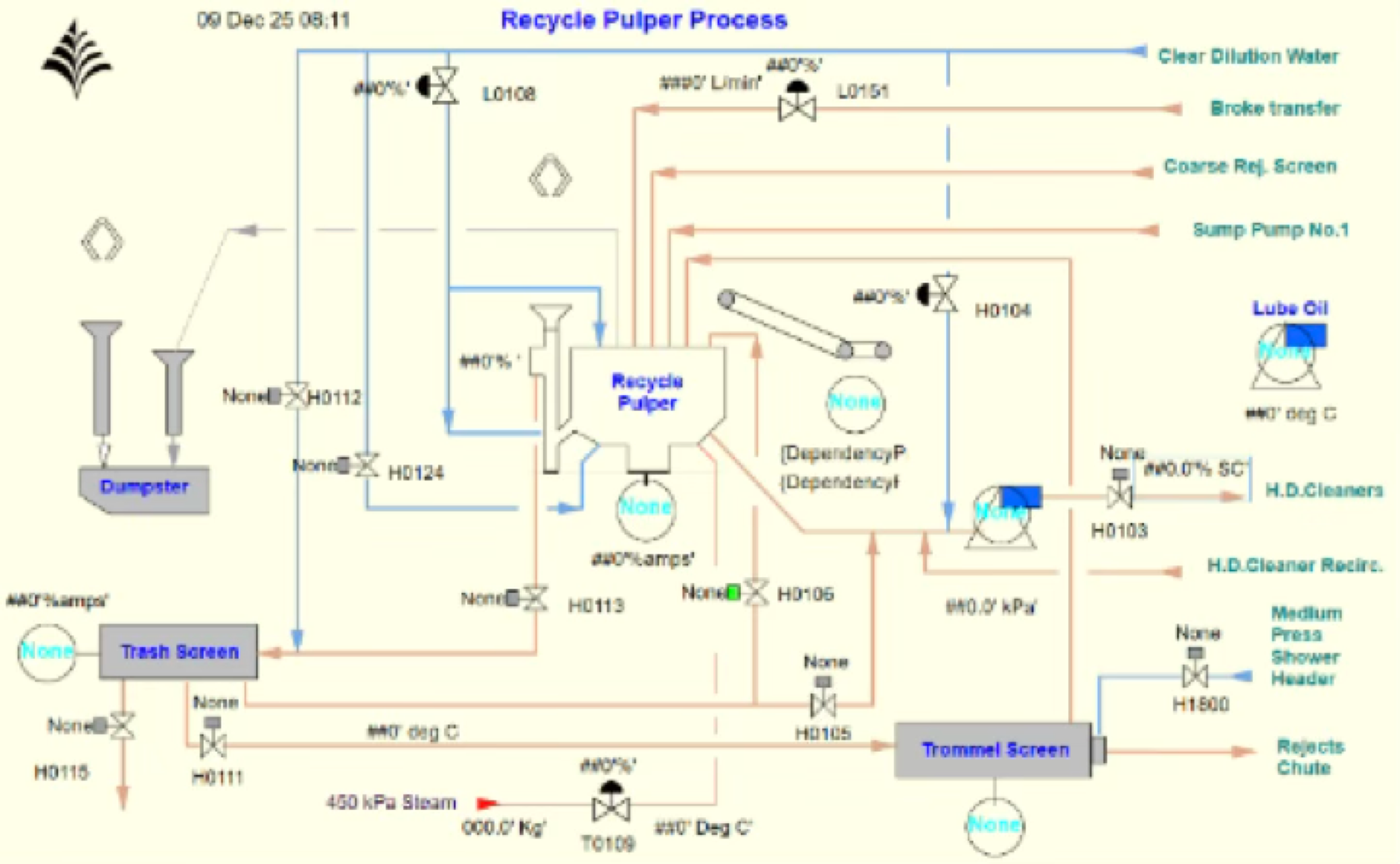

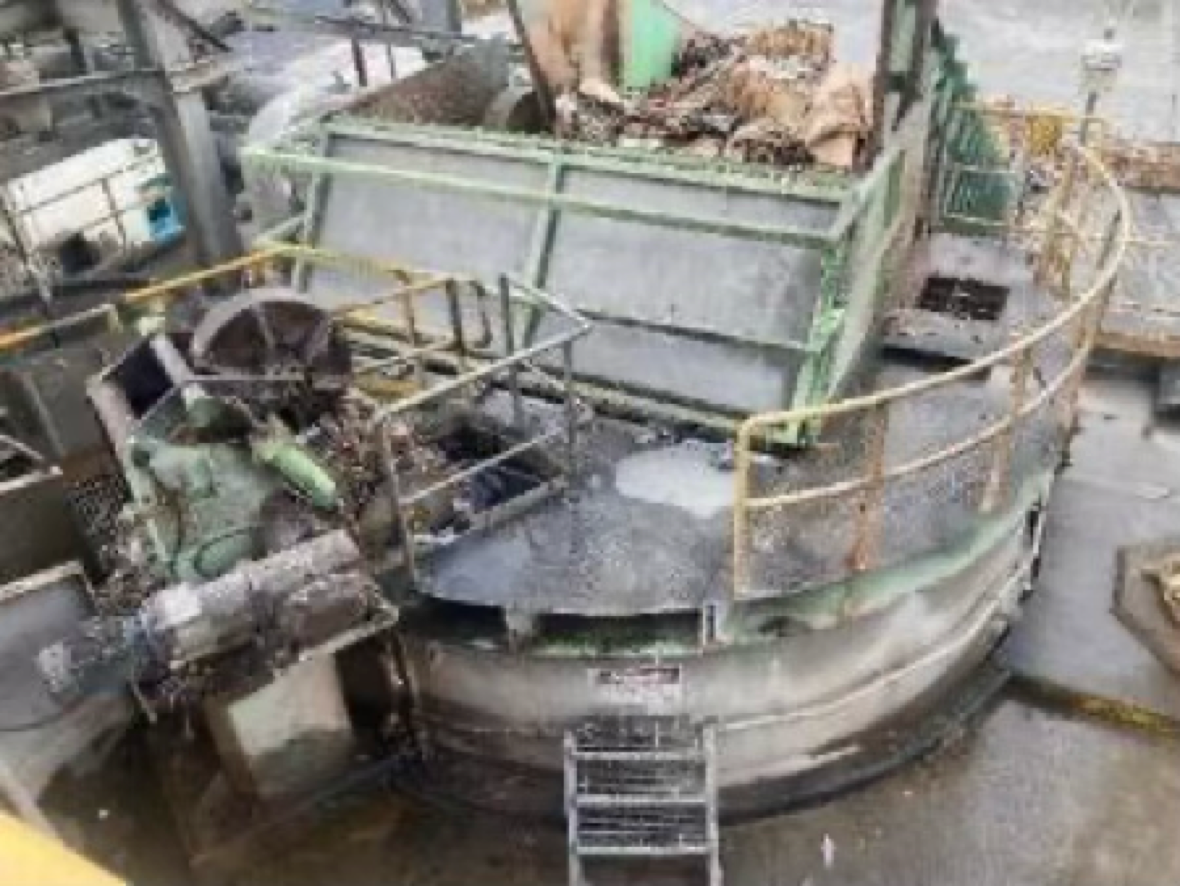

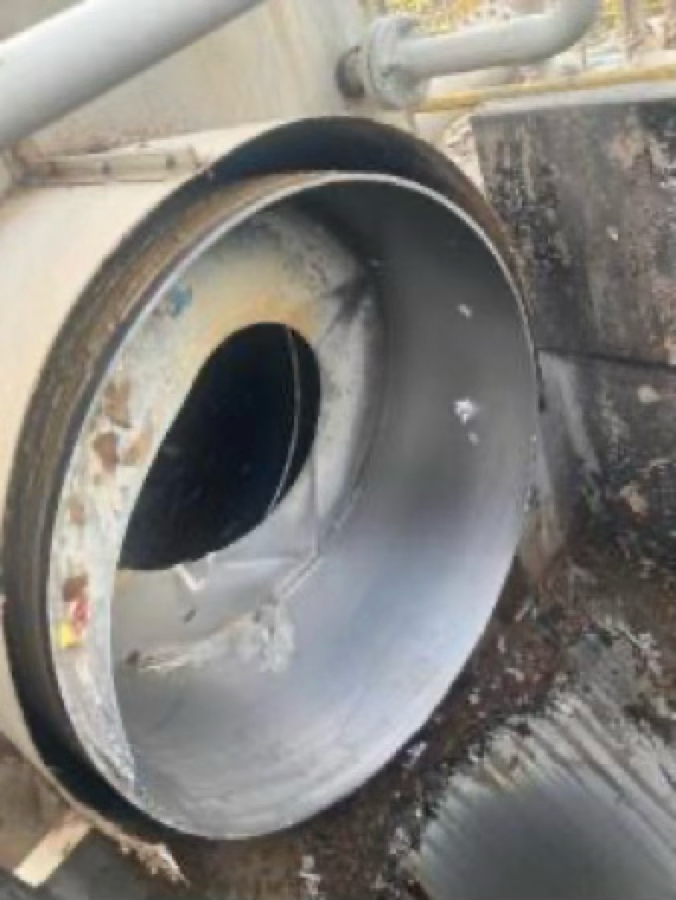

Pulper

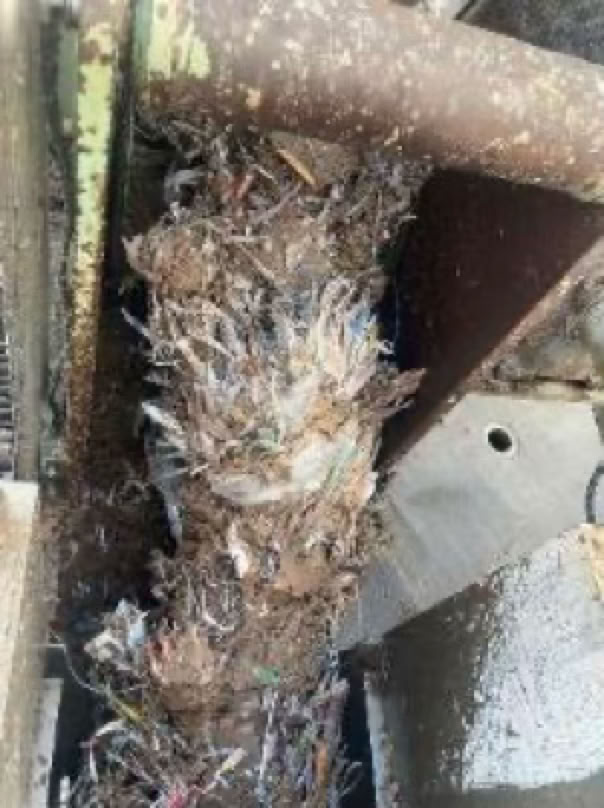

Ragger
TRASH SCREEN
Motor: D315S/415V/75kW/6P
Screen: Black Clawson Hydrapurge HP33-3000
Belt Drive, 3/8” Holes. 50-75 TPD, 3180l/min

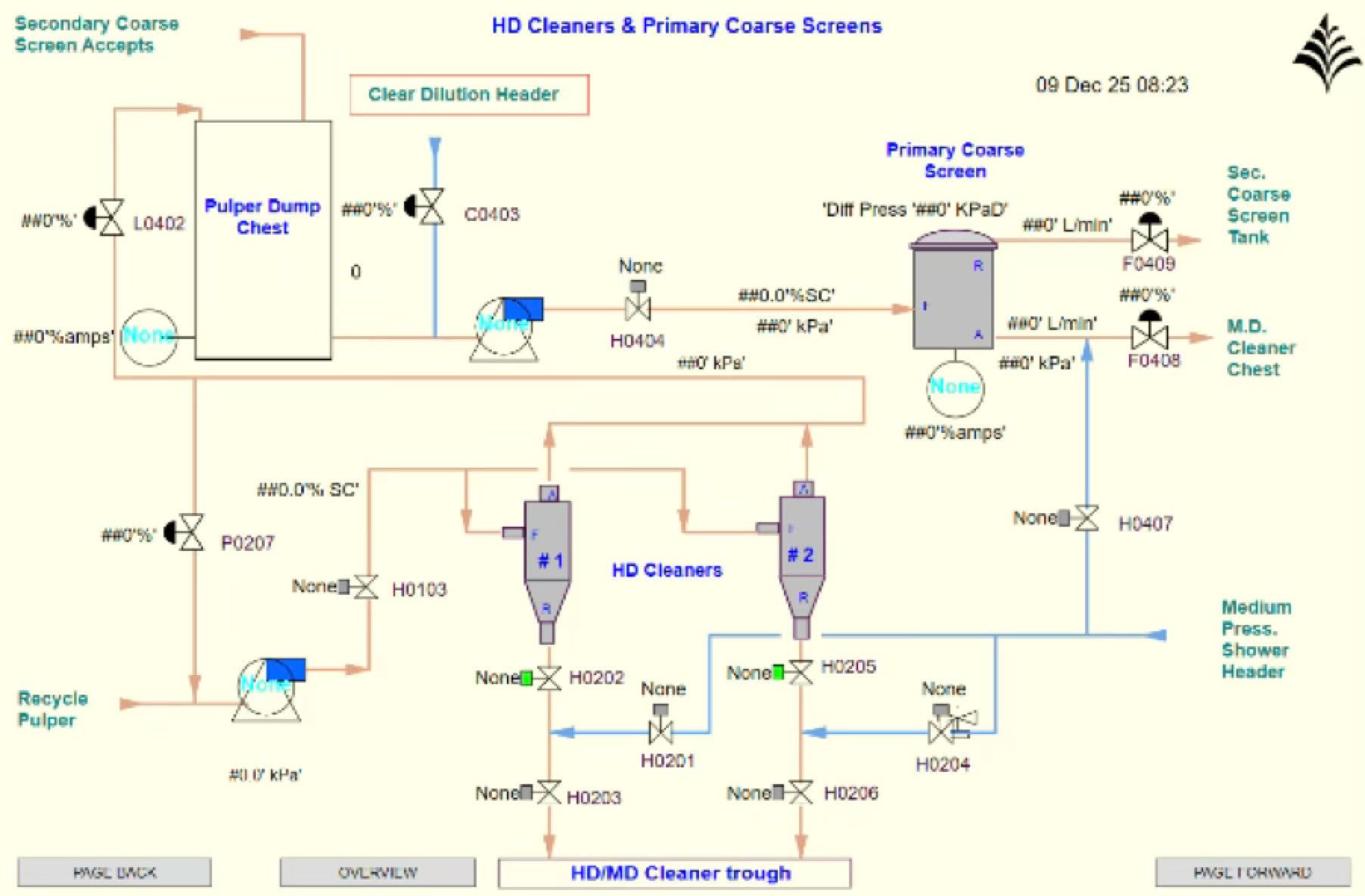

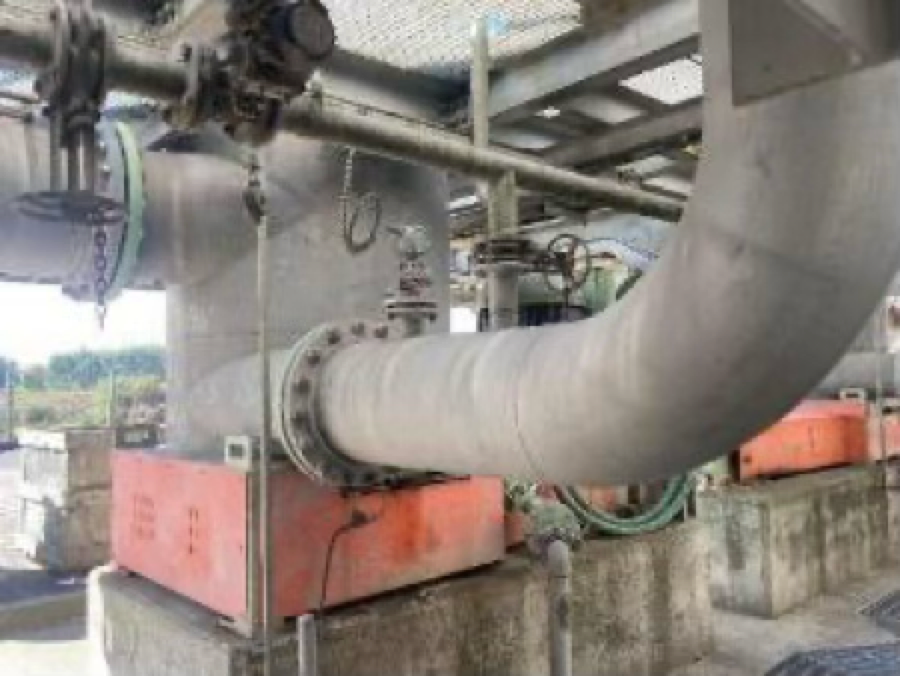

PRIMARY COARSE CLEANING/SCREENING

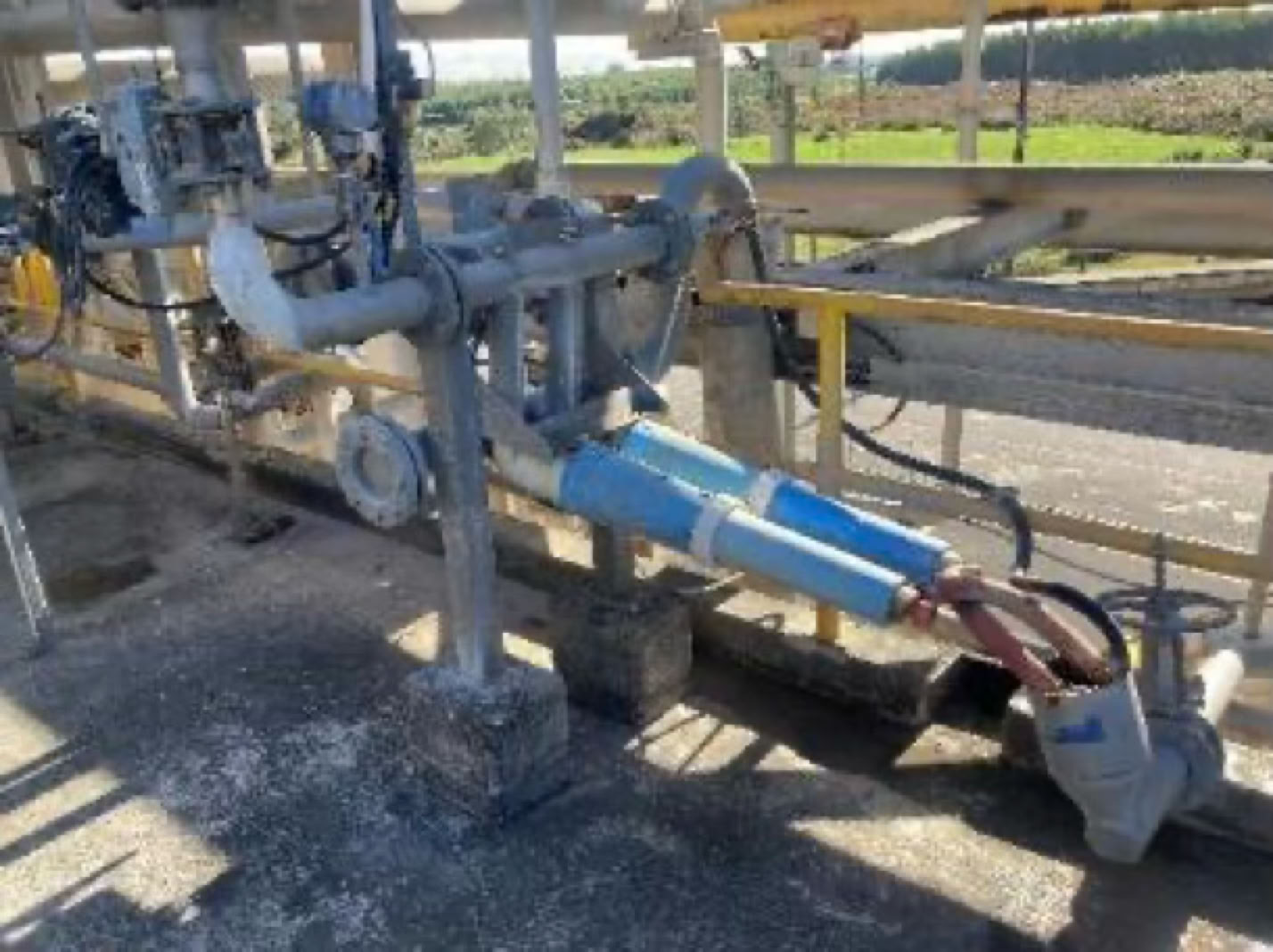

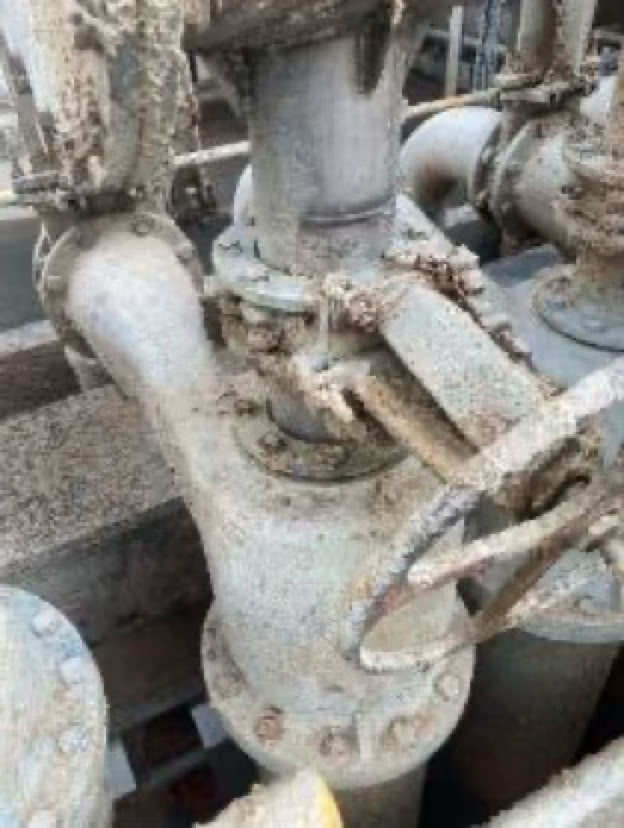

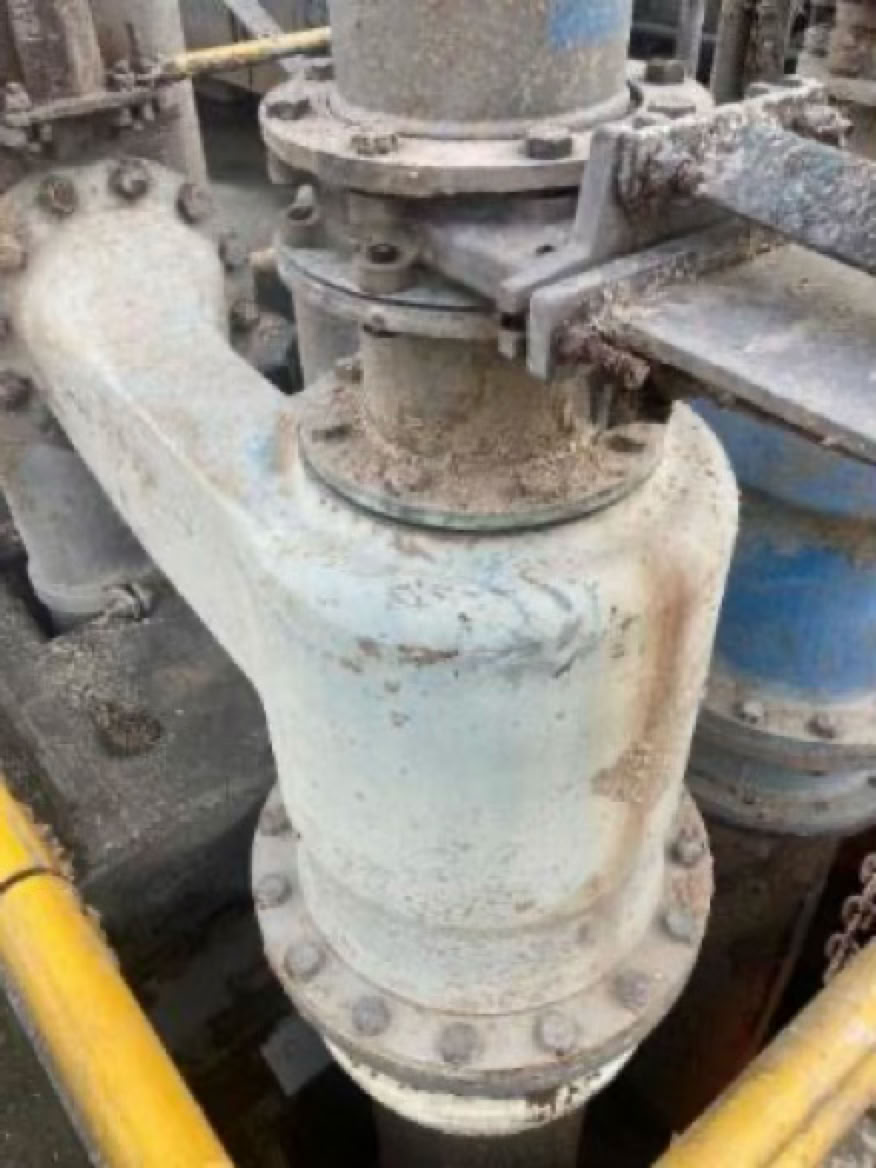

HD CLEANERS
Black Clawson HD 17” x 2
DN200 valves on junk trap

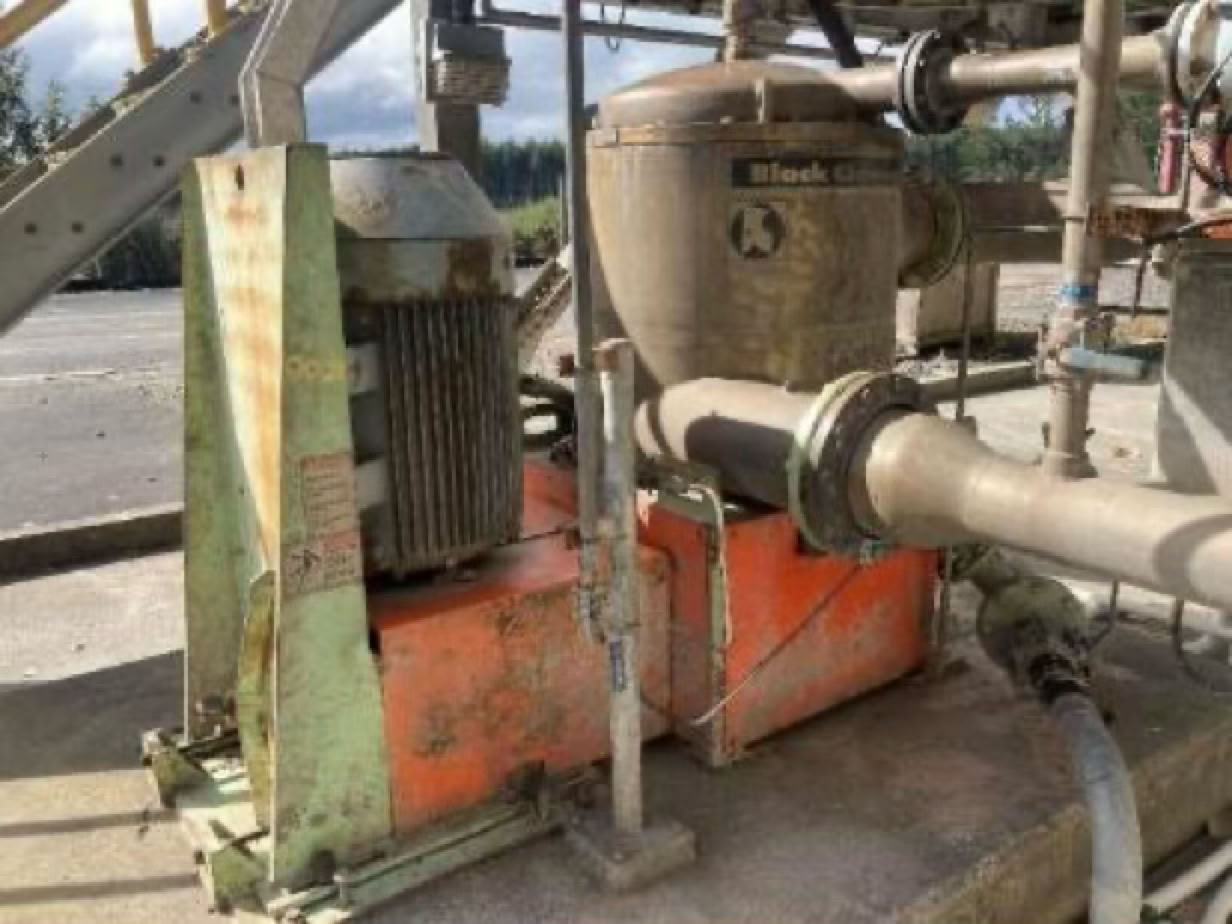

PRIMARY COARSE SCREEN
DOM 1996
Motor: POPE, D355LY, 415V/255kW/6P
Screen: Black Clawson, ULTRA-V UV600, #96-UV600-8064, 2.0mm Holes
Belt Drive

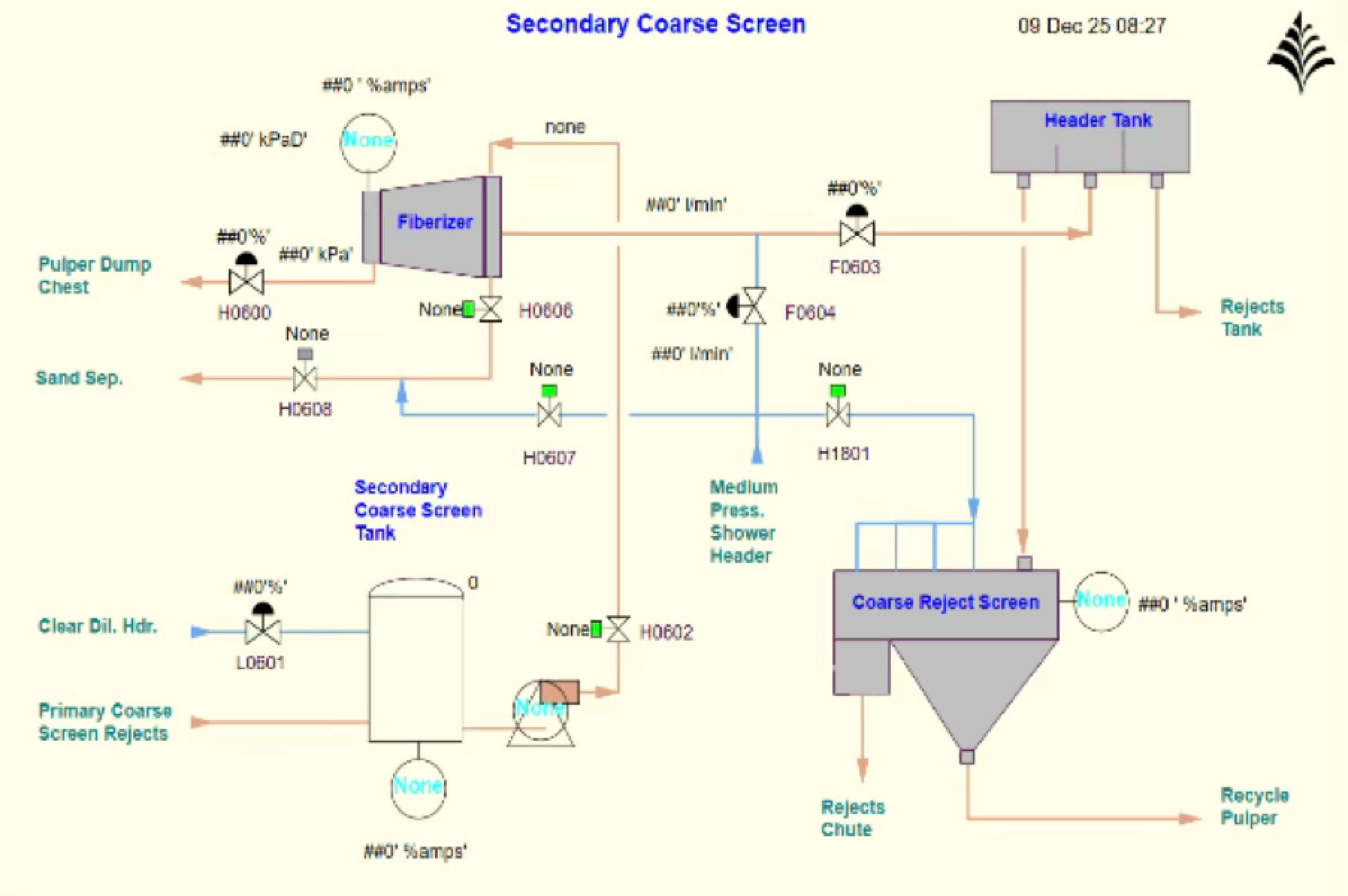

SECONDARY COARSE SCREENING

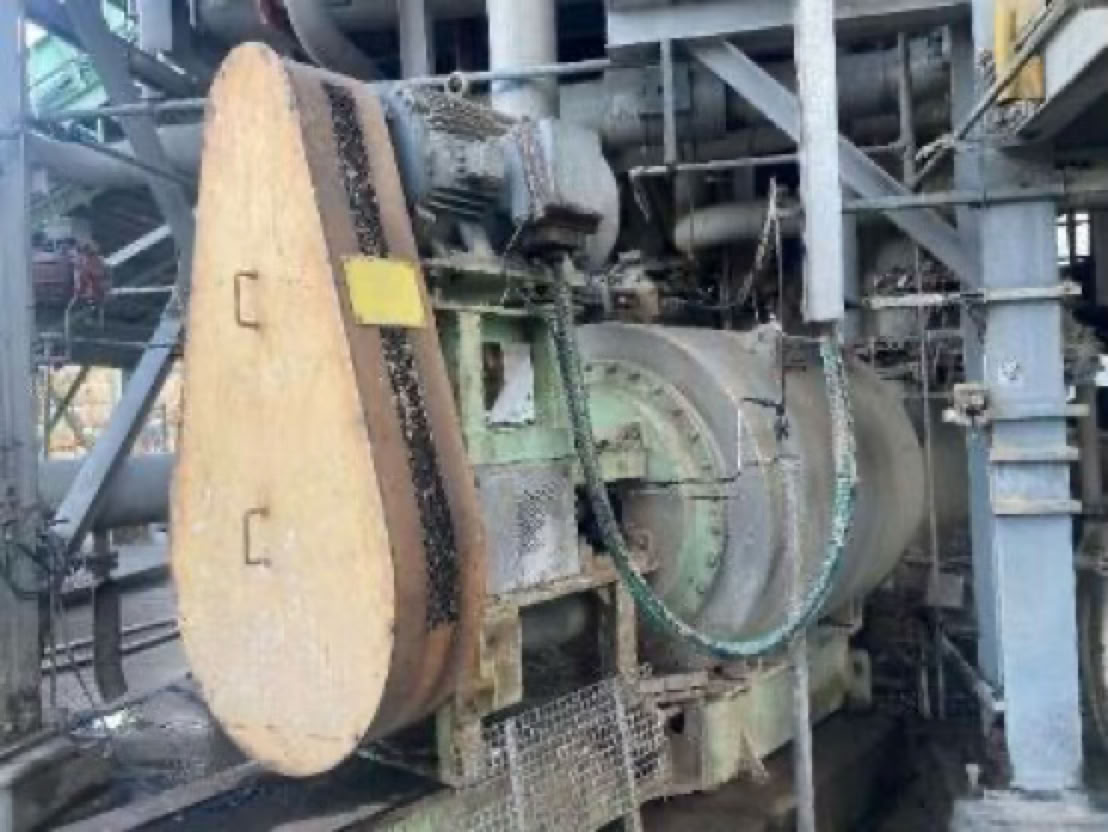

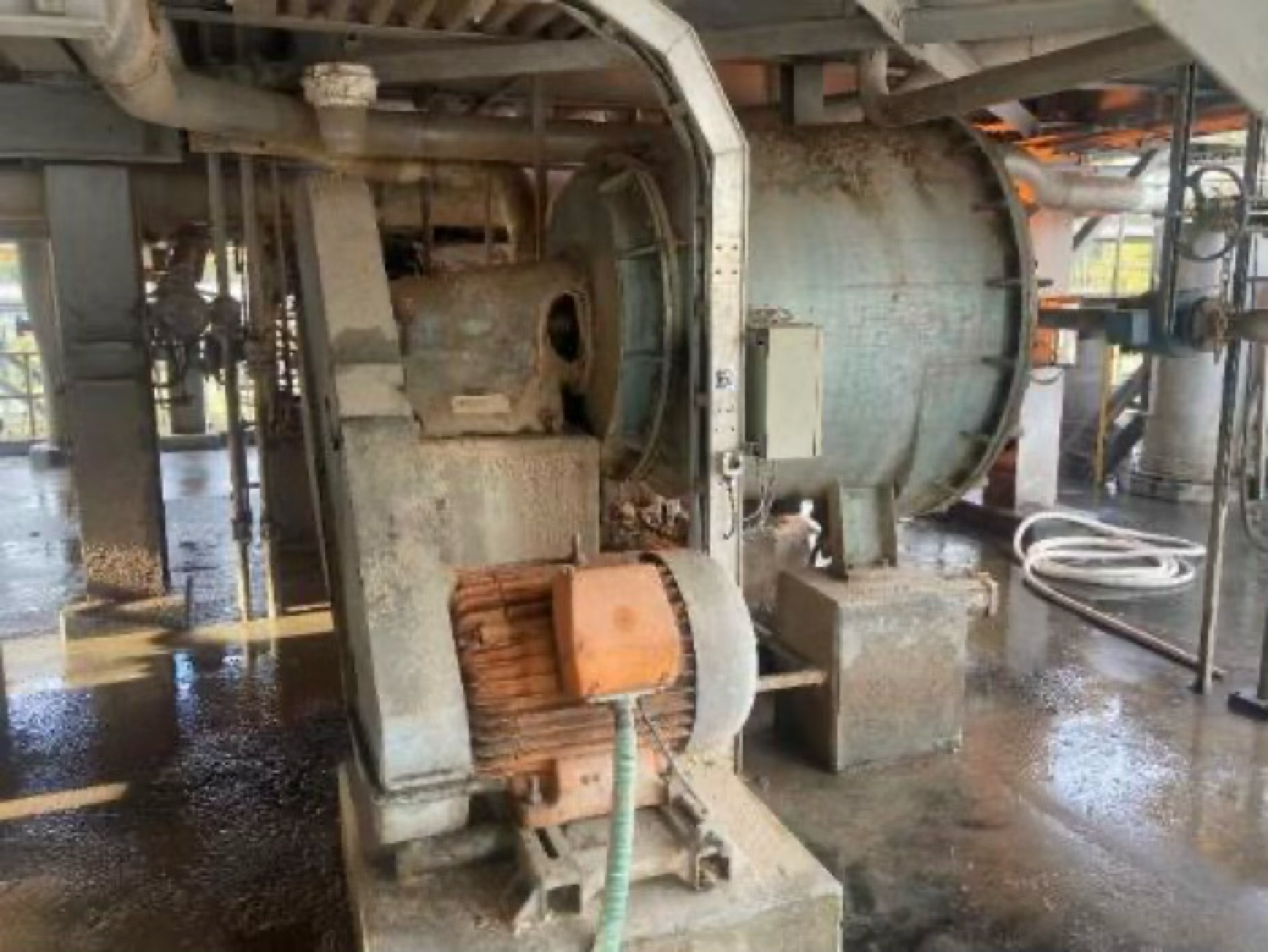

FIBREIZER
Motor: ASEA D315S/415V/110kW/4P
Pump: ESHER WYSS F2 Fibreizer – 12mm holes
Belt Drive

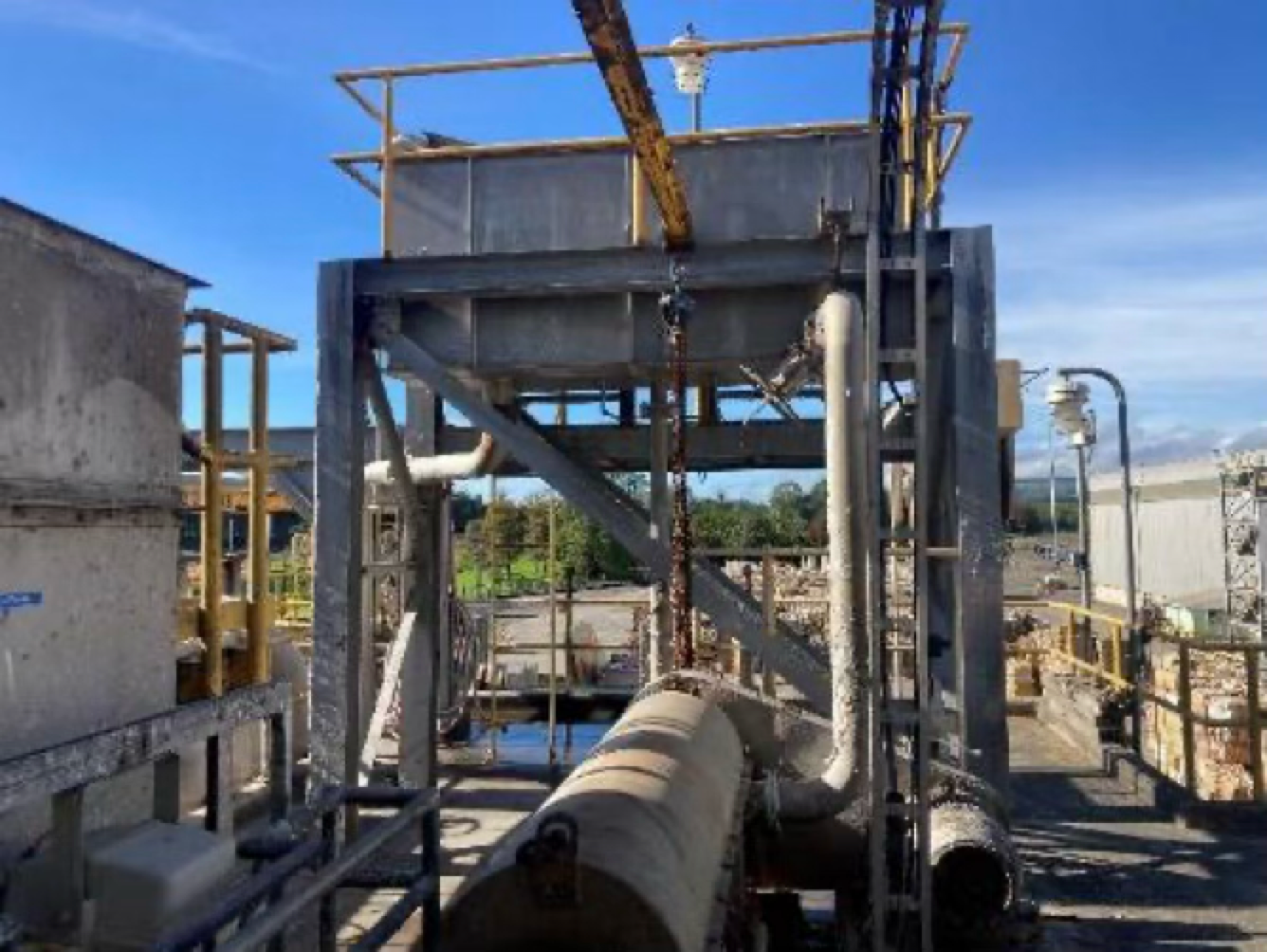

REJECT SCREEN HEADER TANK
3000L x 1000W x 1200H, Baffled with overflow, Stainless

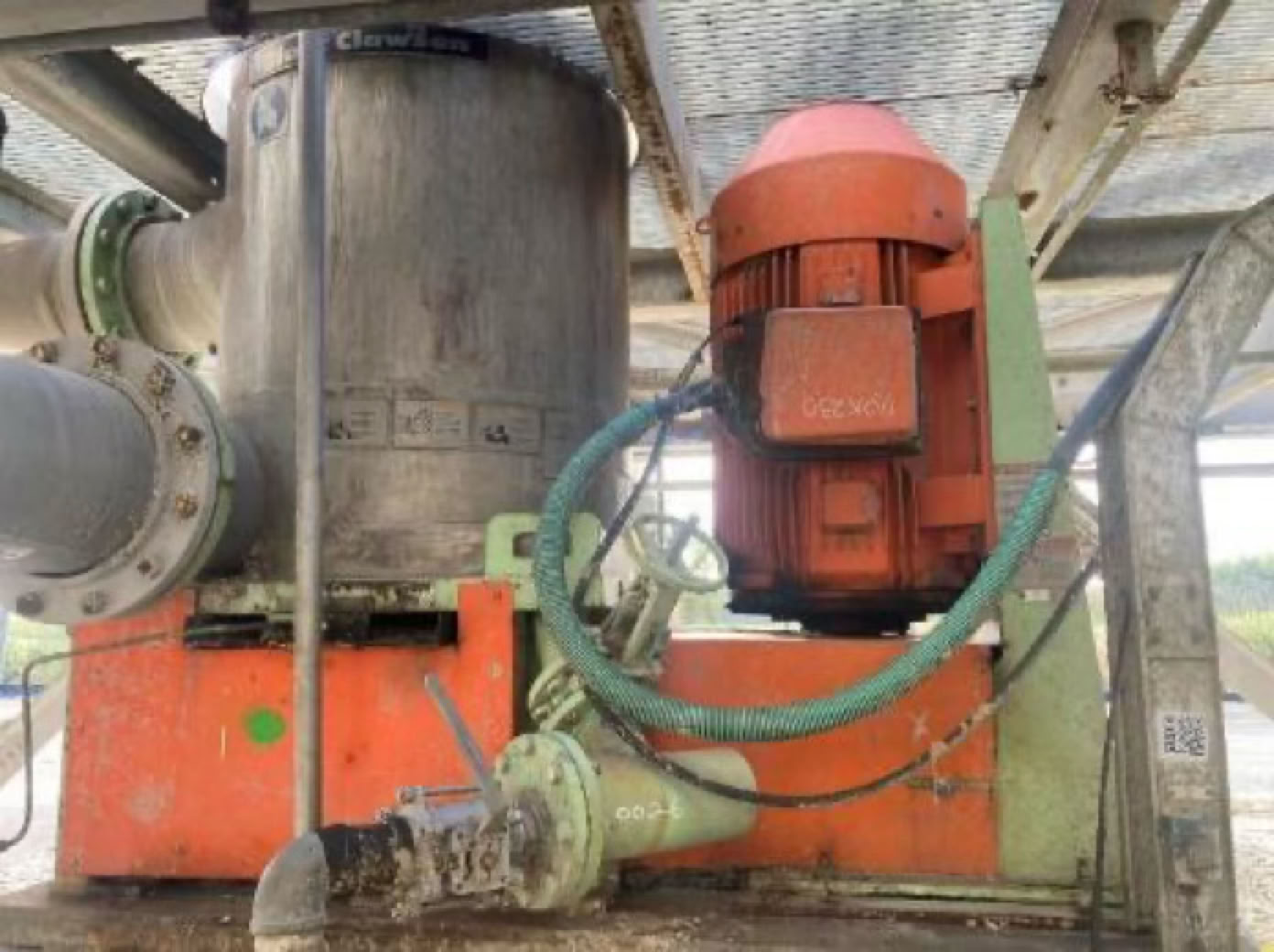

COARSE REJECT SCREEN
Motor: POPE, D225S, 415V/37kW/4P
Screen: Black Clawson, Ultra Sorter, US30, 96-US30-0121
Belt Drive

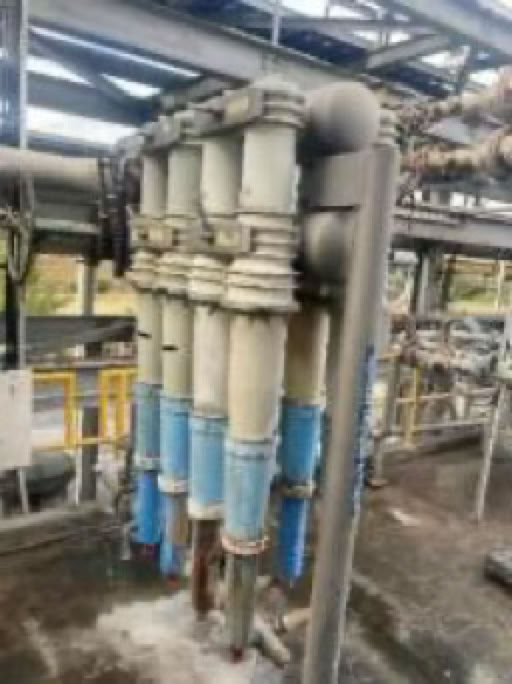

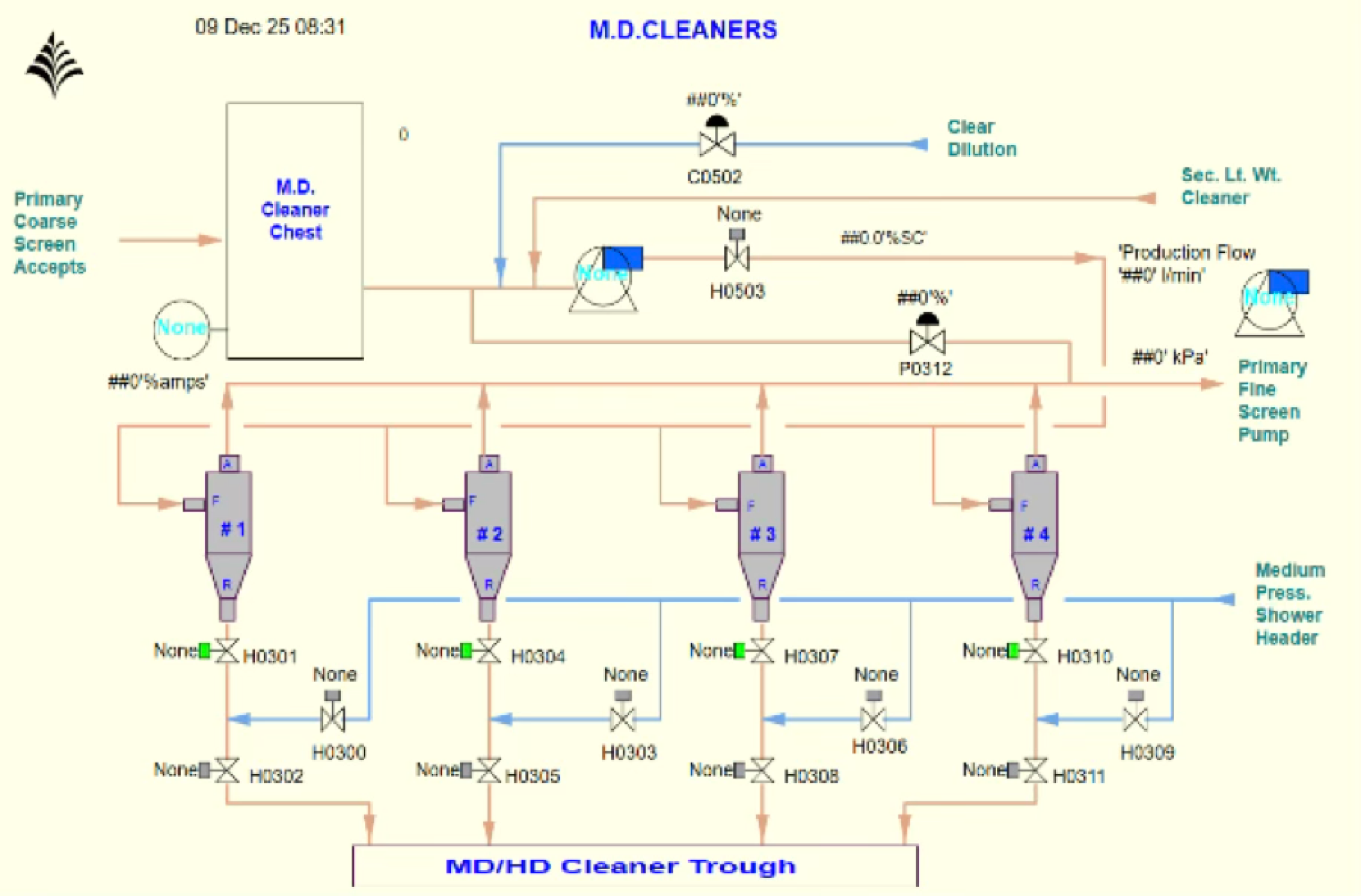

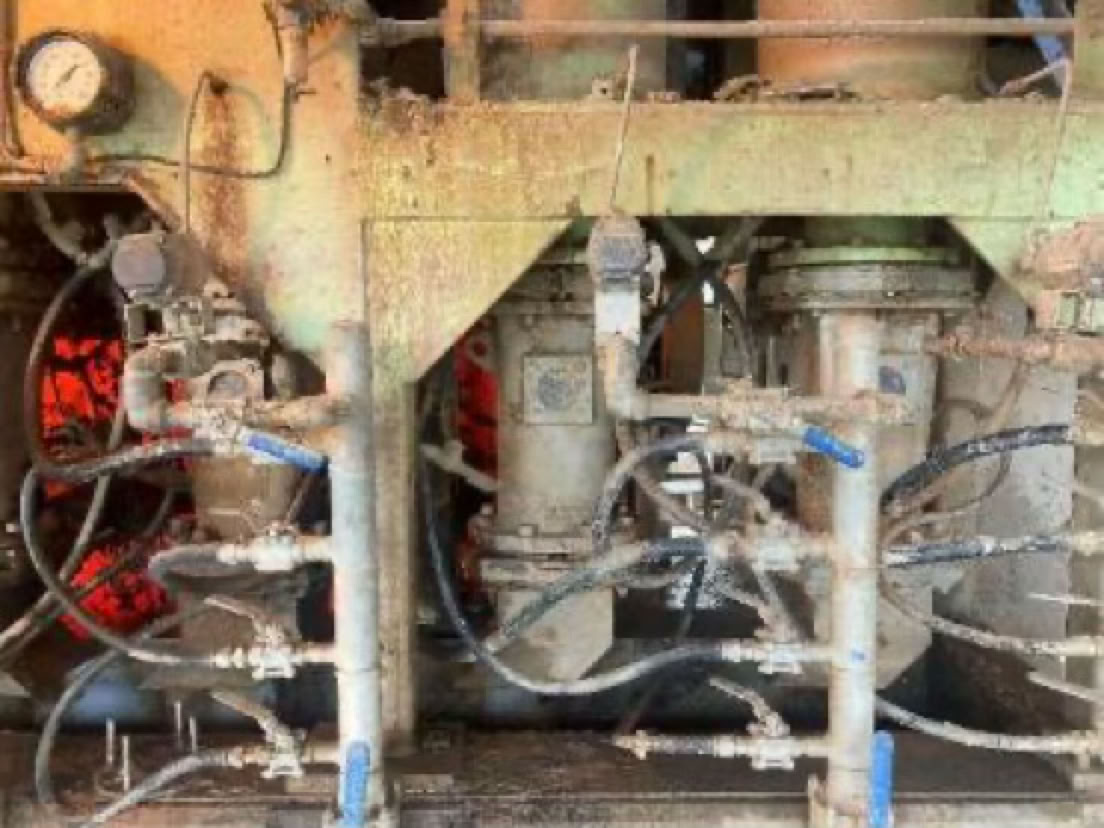

MD CLEANING
MD Cleaners x 4
Black Clawson 14.5”
DN200 valves on junk trap

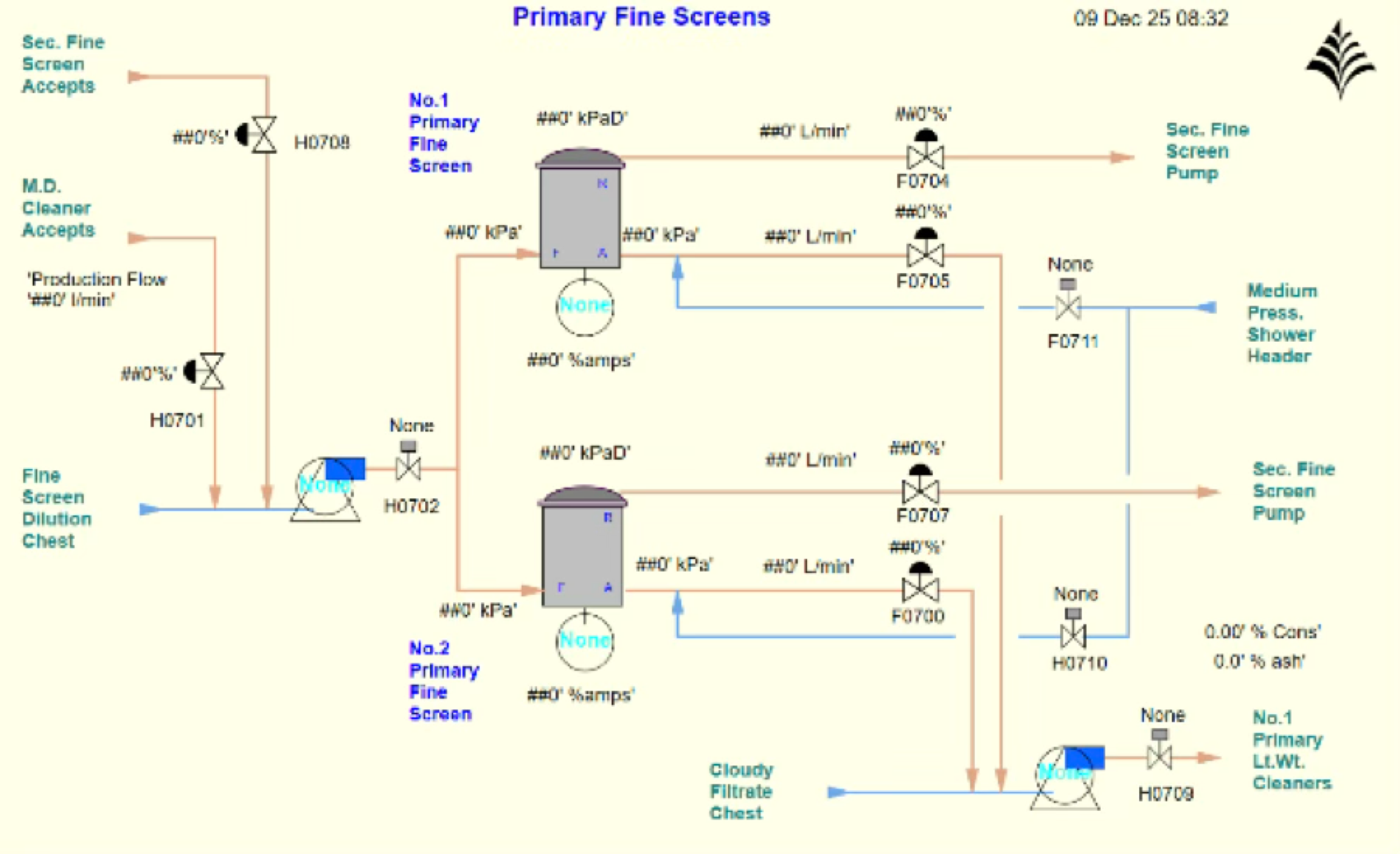

PRIMARY FINE SCREENING

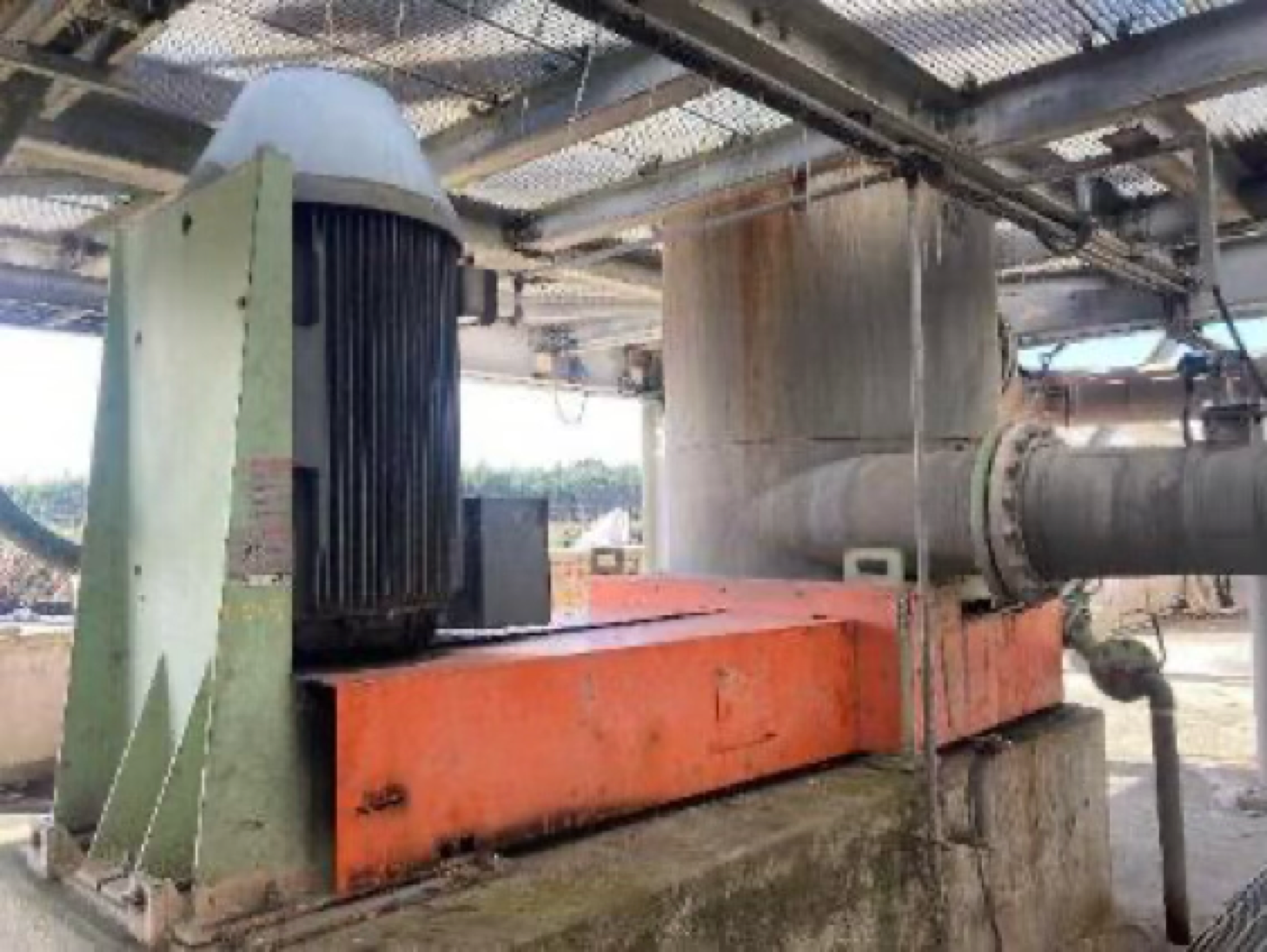

PRIMARY FINE SCREENS x 2
Motor: POPE, D355LY, 415V/200kW/6P
Screen: Black Clawson, ULTRA-V UV600
Belt Drive
0.20mm Slots

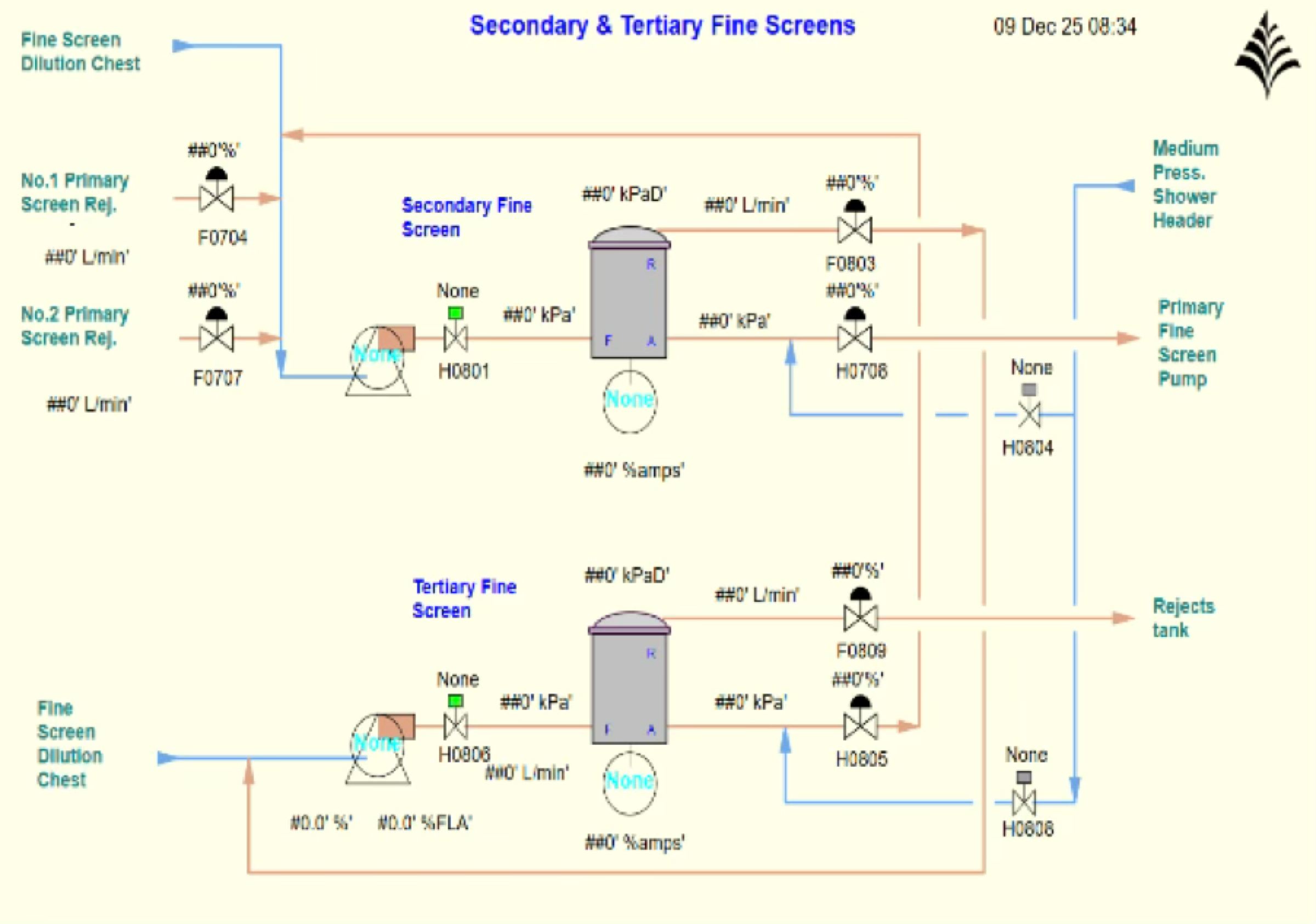

SECONDARY/TERTIARY FINE SCREENING
SECONDARY FINE SCREEN
Motor: POPE, D315M, 415V/110kW/6P
Screen: Black Clawson, ULTRA-V UV400,
Belt Drive
0.20mm Slots
TERTIARY FINE SCREEN
Motor: POPE, D280M, 415V/55kW/6P
Screen: Black Clawson, ULTRA-V UV200,
Belt Drive
0.20mm Slots

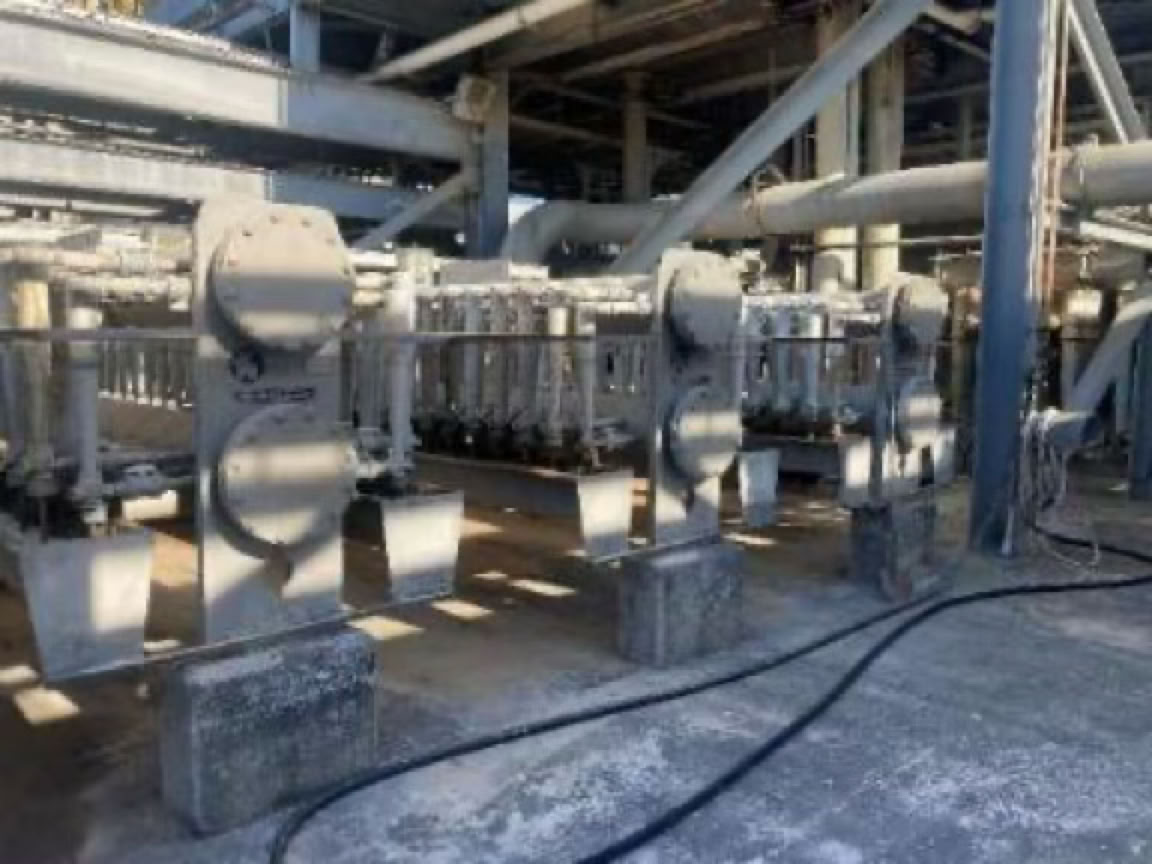

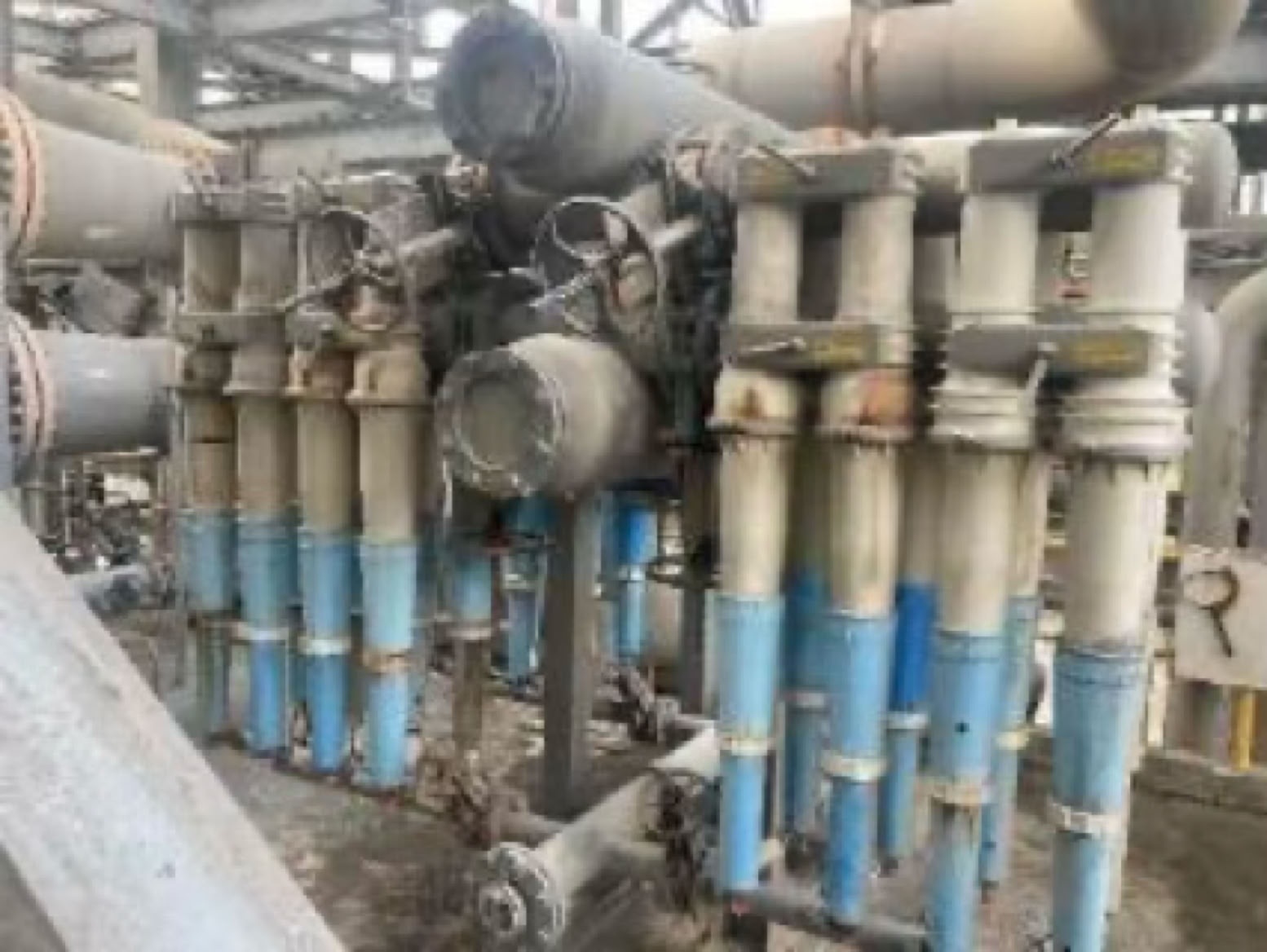

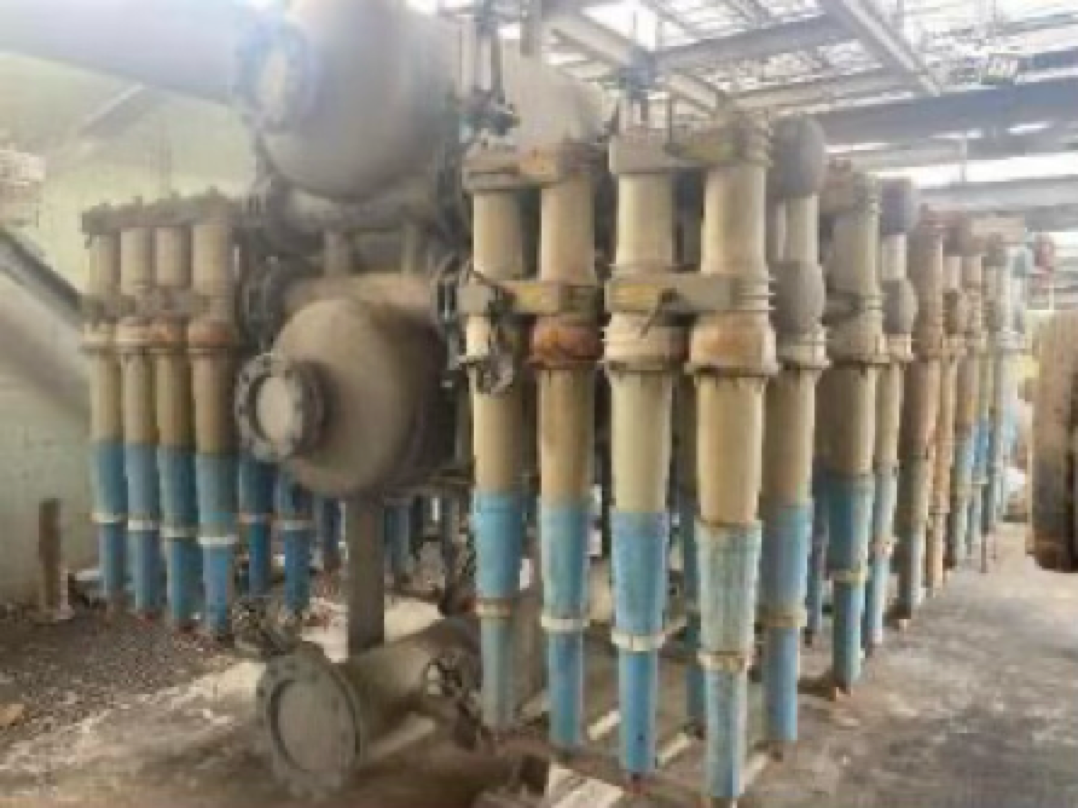

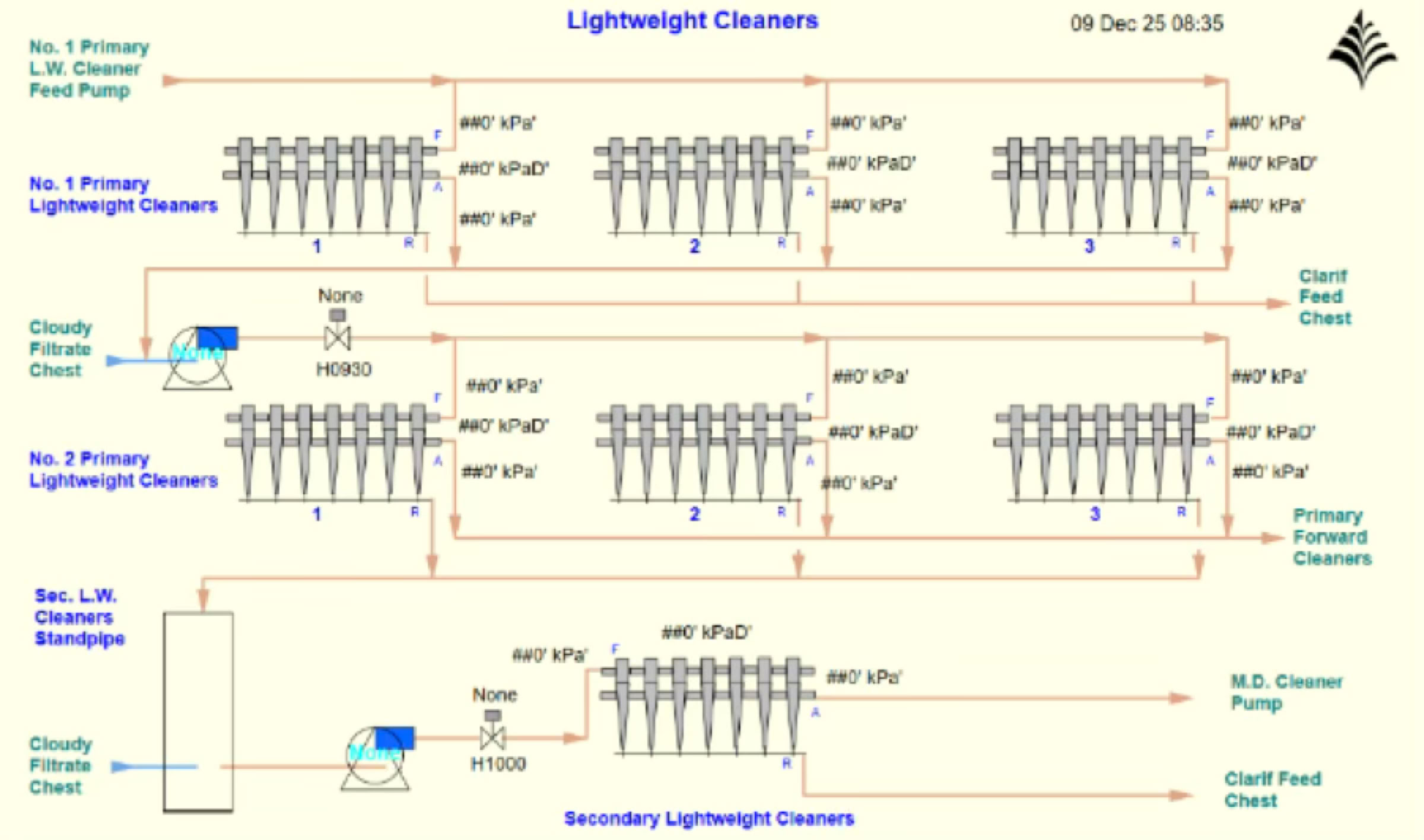

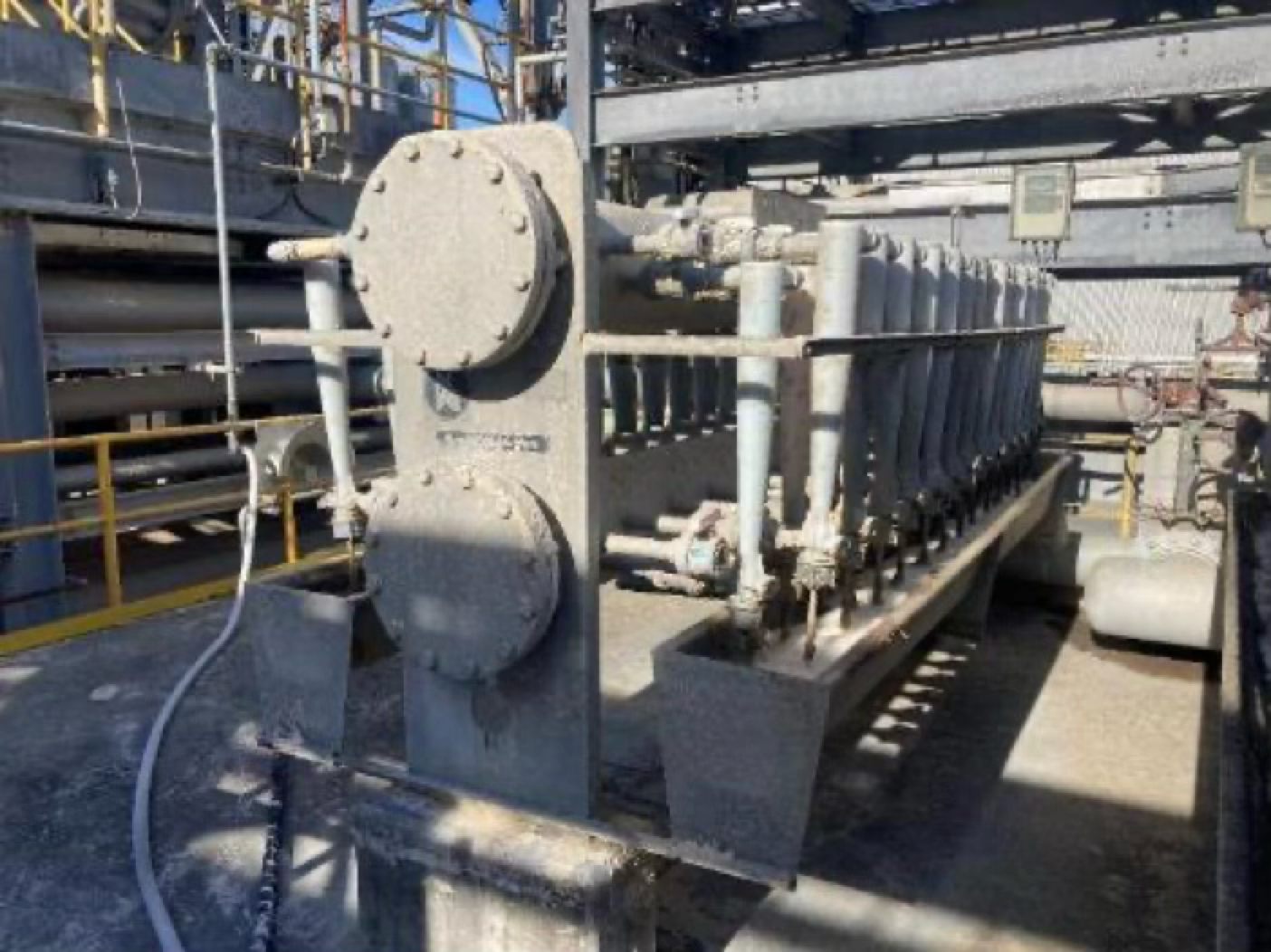

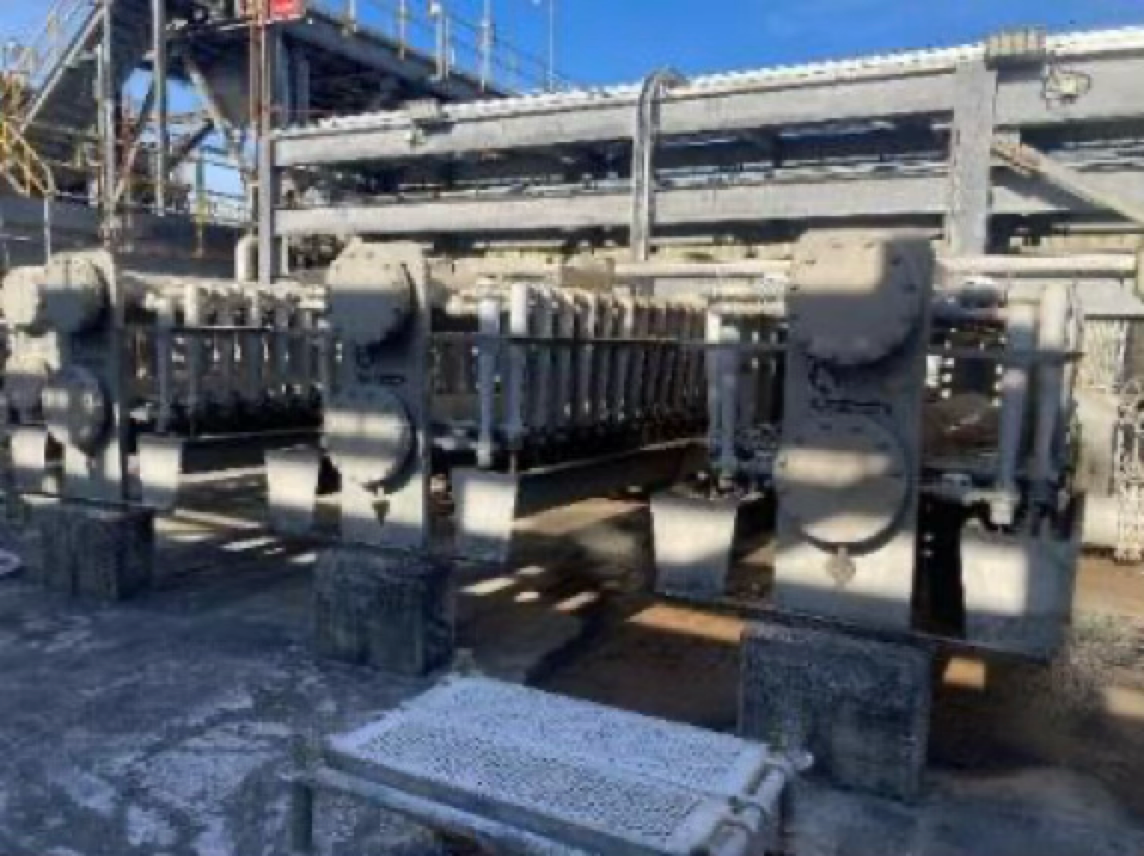

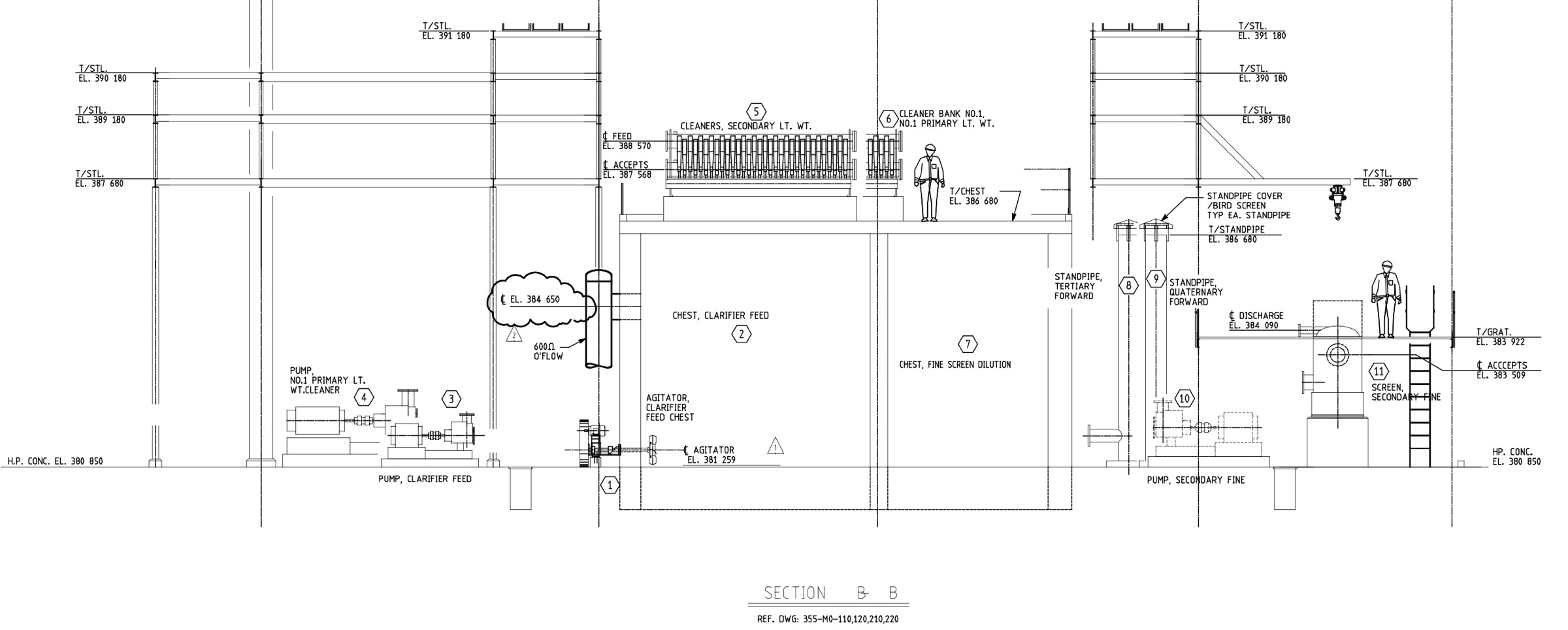

LIGHTWEIGHT CLEANING

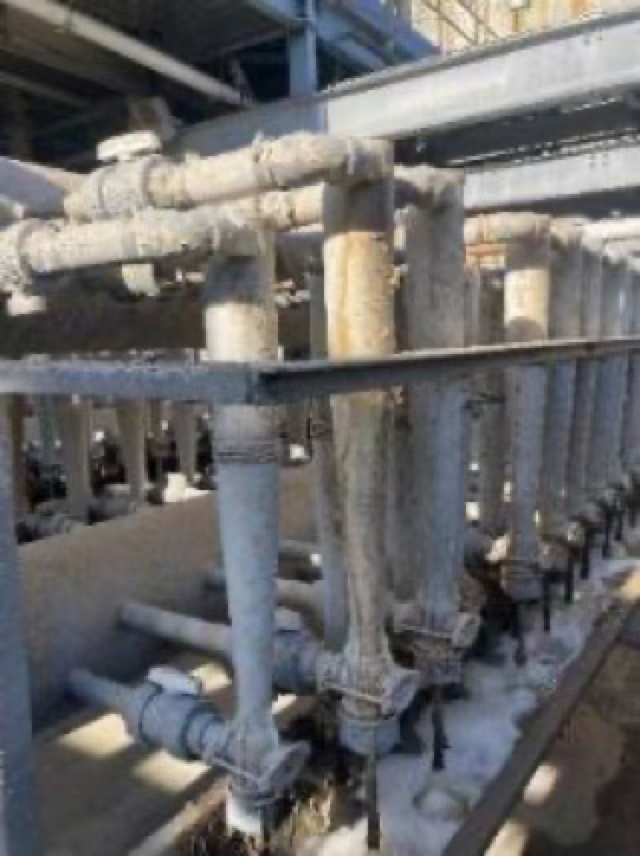

#1 PRIMARY LIGHTWEIGHT CLEANERS
Black Clawson X-Clone LD Cleaner
3 Banks of 72 cleaners
#2 PRIMARY LIGHTWEIGHT CLEANERS
Black Clawson X-Clone LD Cleaner
3 Banks of 72 cleaners
SECONDARY LIGHTWEIGHT CLEANERS
Black Clawson X-Clone LD Cleaner
1 bank of 56 cleaners

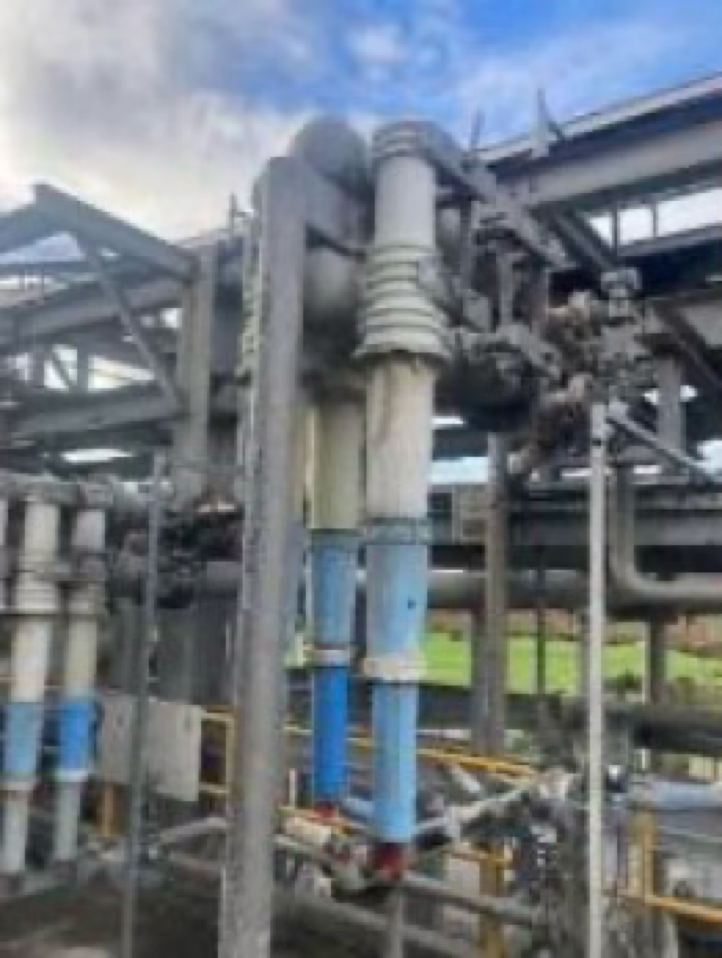

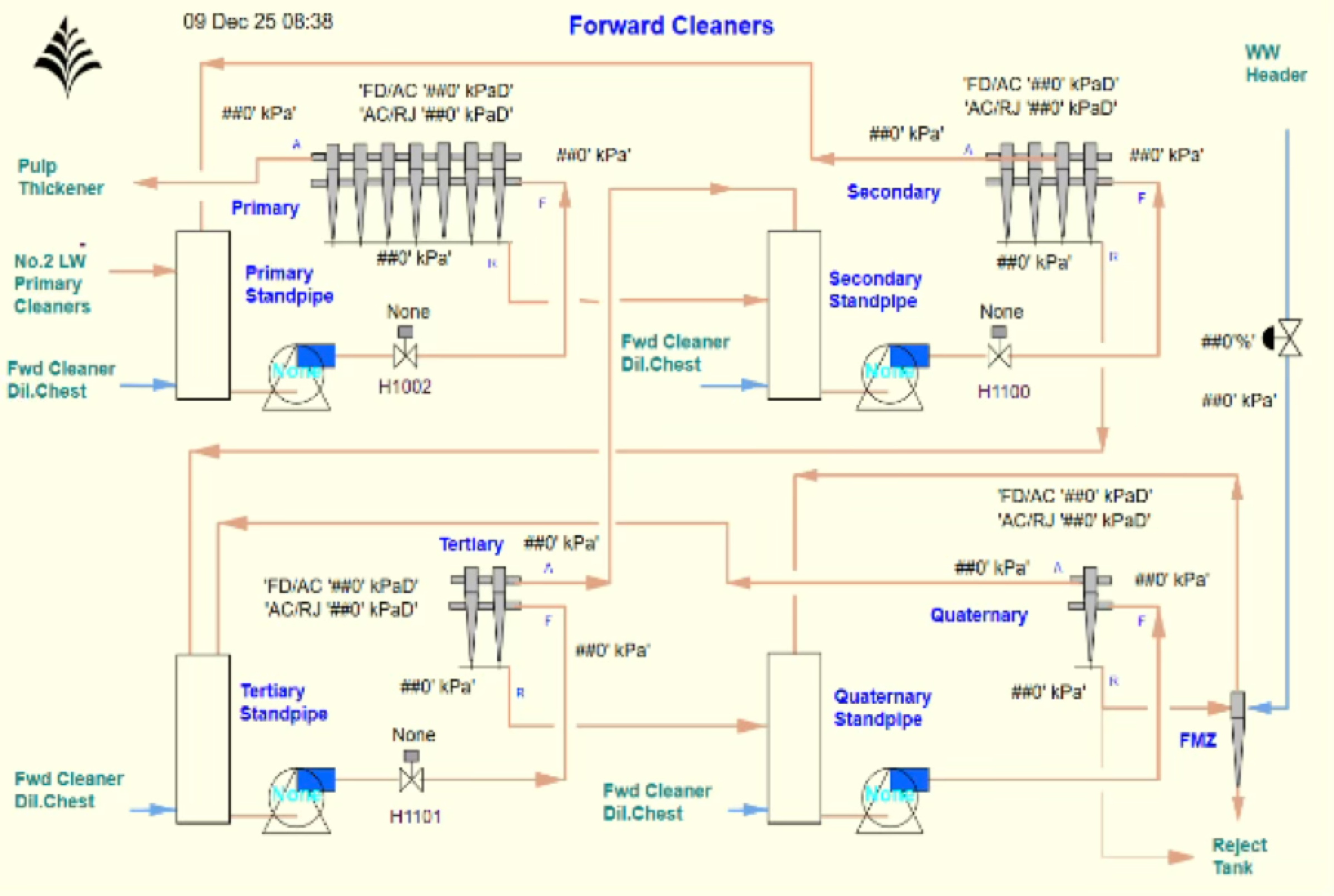

FORWARD CLEANERS

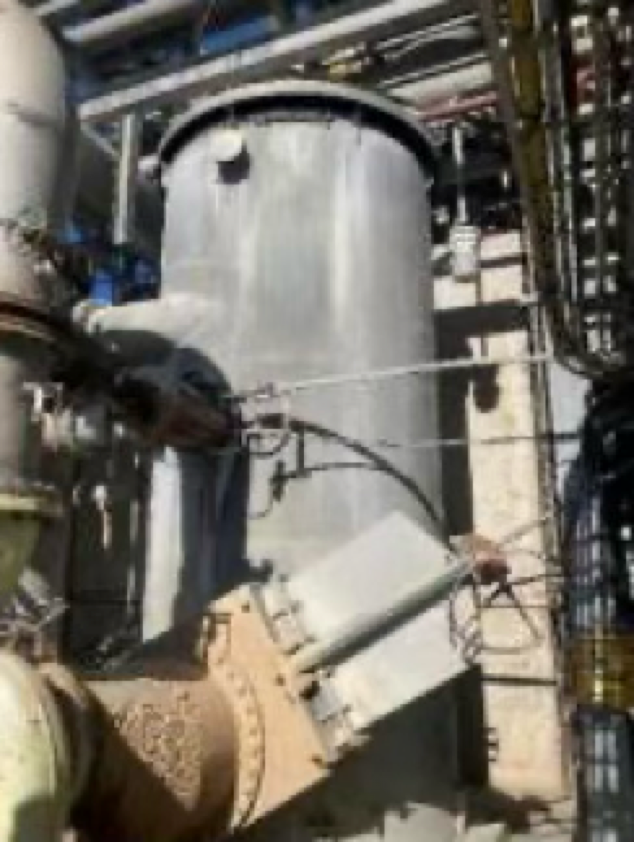

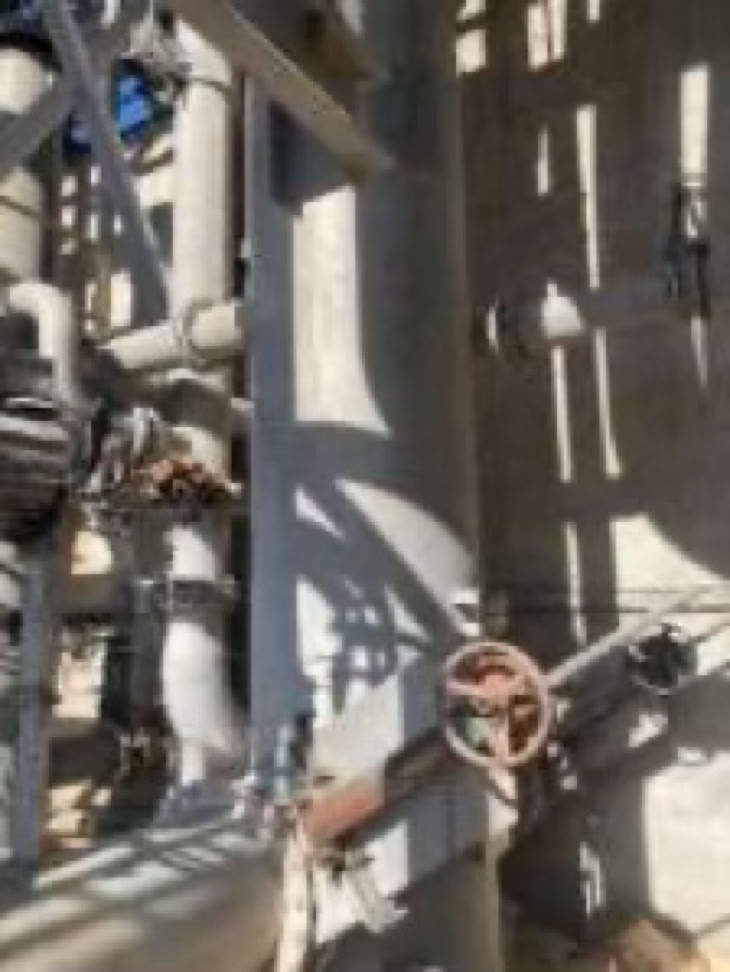

PRIMARY FORWARD CLEANER STANDPIPE

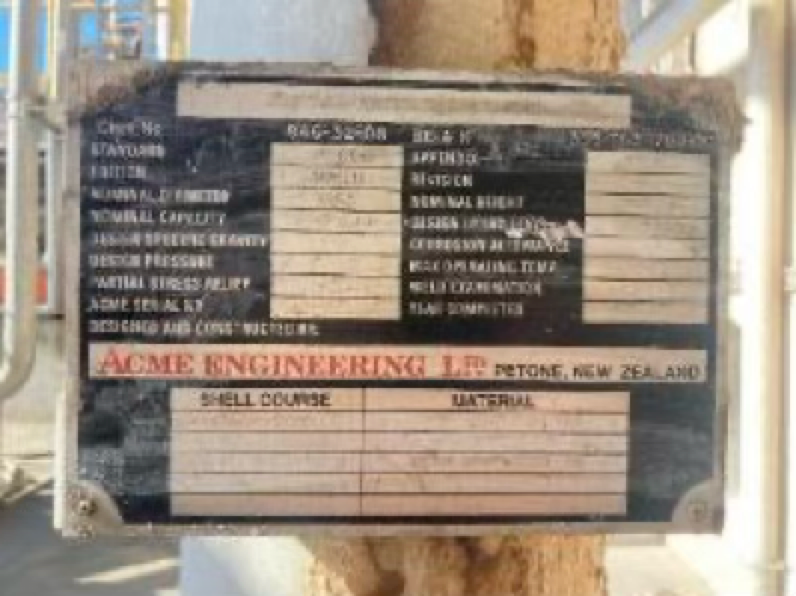

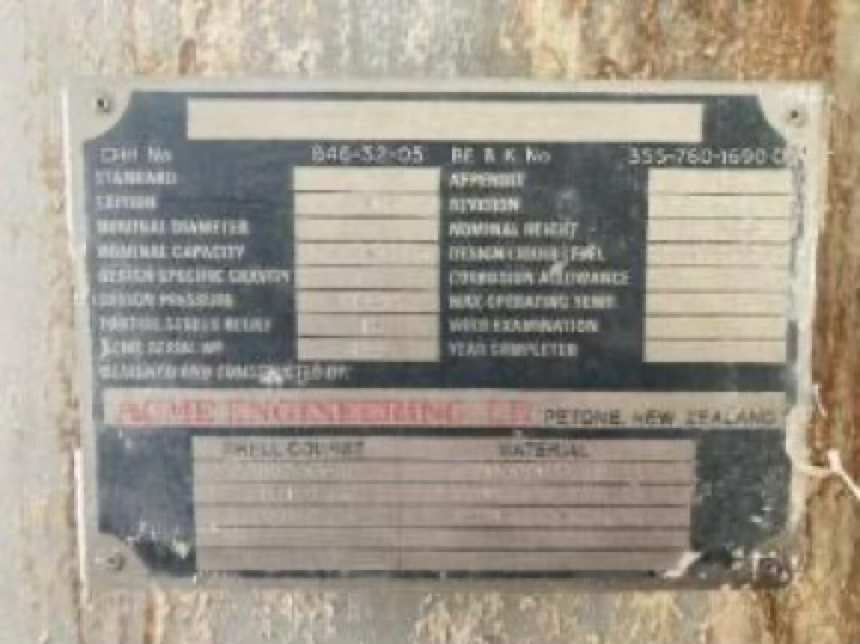

ACME Engineering, API 650, 2500 Dia, 26.0m^3
PRIMARY FORWARD CLEANERS
ALFA LAVAL CELLECO Cleanpac 700 LD Centricleaners
Bank of 42
SECONDARY FORWARD CLEANER STANDPIPE
ACME Engineering, API 650, 1000 Dia, 4.2m^3
SECONDARY FORWARD CLEANERS
ALFA LAVAL CELLECO Cleanpac 700 LD Centricleaners
Bank of 24

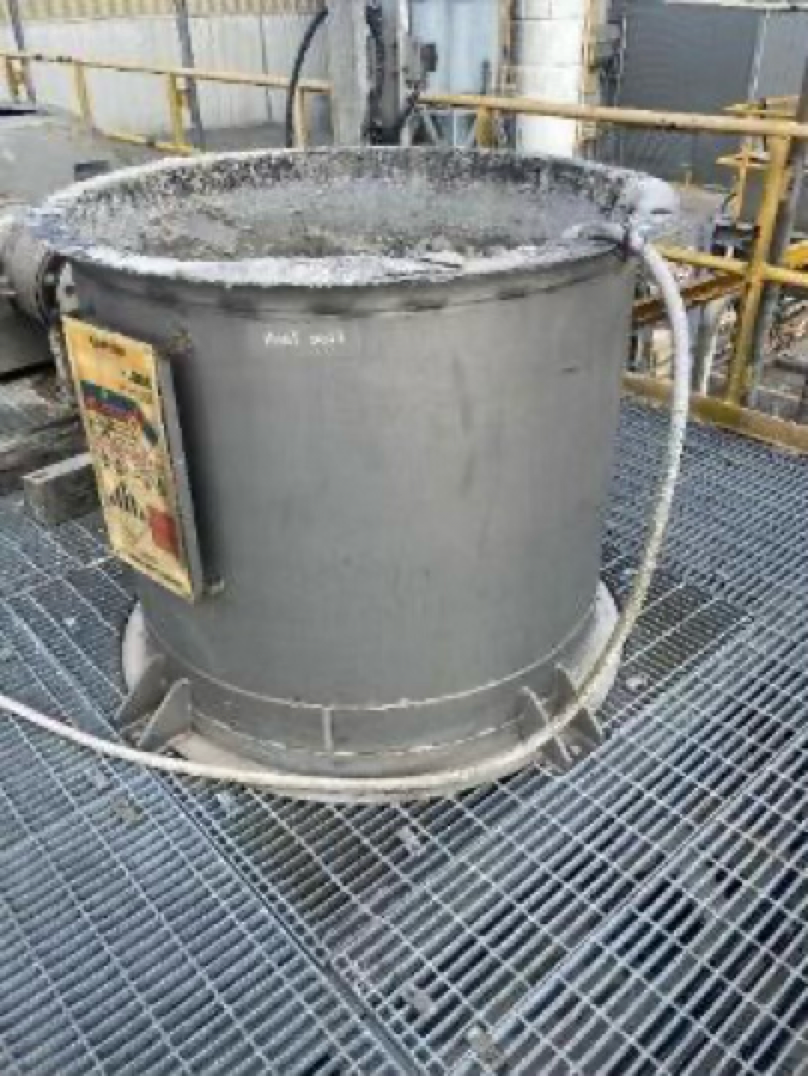

TERTIARY FORWARD CLEANER STANDPIPE
ACME Engineering, API 650, 500 Dia, 1.1m^3
TERTIARY FORWARD CLEANERS
ALFA LAVAL CELLECO Cleanpac 700 LD Centricleaners
Bank of 8
QUATERNARY FORWARD CLEANER STANDPIPE
ACME Engineering, API 650, 265 Dia, 2.295m^3
FIBREMIZER
ALFA LAVAL CELLECO Cleanpac 350
Bank of 2
QUATERNARY FORWARD CLEANERS
ALFA LAVAL CELLECO Cleanpac 700 LD Centricleaners
Bank of 3 (manifold for 8)

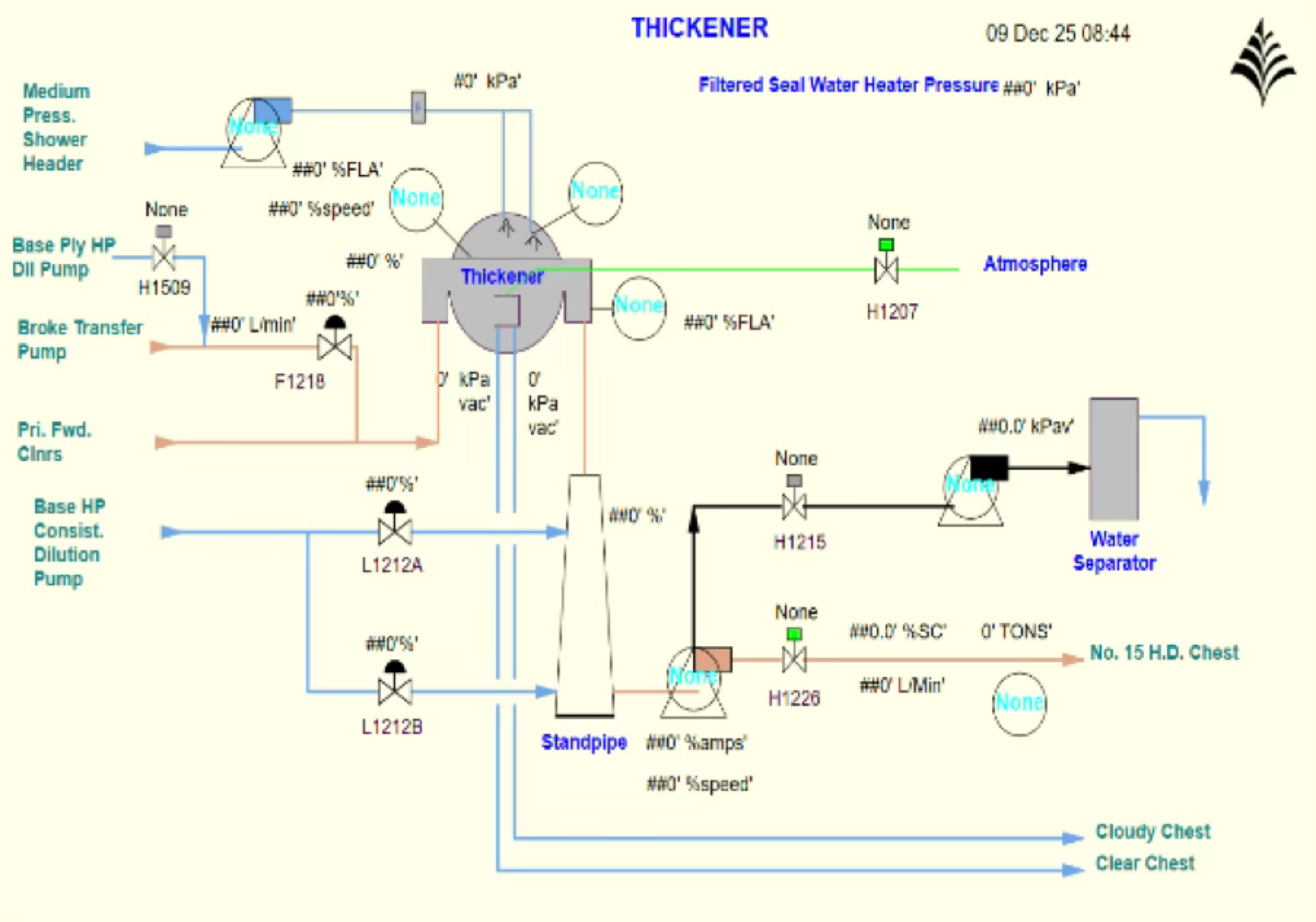

RECYCLE PULP THICKENER
THICKENER
ALFA LAVAL CELLECO, Centredisc Filter, 5ML2-16(14), 14 Disc

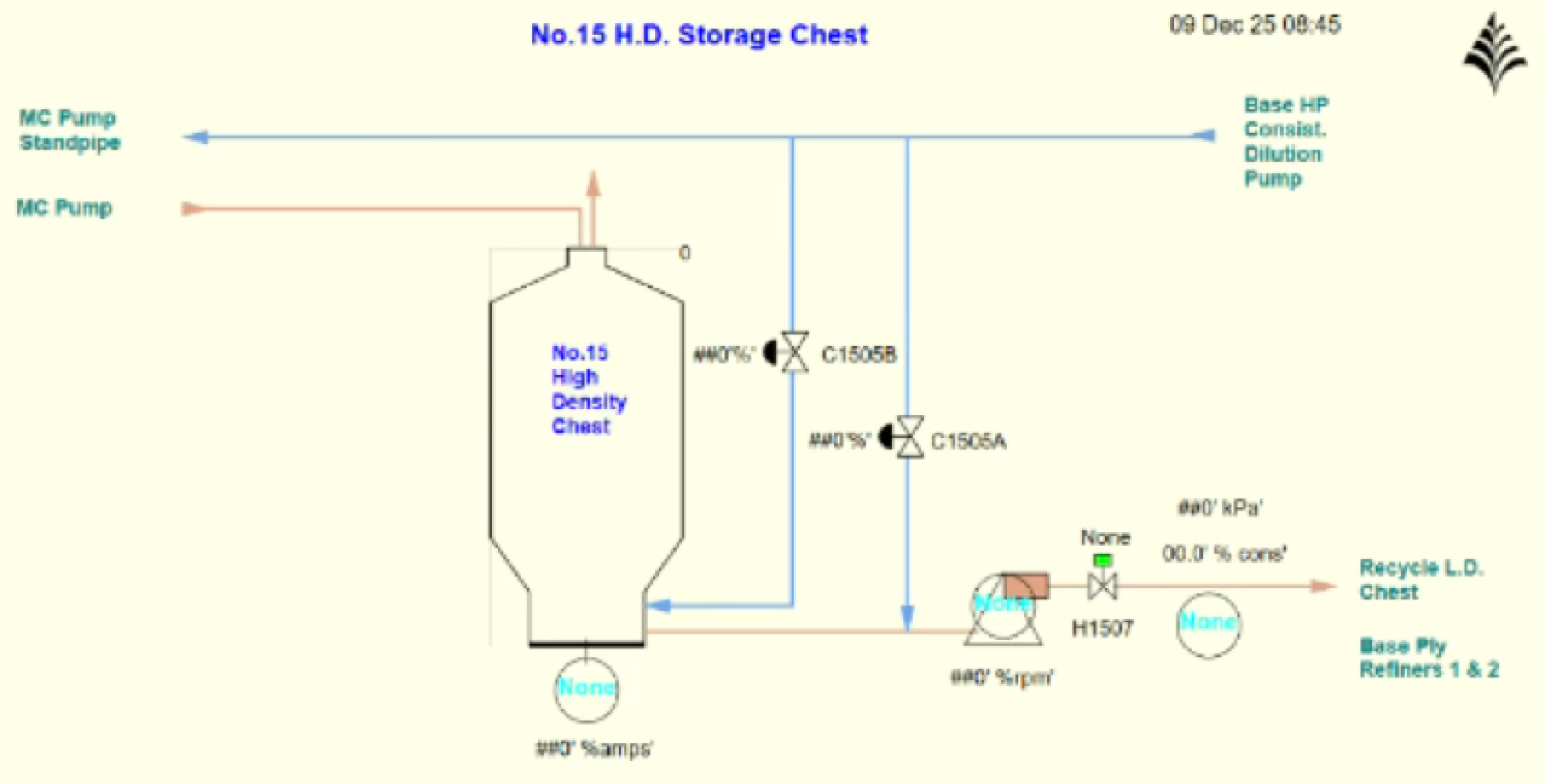

HD STORAGE

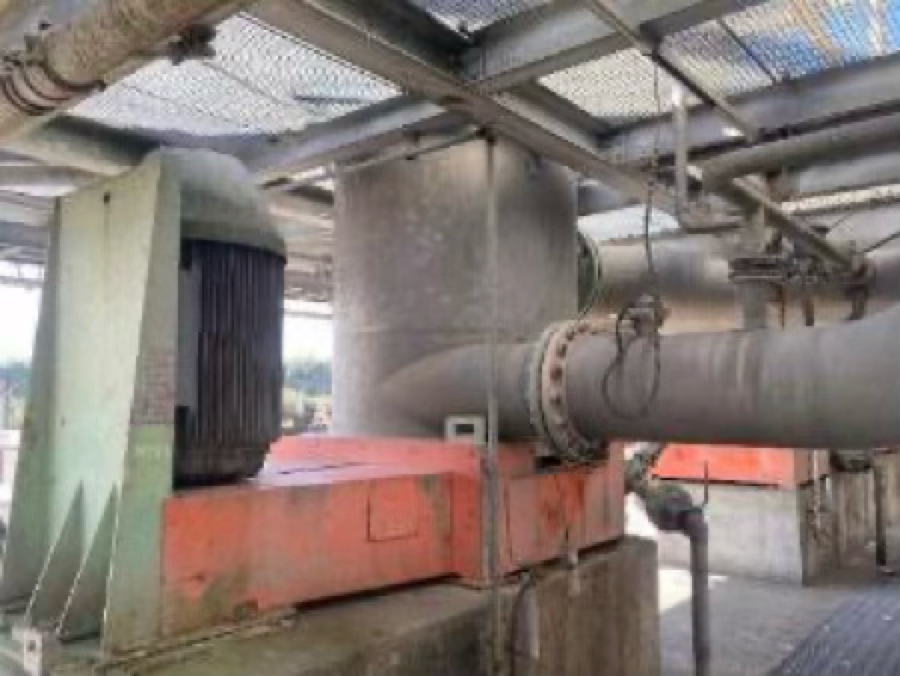

MC PUMP:
Motor: POPE, D315L, 415V/185kW/4P
Pump: ALSTOM, MCA32-150
MC DEGAS PUMP
Motor: MARATHON, D132M, 415V/7.5kW/4P
Pump: NASH, AHF75-MC1
WATER TREATMENT

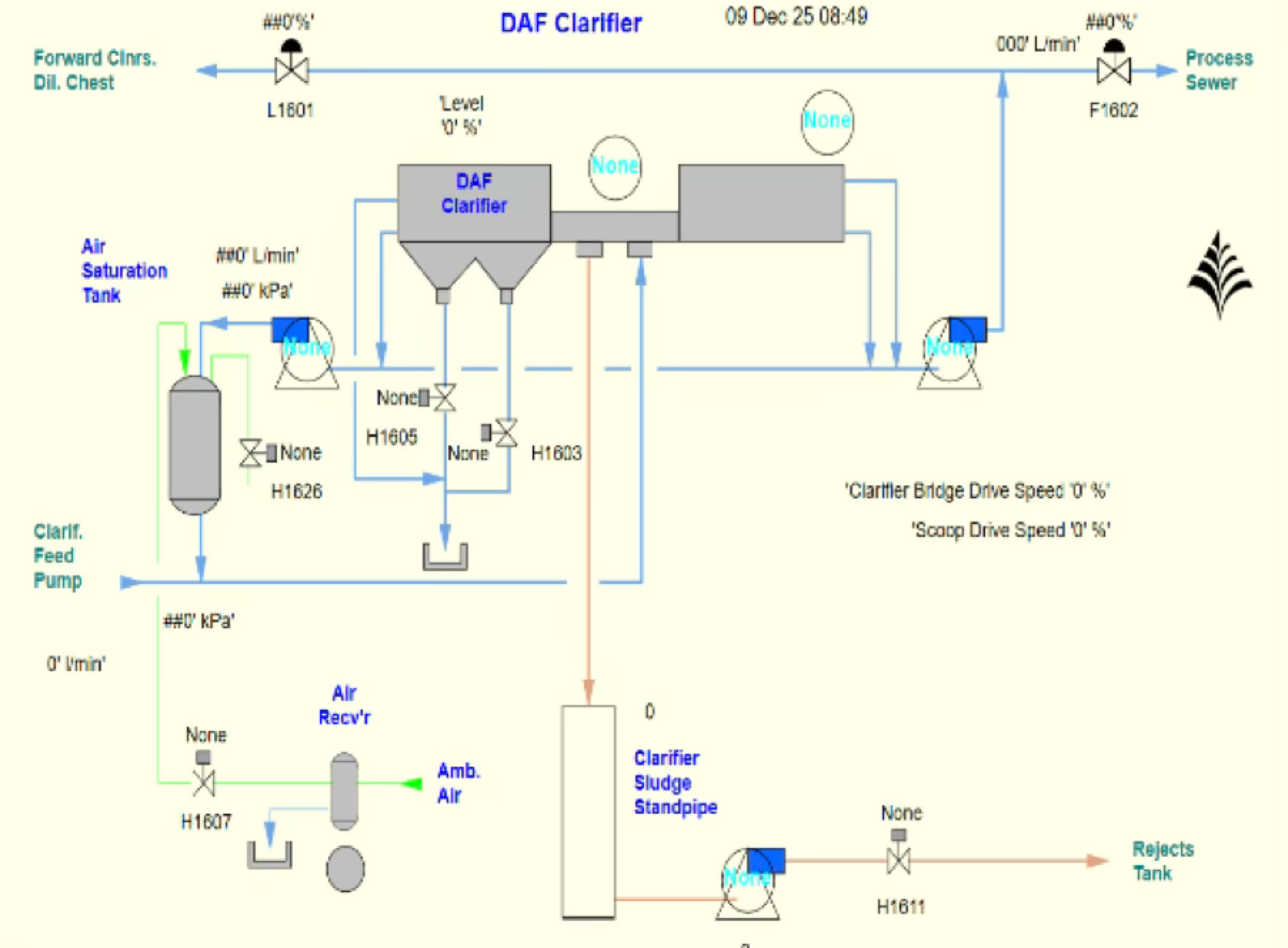

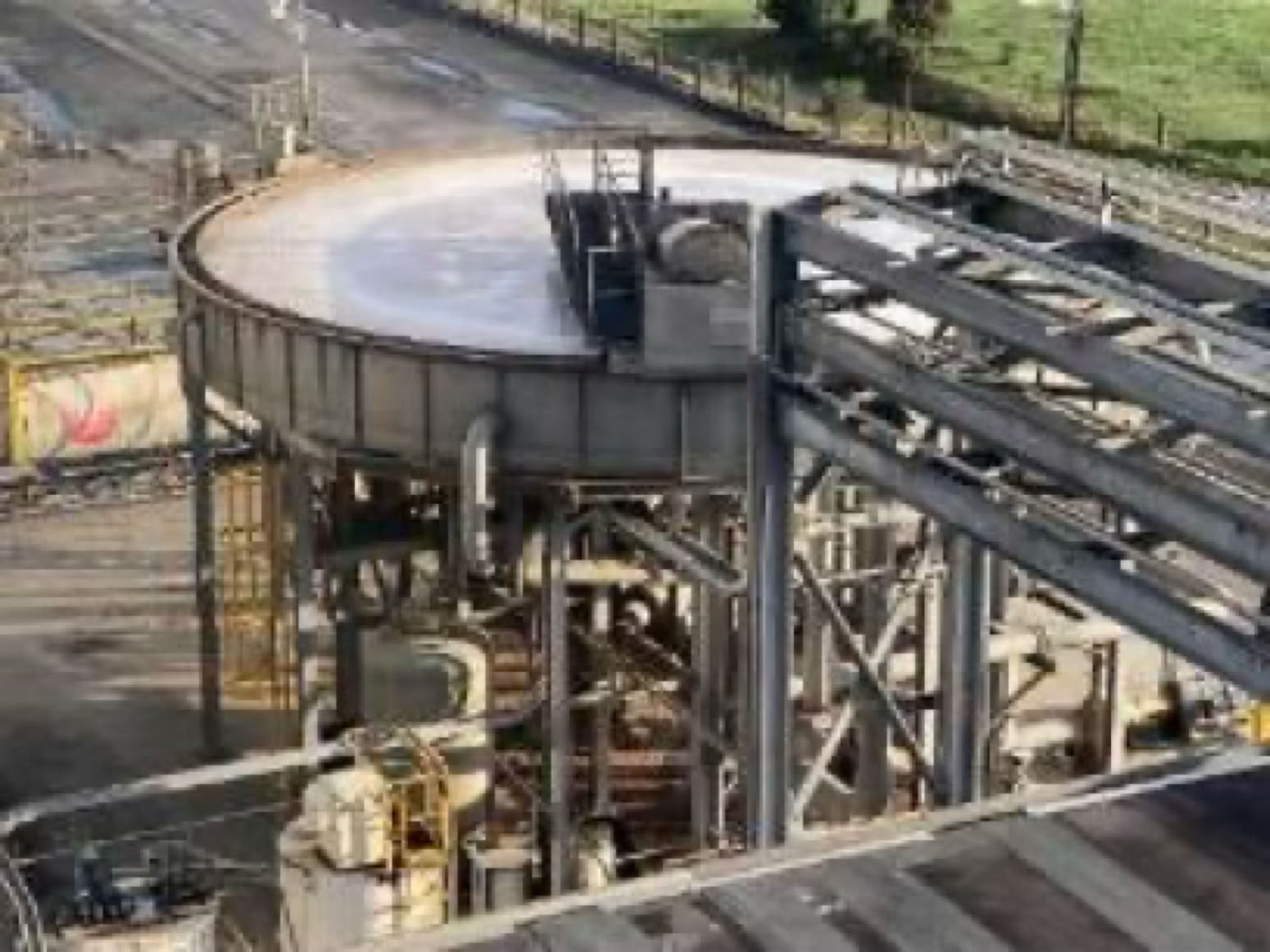

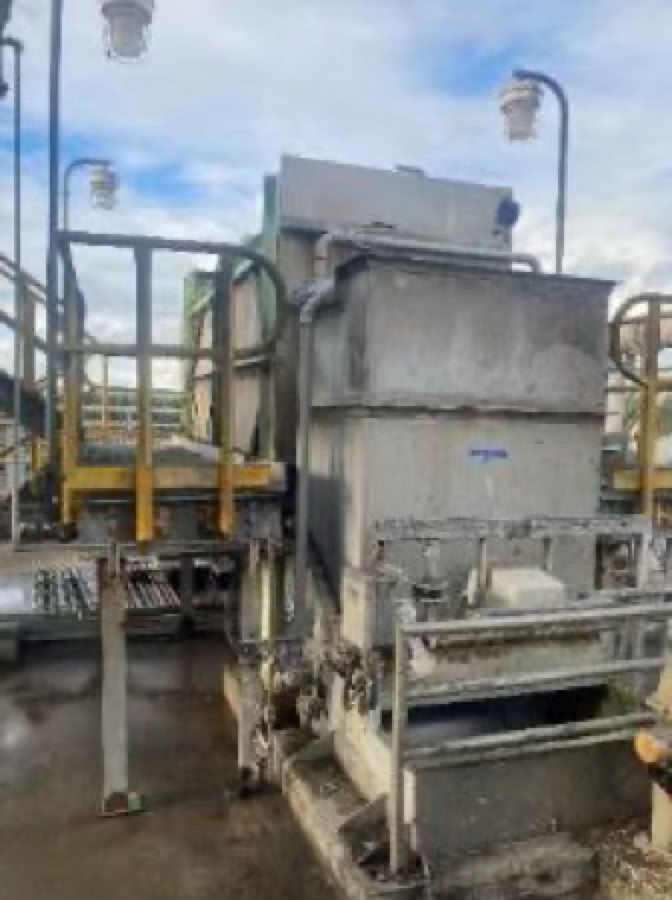

CLARIFIER
VOITH/MERI OMC DELTAPRUGE DAF unit, DPP130A, DOM 1997, Serial D209
Bridge Drive: Gearmotor, EURODRIVE, 415V/1.1kW
Scoop Drive: Gearmotor, EURODRIVE, 415V/1.5kW

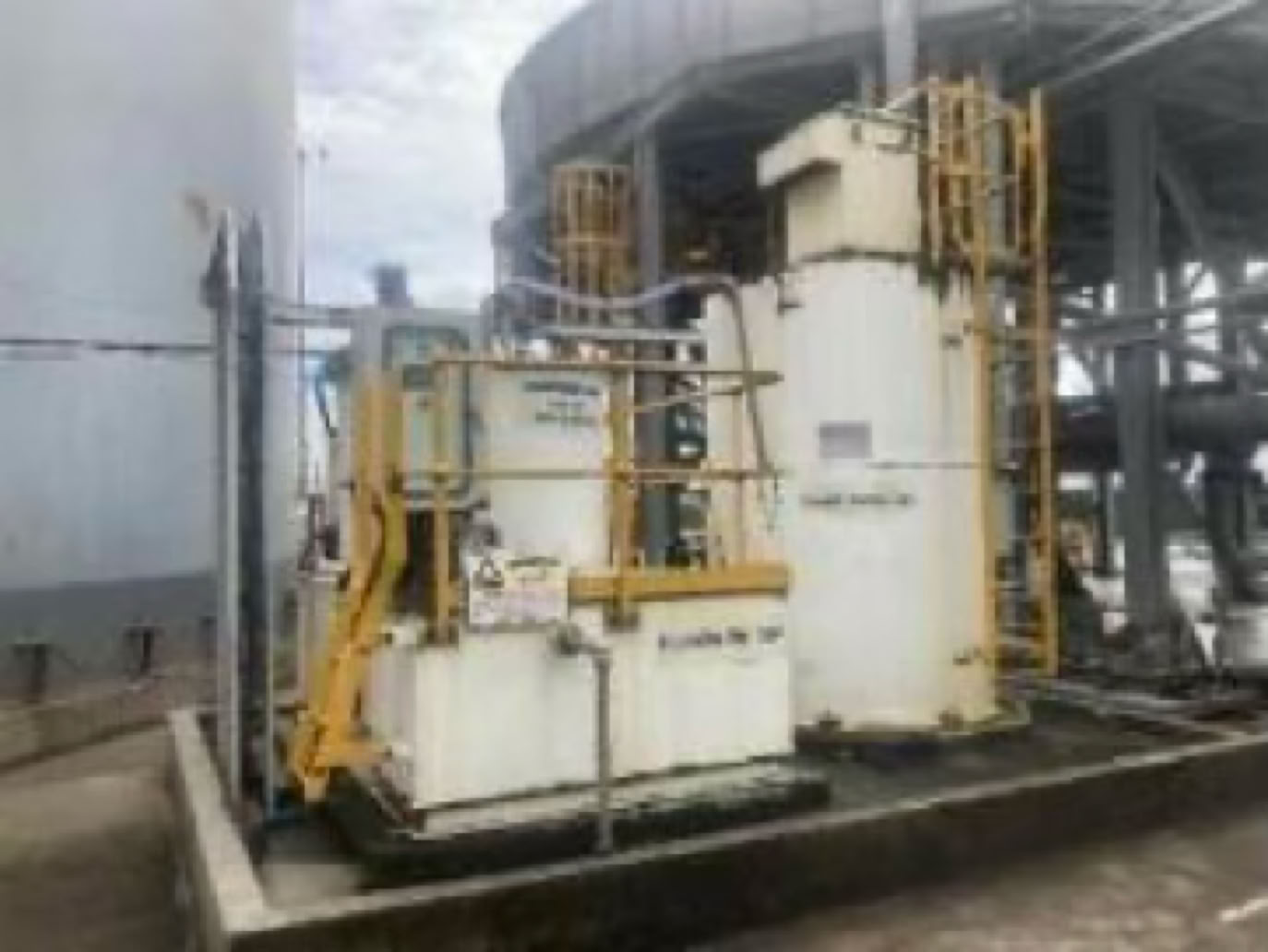

CHEMICAL DOSING PLANT:
Bulk Storage Silo Allied Colloids
Makedown Unit/Mix Tank Allied Colloids
Dosing Pumps x 2 WEG, D80 415V/0.75kW/2P – MONO 13AC81RPA

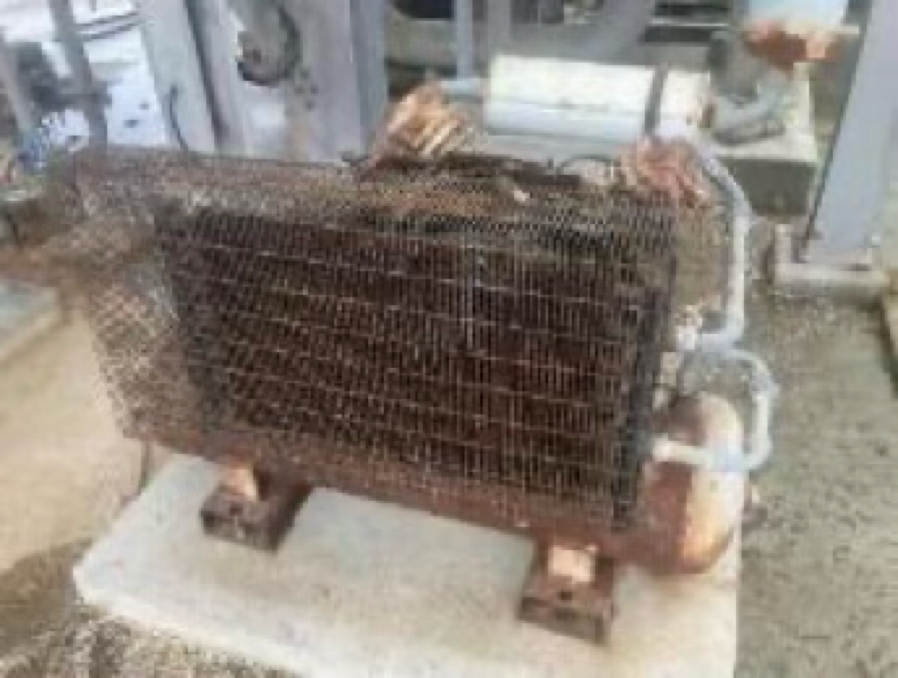

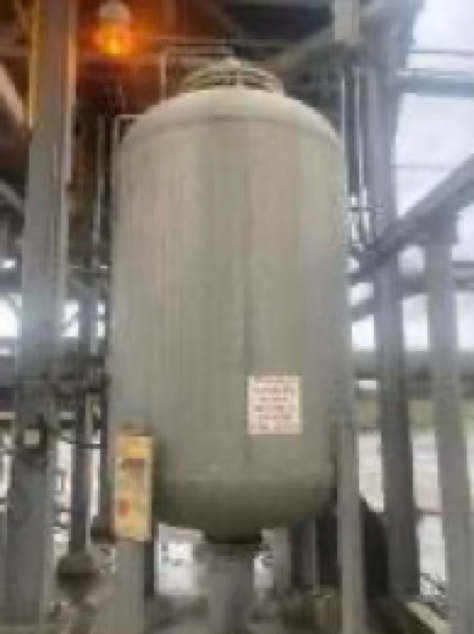

SATURATED AIR SYSTEM
Pressure Vessel: MERI, ASR5 Assembly,
Compressor: INGERSOL RAND, Model 2475, 1997. TECO, D132S 415V/5.5kW/2P

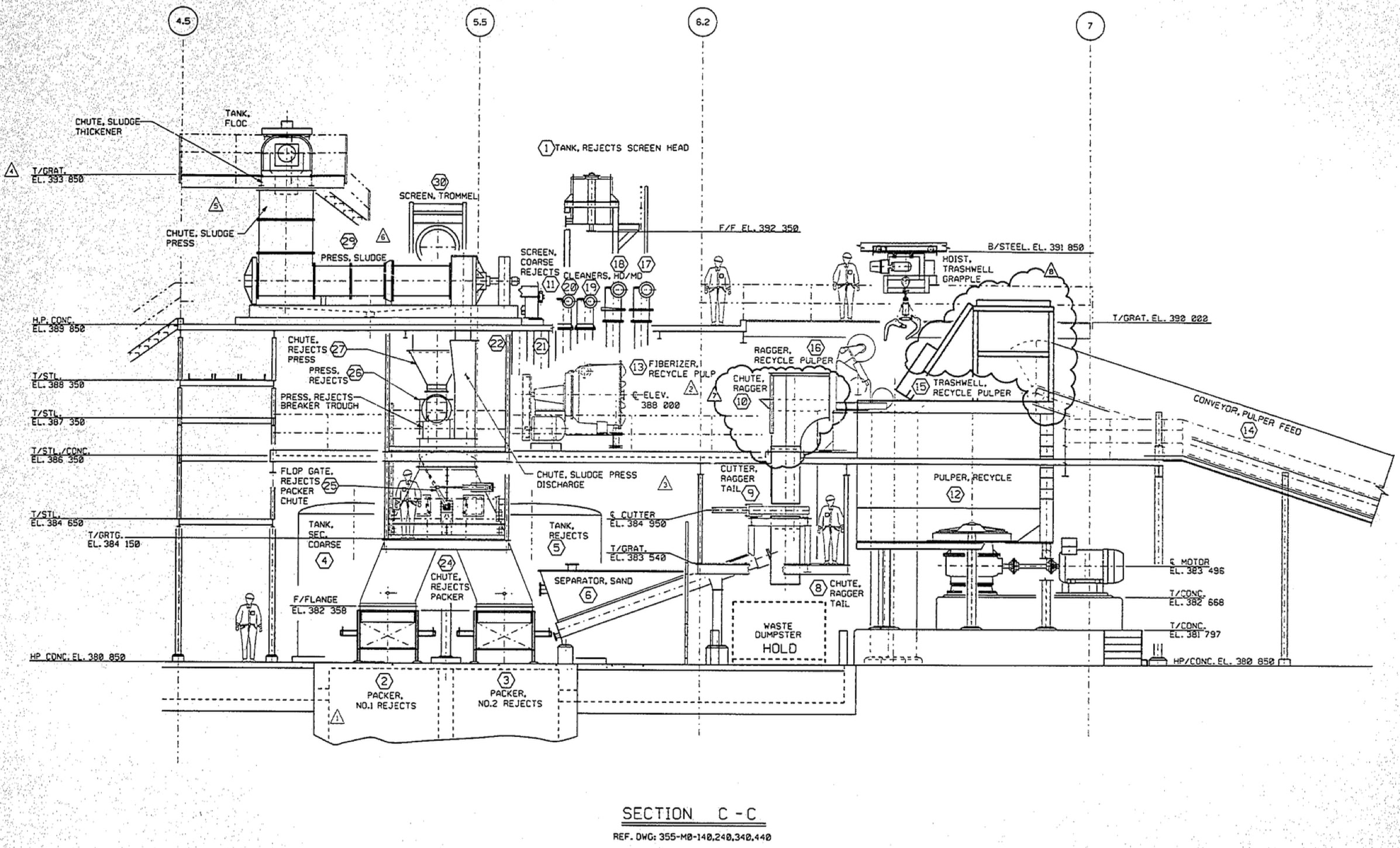

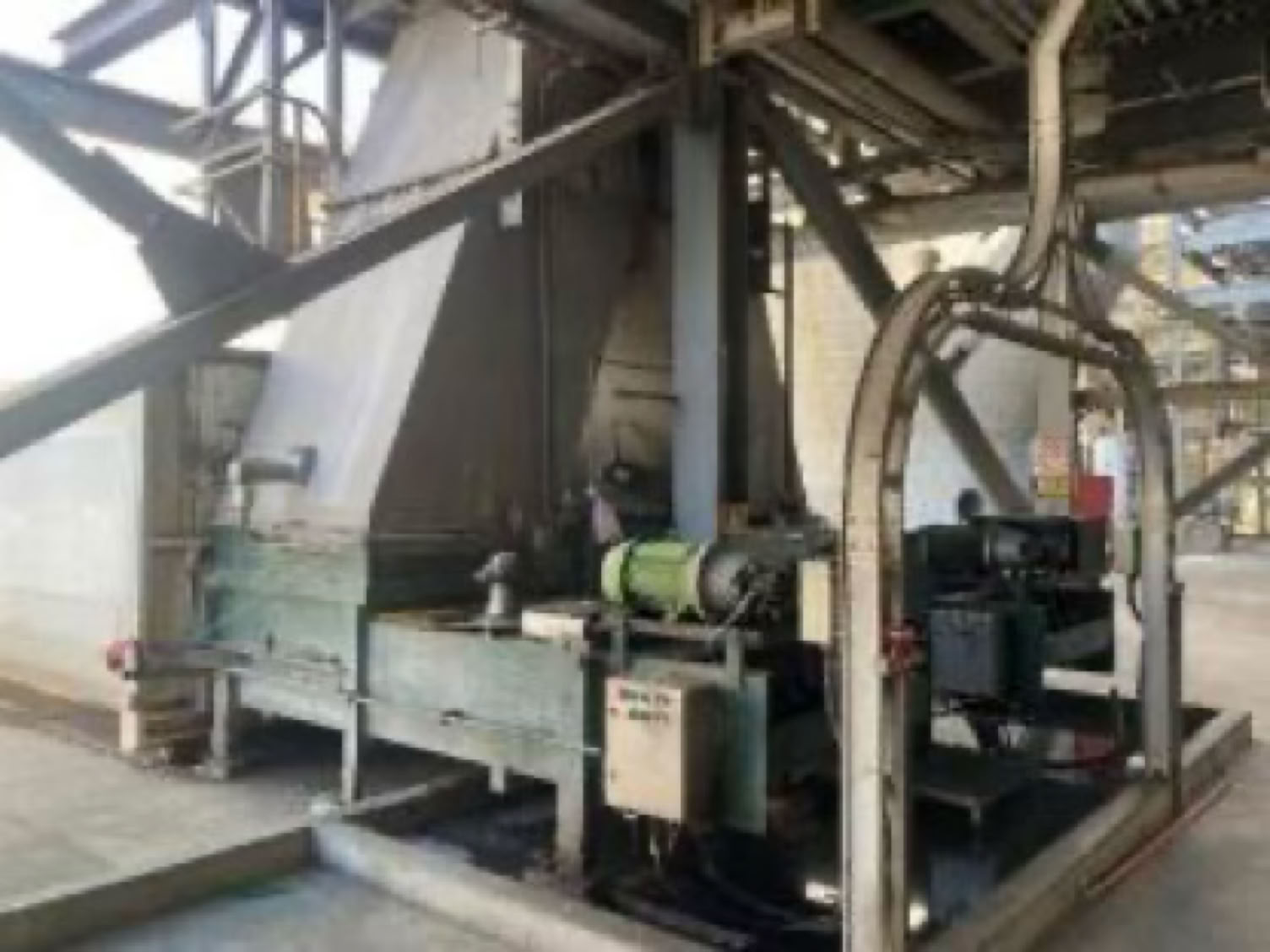

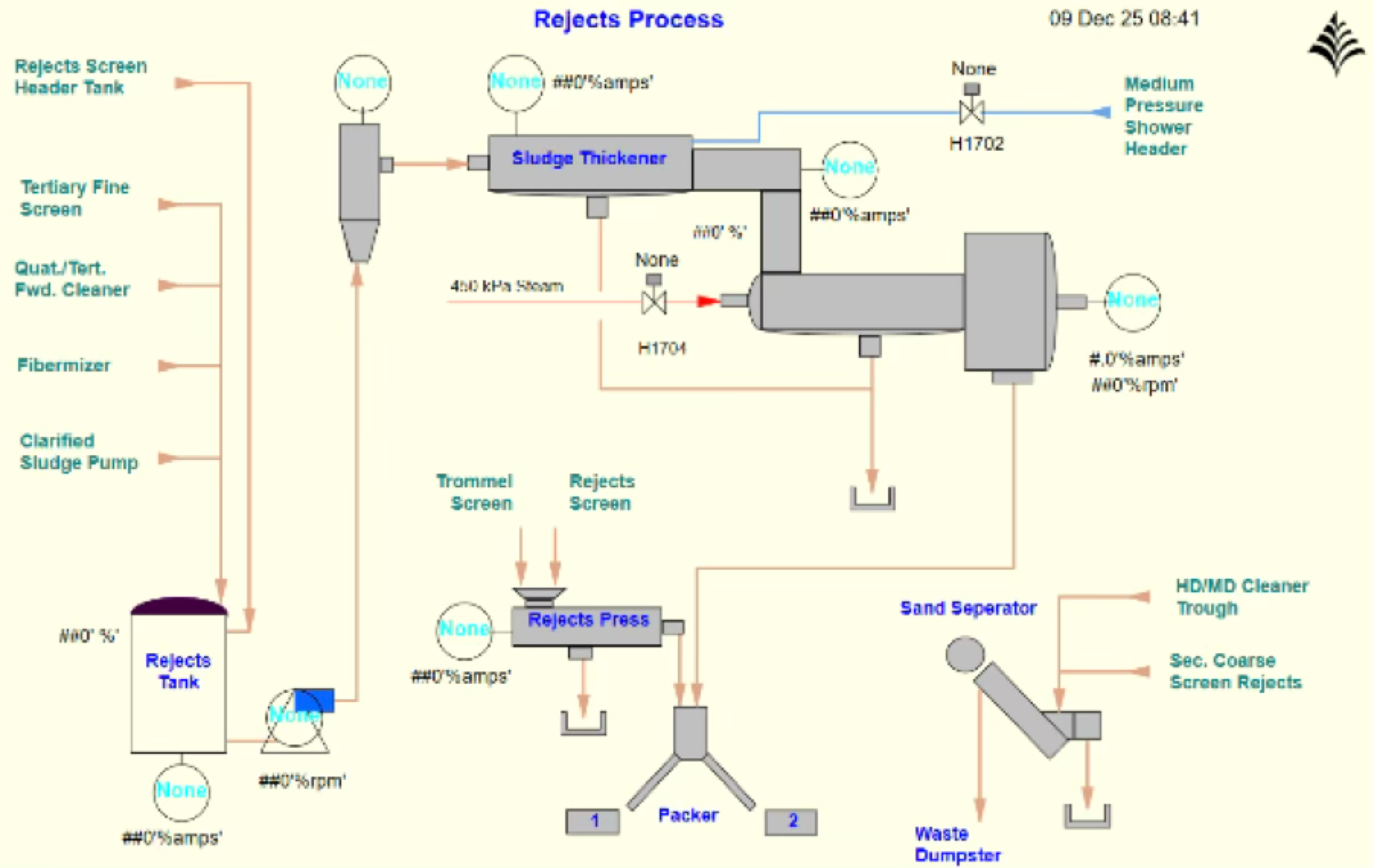

REJECTS HANDLING SYSTEM

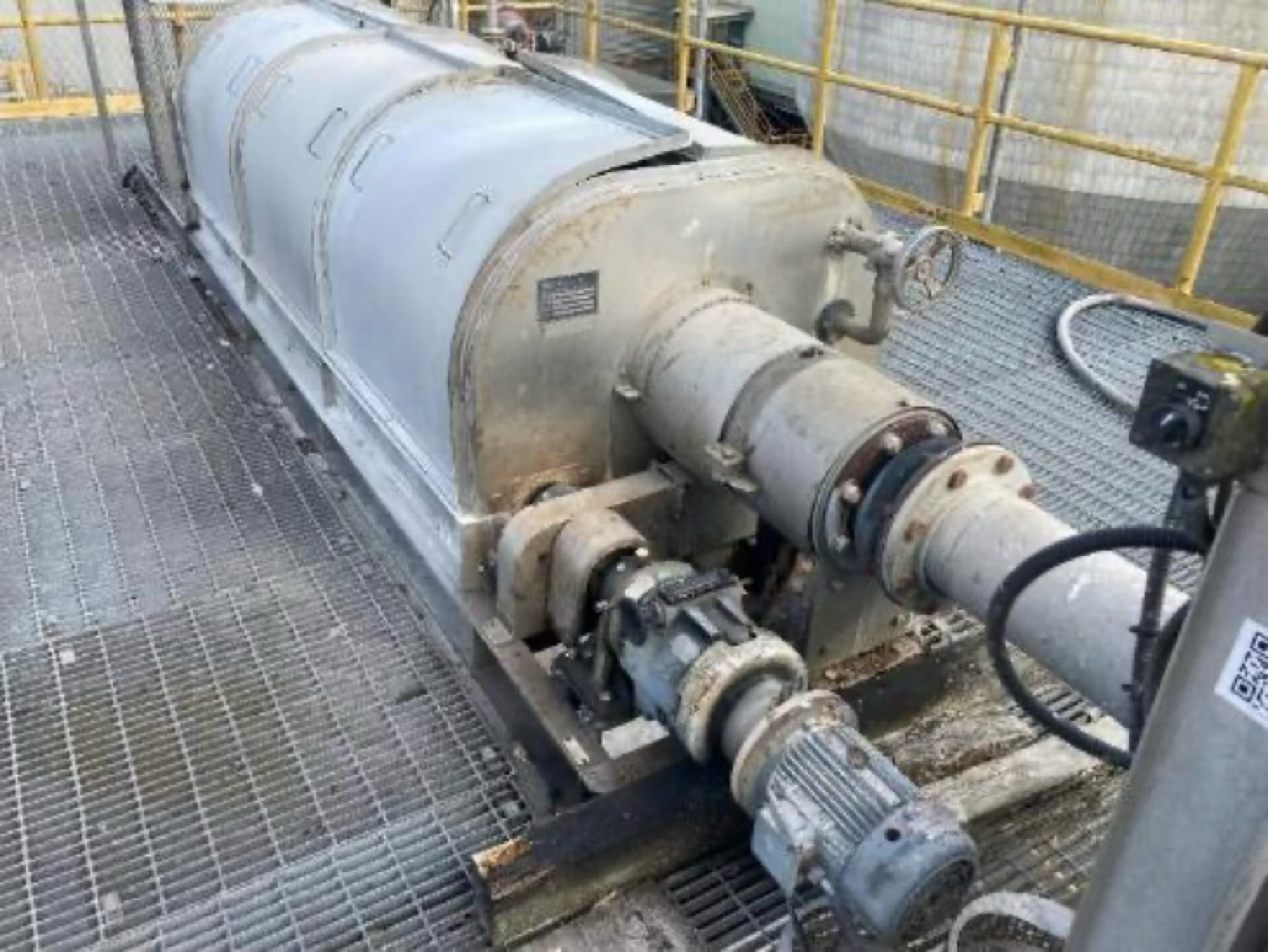

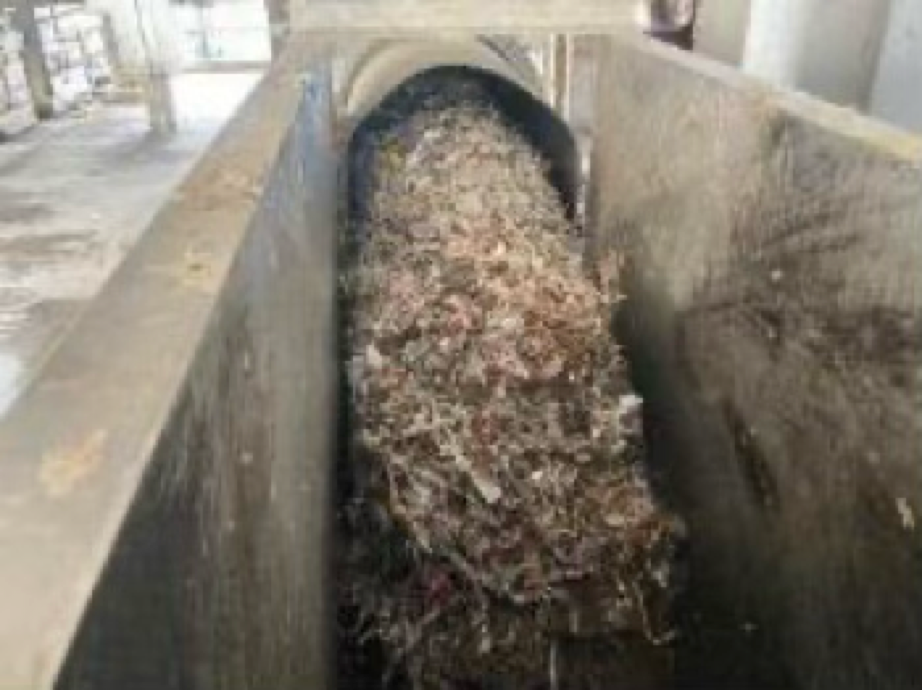

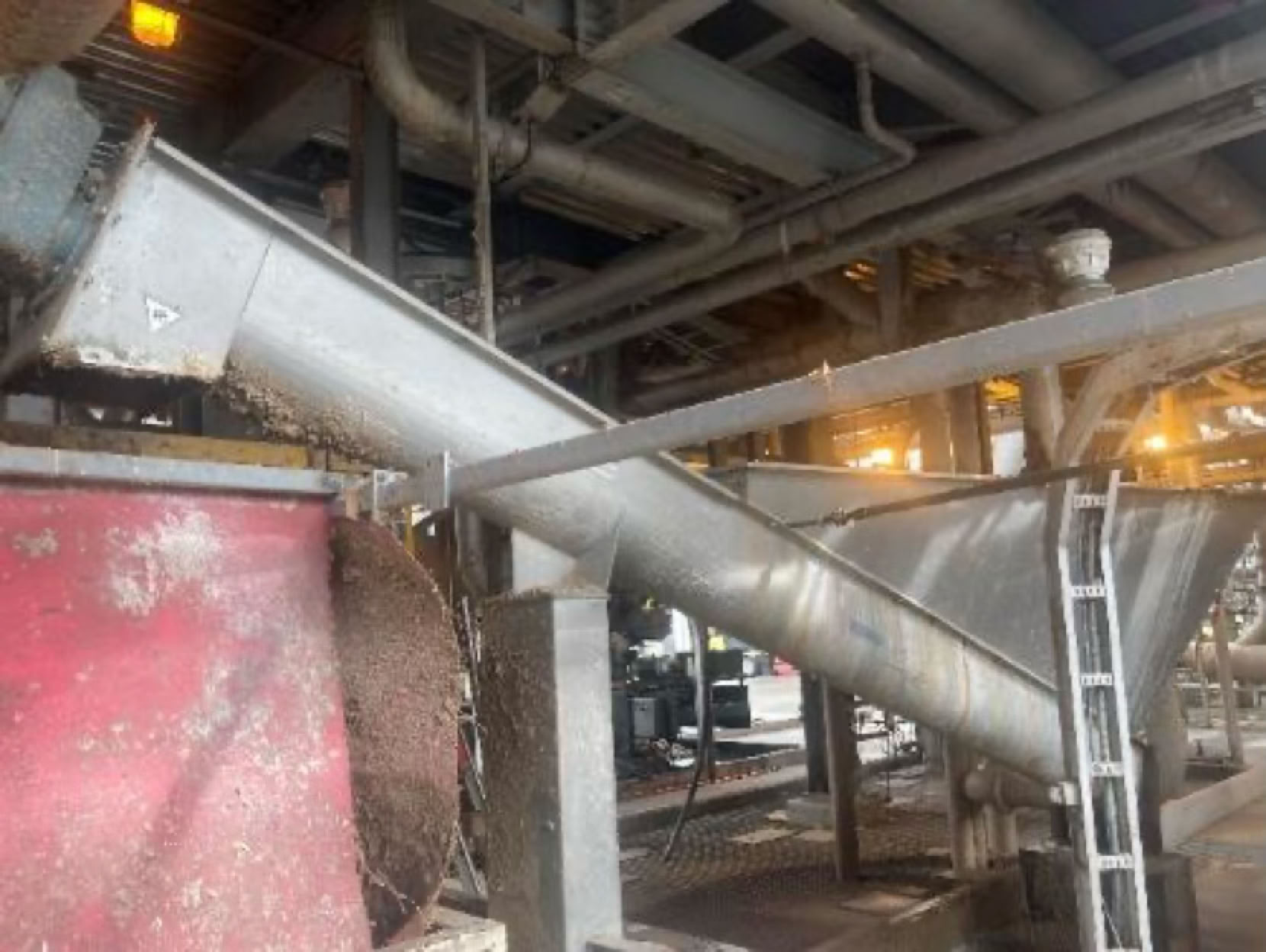

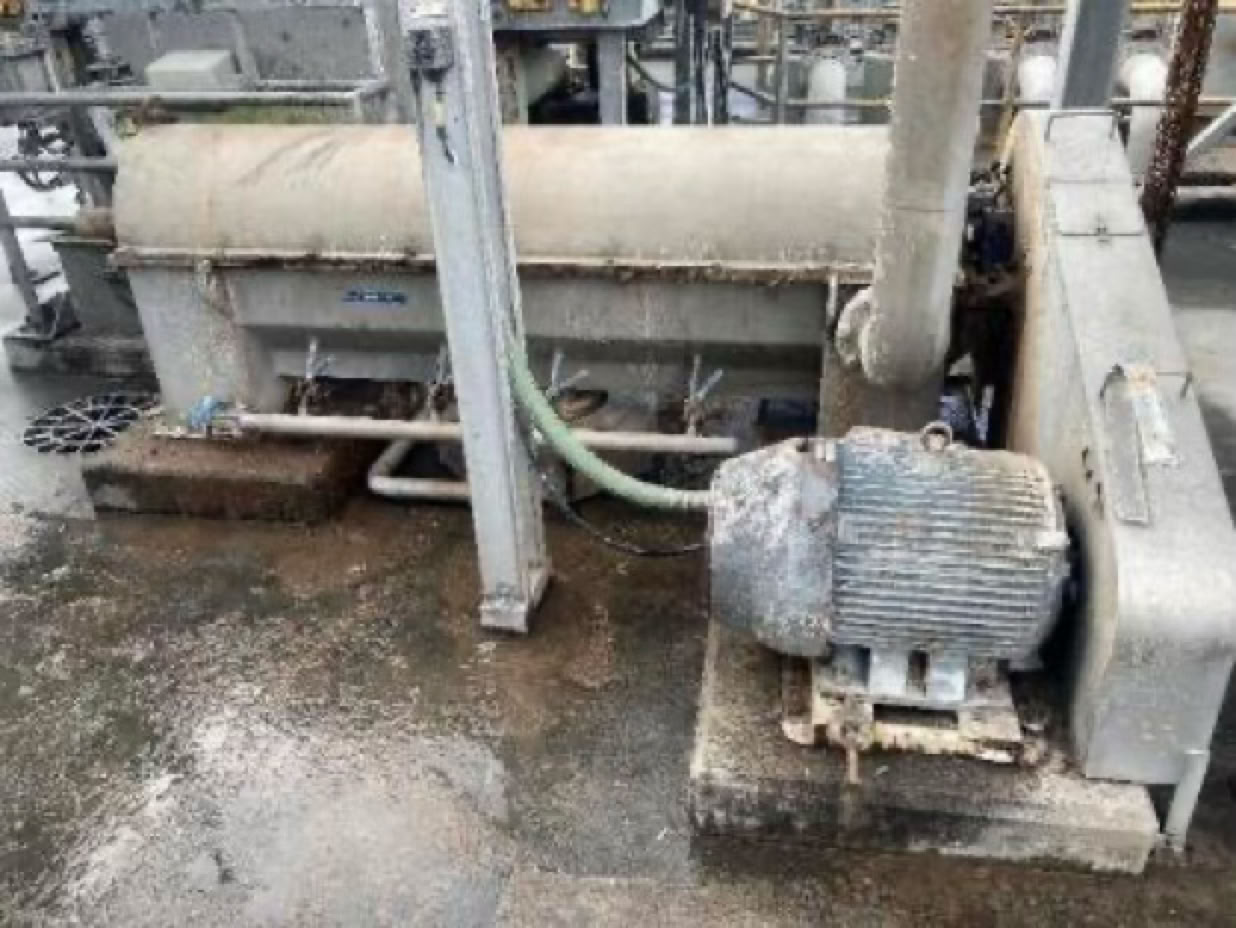

SCREEN TROMMEL
Black Clawson, Selectpurge 4500 Dewatering Drum, 96-SP4500-0176, DOM 1996, Belt Drive
Motor: GMC, D112M, 415V/4kW/4P
G/Box: ROSSI, MR-CI-100-UO3A, 8.92:1

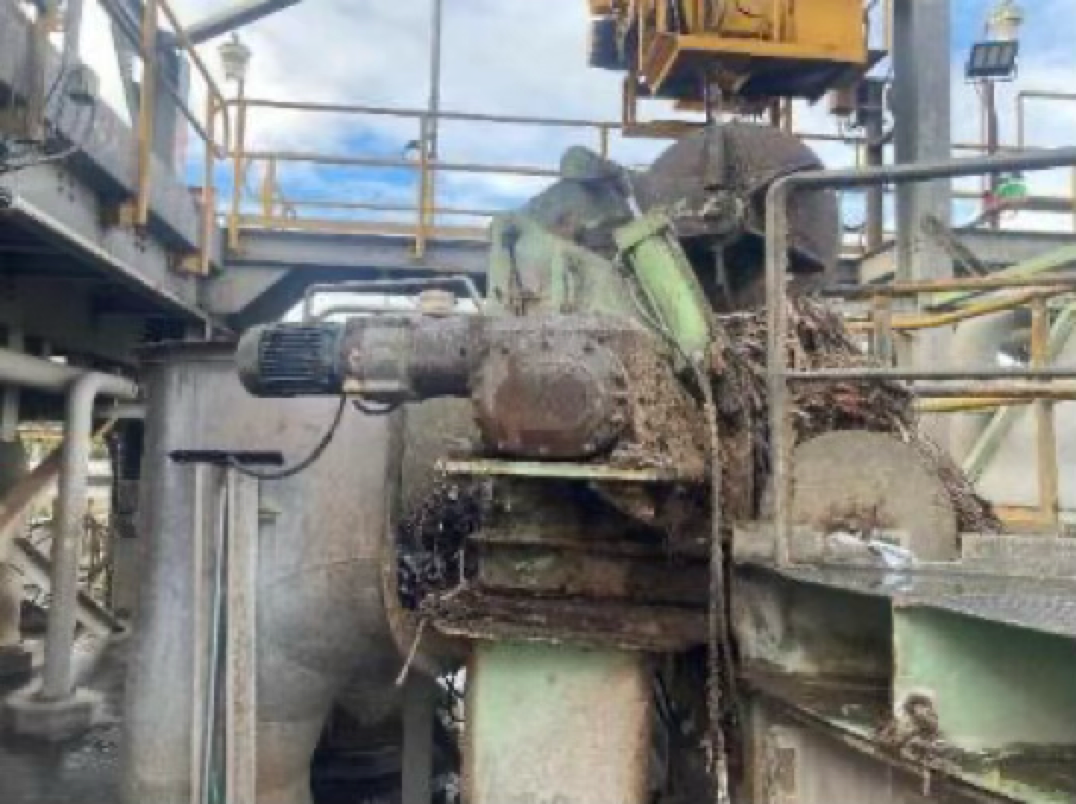

REJECTS PRESS
VOITH/TRUMAG, CX50, DOM 1997, #10294
Motor: NORMAND, 415V/22kW/4P
G/Box: NORD, SK93F, 46.57:1

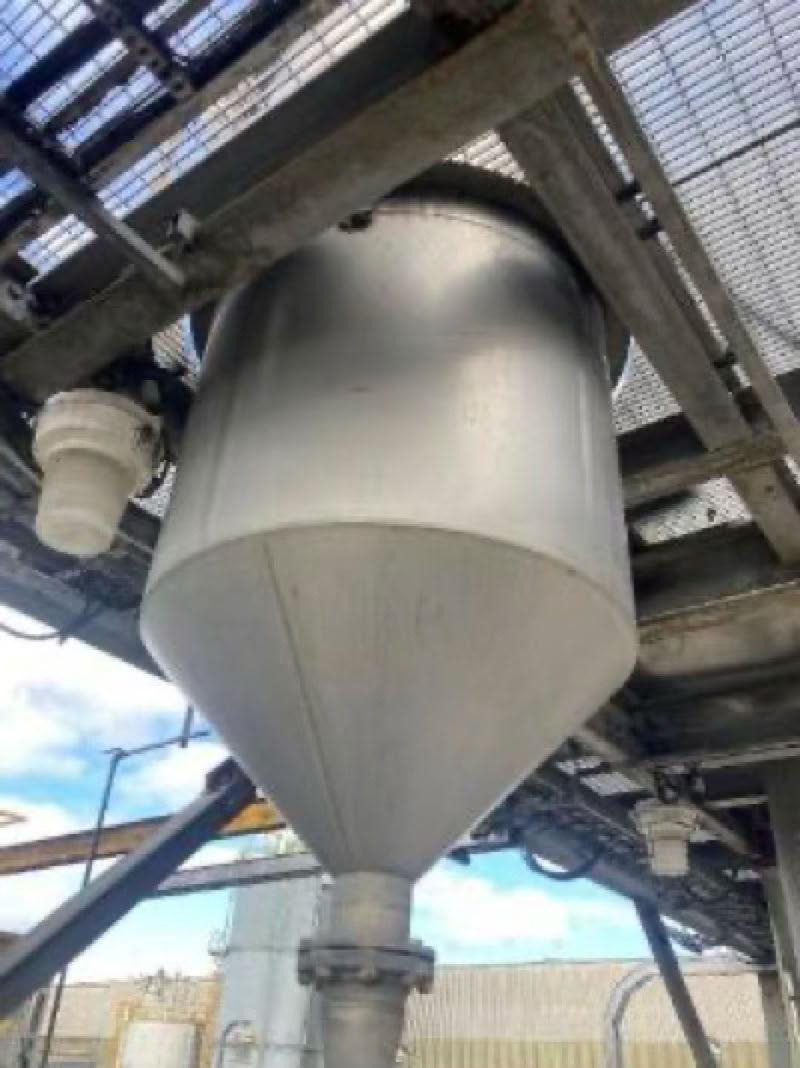

FLOC TANK
FUKOKU KOGYO CO. Ltd, 1200 Dia x 2800m, 2043L, Stainless
SLUDGE THICKENER DRUM SCREEN
FUKOKU KOGYO CO. Ltd, RST-HC630 x 3000L, DOM 3/1997, #HCRST-0118-1
Drum Motor: POPE, D100L, 415V/2.2kW/4P
G/Box: SUMITOMO, HACN 3 3145
Shower Motor: POPE, D90L, 415V/1.5kW/4P

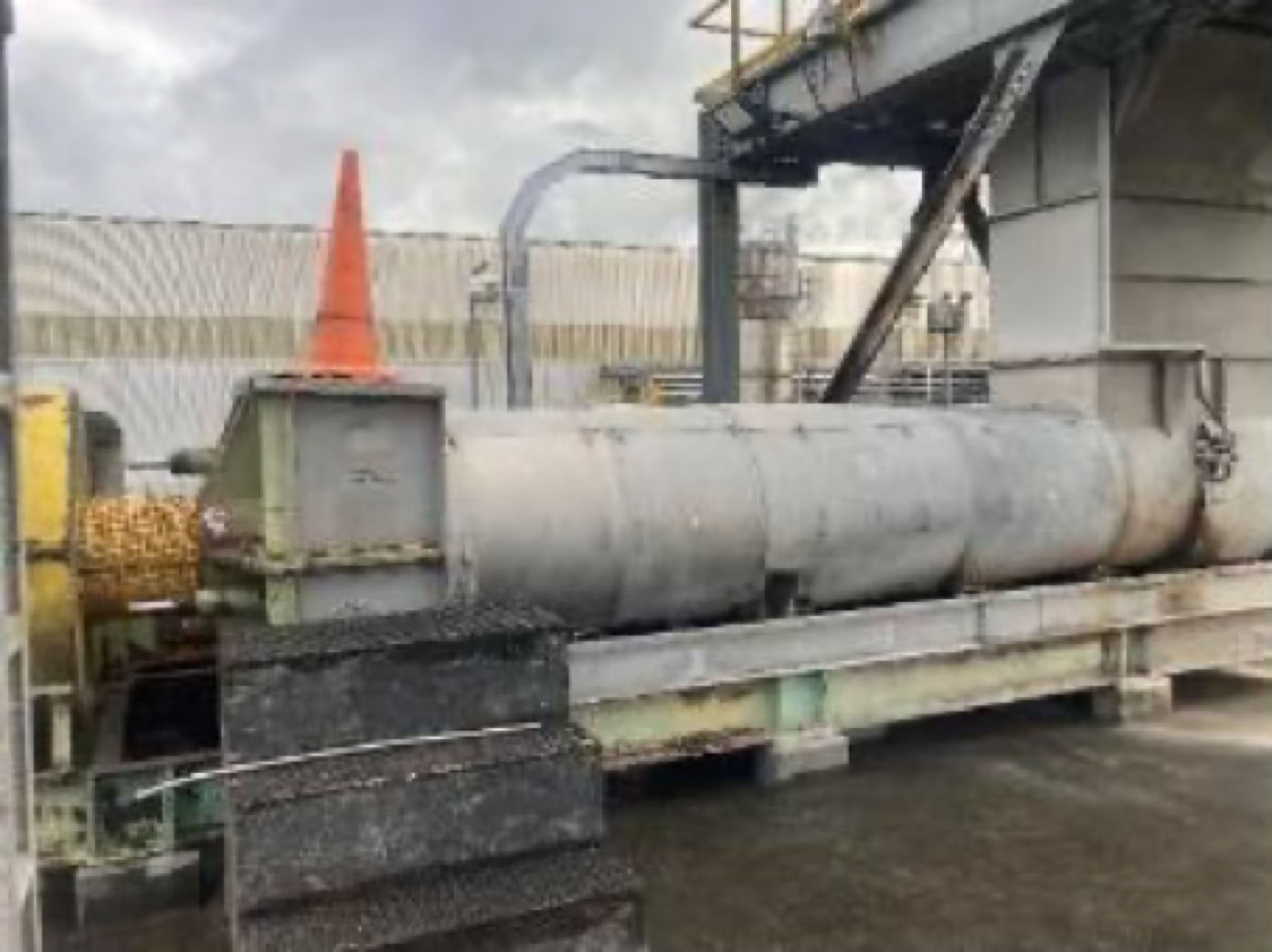

SLUDGE PRESS
FUKOKU KOGYO CO. Ltd, Screw Press SHX-800X5000L
Motor: POPE, D355L, 415V/185kW/6P
G/Box: FALK 465A4-C-322.2, 322.2:1
Sprocket Drive RS240-2 16/48
SAND SEPARATOR
VOITH TRUMAG, SEDIMATOR 28-8, 1.88m^3
Motor: NORD, D80, 415V/0.75kW/4P
G/Box: NORD, SK538AF-80L4-2, 700.3:1

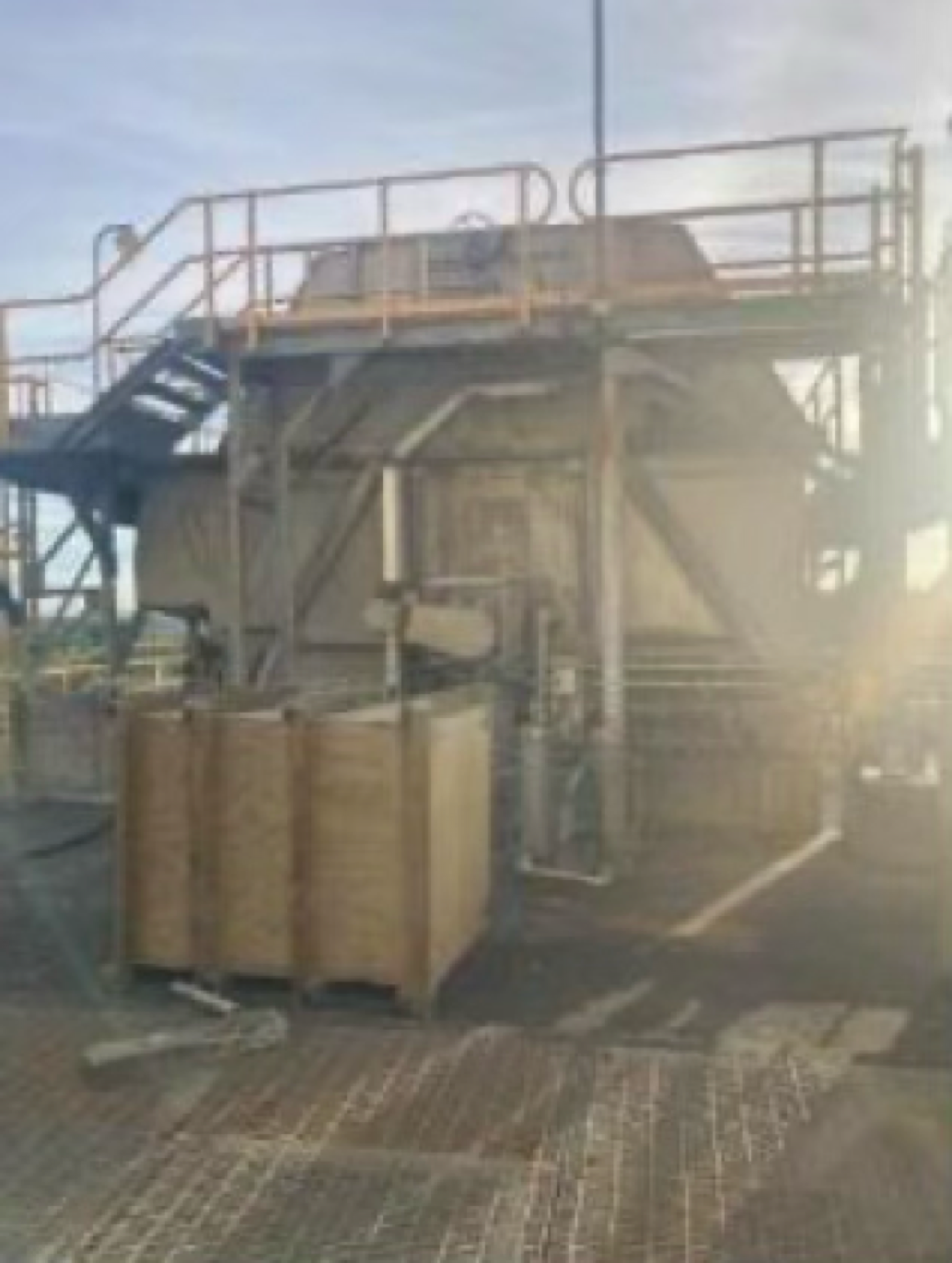

REJECT COLLECTION
Chute Flop Gate

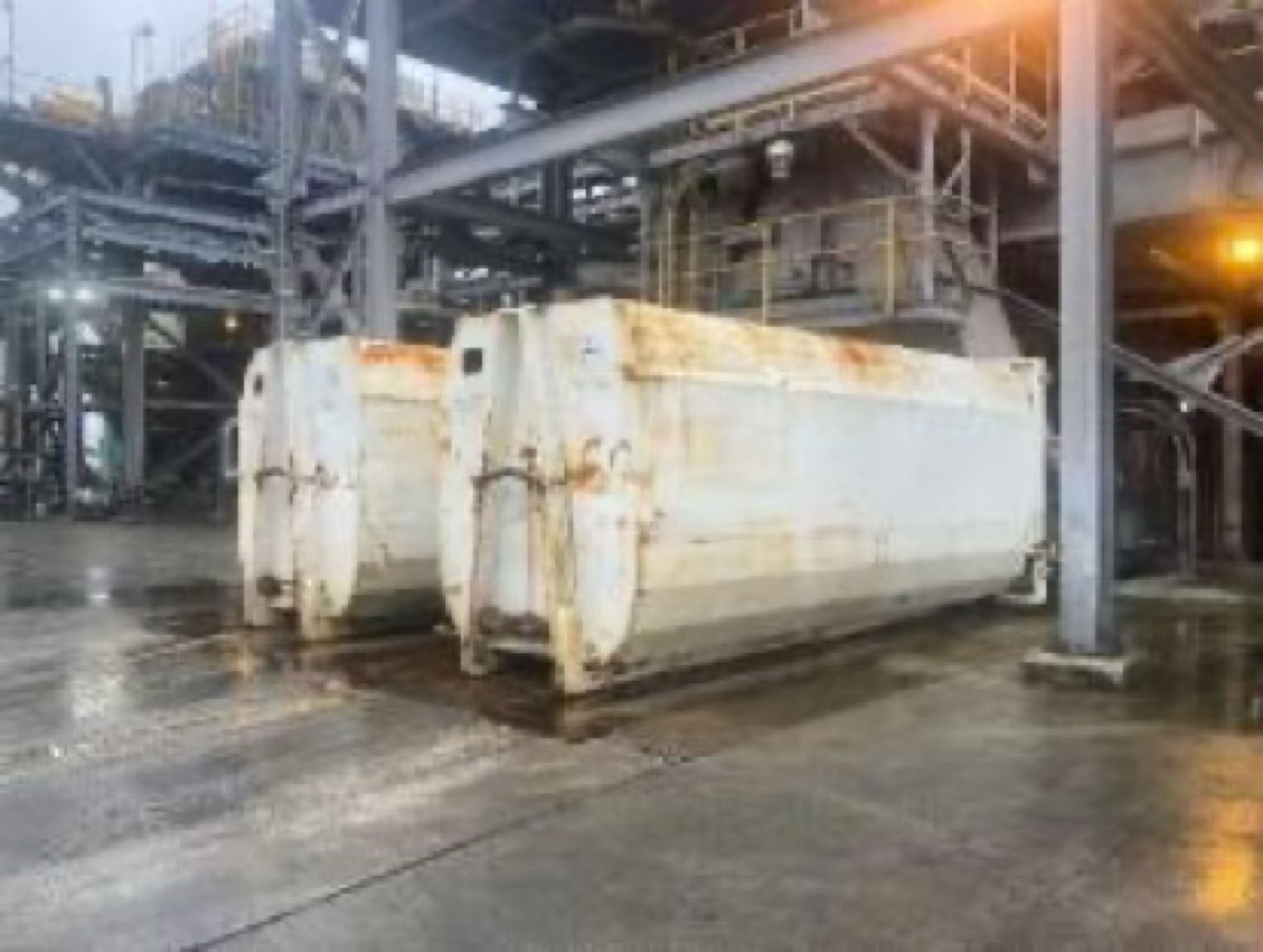

REJECT PACKERS X 2
CAREPAK MODEL CP226/SP6C-5C
Motor: POPE, D160M, 415V/11kW/4P
