“NO NONSENSE MACHINES AT NO NONSENSE PRICES”

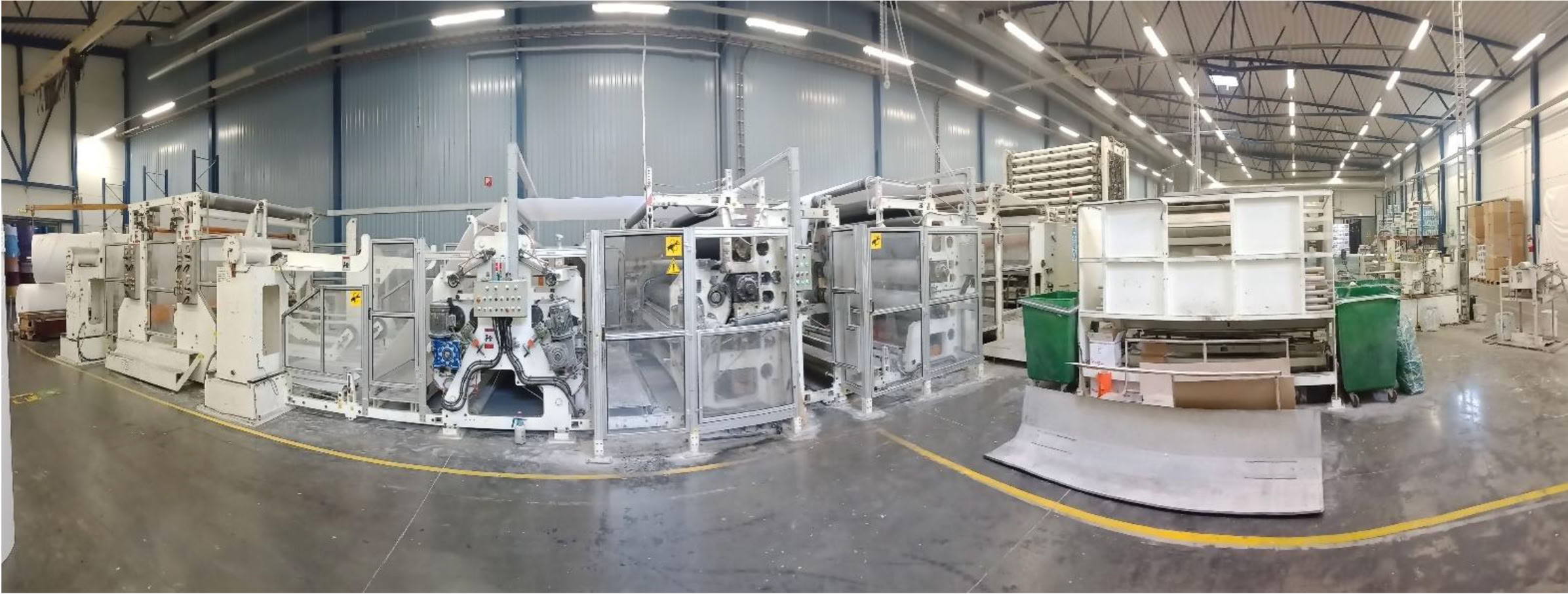

SM4049 TOILET ROLL & KITCHEN TOWEL

 Rewinder (CHAN LI Taiwan)

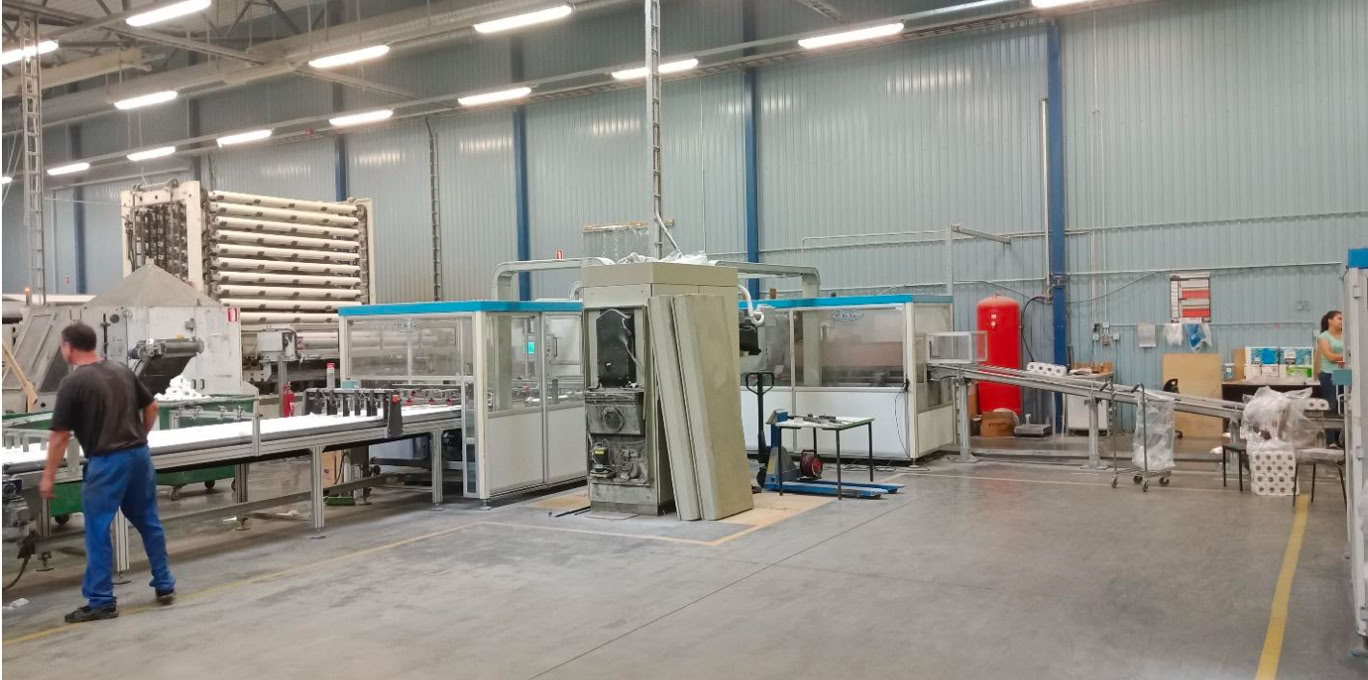

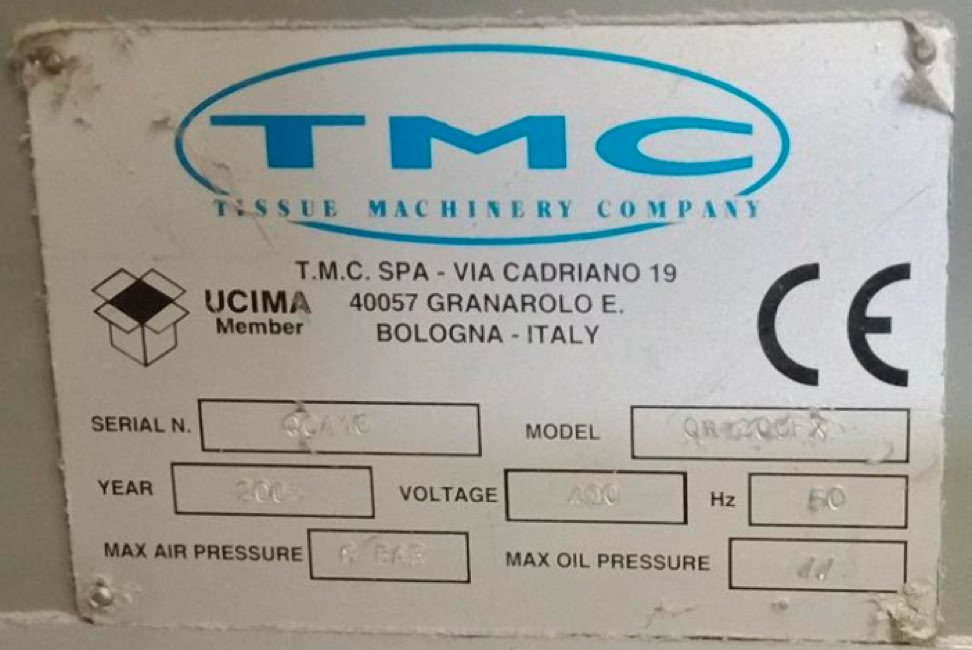

TMC tissue paper roll Packaging line

Quantity - 1 set

Including the following machinery,

4. Qualywrap QW1800 FX Wrapper

5. Qualyflex FBS200H Bundler

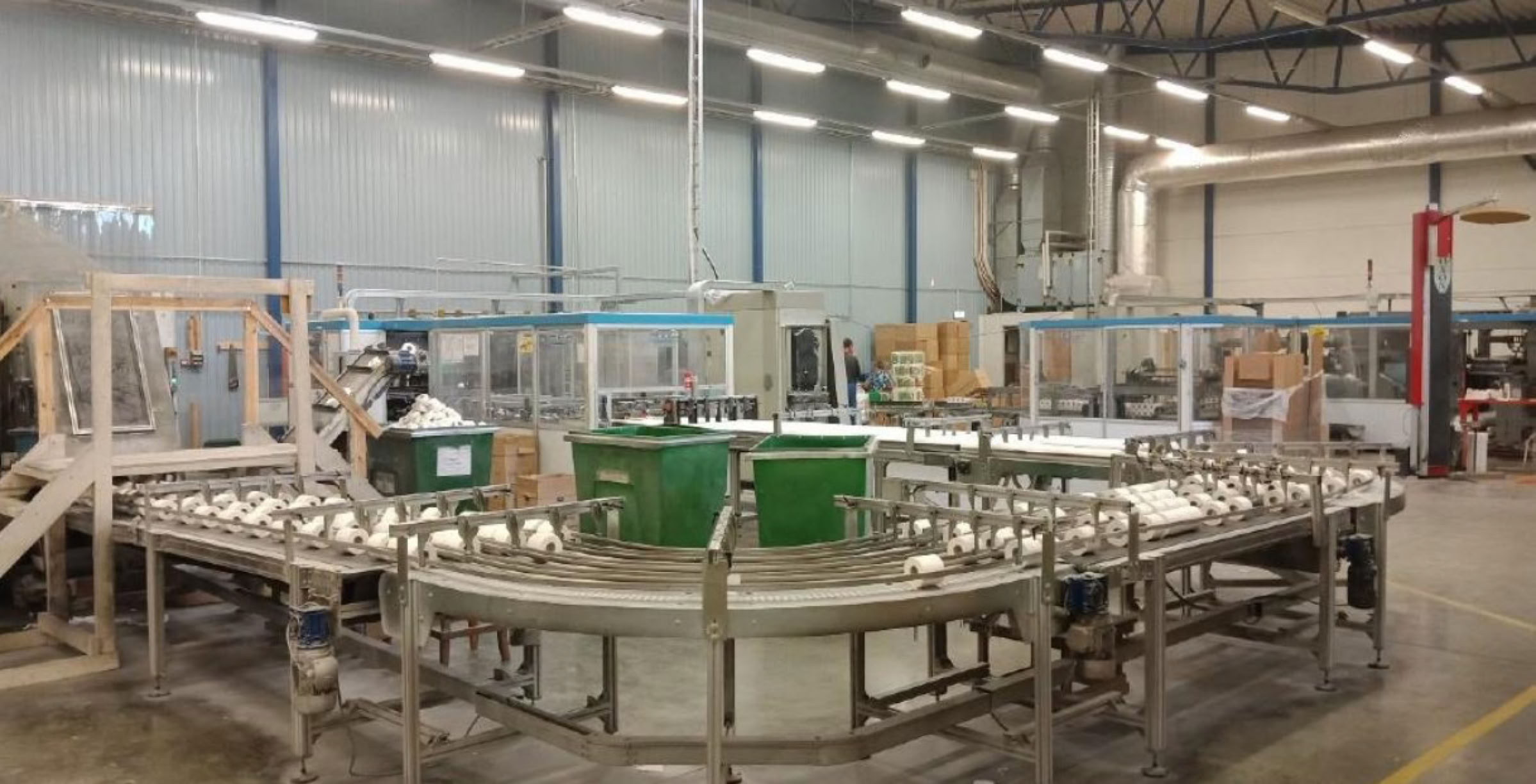

6. One set of roll and pack conveyors

Machine Technical Data

1. Machine mechanical Speed 170 + cycle/Minute

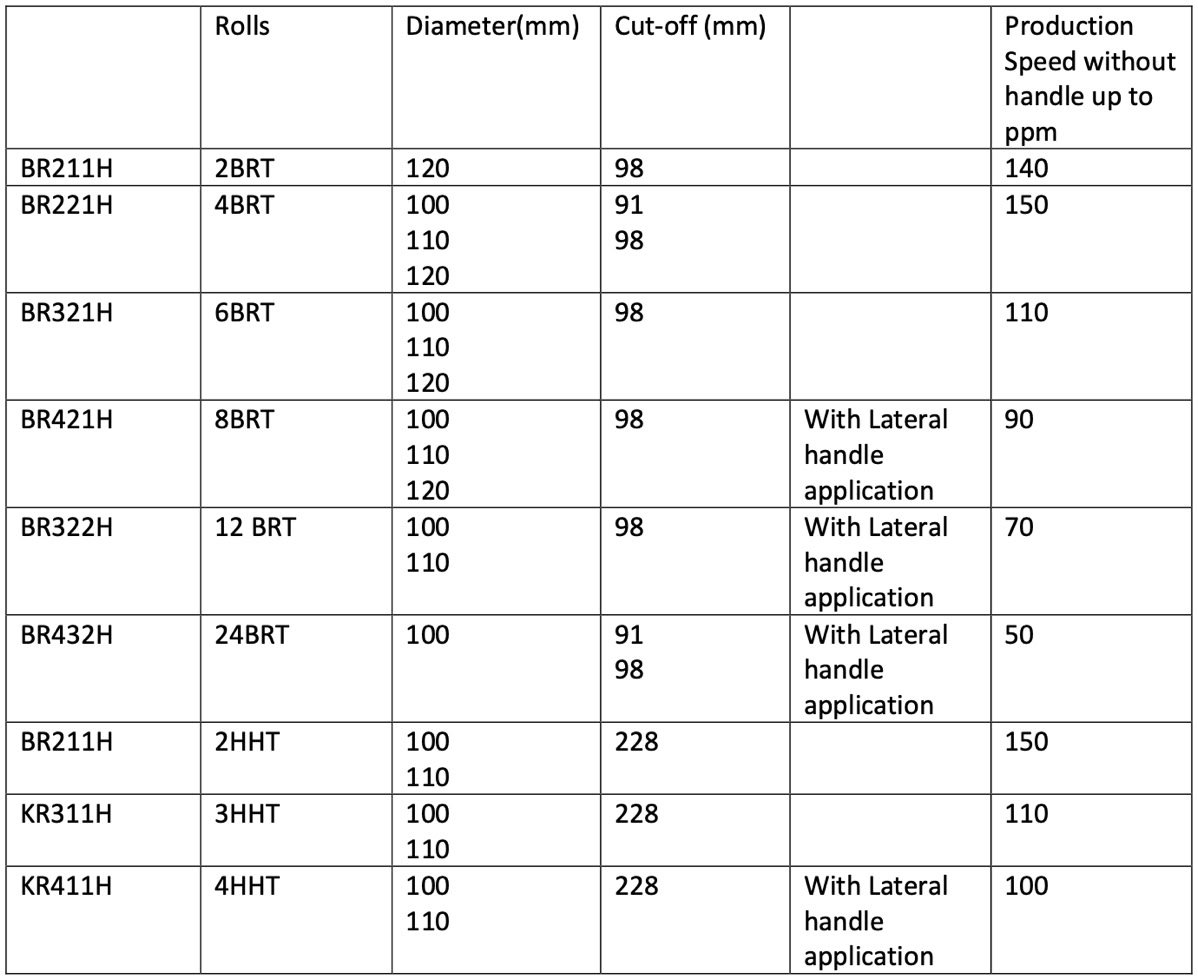

2. Machine Performances(Packs Per minute)

Speed shown are valid for packs without “poly strip application” (Integrated handle Unit)

Speed for packs having the handle application will be limited to:

BR421H- 8 BRT rolls: 60ppm

BR322H- 12 BRT rolls: 50ppm

BR432H- 24 BRT rolls 30ppm

KR411H- 4 HHT rolls 60ppm

3. GENERAL PRODUCT DIME 150NSIONS RANGE:

BRT (Bathroom Tissue Rolls):

Diameter Min. 95mm – Max.135mm

Cut off Min. 95mm- Max 130mm

HHT (Household towel Rolls):

Diameter Min. 100mm – Max 150mm

Cut off Min 200mm - Max 280mm

4. Machine range (Final Package dimensions):

a. Package width Min. 180mm- Max. 580mm

b. Package depth Min. 90 mm. Max. 560mm

c. Package height Min. 90 mm. Max. 280mm

5. Change over Times:

a. Full format size change Maximum 60 minutes

(ie from small single level H format to large double level H Format

b. Partial format size change Approx. 15-20 minutes
