SM4047 - PULP MILL - 600TPD kraft 5x batch digestors – EXCLUSIVE SALES PARTNER

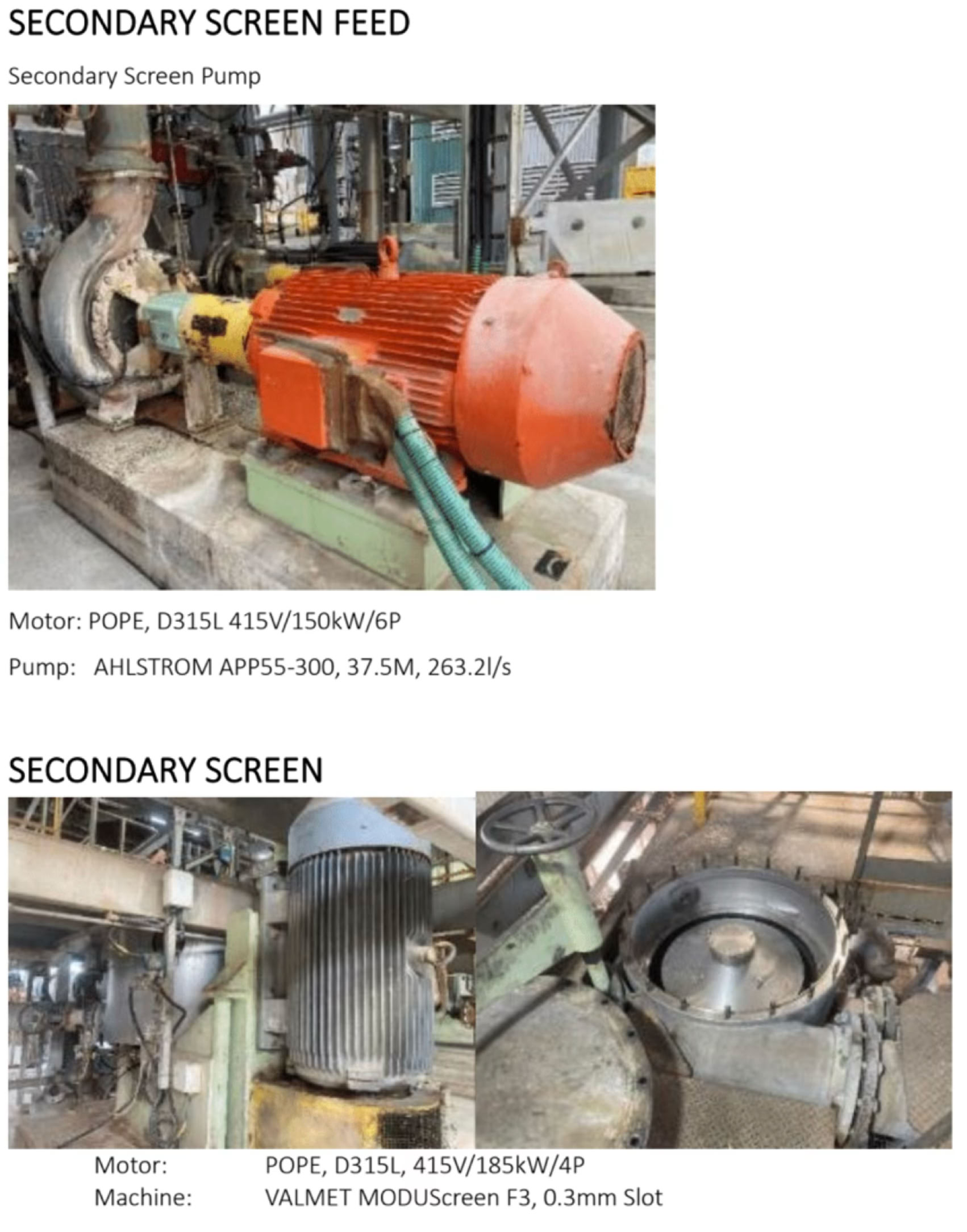

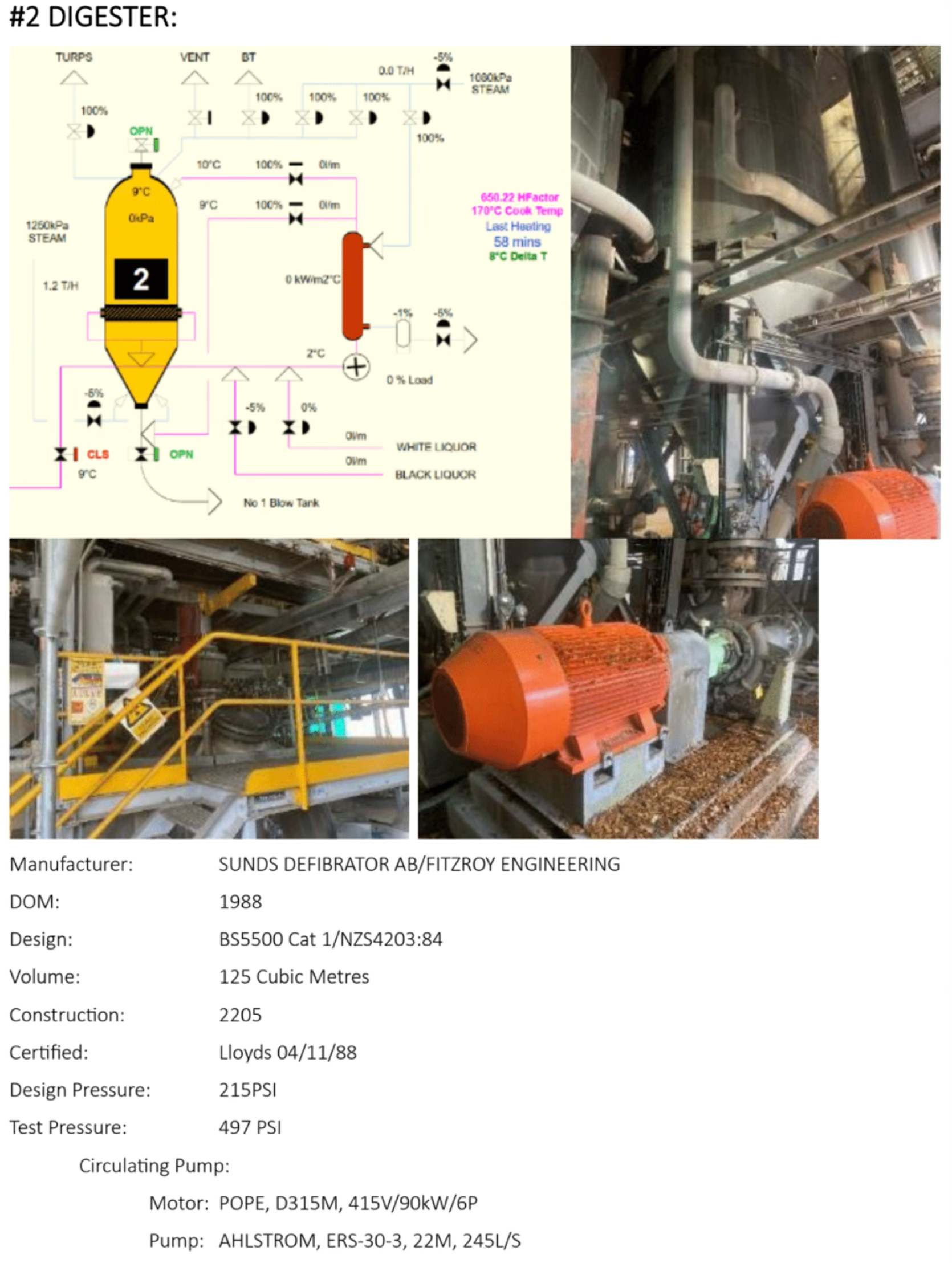

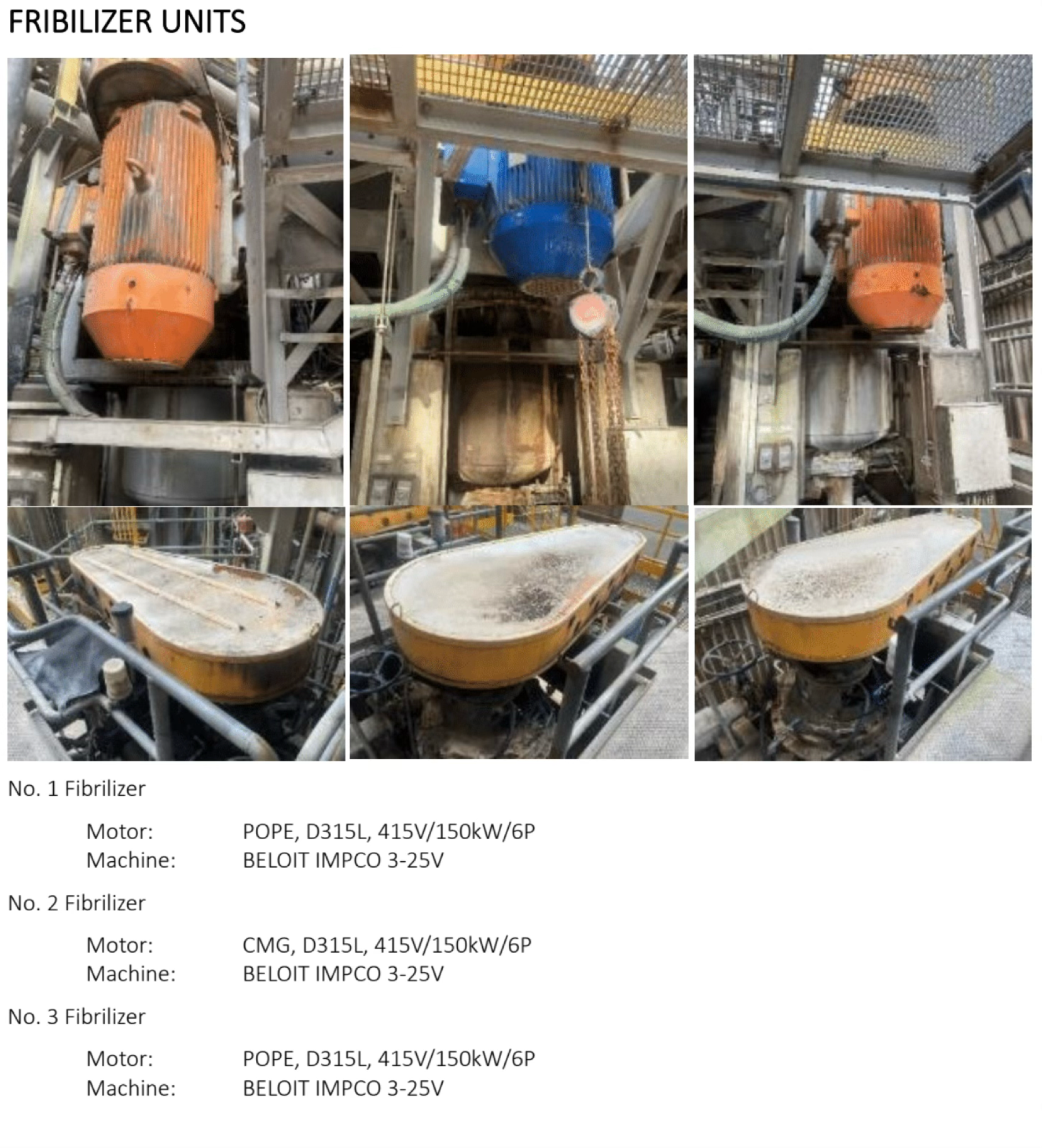

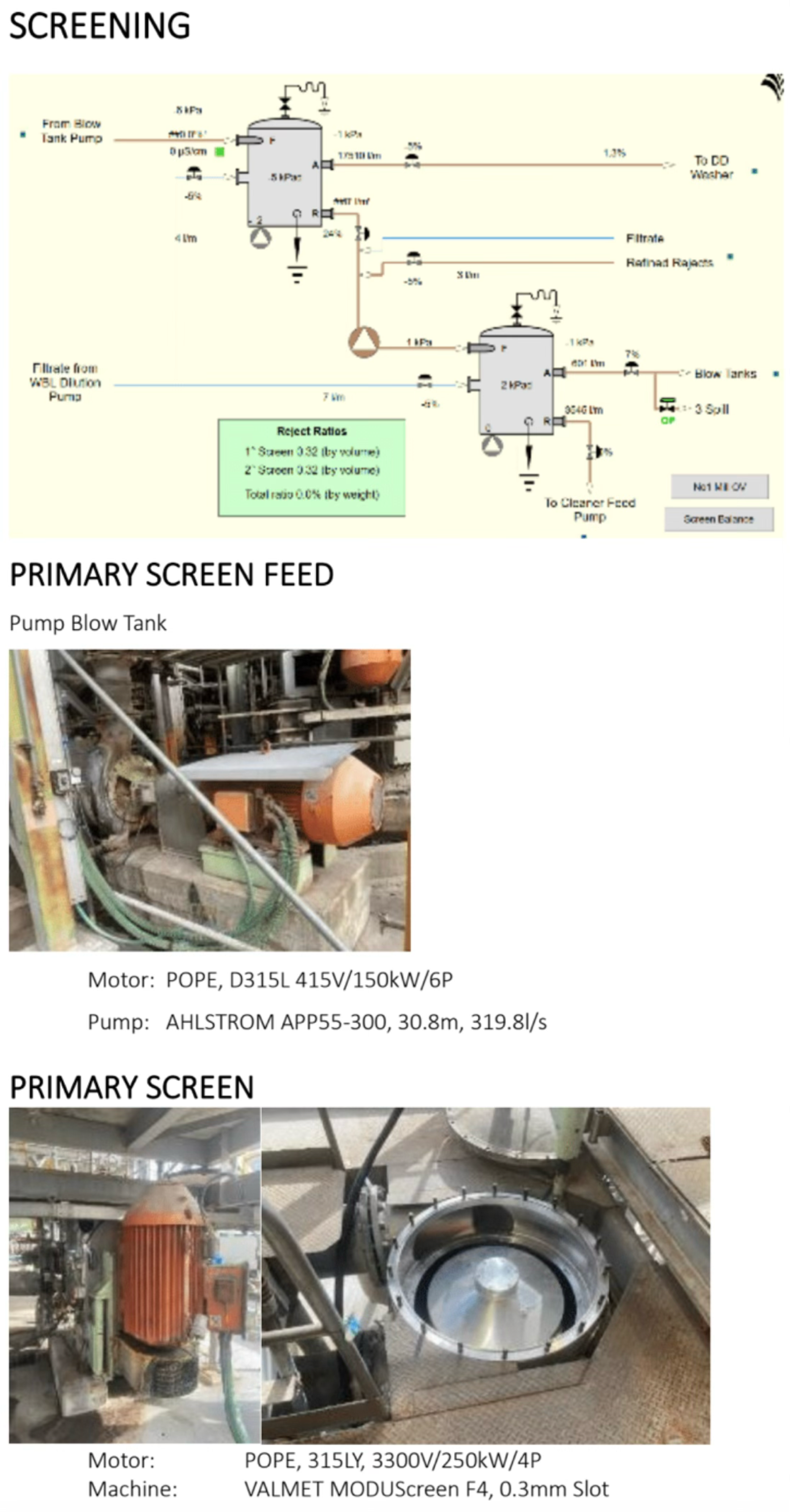

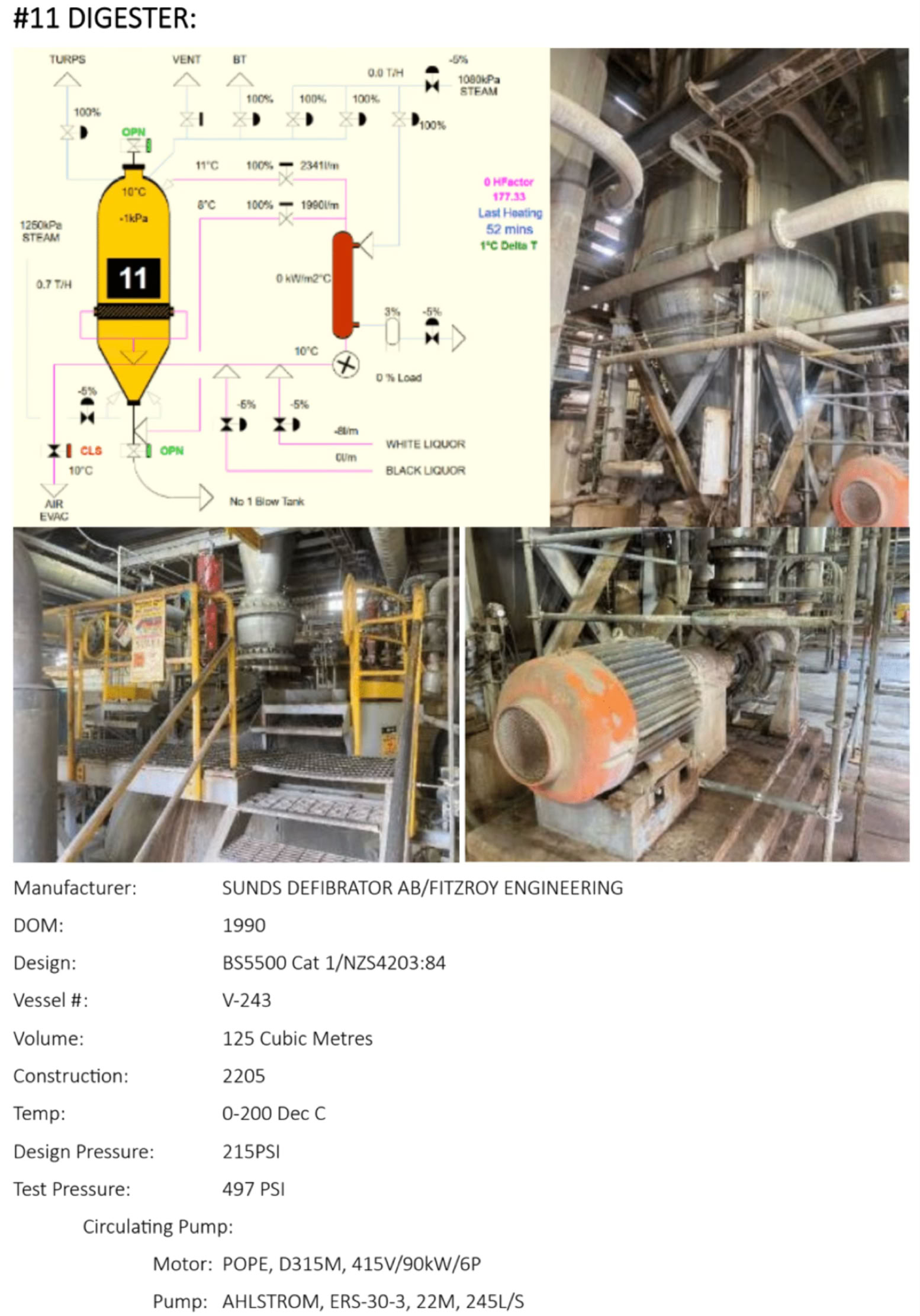

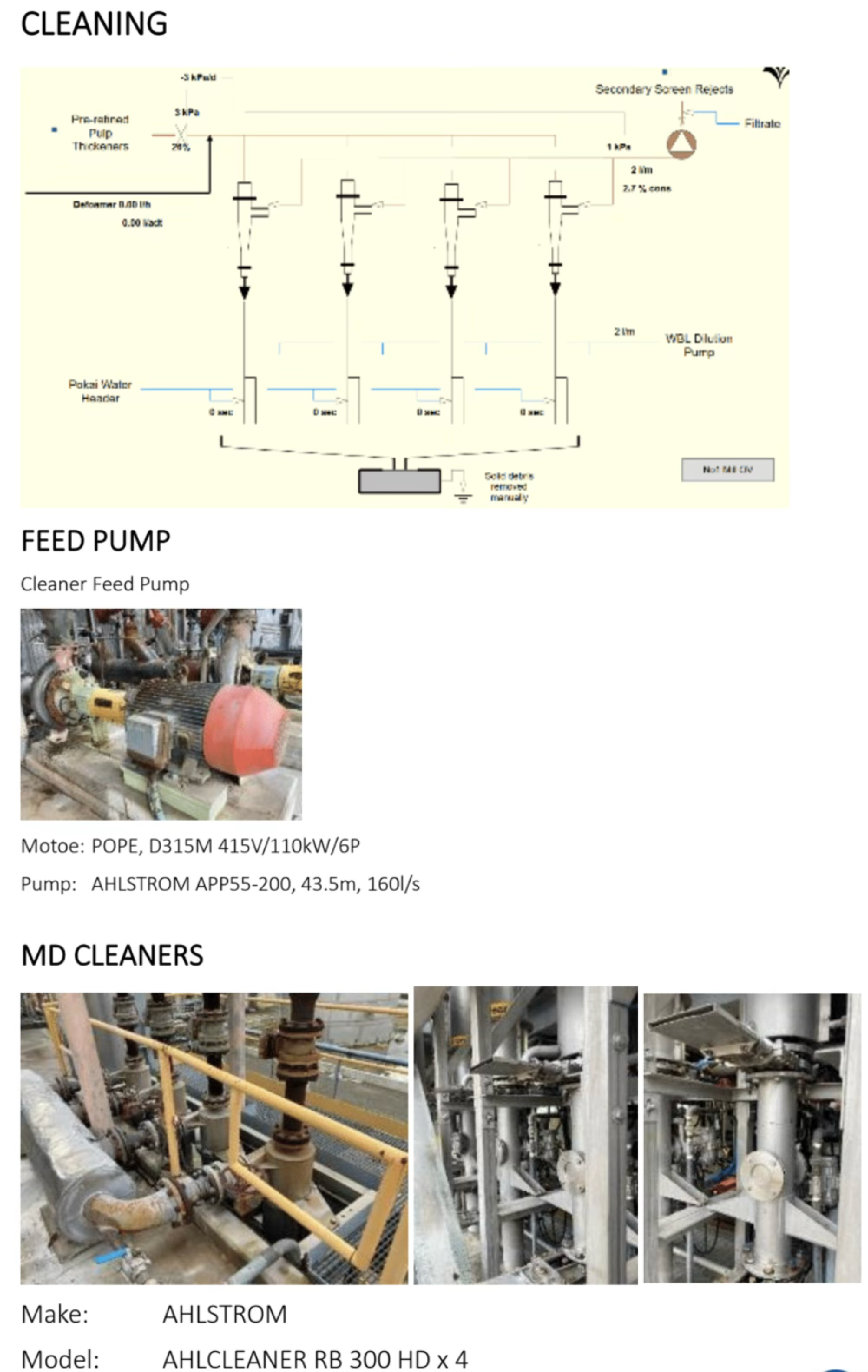

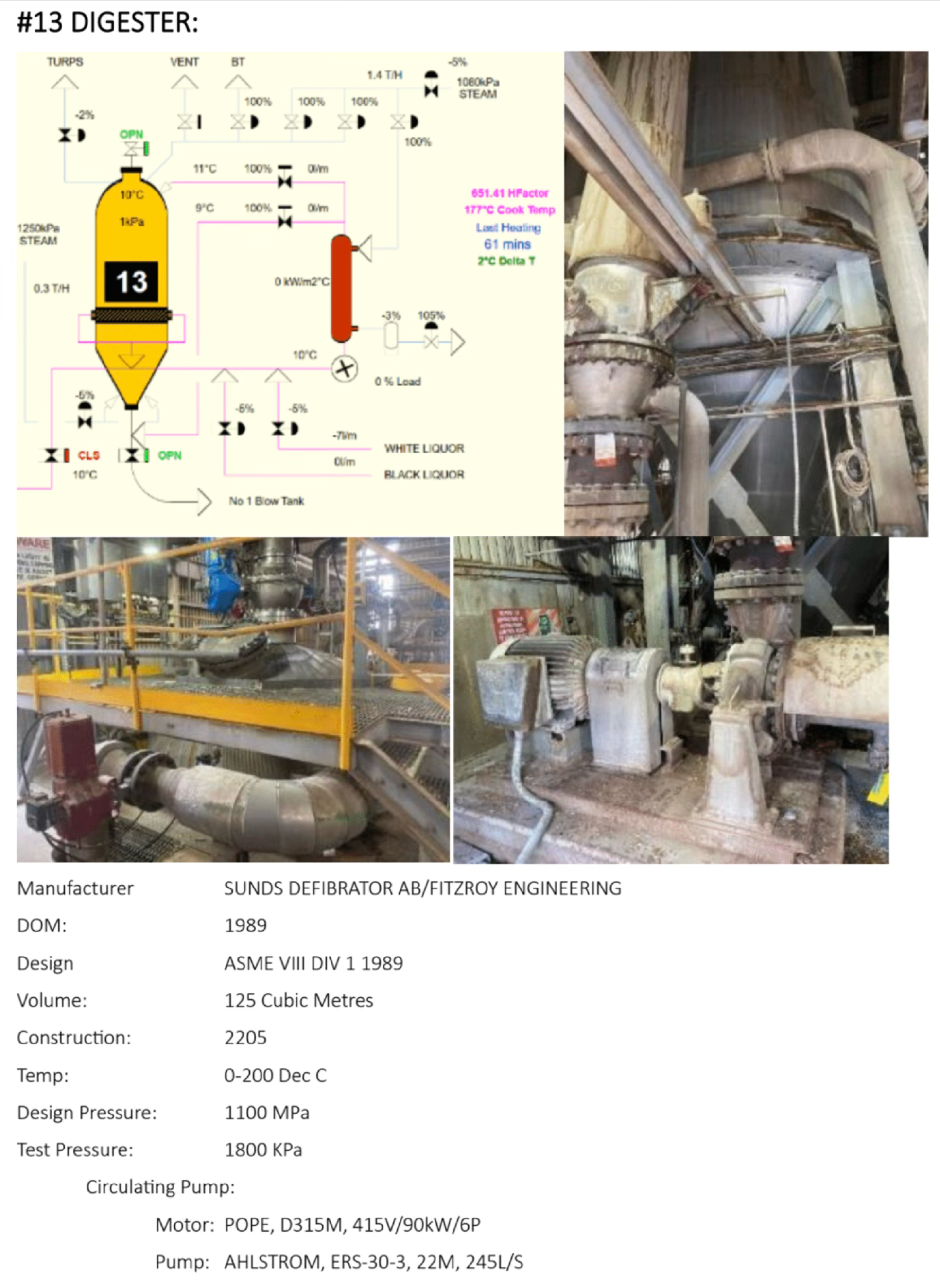

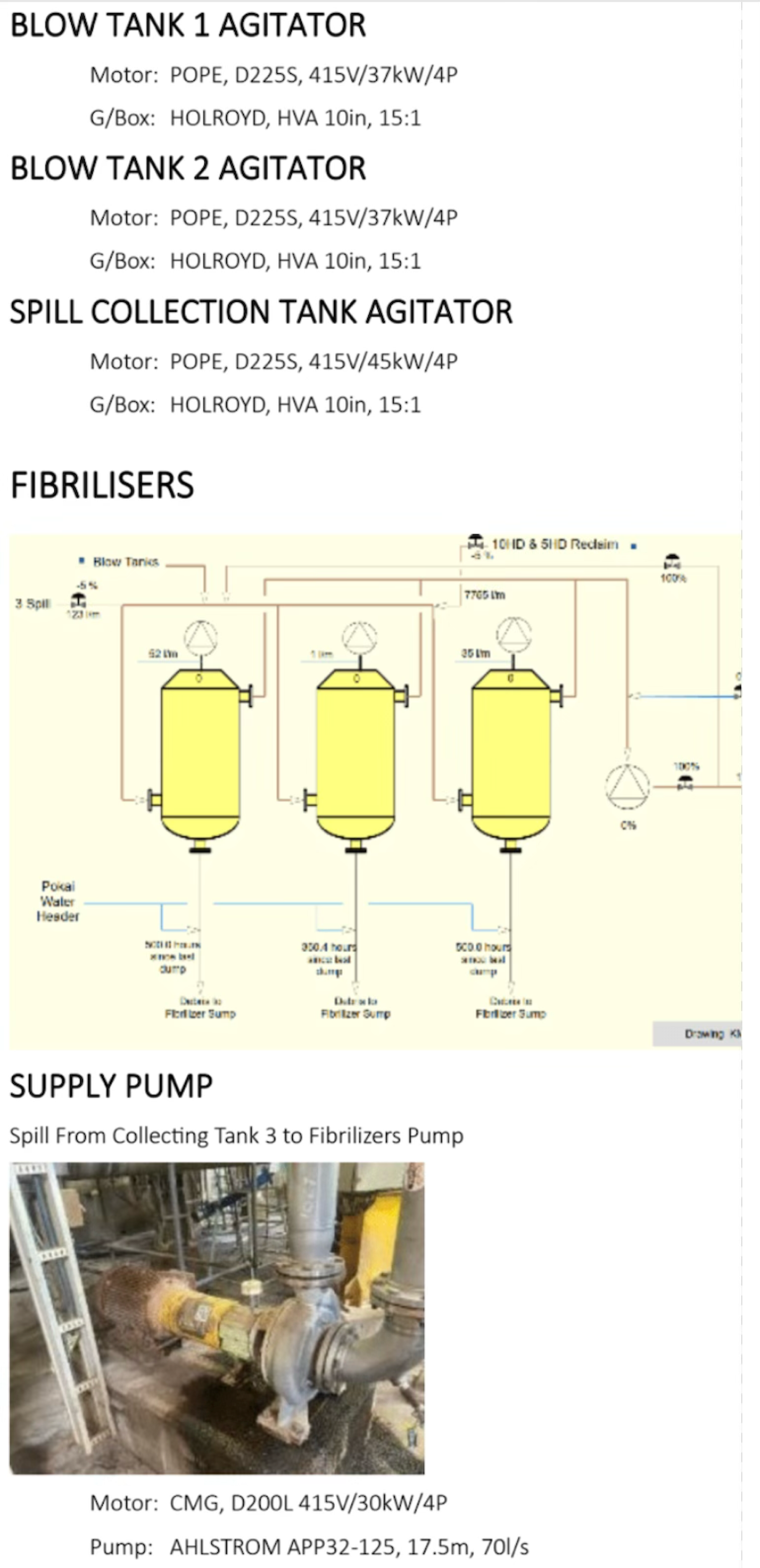

Kraft Pulp mill consisting of 5 batch digesters . Defirbilizing, Screening and Cleaning

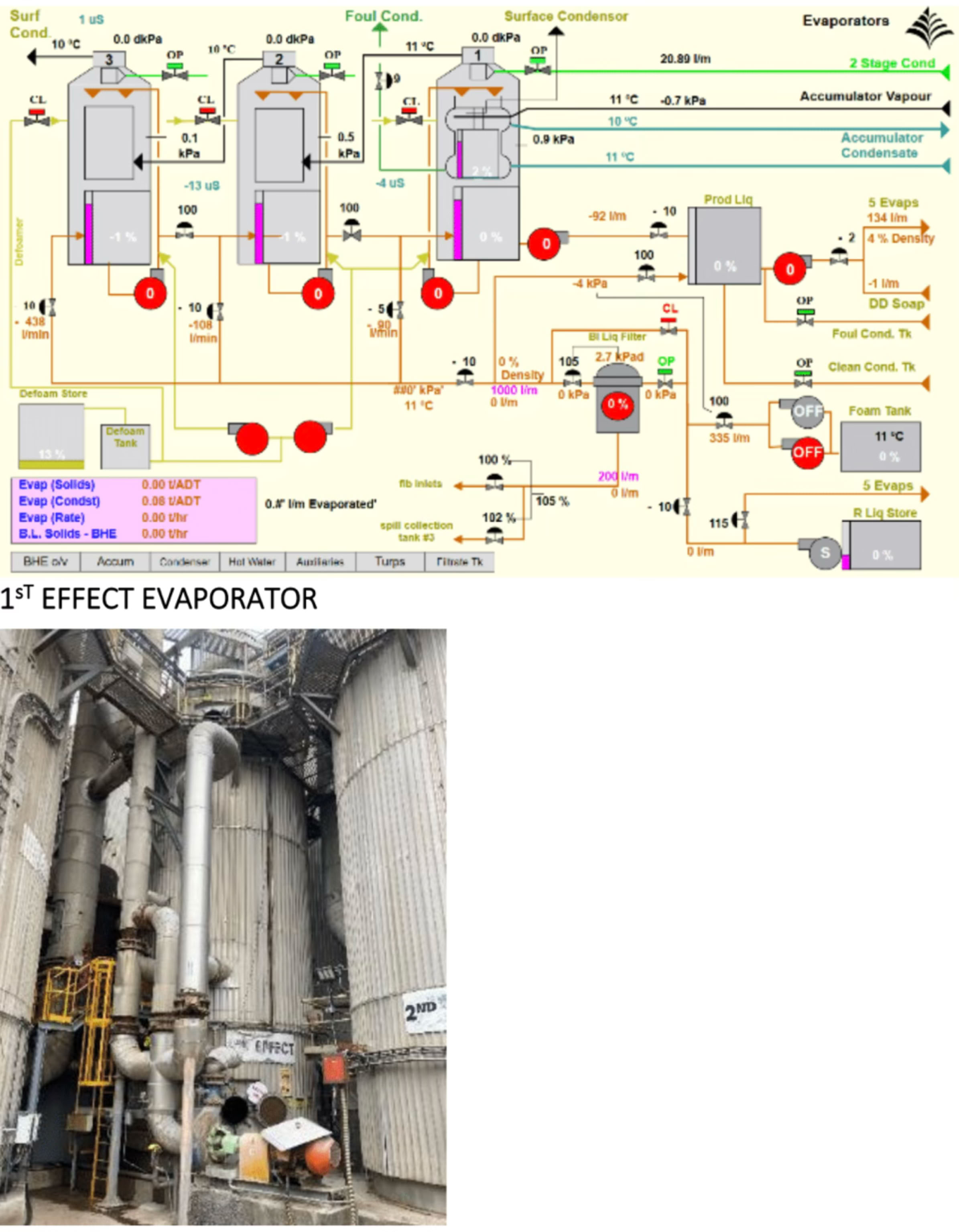

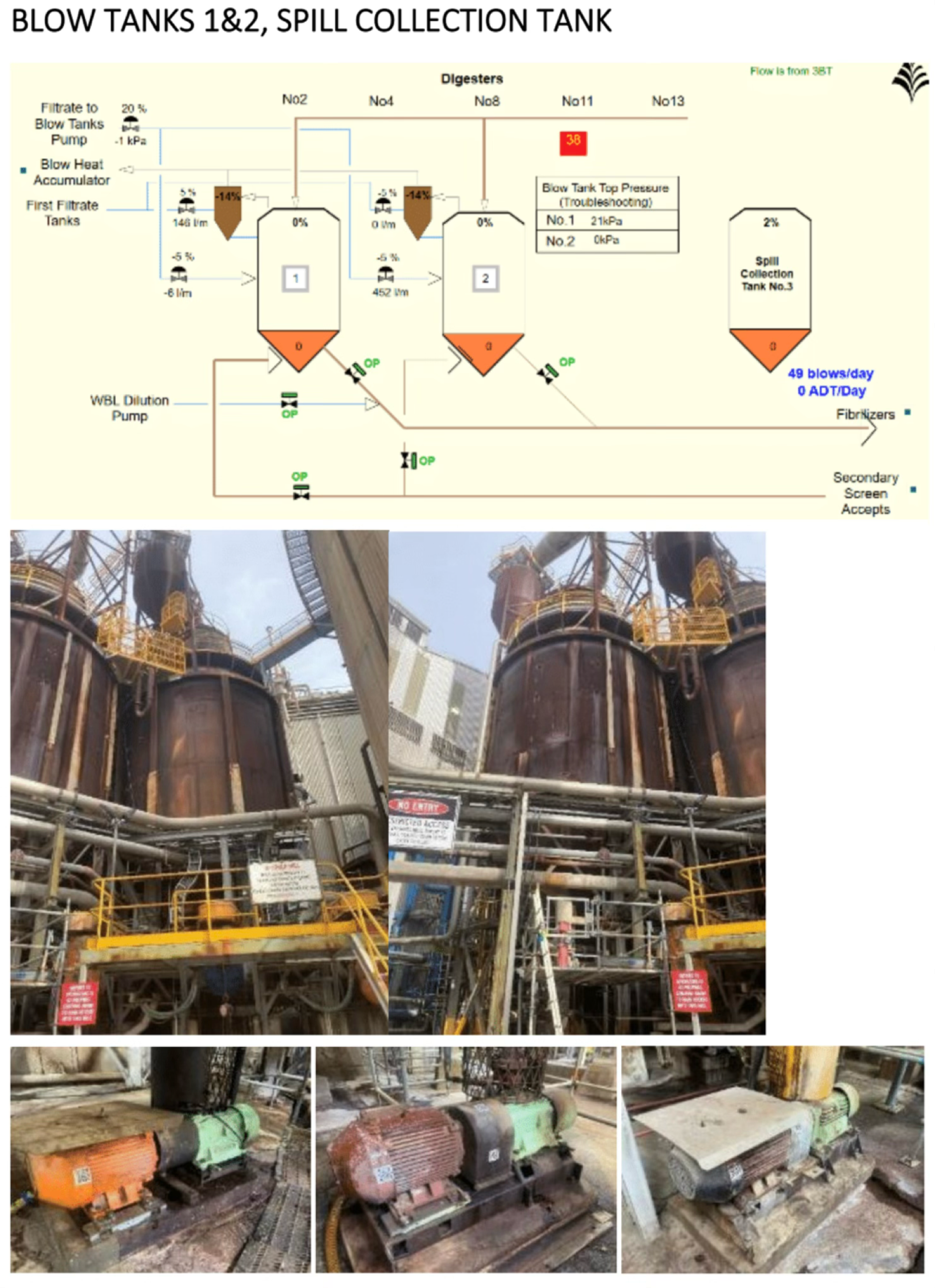

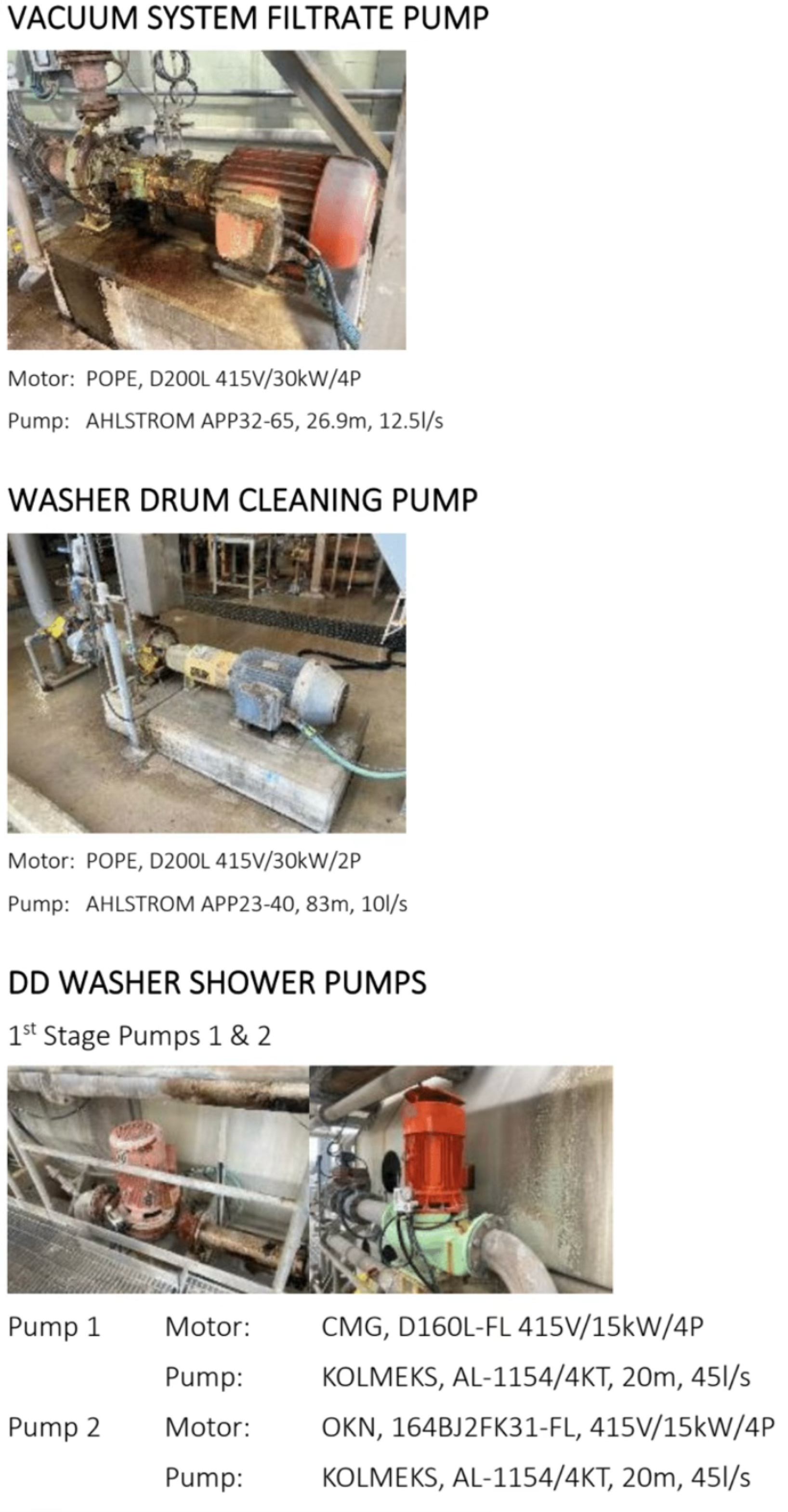

Systems. DD Washer and Blow Heat Evaporating system, producing 600 AD TP

BASIS OF DESIGN

KAPPA range : 28- 60 (Target 55)

Cook/Day: 50

Capacity: 600 Tonnes/Day

Total Steam Usage: 26T/Cook

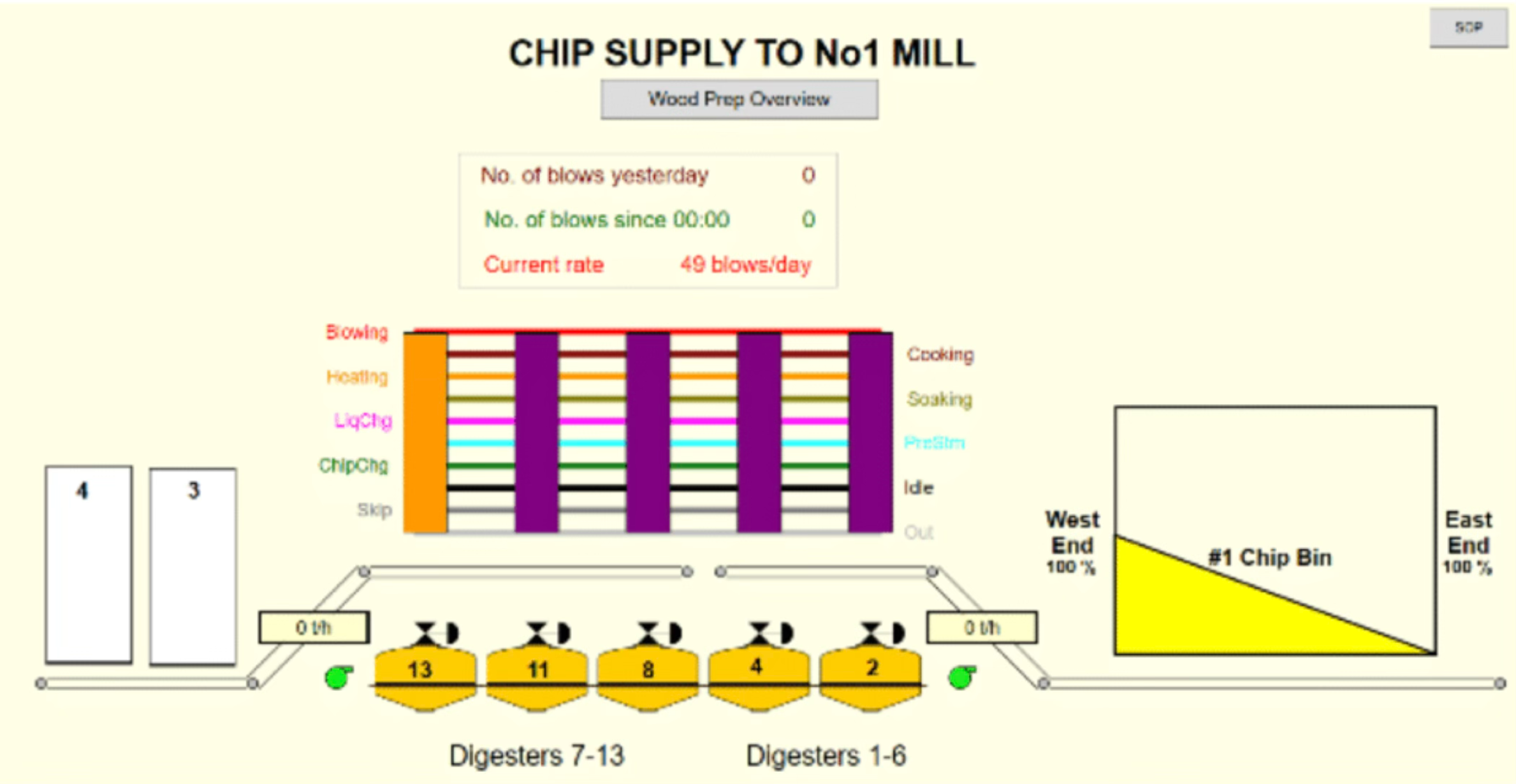

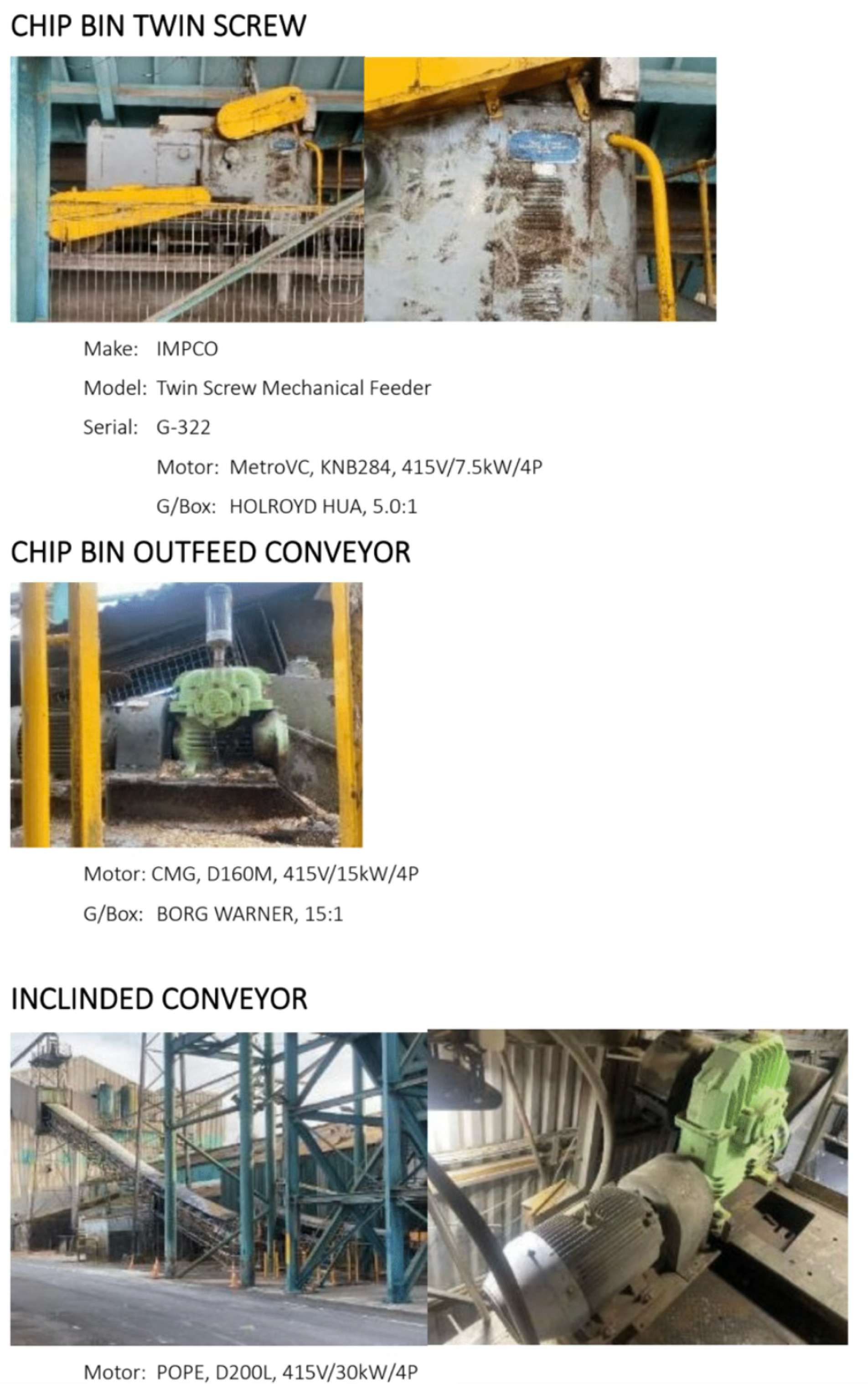

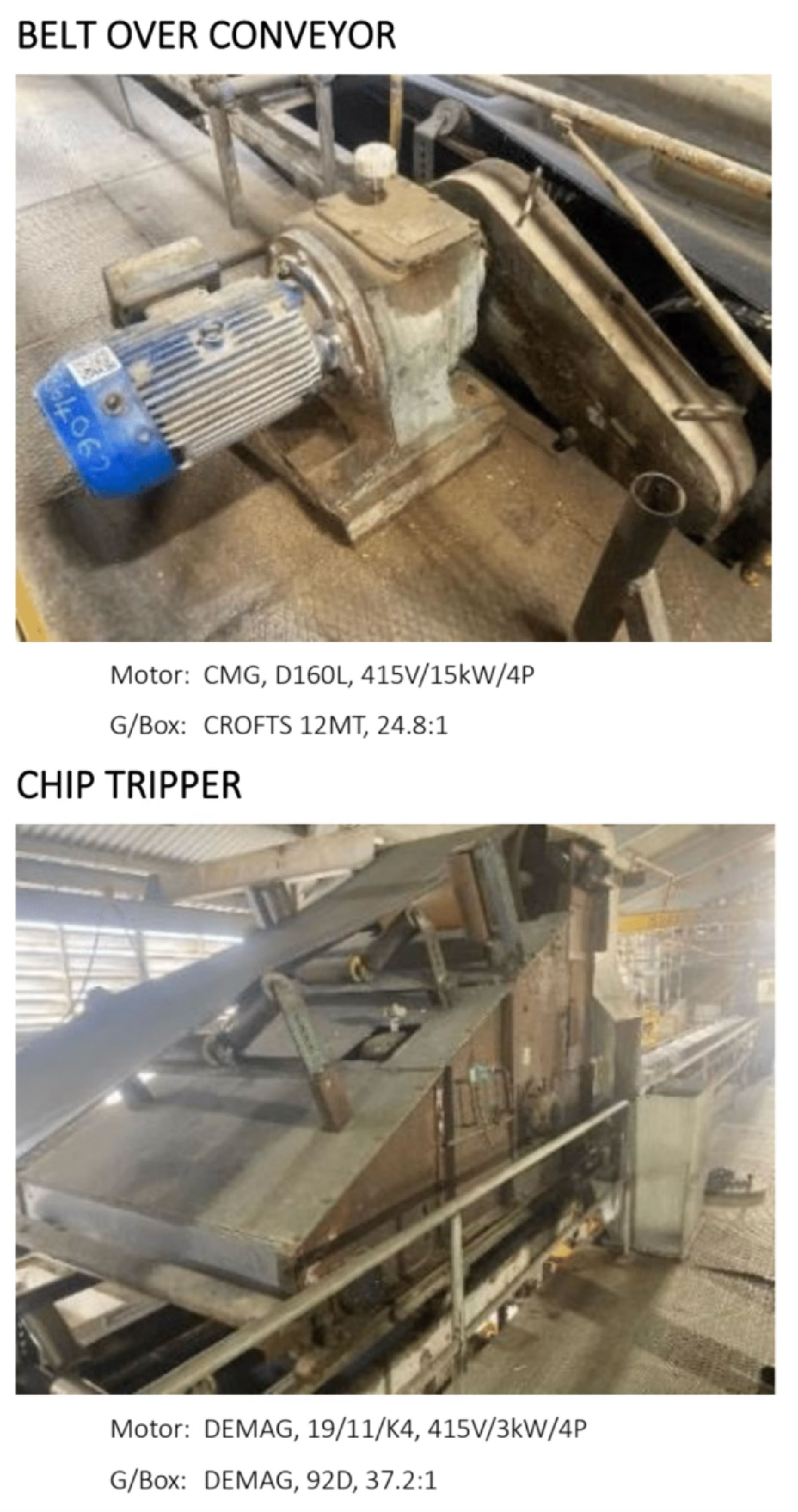

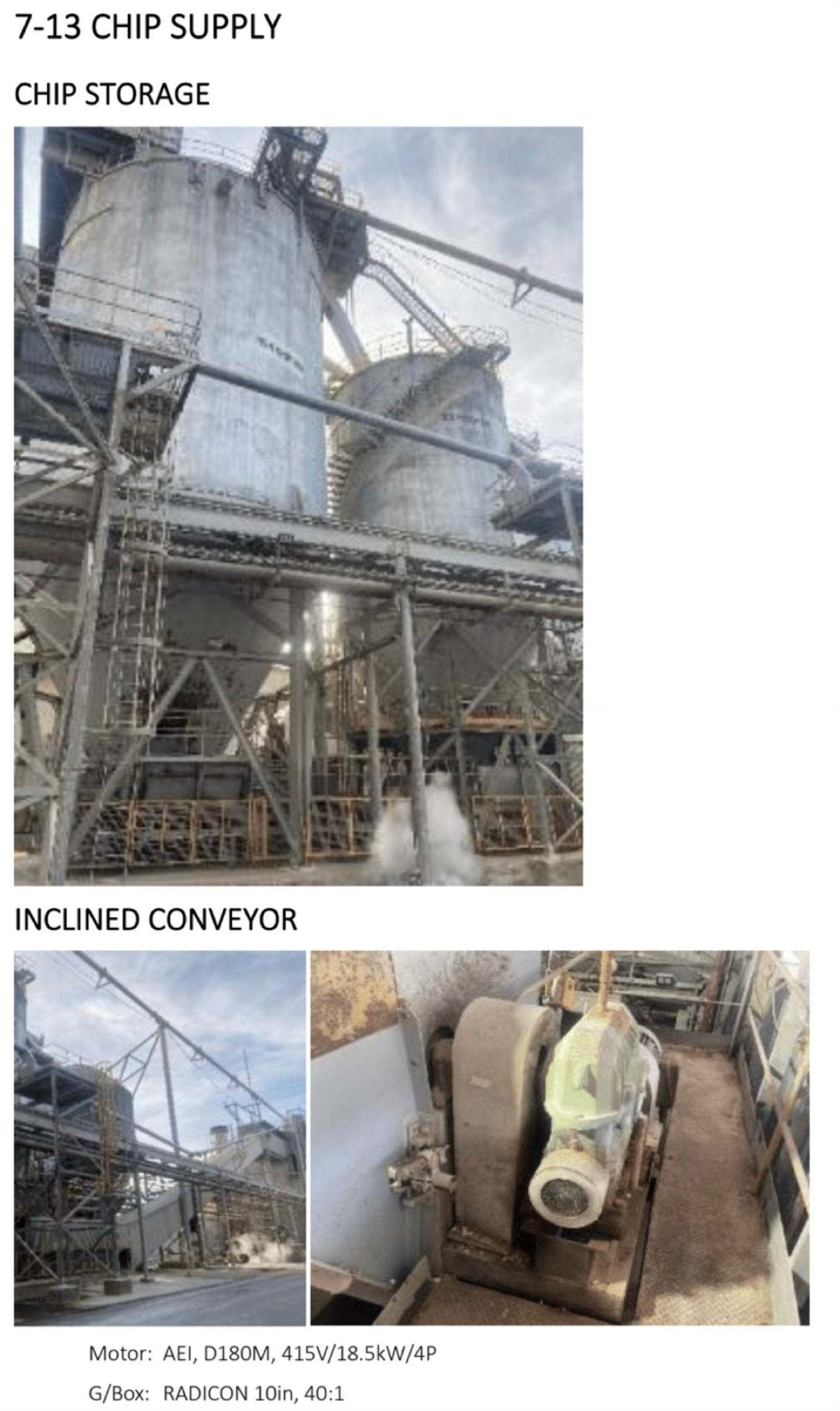

CHIP SUPPLY

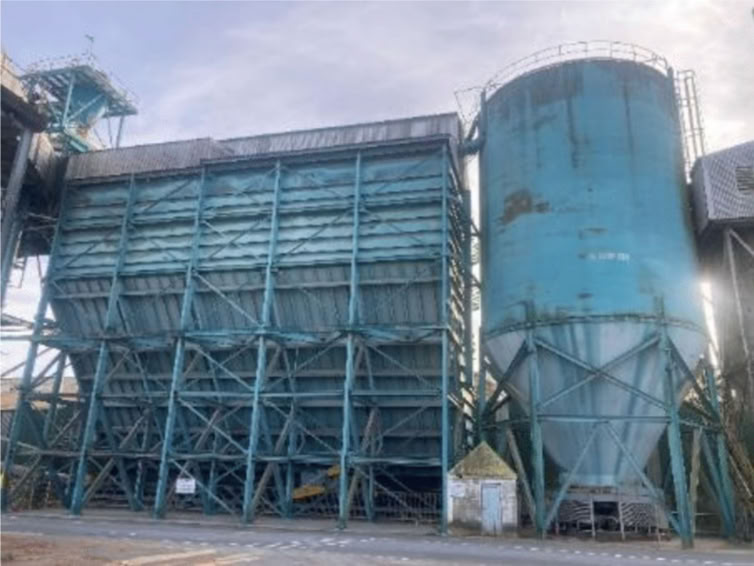

CHIP STORAGE 1 - 6

1 - 6 Chip Supply

Chip Storage
