Tissue Machine, 1,760mm , Toschi Fourdrinier, 250 -300 mpm, 10 tpd

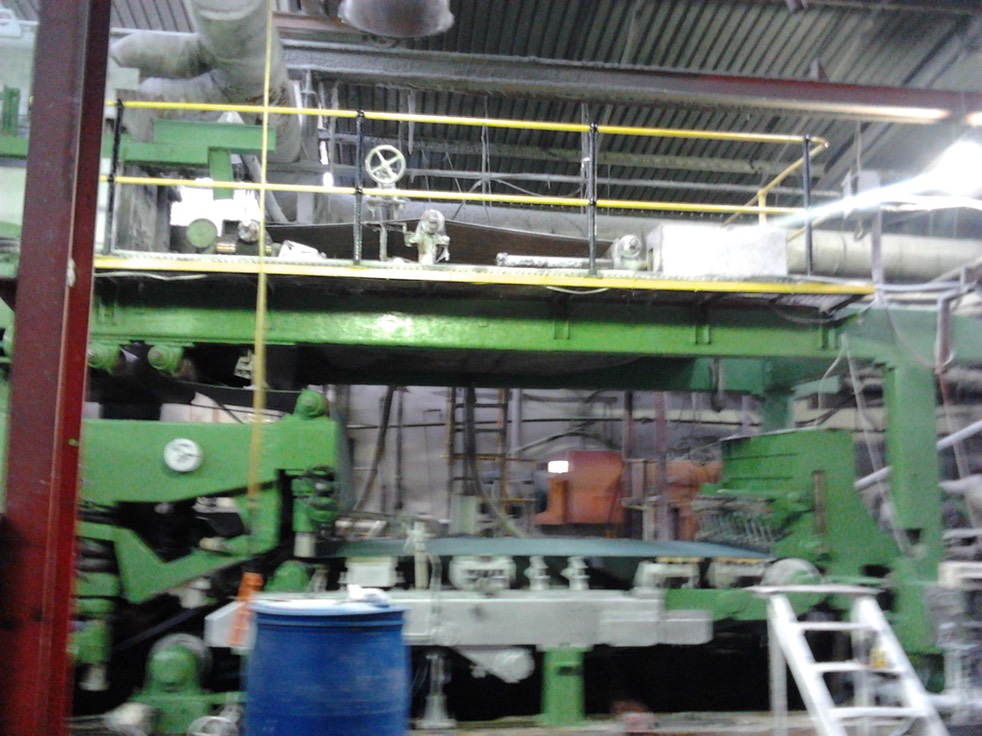

Paper Machine
Tochi Fourdrinier 250 -300 mpm @ 10 metric ton /day.
1.Headbox. plus Fan Pump, variable speed 55 kw
2.Formingboard.
3.6Foil blades.
4.2 Sution boxes.
5.Forming Fabric length 9.95 x 2 meter
6.Trim width coming off Yankee 1760 mm
Pick up Section
1.Pick up Shoe.
2.4slotted Vacuum boxes.
3.Felt Length 21.5 x 2.1 meter.

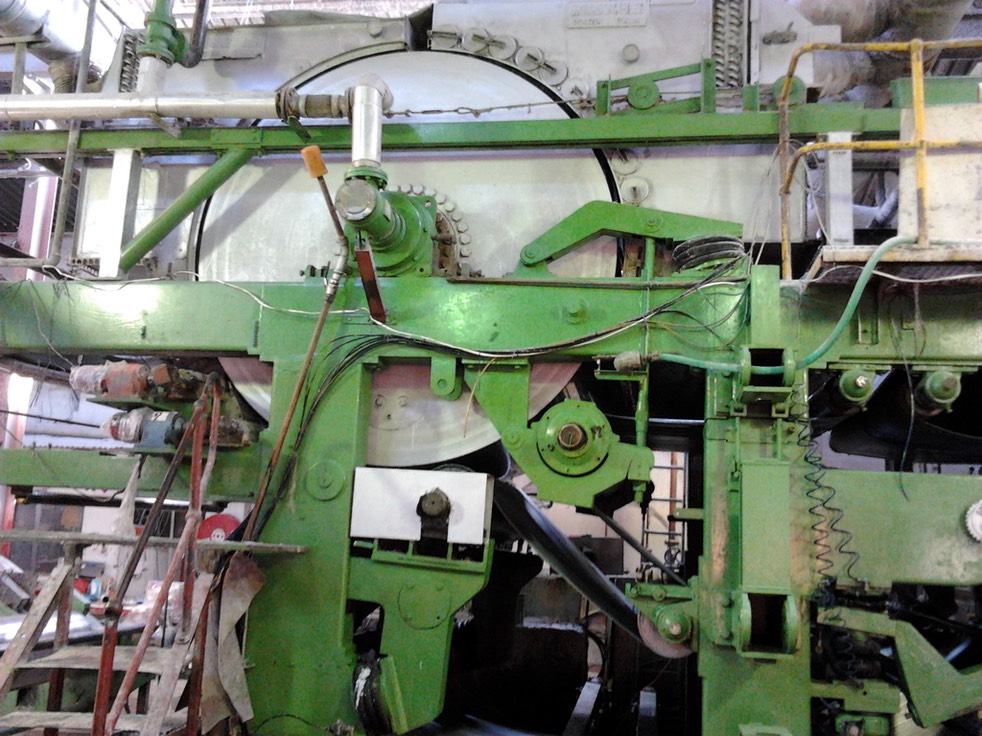

Yankee Dryer
Toscotec steel casting newly installed in 2007.
Dimentions ;2500 Dia x2050 width.
Operating pressure 9.5 bar max.
Hood :steam heated hood.
Electric drive:
3 sections, DC variable speed 380 volts.
Pre-screening
pre-screening before headbox as well as vibrating screens to handle pre screen rejects.

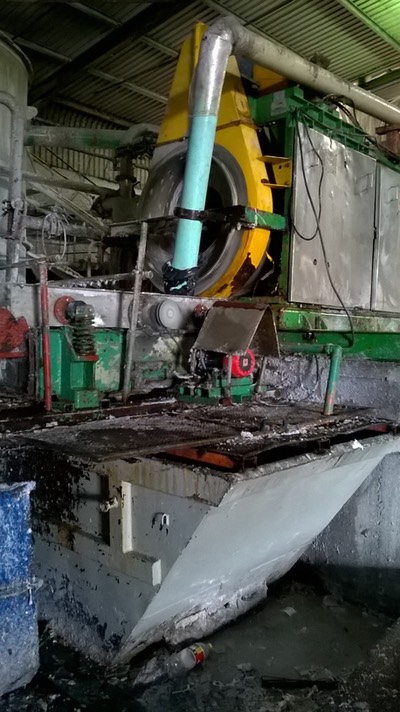

Stock Prep - common with SM2402
One Common stock feed preparating plant feeding both machines.
Pulper, Low Desity at 4ton per hour.

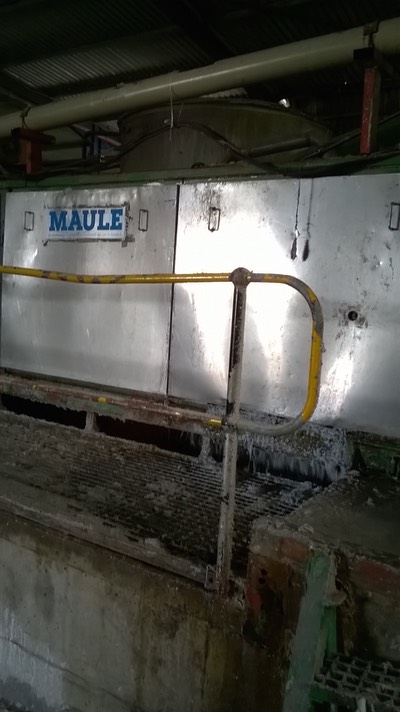

1.Trommel rotating reject screen with hole size at 10 mm supplier (Maule)
2.High density cleaner . supplier (Maule)
3.Sepraplast screen , 3mm hole size
4.Reject Vibrating screen, hole size 3 mm
5.Dump Chest 15 cub
6.Machine chest 15 cub
7.Refiner chest 15 cub
8.Double Disc Refiner (Parason)
9.Consistency Regulator . BTG Complete
