SM2472 - EXCLUSIVE AGENCY

🖥 - VOITH ATMOS Tissue Machine, 5.4m trim, 240 tpd

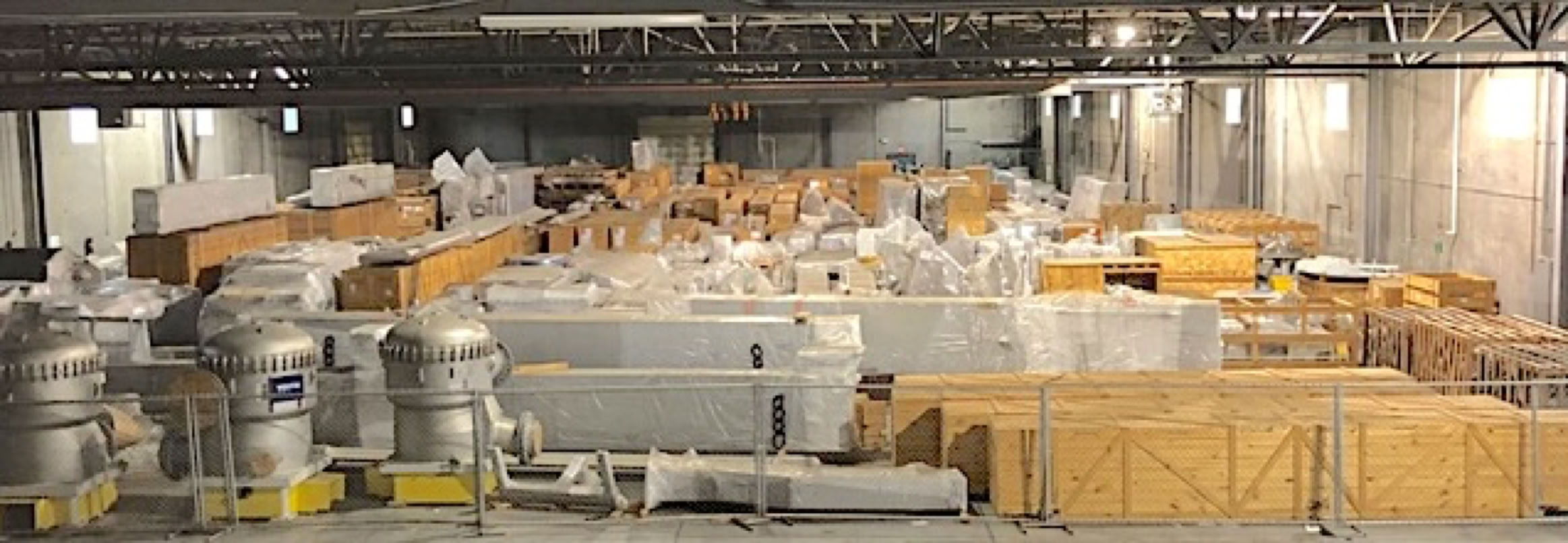

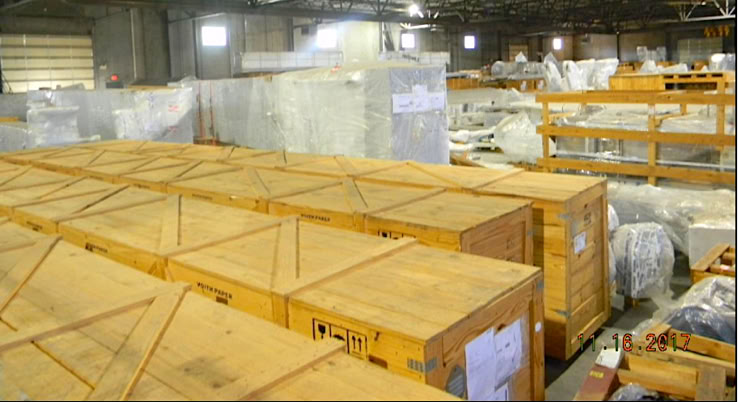

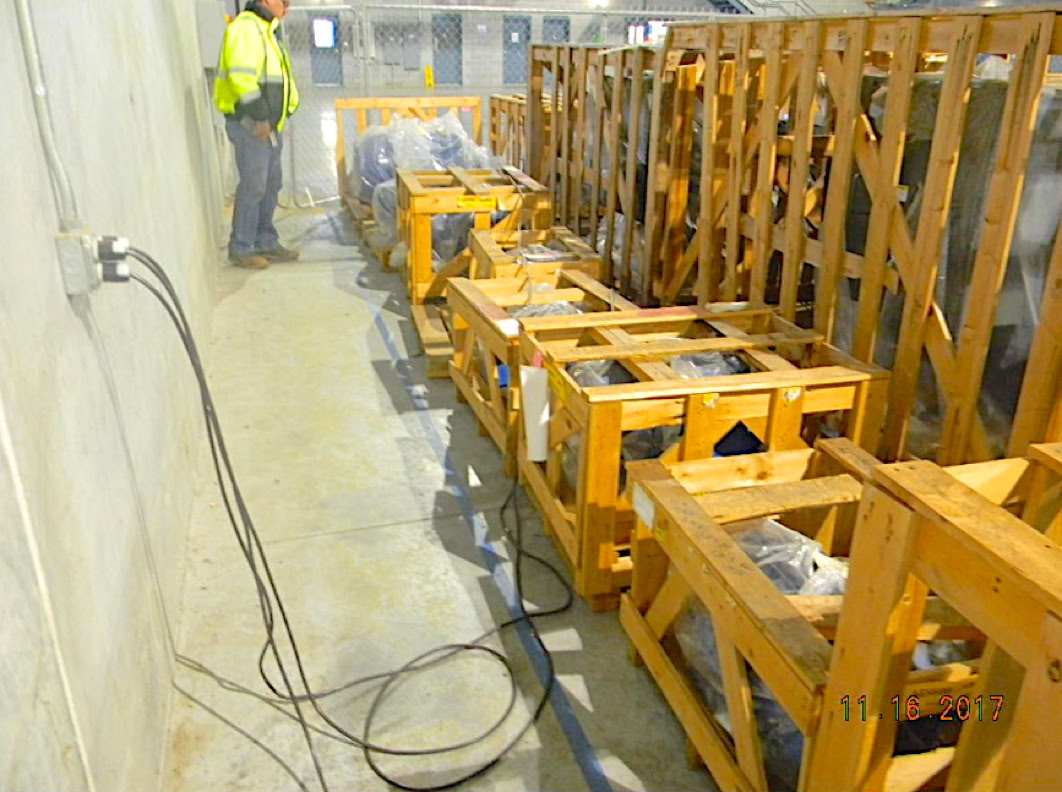

Delivered new, but never installed - still in the delivery crates - a unique opportunity!



  Specification:

    Manufacturer Voith

    Model: Atmos Tissue Machine

    Trimmed width: 5,230mm

    Wire width: 5,410mm

    Design Speed: 2,000 m/min

    Headbox speed: 2,150 m/min

    Paper grammage: 16-25 g/m2 (BD)

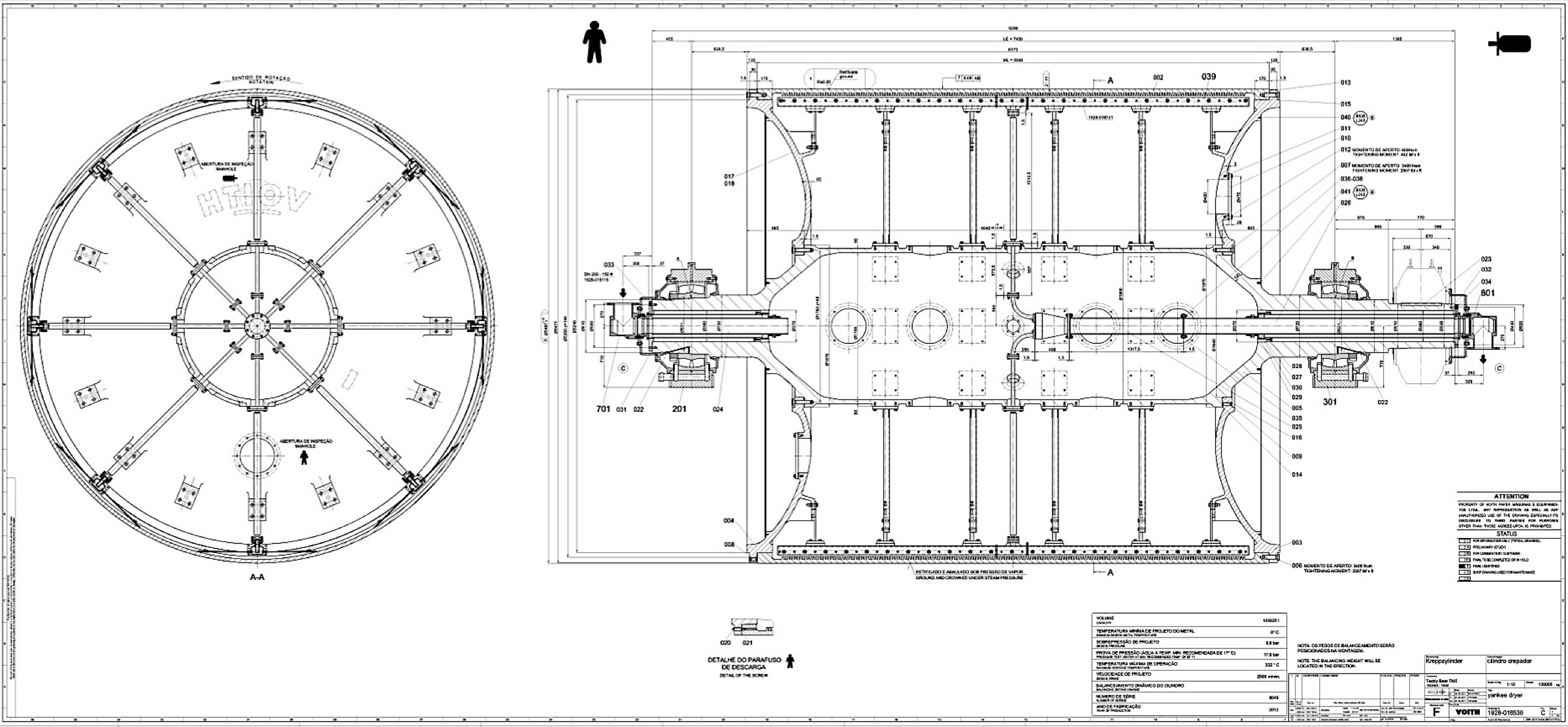

    Yankee dryer: 5 meter

    Operating speed: 1,900 m/min

    Production: 240 ADMTPD

    Status: shipped to the USA - but never installed or used

This tissue machine can be set as an Atmos machine or as a conventional dray crepe machine , This tissue machine can operate in either Atmos mode or as a conventional dry crepe machine, maintaining the same production capacity of 240 tpd.

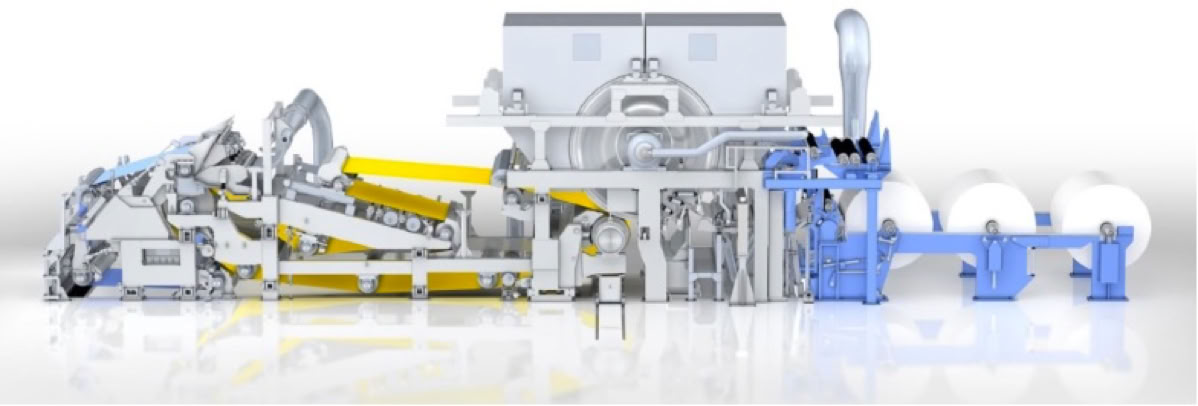

Technology Overview

The Voith Atmos technology is designed to produce high-quality tissue by maximizing air retention while minimizing fiber usage. Key quality features include bulk and caliper, which contribute to absorbency in towels and softness in toilet paper—two of the most consumed tissue products globally.

The ATMOS machine is engineered for versatility, allowing for easy transitions between producing premium tissue and standard tissue. It has demonstrated operational simplicity and robustness, enabling efficient production with both virgin and 100% recycled fibers.

Energy Efficiency

Energy costs have significantly increased in recent years, impacting production expenses and profit margins for tissue producers. In response, Voith has developed the ATMOS technology, which enables production of standard to premium tissue with up to 60% lower energy consumption per ton compared to other market technologies.

Fiber Savings

Fiber is the most significant contributor to a tissue mill’s production costs. To address this, Voith’s ATMOS technology allows for up to 30% less fiber usage compared to traditional methods, while still producing premium tissue using either 100% recycled or virgin fibers.FOR CONFIDENTIAL DETAILS OF THIS VERY UNIQUE OFFERING

PLEASE DOWNLOAD THE CONFIDENTIALITY AGREEMENT (LINK),

THEN COMPLETE, SIGN, AND RETURN A SCANNED COPY

TO SAXON MACHINERY, THE EXCLUSIVE SALES AGENT:

 mark@saxonmachinery.com
