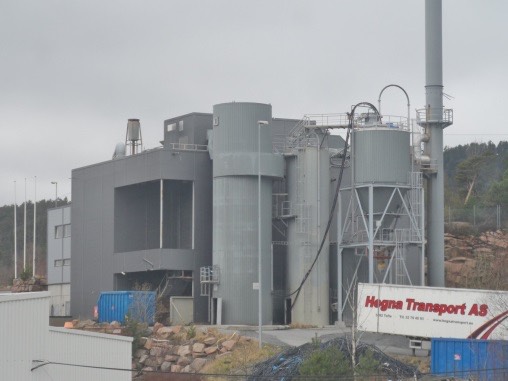

13,5 MW ENERGY FROM WASTE PLANT

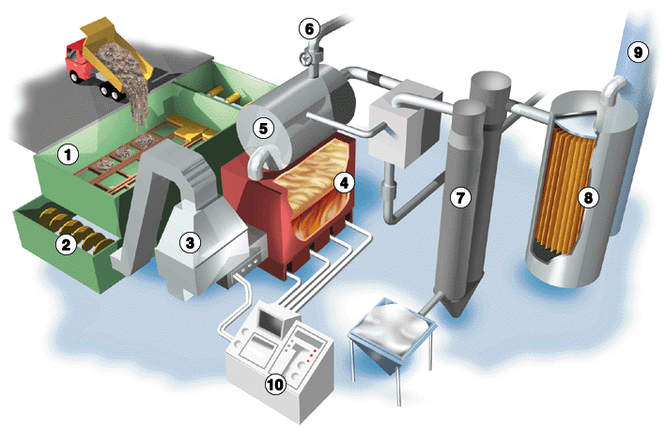

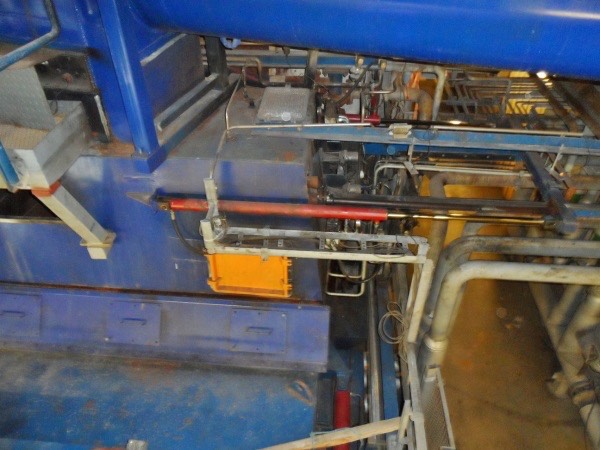

1. Silo for solid fuels
2. Screw conveyor
3. Fuel magazine

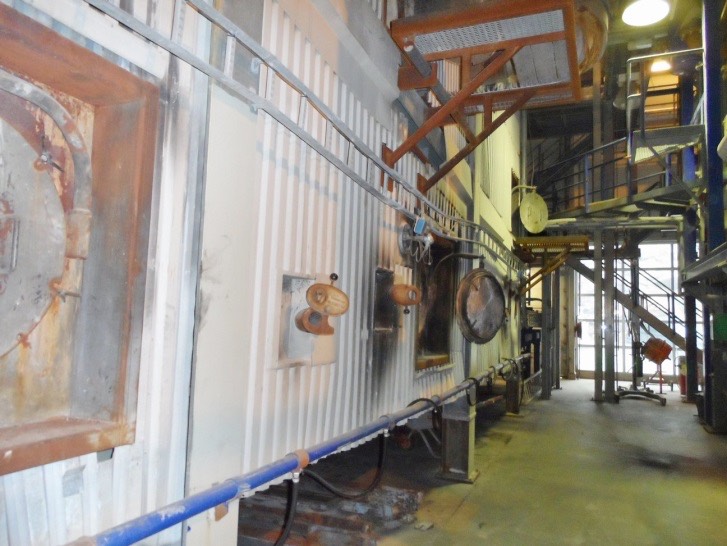

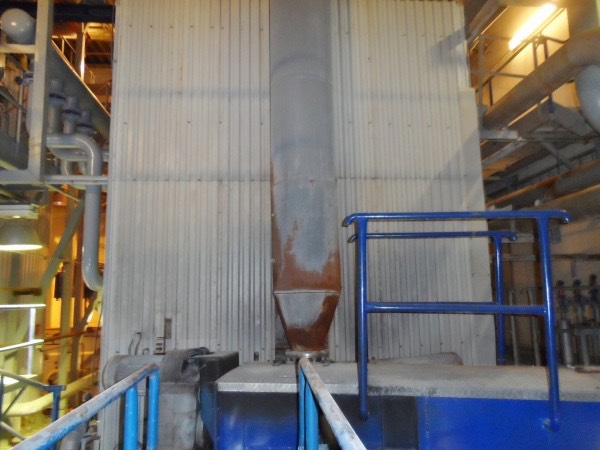

4. Combustion and burnout chambers
5. Boiler
6. Steam system
7. Reactor
8. Filtering system
9. Chimney

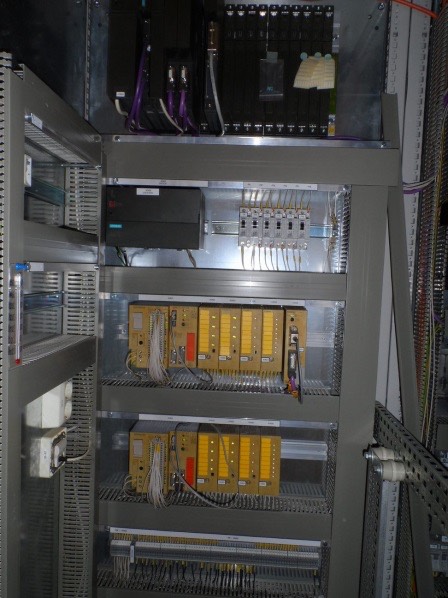

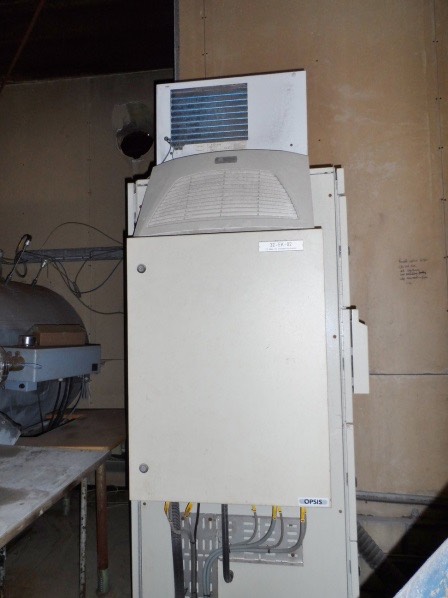

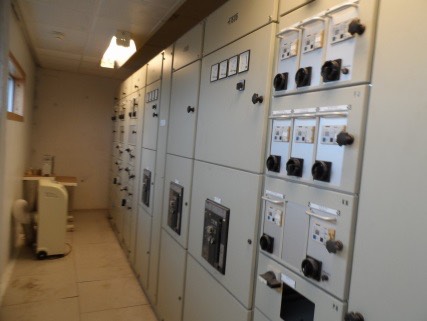

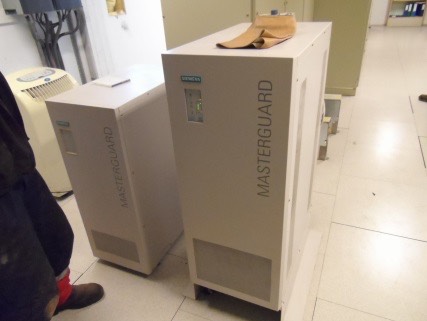

10. Regulation/monitoring system
Waste amount : 33.000 ton/year, 4.400 kg/hour
Steam delivery : 13,5 MW
Steam pressure: 12 bar
Vertical chamber
Test pressure : 21 bar
Construction pressure : 14 bar
Working pressure : 11 bar
Steam temperature : 198.3 ° C
Incoming temperature from furnace : 900° C
Transportation weight : 11 000 kg (without evaporators)
Weight evaporators : 3 x 3700 kg
Length : 3750 mm
Width : 3100 mm
Height : 8000 mm.

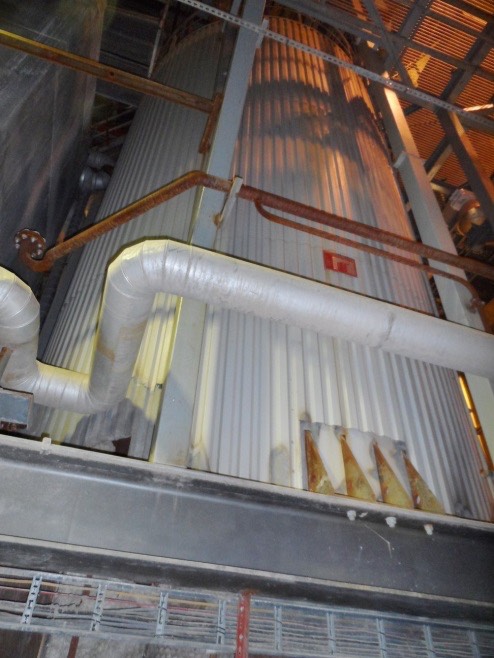

Boiler
Test pressure : 21 bar
Construction pressure : 14 bar
Working pressure : 11 bar
Performance : 6.43 MW
Heating surface : 1169 m2
Transportation weight : 62 000 kg
Volume : 36.3 m³
Diameter : 4350 mm
Height : 9400 mm.
Steam drum
Test pressure : 21 bar
Construction pressure : 14 bar
Working pressure : 11 bar
Steam temperature : 198.3 ° C
Capacity : 23.3 t/h
Transportation weight : 5 000 kg
Total volume : 13.2 m³
Length : 6000 mm
Width : 2100 mm
Height : 2750 mm
Economiser
Test pressure : 36 bar
Construction pressure : 24 bar
Working pressure :11 bar
Construction temperature : 221.8 ° C
Transportation weight : 22 000 kg
Performance : 1310 KW
Heating surface : 524 m²
Base : 3850 x 3000 mm
Height : 7750 mm.

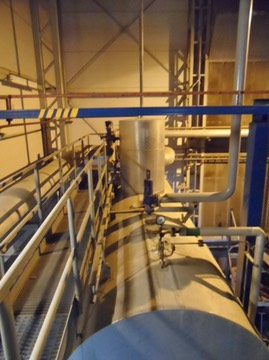

Feed Water tank
Test pressure : 3.0 bar
Construction pressure : 2.0 bar
Working pressure : 0.5 bar
Construction temperature : 20 ° C
Transportation weight : 4 000 kg
Total volume. : 20 m³
Length : 6600 mm
Width : 2300 mm
Height : 4300 mm.
Oil burner
Type : Weishaupt L9TD
Capacity : 1500 KW

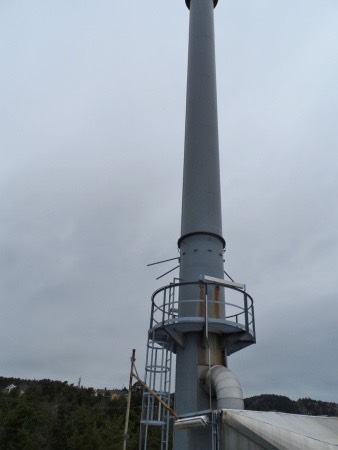

Steel Chimney
Height : 42 000 mm
Diameter : 1 500 mm
Weight : 16.3 tons
