🖥- Tissue & MG Machine 2,600mm, 35tpd, 400m/min, 15-100gsm
Letter from the owners:
Dear Mark,
As we told you the machine, is able to produce tissue crepe paper or smooth paper. This can be achieved in a very few minutes (2-3) by simply changing the first of the 3 blades. Producing two different paper qualities and with a grammage range from 17 to100 gr/mq. Utilizing either recycled or pure virgin pulp. The parent-rolls can be sold to converting companies, for crepe, hygienic mini jumbo rolls, wet strength rolls, medical sheets, etc…;
While the smooth grades can be sold to converters of bags, wrapping, napkins, and many other products...
This machine is attractive for customers who need many different qualities of paper from a single paper machine!
VIDEO OF TISSUE MACHINE IN OPERATION
Technical Data
Grade: Tissue paper and MG Paper Basis Weight Range: 15 – 100 gr/m2 Max daily production: 25 – 35 t/day Max Speed: 400 m/min
Paper width at reel: 2600 mm
Raw Material : Virgin Fiber and recycled fiber
Stock Preparation
Pulping
(1) Conveyor
(1) HD Pulper 15 m3,
(1) HD RIVIT Deputator

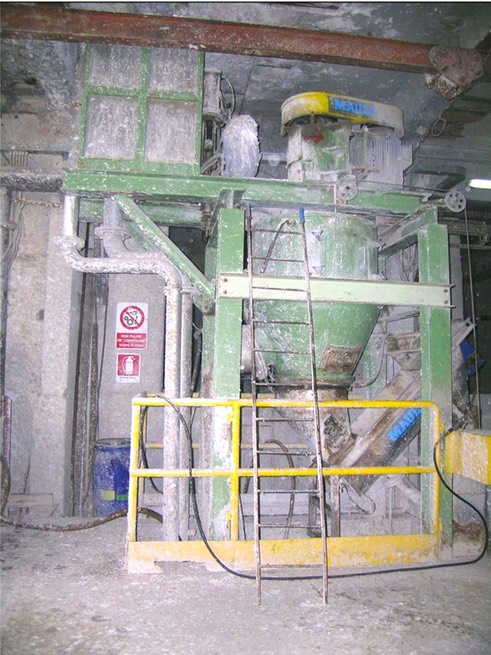

(1) Maule Separplast 40 T/day capacity
(1) Maule Key Screen 40 T/day capacity
Refining
(1) DD 18” Black Clawson Refiner
Approach Flow
Screening
First stage Lamort Macchine screen
Cleaning

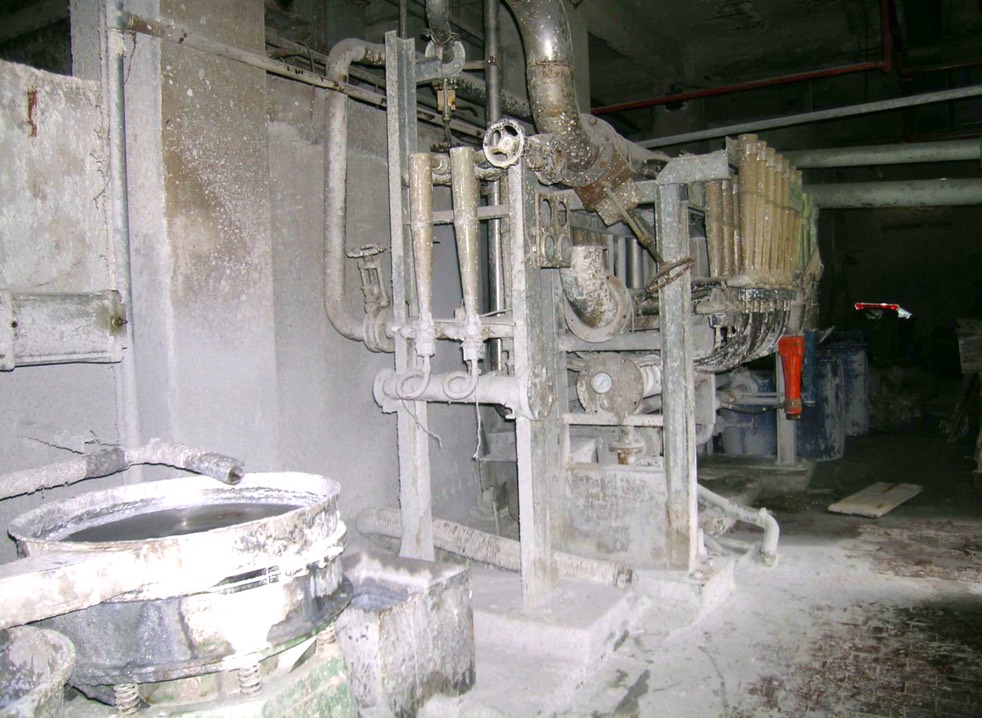

Palmac Cleaners Comer
Recovery fiber

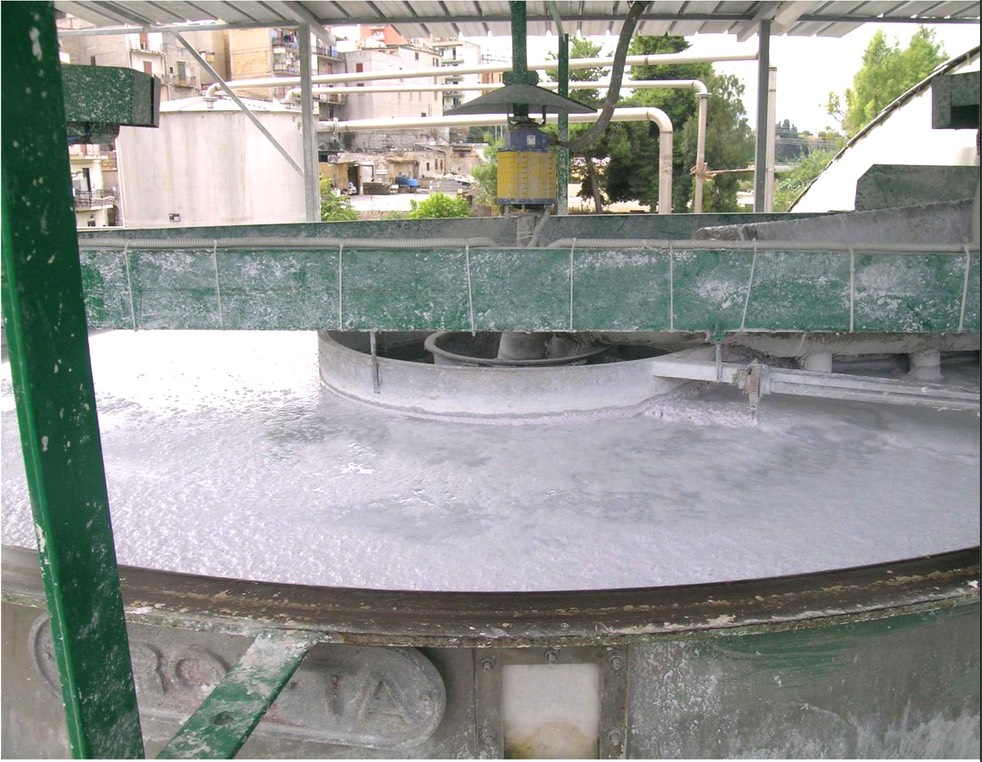

KROFTA 1500 l/min Capacity
Tissue Machine
Headbox

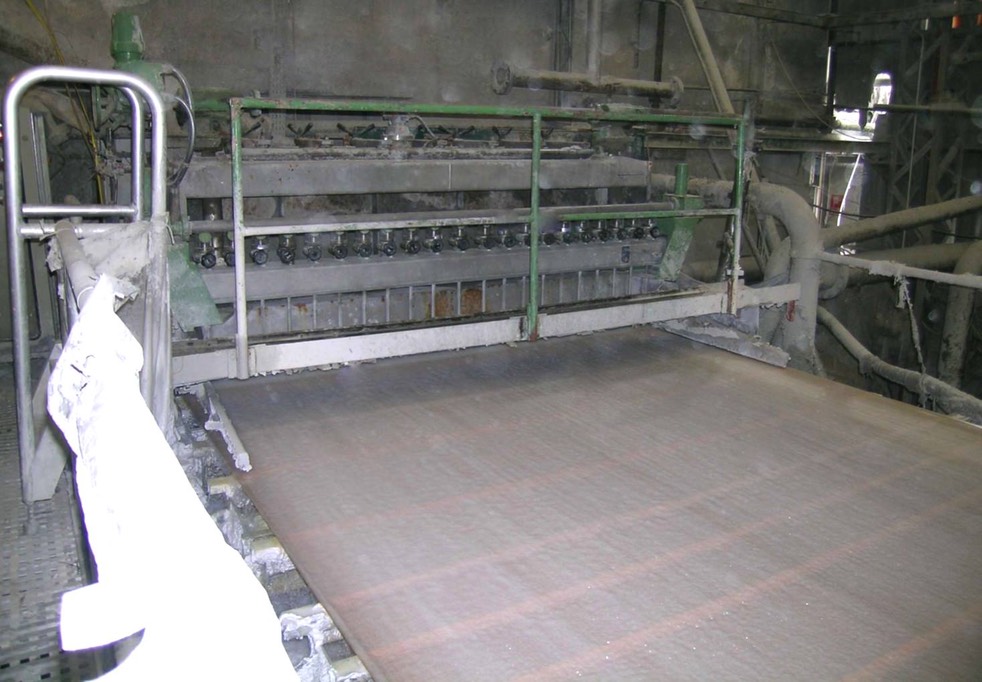

ST headbox 2700 mm pondside
Fourdrinier
Fourdrinier complete of drainage elements
Press
First press roll 600 mm diameter Second press roll 530 mm diameter
Dryer section
(1) Yankee dryer 3600 mm x 2800 mm, 3,5 bar working pressure
(1) Creping Doctor
(1) Cleaning Doctor
(1) Cutting Doctor
Hood
WALMET high performing
Reel

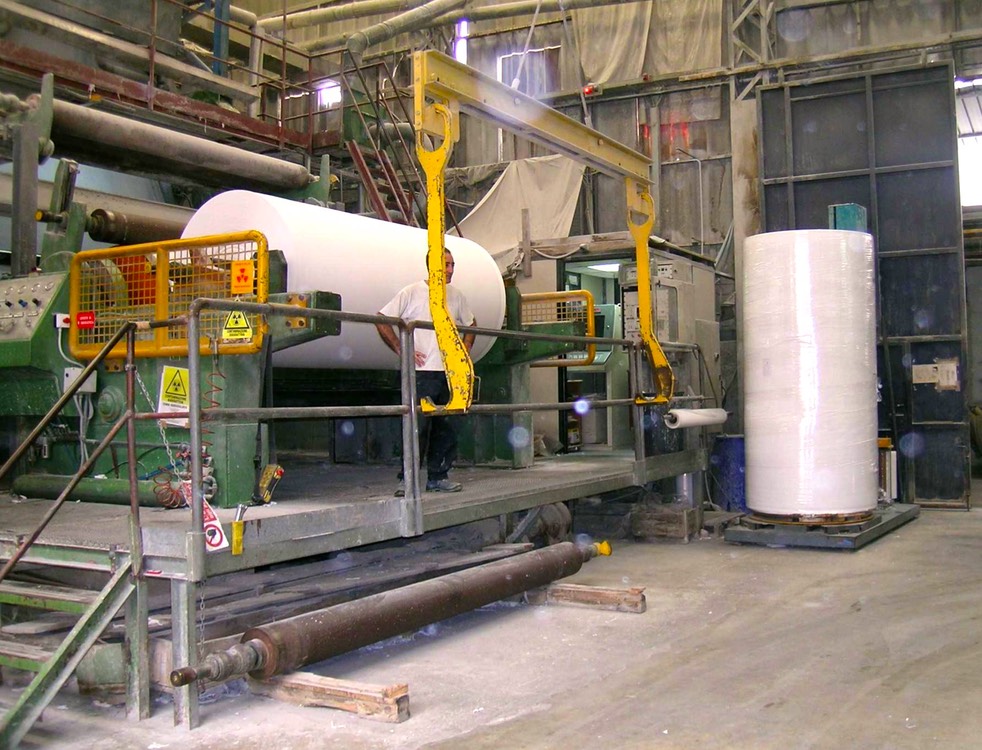

Pope reel max diameter 1600 mm (6) spools
Tissue machine drive
Sectional CC Drive
Winders

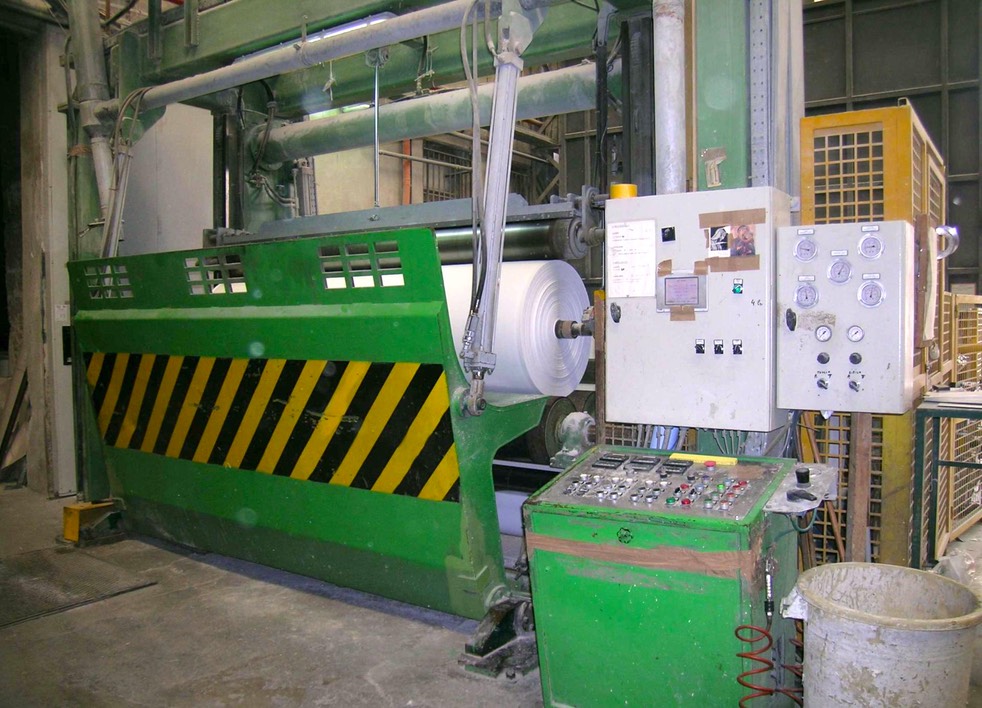

Machine Winder
Double roll winder
Working speed 360 m/min
Paper width 2600 mm
Max Jumbo Diameter 1200 mm

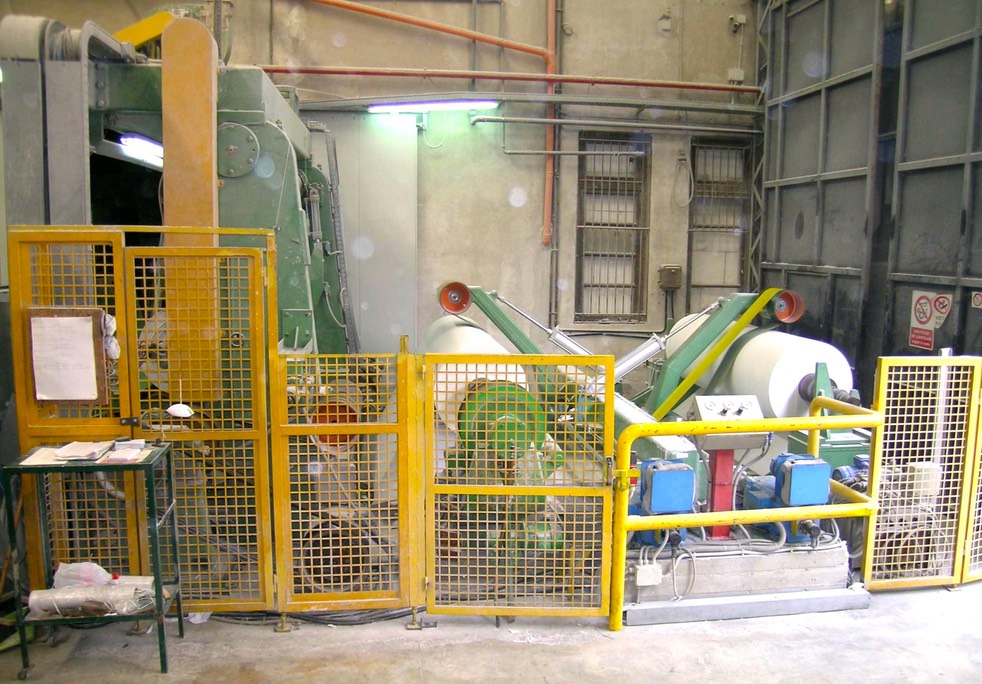

Twin roll unwind
Auxiliary system
(1) Steam Boiler house 8 t/h, 13 bar max pressure
Sweetener System
(2) Vacuum liquid ring pump
QCS System for Basis Weight and Moisture control
