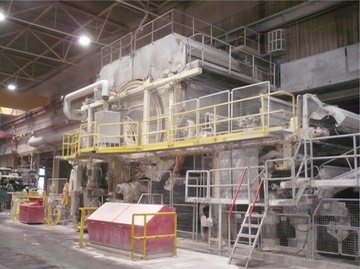

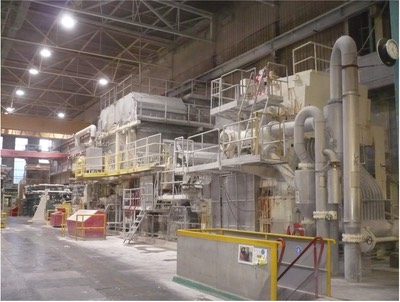

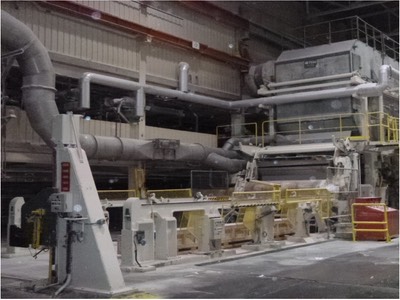

2,720mm Tissue Machine, Beloit, 1,550 m/min, 14-23gsm, 55-60 tpd
TECHNICAL DATA
- Manufacturer: BELOIT
- Type: Suction breast roll former
- Year of construction: 1971 (Startup)
- Nominal width:2720 mm
- Trimmed width2680 mm
- Design speed:1600 m/min
- Production speed: up to 1550 m/min
- Grammage:14 to 23 GSM
- Production:55 – 65 ton/day
- Raw material:Virgin pulp
- Drive voltage:400V 50 Hz
- Machine Drive type: ABB (DC-440V)
- Hood Drive type:Siemens DC
- DCS:ABB
- Major rebuilds:1984 Drying system & 2004 YANKEE cylinder
- Key products:all type hankies, napkins, facials, toipa, & kitchen towel
SCOPE OF SUPPLY
STOCK PREPARATION: 2 refiners, cleaners, fan pump
HEADBOX:
- Supplier:BELOIT
- Pond side width: 2743 mm
- Layers:1
FORMING:
- Pickup:Shoe
- Felt vacuum boxes: 2
WET SECTION / PRESSING:
- Wet press:No
- Suction press78 kN/m
- Blind press:80 kN/m
- Steam box:No
YANKEE CYLINDER:
- New installed in year 2004 by VALMET
- Diameter: 4580 mm
DRYING HOODS: rebuilt in 1984
- Energy:Gas / max temp 430°C
- Profiling:Yes
CREPING:
- Type:Steel / Ceramic (15-25°) Conformatic
POP REEL:
- Maxi roll diameter: 2000 mm
- Maxi Width 2680 mm
EXTRACTOR: with roll up-ender
ACCESSORIES:
- Dust extraction:Yes
- Scanner: ABB type 1190 /SP700
- Spare parts:Yes ( mechanical & electrical)
- Consumables:2 Felts & 2 Wires
- Hydraulic power station:Yes
- Lubrication systemYes
- Drawings & technical files: available
