SM2170


PAPER MACHINE,  2,800mm MG &  heavy tissue papers, erected 2003, 60TPD

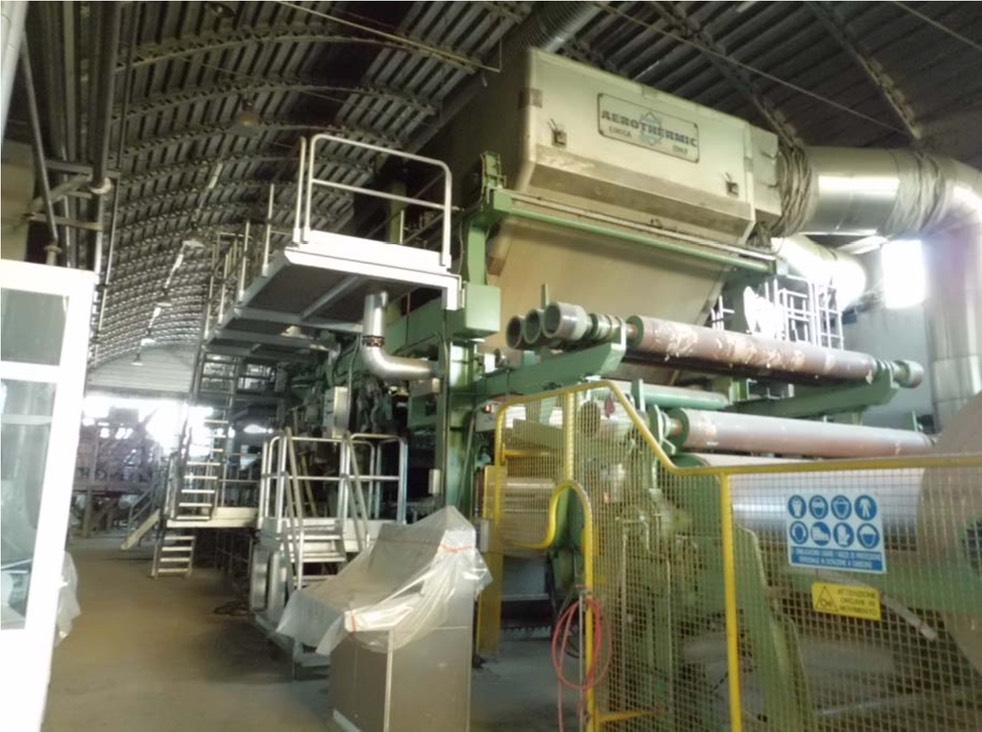

SM2170-01





-  Installed new in 2002 – 2003
-  Width of the machine at pope reel 2.800 mm (net 2.750 mm)
-  Stock preparation for 100 % recycled pulp
-  Capacity 40 – 60 Tpd


Stock preparation:

Metallic belt conveyor, with 1.500 mm, with stainless steel helical pulper capacity 15 – 18 m3 and secondary pulper type poire in stainless steel, with drive motor

2 High density cleaners

Hett separator type SP700, on stainless steel, with holes basket and rejects to a stainless steel vibrating screen

Vertical screen Andritz type MODUSCREEN model F3, installed in 2000, slotted basket and power 75 kW

Vertical screen Andritz type MODUSCREEN model F1, installed in 2000, slotted basket and power 37 kW

Hot dispersion unit comprised of:

  • 3 + 1 screw type bakers in stainless steel
  • High density screw press
  • Kneader disperger
  • All the tanks in stainless steel also the pipes
  • Pumps Alhstrom
  • Regulation

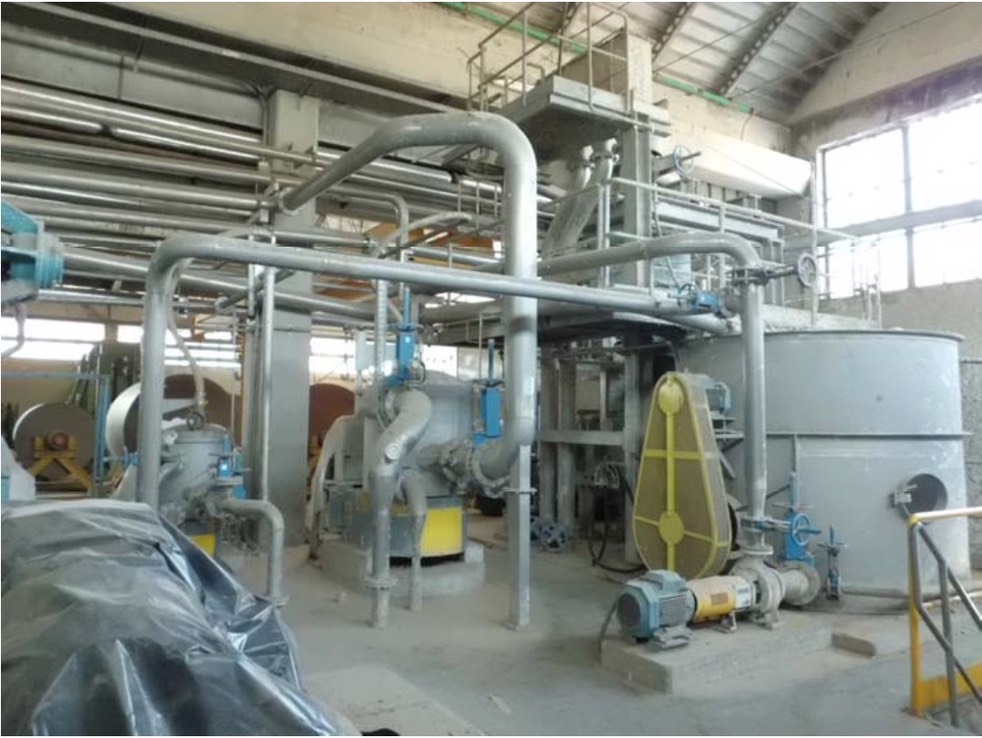

SM2170-02



Approach flow &Paper machine:

  • 4 Vacuum pumps Siemens model 28E3320 2BY5-Z, power installed 90 kW Vertical screen Lamort SPE8, stainless steel, installed in 2001
  • Refiner PILAO model RTC1000, installed in 2001, power 250 kW
  • 2 vibrating screens in stainless steel

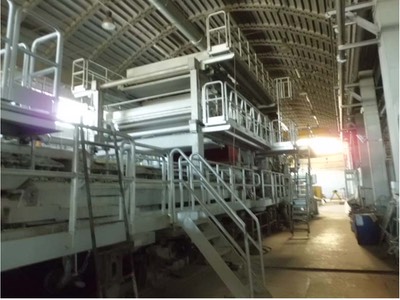

Paper Machine



  • Erected and start up in 2002 – 2003
  • Speed maximum 800 m/min
  • Basis weight 20 – 90 gr/m2
  • Completely close hood max temp 400 oC
  • Automatic pope reel
  • Stainless steel head box, with perforate rolls and control profile, slice width 2.800 mm
  • Stainless steel and cantilever fourdrinier 1st press section type suction press
  • Yankee dryer diameter 3.600 mm and press 6 bar, with 2 blend drilled press section and close Hood high efficiency
  • Automatic pope reeler for diameter 2.200 mm and spools Sectional drive
  • Broke pulpers
  • Lubrication unit

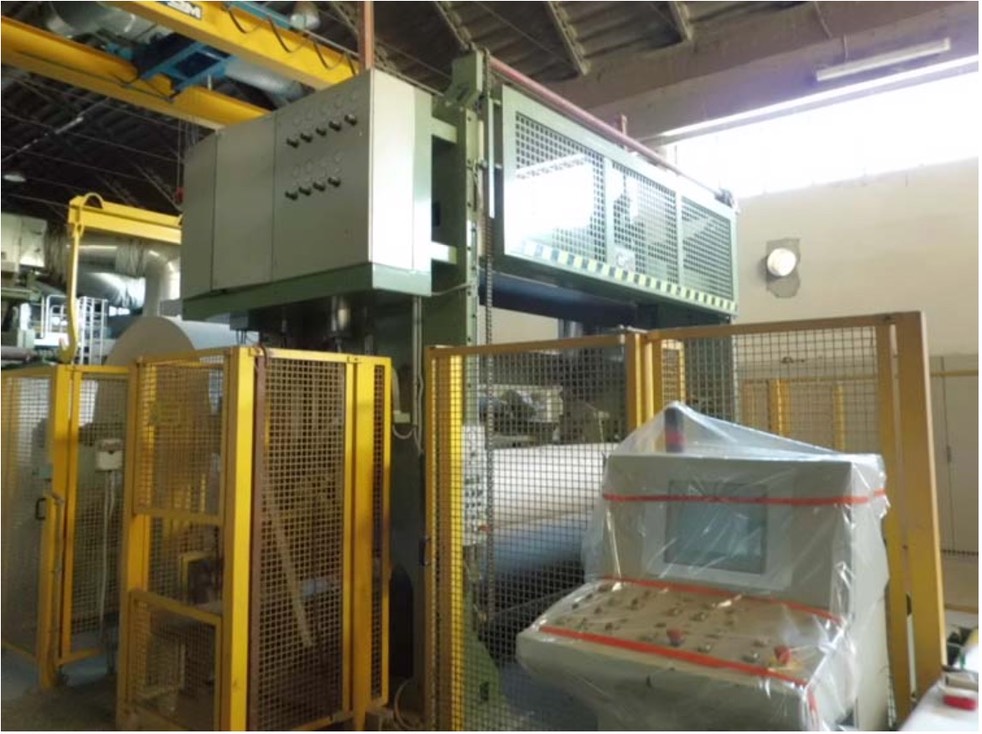

Rewinder:

  • Installed in 2003
  • Speed maximum 1.500 mm
  • Diameter exit 1.500 mm
  • Installed new in 2003
  • 10 knives installed
  • Drive
SM2170-04
