SM2152

Tissue machine, 1,320mm trim, 15-80 gsm, 15tpd

Producing hand towels 35 gr/m22, wet creep
Capacity: 15 Tpd
Speed: 140 m/min
Grammage: 15 to 80 gr/m
Present production: 30 gr/m2 creeped hand towels
Paper width at pope: 1,320 mm
Idled 2013

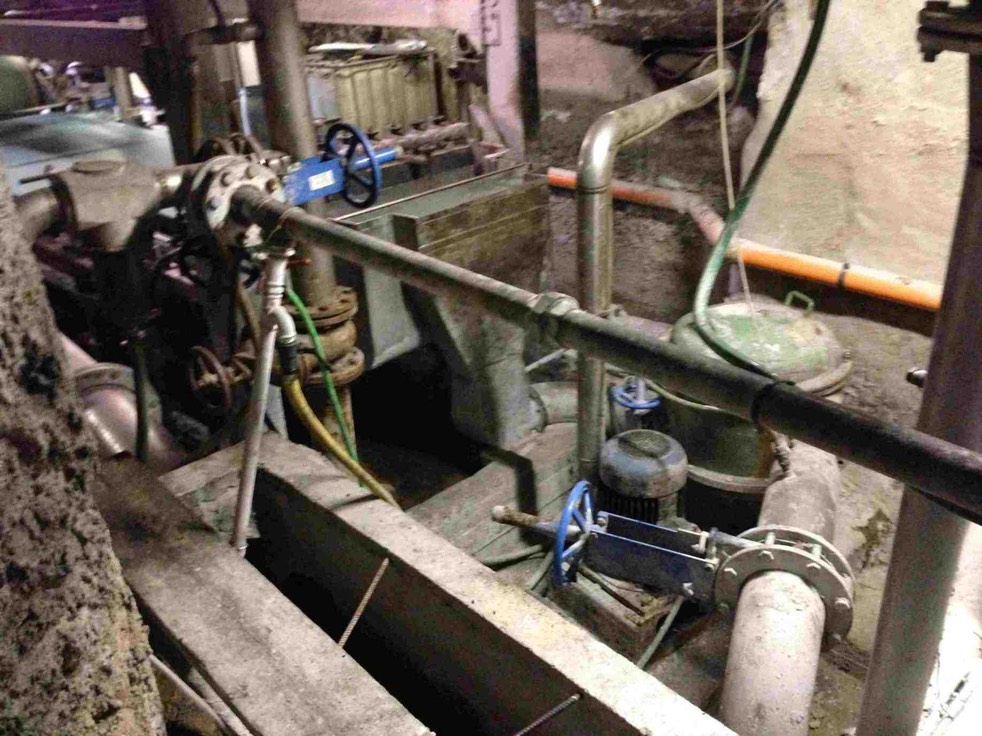

Stock Preparation:

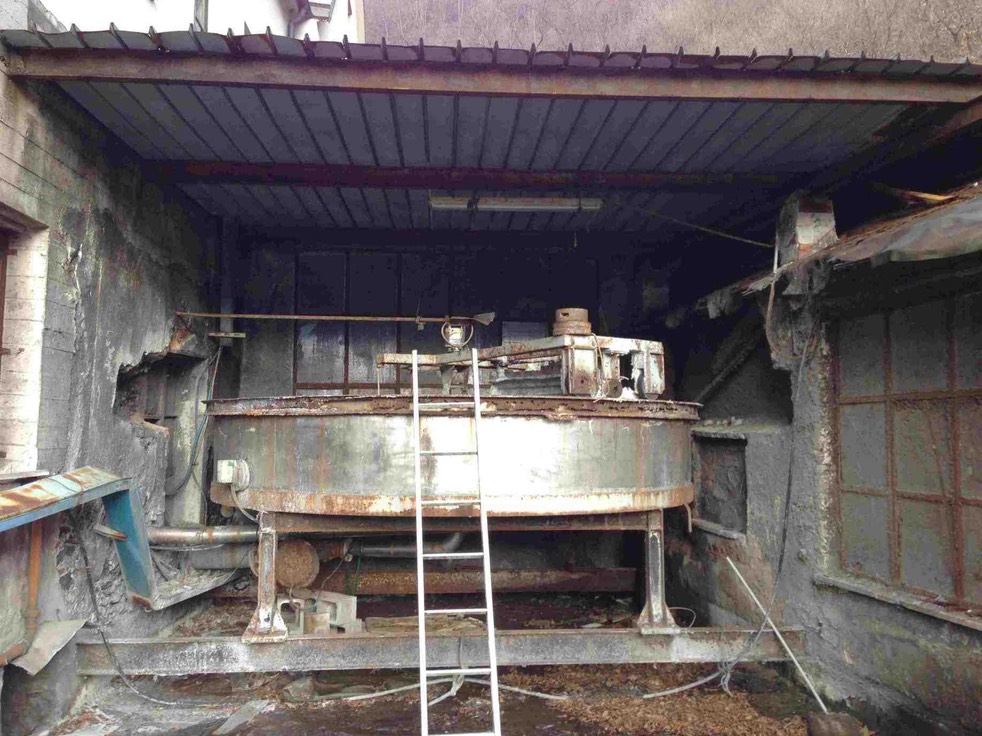

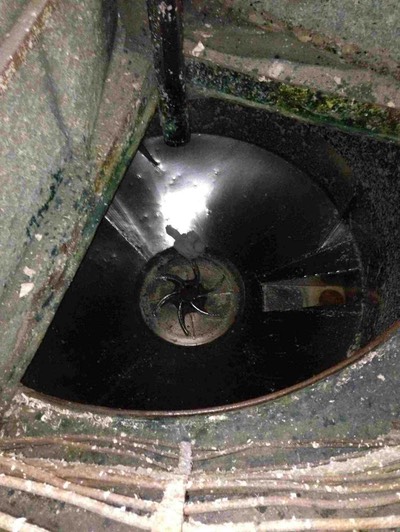

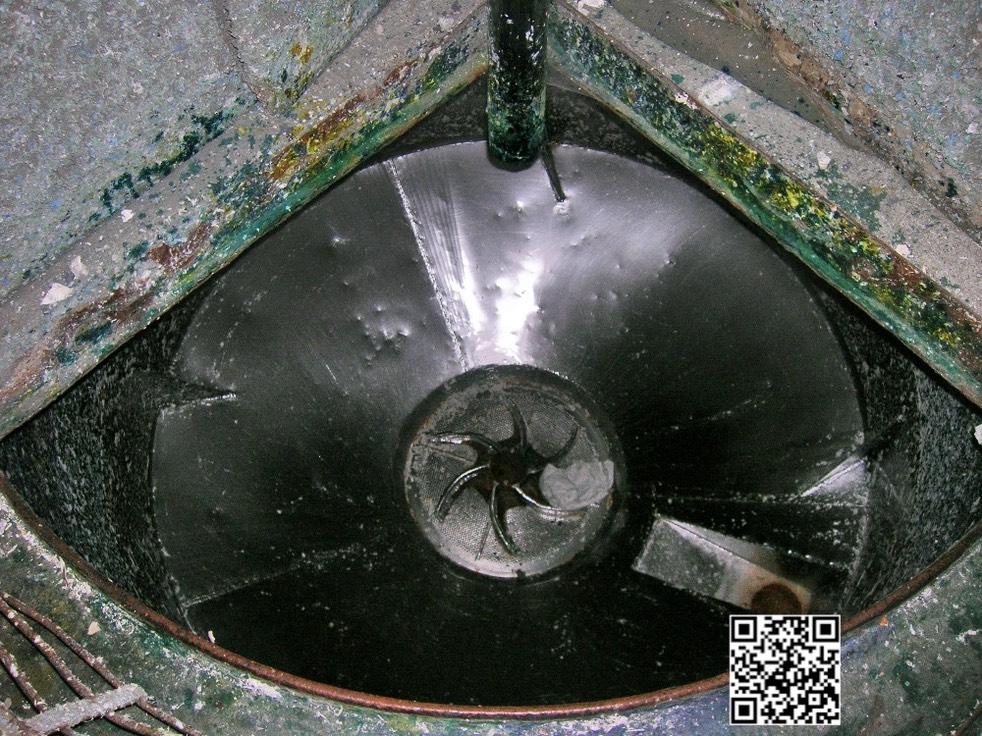

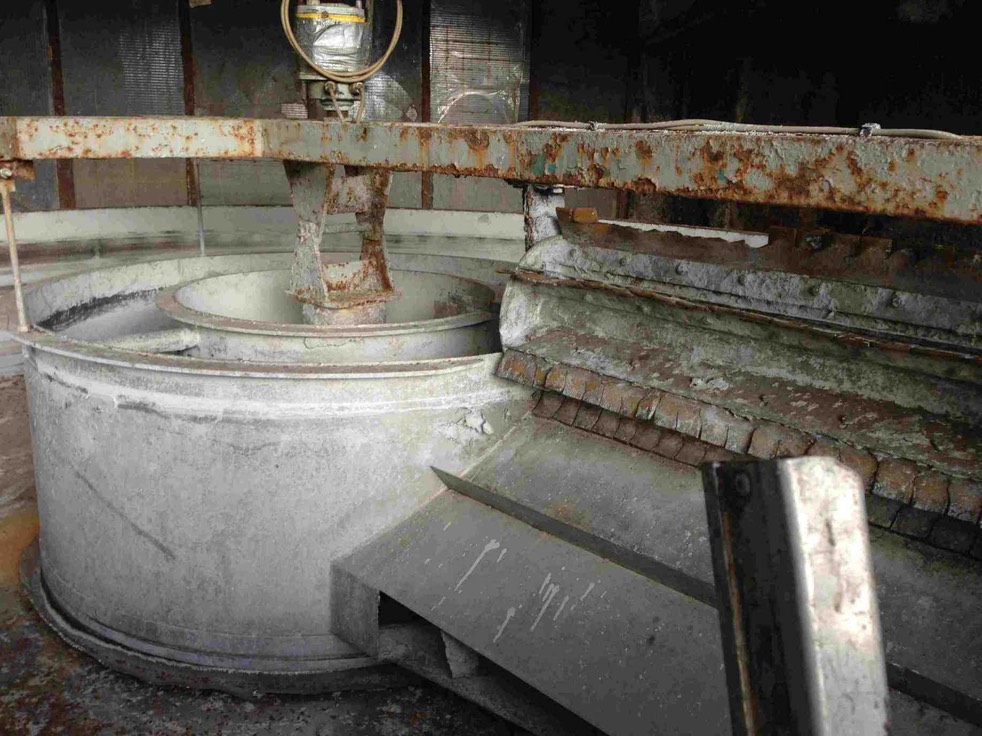

1 Pulper low density 15 m3 with motor 60-70 kW
1 Flotation Cell
1 Deflaker

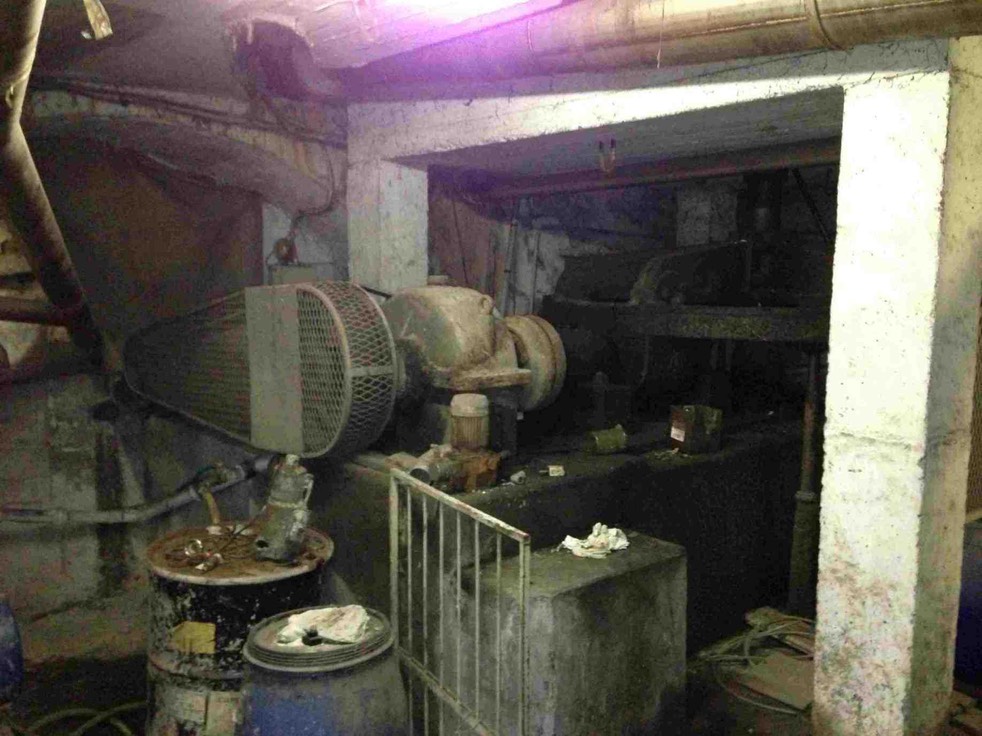

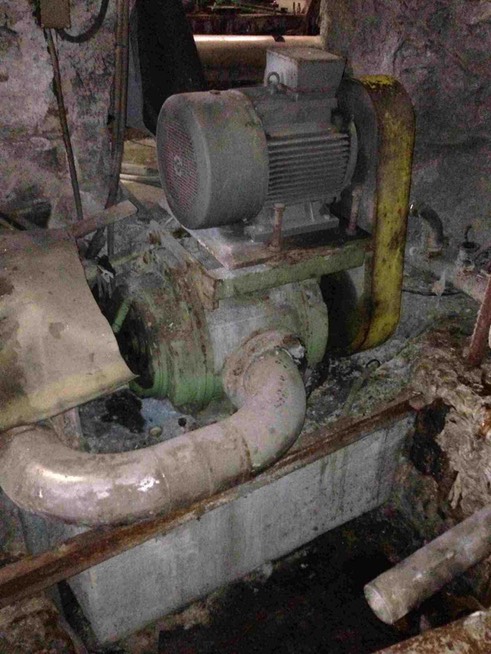

2 Vacuum Pumps

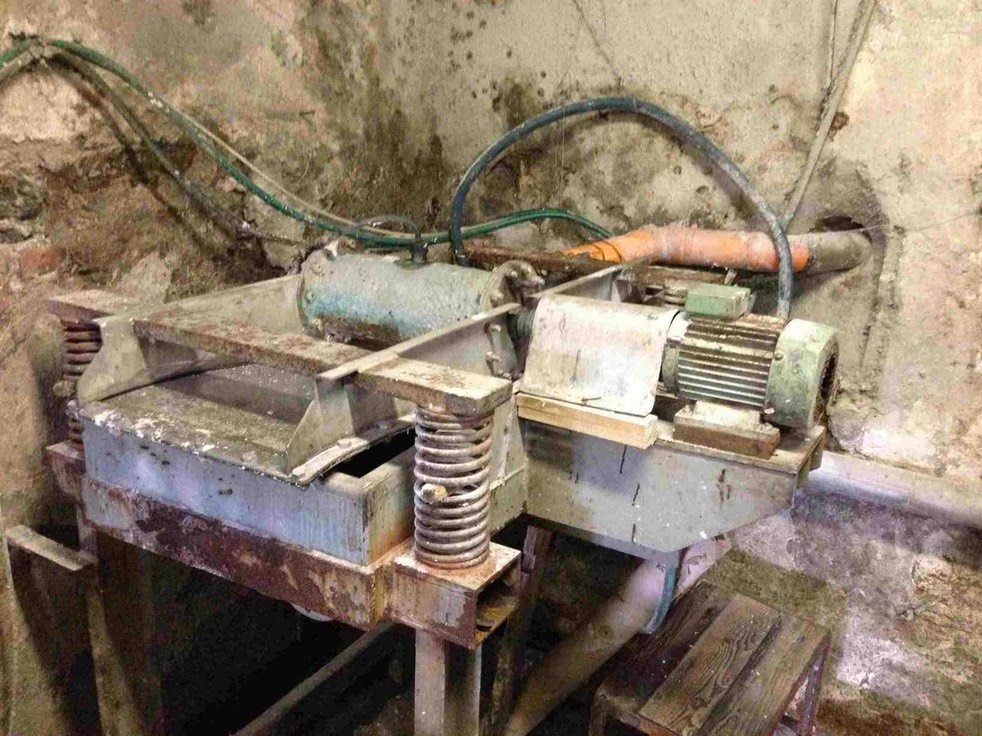

1 Vibrating Screen

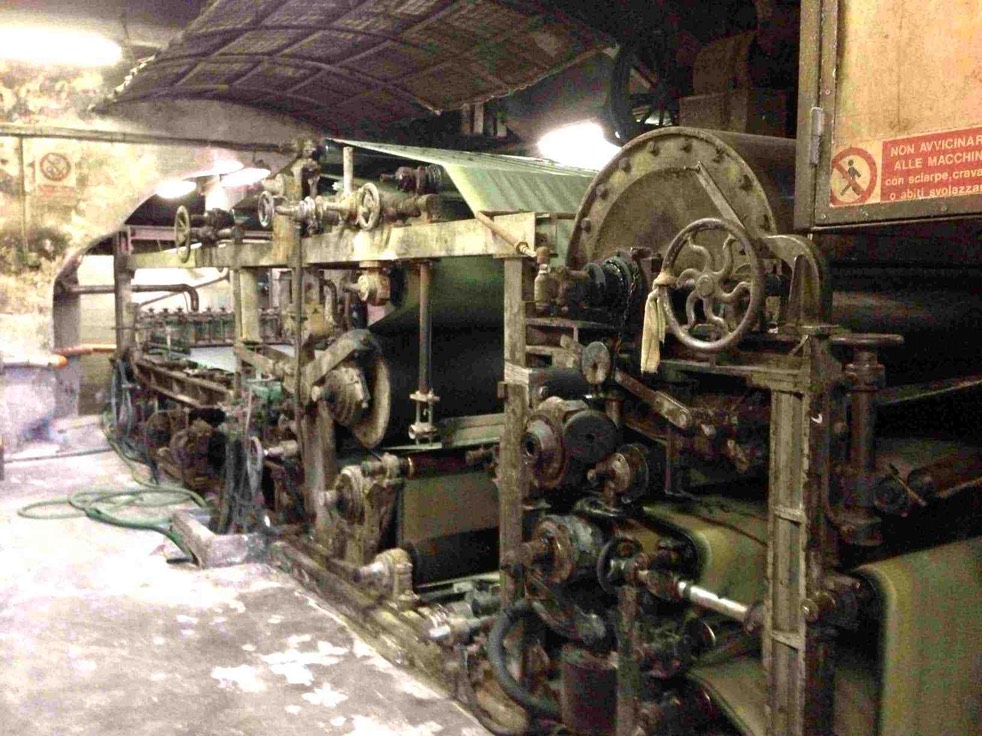

Machine:

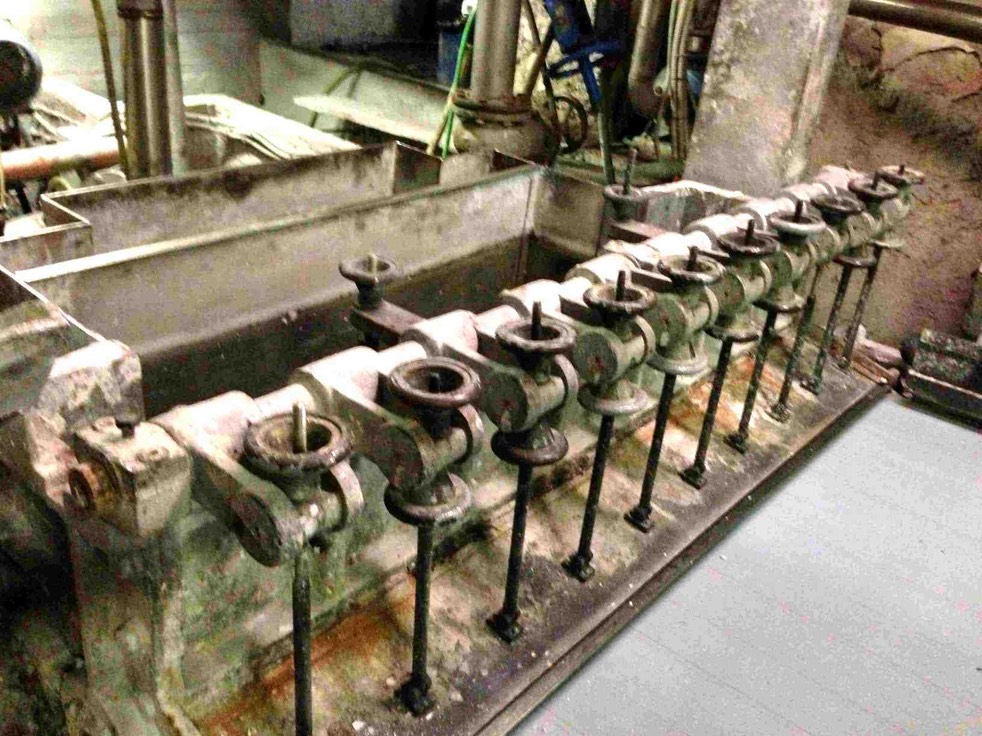

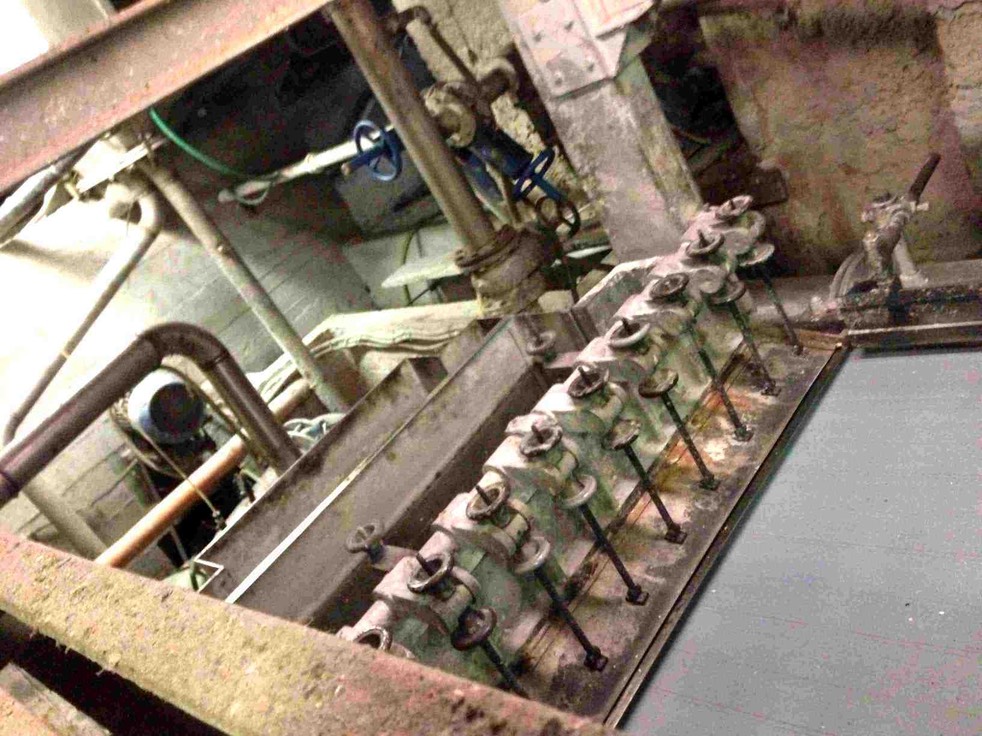

1 headbox (1450 mm slice)

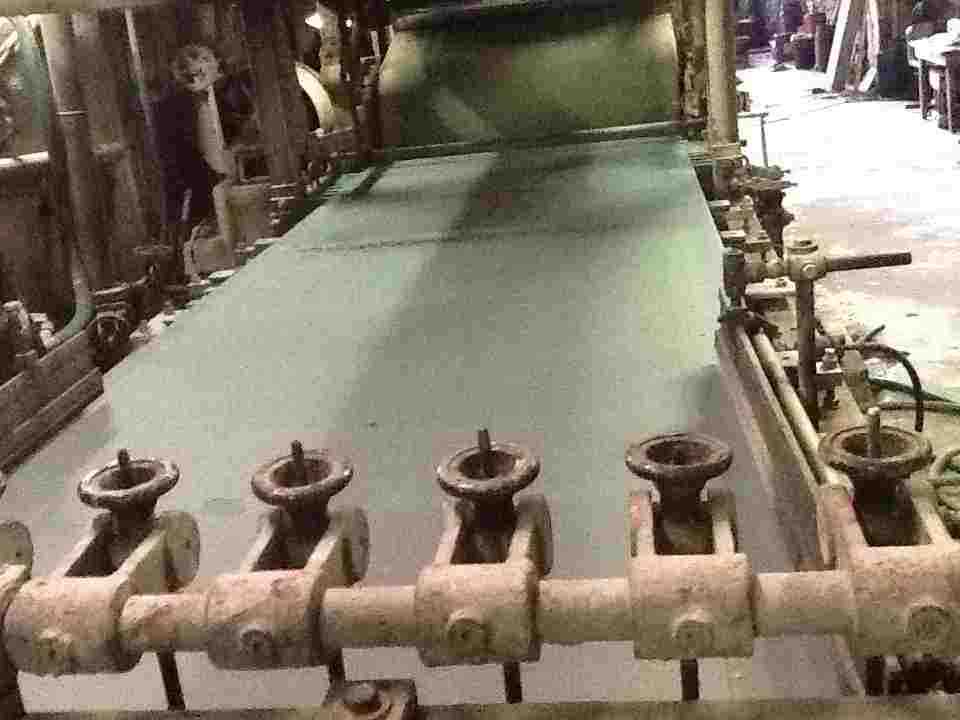

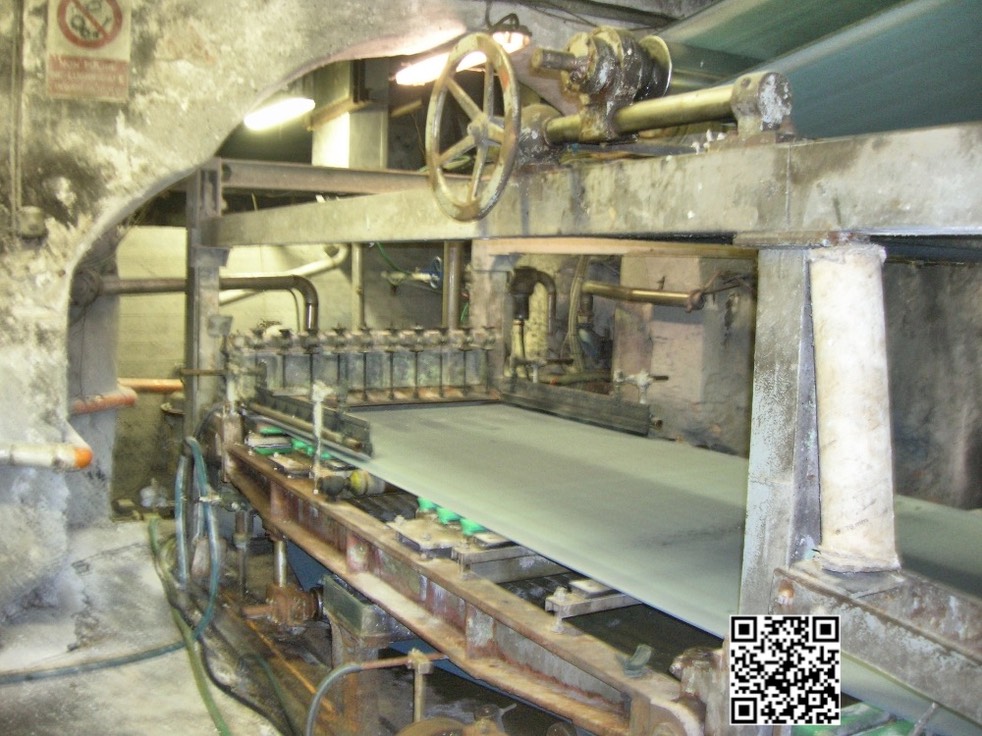

flat fourdrinier
1 wire 5500 mm lenght

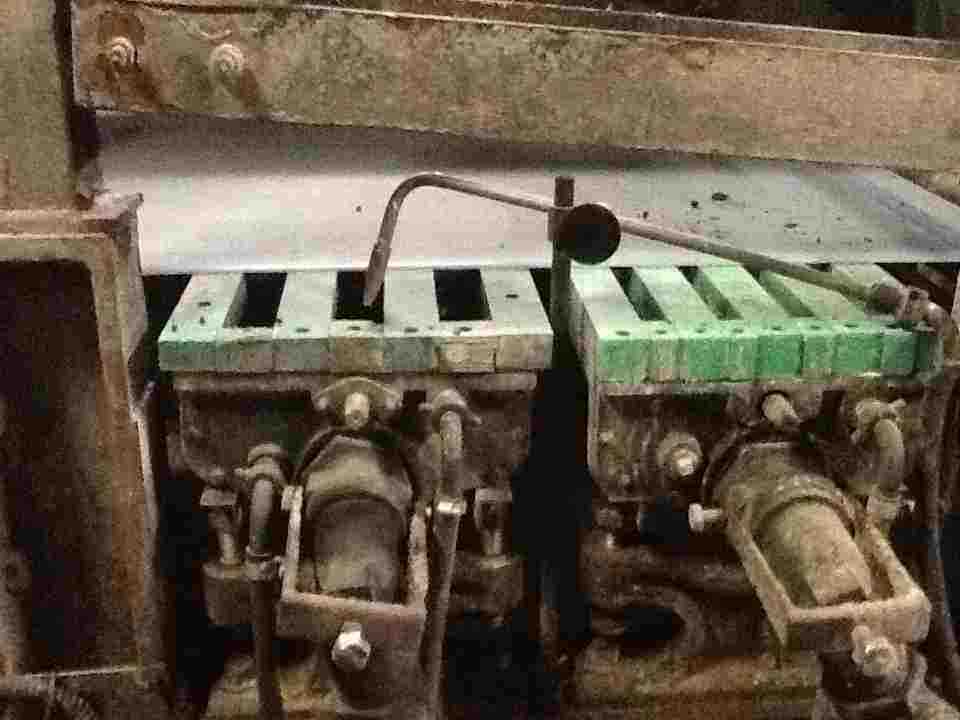

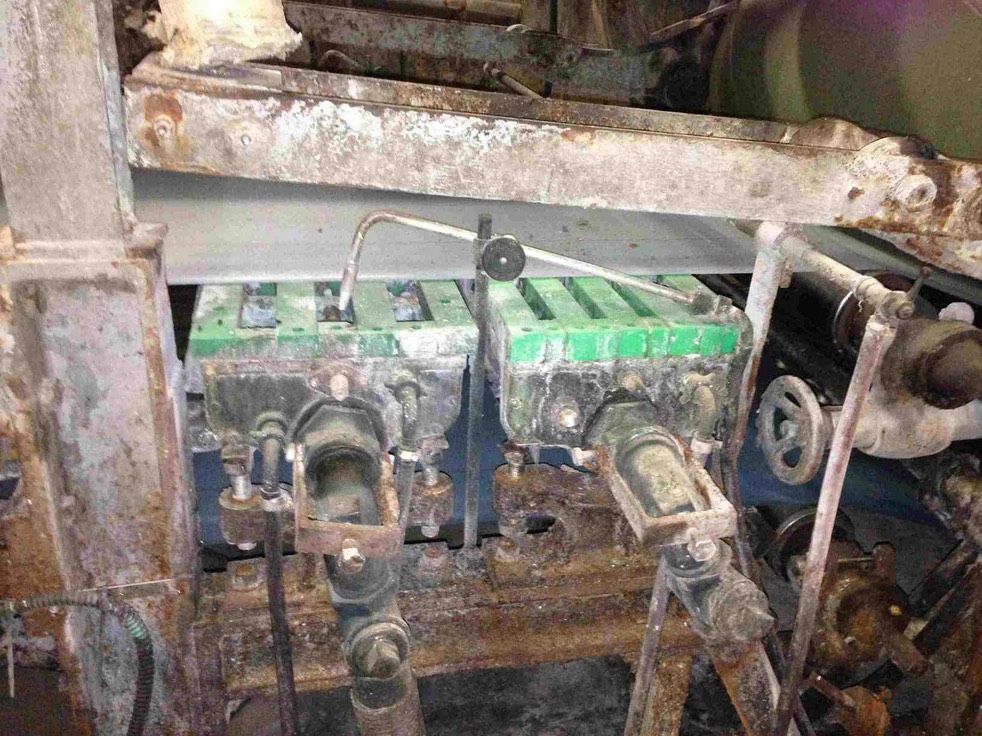

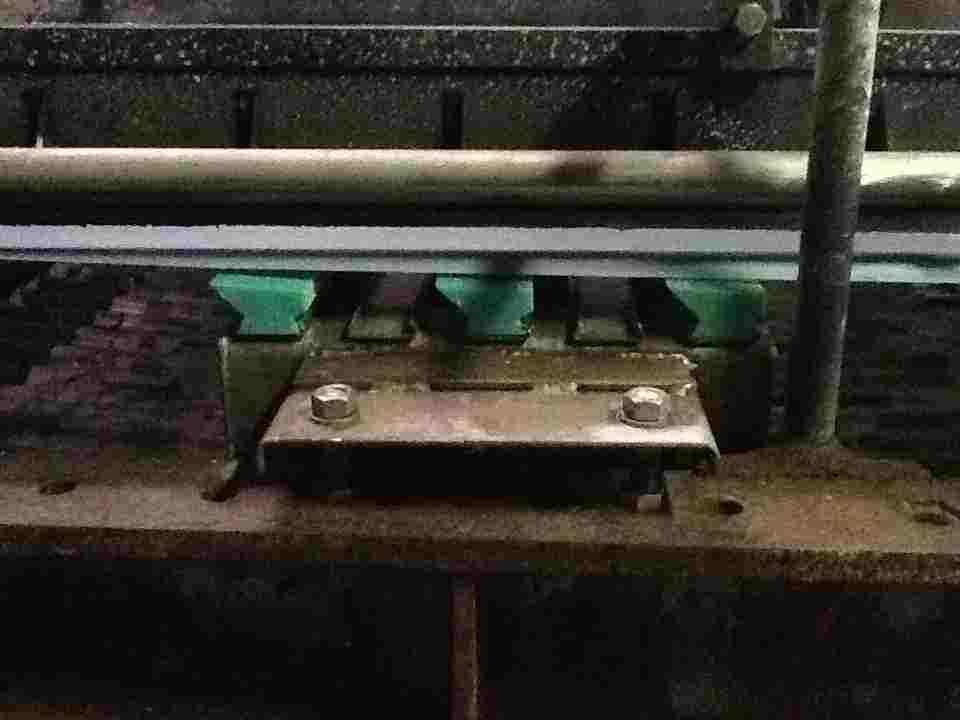

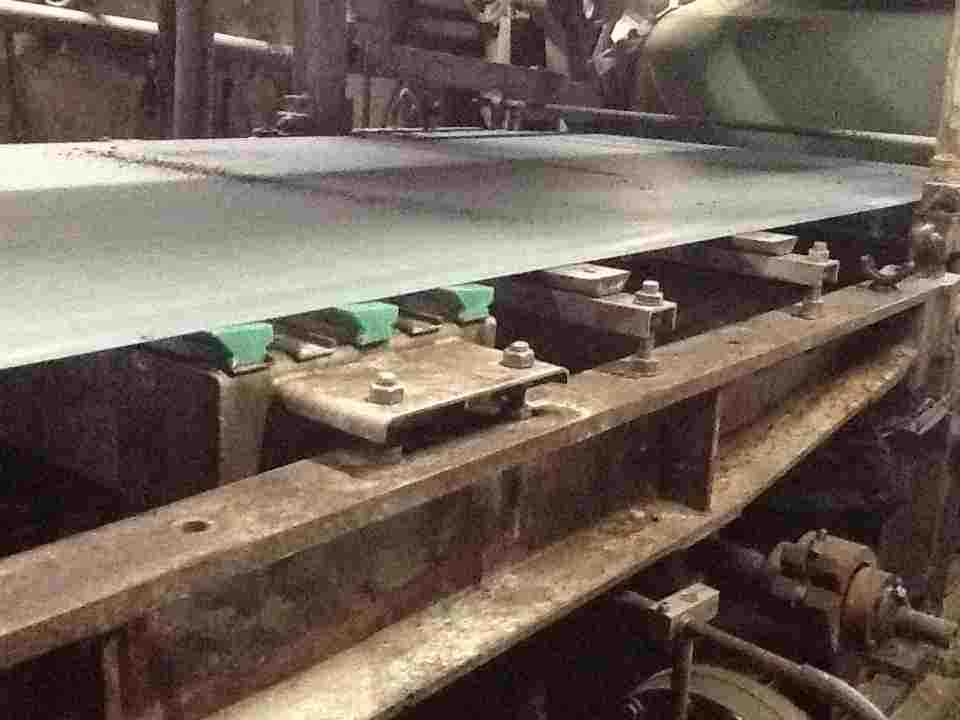

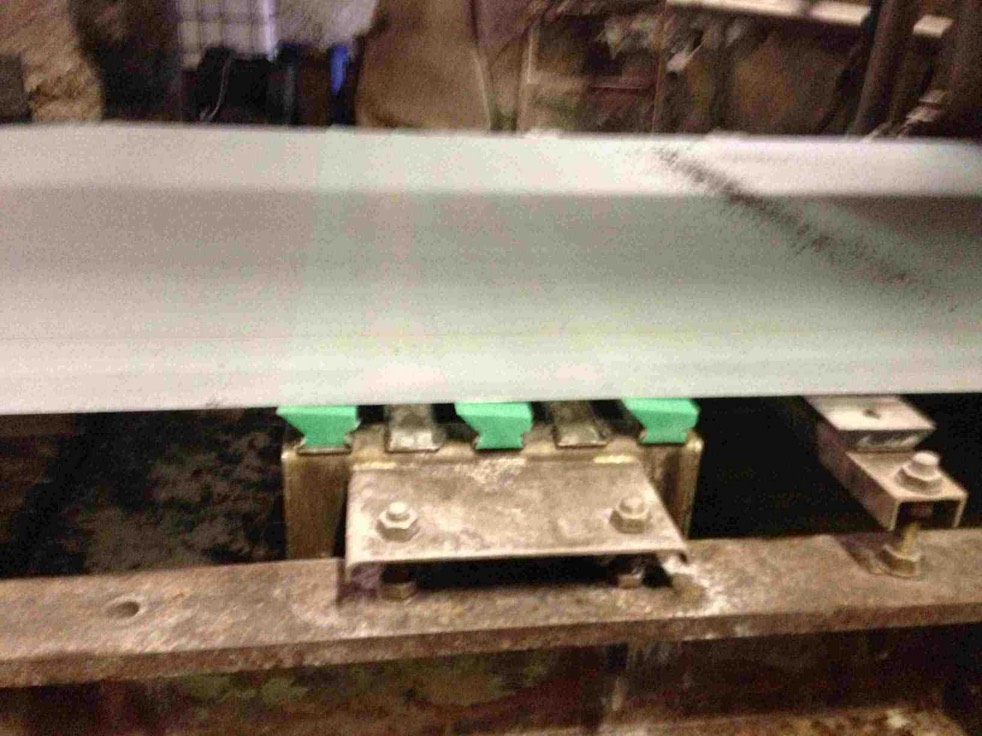

2 foil boxes + 2 suction boxes + draining box
top press + bottom press + spare
1 wet creeping cylinder + spare
4 dryer cylinders with face: 1400 mm, Ø: 1200 mm
1 dryer cylinder with face: 1400 mm, Ø: 1600 mm

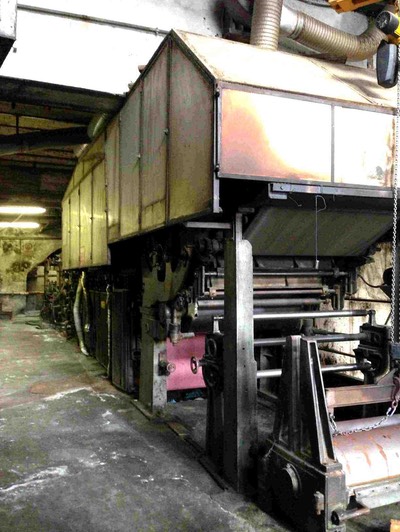

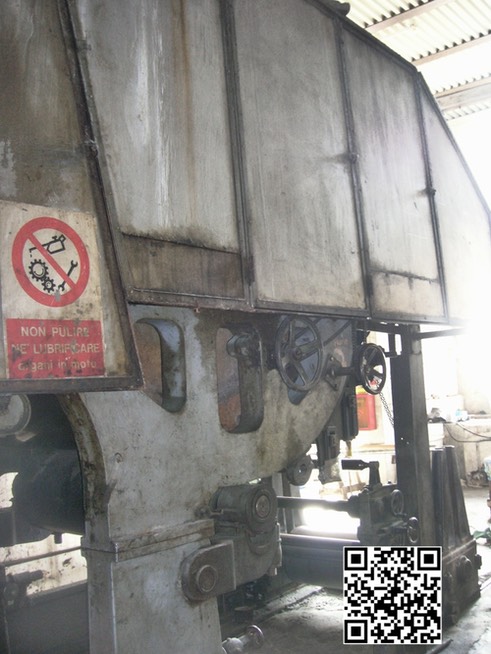

1 MG cylinder, diam.: 2000 mm + MG bottom press
1 pope

Paper roll at pope on paper core inner Ø: 76 mm

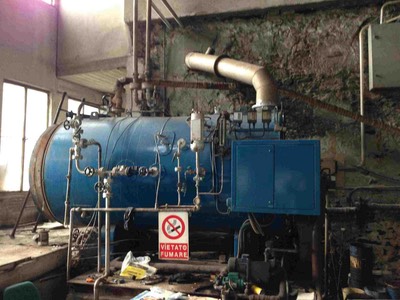

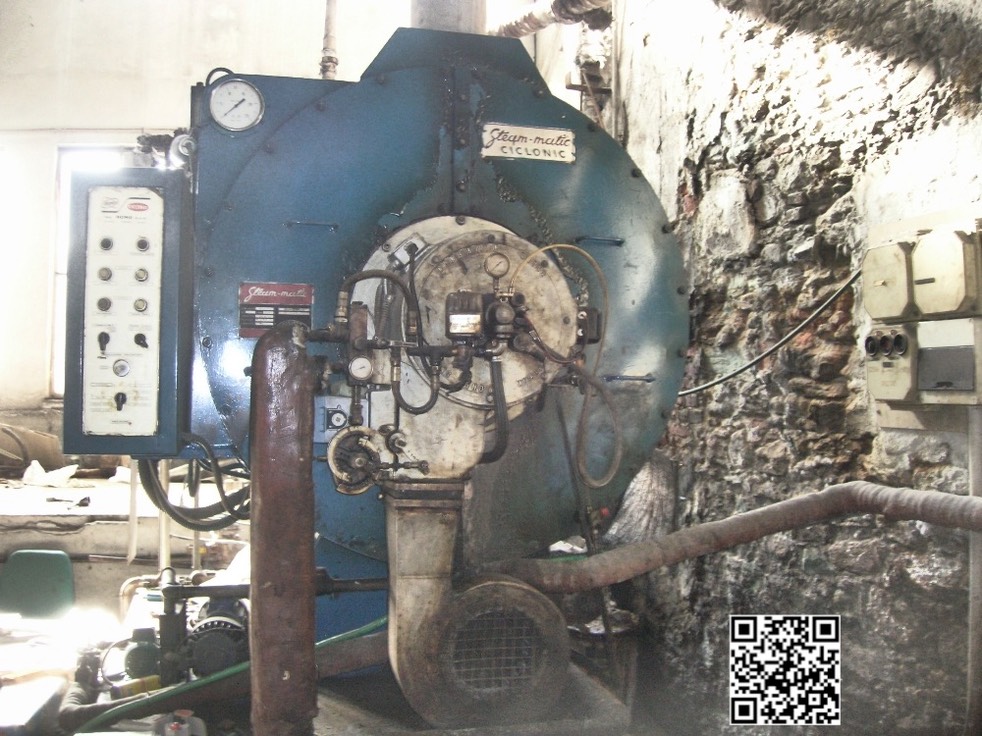

Steam Boiler:
Year: 1974
Pressure: 12 bars

Production: 1500 Kg steam/hour

IMG 1307
IMG 1308
IMG 1309
IMG 1310
IMG 1312
IMG 1320
IMG 1321
IMG 1324

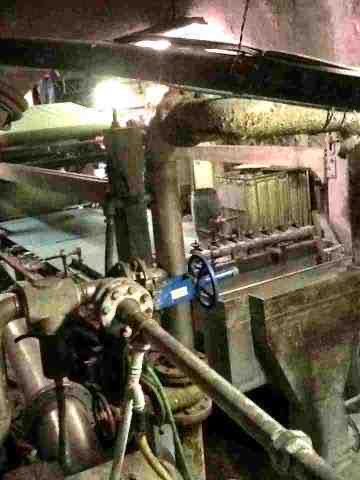

IMG 1325

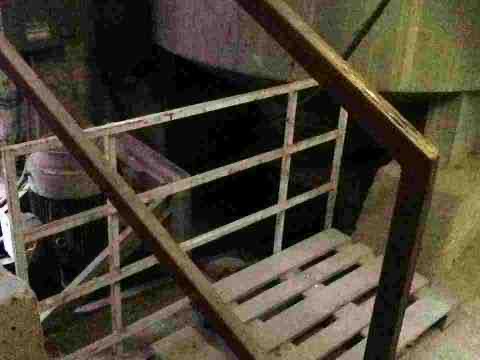

IMG 1326
IMG 1328
IMG 1329

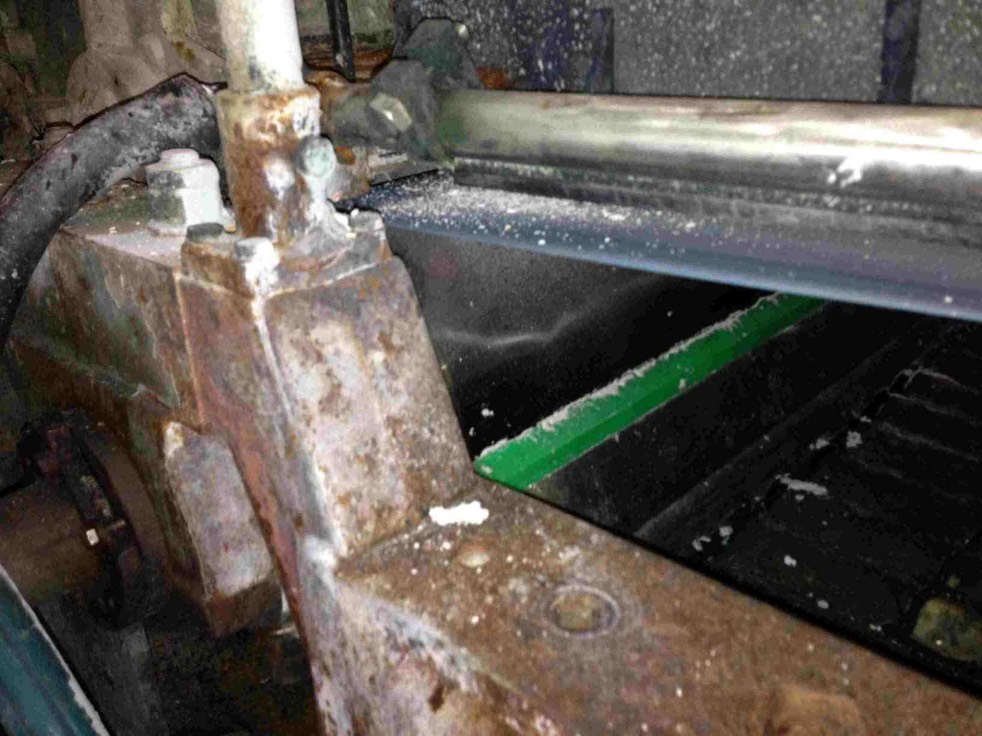

IMG 1330

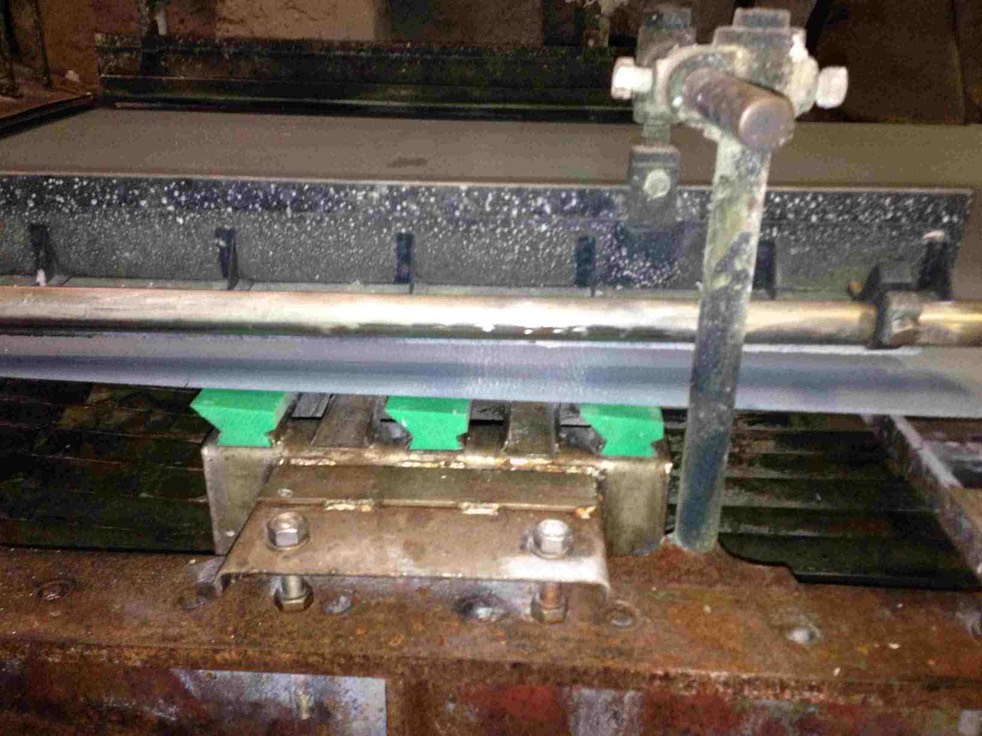

IMG 1331
IMG 1332
IMG 1333
IMG 1334
IMG 1335
IMG 1339

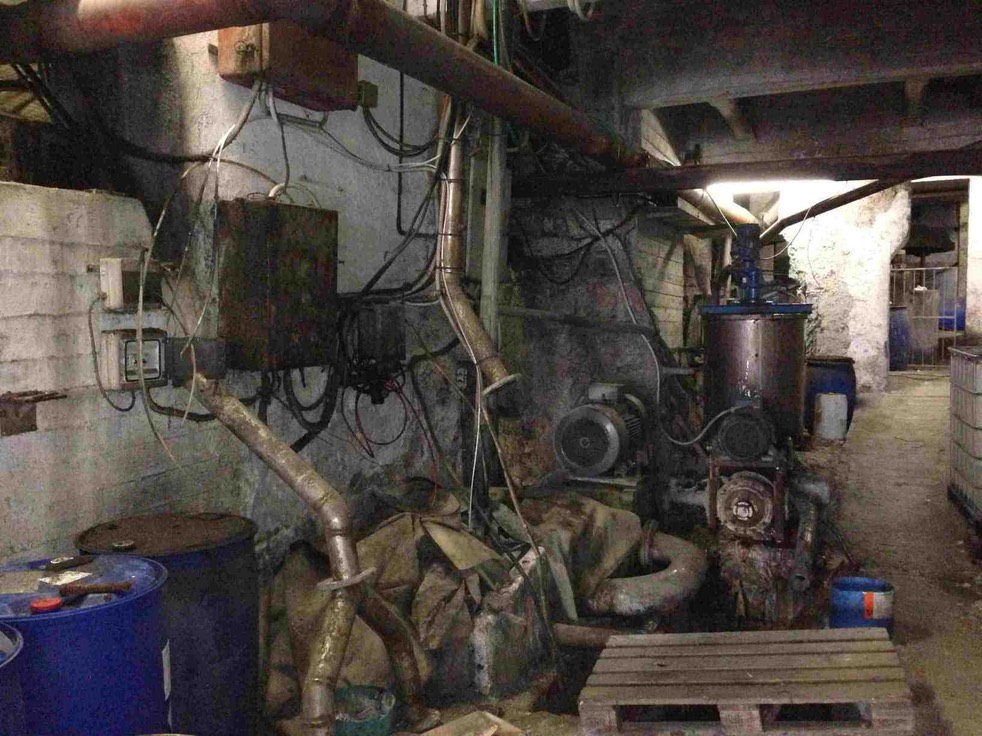

IMG 1345
