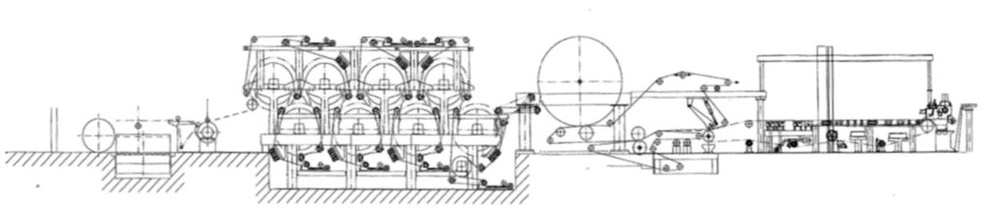

Tissue Machine, Pama, 2,320mm, 40tpd,
General technical information
Manufacturer: PAMA, Freiberg, 1958.
In production until mid of 2010, now preserved (cylinders open for avoiding moisture accumulation, lubrication verified, felts dismounted, wire still present in order to protect foils and boxes).
Hand of machine: right side
Production: 30-40 tpd of crepe paper towel 41 g/m2
Type of furnish: waste paper
Width on reel: 2,32m
Speed on yankee ca. 320-350 m/min
Yankee diameter: 3187mm, metallized in year 2001.
Yankee operating pressure: 2,5 barg
Head box with dilution zones for basis weight profiling
Long wire section: 1 wire, horizontal foil section, free fall drainage box, vacuum boxes, showers.
Press section: 2 presses (1 felt press, 1 yankee press)
Felt section: 2 felt
The paper is taken by the upper felt with the pick-up system, then goes to the felt press– consisting two press rolls – where the paper is pressed between the upper and lower felt. The lower felt has the only function to take up the humidity of the paper.
The paper remains under the upper felt and goes to the yankee press roll which presses the paper onto the yankee cylinder.
Both felt sections have Uhle-boxes, showers and manual felt tensioning and regulation systems.
Dry section: 8 drying cylinders. Canopy hood on the cylinders. Cylinder diameter: 1,5 m ca.
Operating pressure:2,5 barg.
3 doctor blades: detaching blade, creping blade, cleaning blade. Pneumatic system.
No coating chemicals necessary, except modest quantities of realease agent mixed together with the stock.
Overhead monorail crane for spool handling: ABUS
Steel structure and manual hoists: drive side and operator side for maintenance works. Walkways and stairs around the paper machine.
PM mechanical drives Yankee cylinder: CC motor and gear box
Dry section and pope reel: CA motor. This part is equipped with belts and conical wheels. Electromechanical system control relative position between belts and conical wheels and so control the speed of cylinder. Press roll: CC motor and gear box
Wire roll CA: motor and gear box
Lubrication system
Lubrication unit for steam cylinders in dry section Grease system for other part/rolls
Hydraulic system
Hydraulic unit REXROTH for pope reel and reel handling
Steam & condensate system
Steam pipeline distribution system in drive side for feeding Yankee cylinder and other cylinders in dry section, completed wit valves and condensate dischargers.
Condensate pipeline recovery system from Yankee cylinder, cylinders, hood heat exchanger and others. 2 steam/condensate separators
3 condensate pumps Robuschi Motors Robuschi 2,2 kw

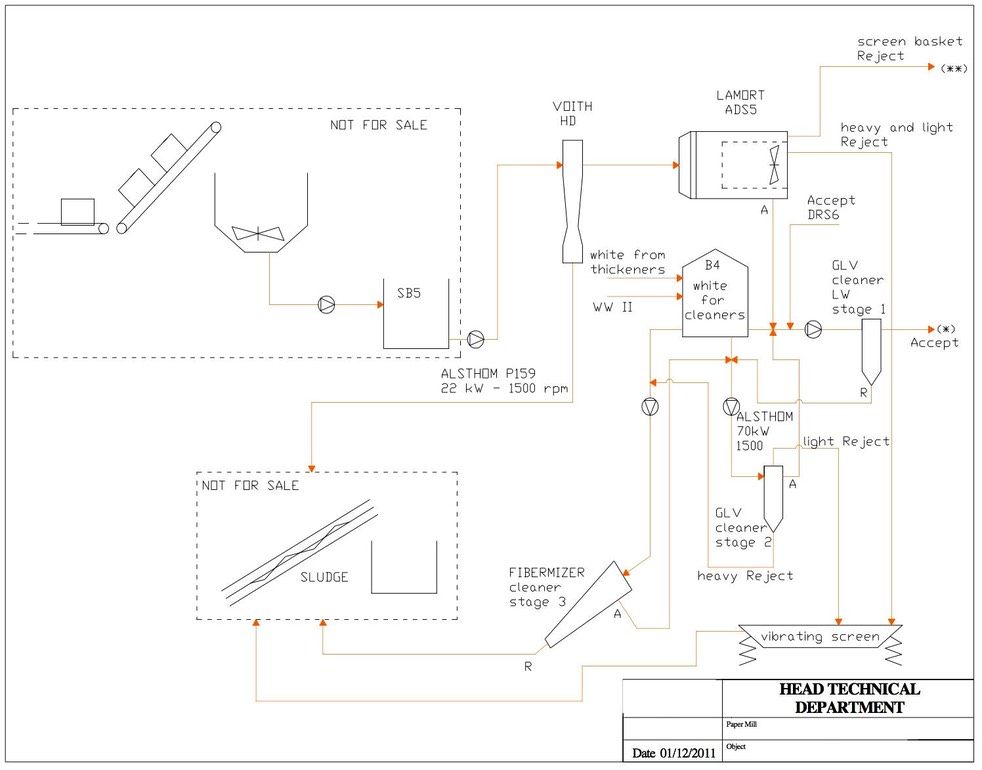

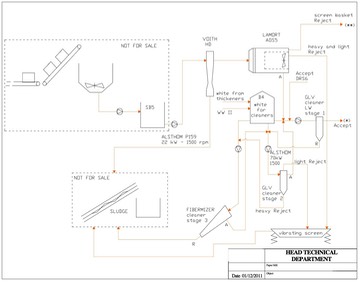

Stock preparation & constant part
Bach pulper Not for sale
Pulper discharge pump Not for sale
Dumping chest 200 m3 Painted steel Vertical agitator
Feeding pump P159
Ahlstrom (2004)
Motor VEM, 22 kW, 1.500 rpm
High density cleaners Voith (2) (2004) 1°stage screening Lamort ADS 5 (2004
Motor VEM, 90 kW, 1.500 rpm
White water 2 (item B4) 12 m3
Painted steel
LD cleaner 1°stage feeding pump Ahlstrom (2004) Motor VEM, 110 kW, 1.500 rpm
Low density cleaners 1°stage (12) GL&V(2004)
LD cleaner 2°stage feeding pump Ahlstrom (2004) Motor VEM, 18 kW, 1.500 rpm
Low density cleaners 2°stage (2) GL&V (2004) Vibrating screen
LD cleaner 3°stage feeding pump Ahlstrom (2004) Motor VEM, 18 kW, 1.500 rpm
Low density cleaners 3°stage (2) GL&V (2004)

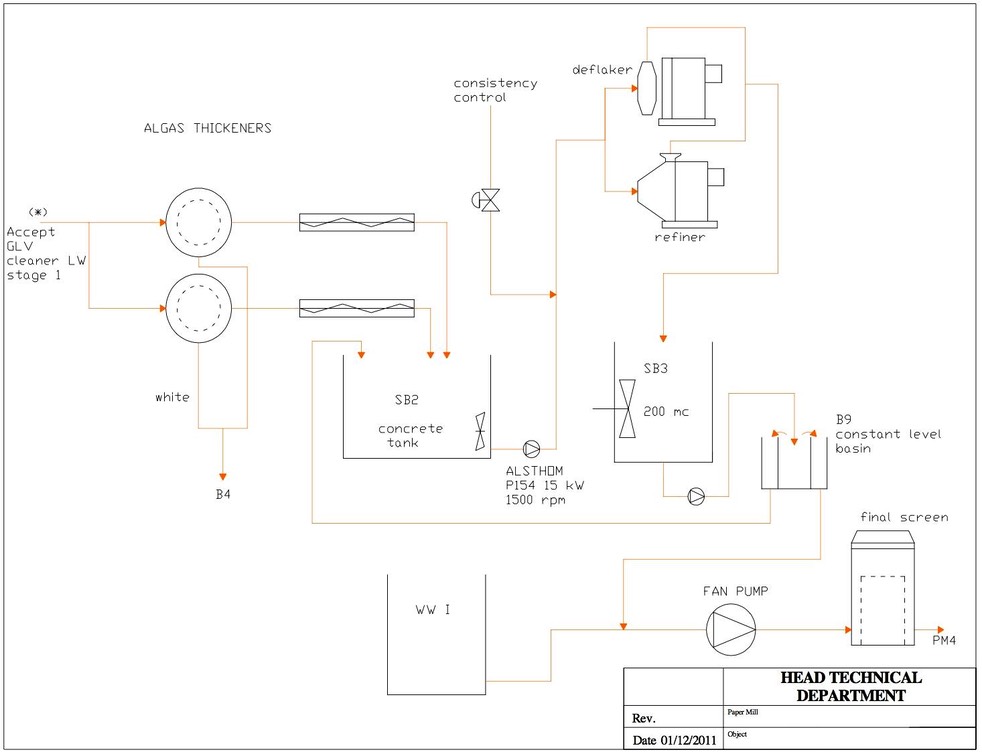

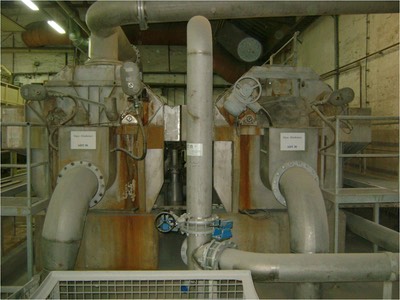

Thickeners ALGAS (2) (2004)
Feeding pump P154 Ahlstrom Motor VEM, 15 kW, 1.500 rpm.

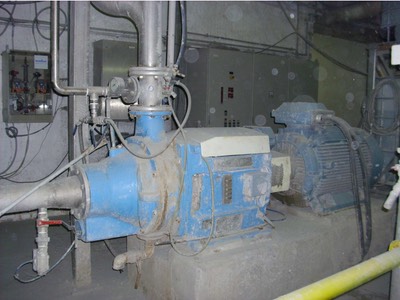

Deflaker PAMA
Motor VEM 132kW, 3.000 rpm
Refiner CONFLO with load control system (1995) Motor ABB 200 kW, 1.000 rpm
Stock chest SB3 m3 200
Painted steel Vertical agitator
Level constant box
Level constant box feeding pump Ahlstrom
White water ׀ chest 10m3 Material: stainless steel
White water ׀ channel Stainless steel
Fan pump Ahlstrom (2004) Motor VEM, 37kW, 1.500 rpm.
Prymary screen PAMA
Motor VEM 22 kw, 1.000 rpm
Feeding pump P181 Ahlstrom (2004) Motor 55 kW. 1.500 rpm
Low density cleaners (2) LAMORT (2004)

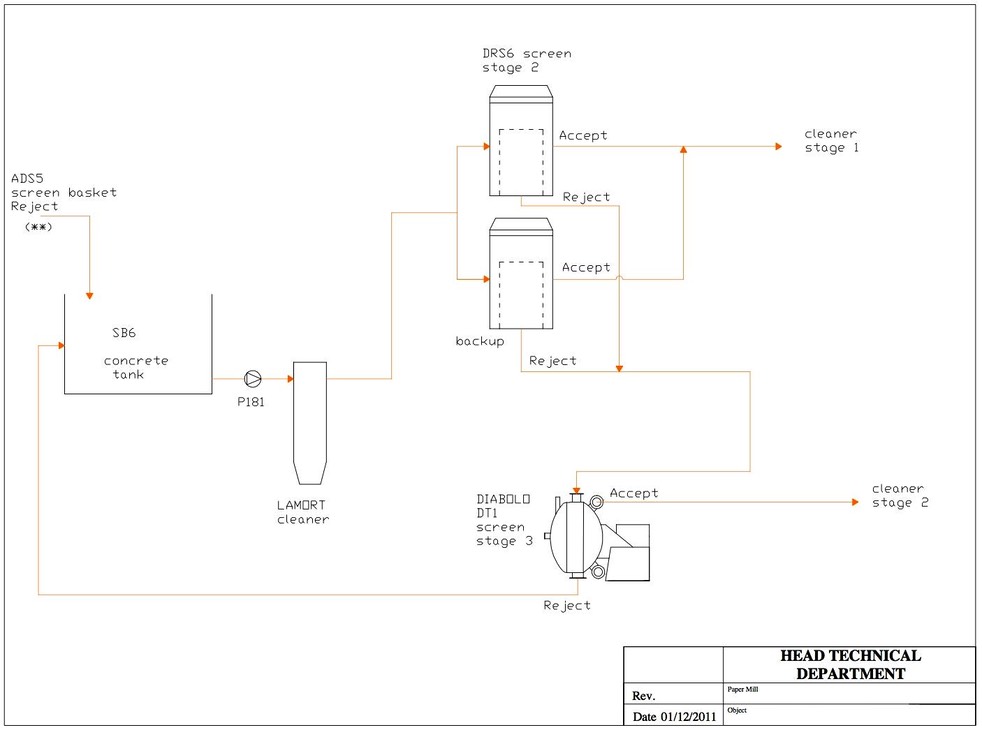

2°stage screening
N°2 screen PAMA, DRS/6 (1 in spare) Motor Siemens, 22 kW, 1.000 rpm.
3°stage screening
Kadant Diabolo DT1
Motor VEM, 15 kW, 1.500 rpm
The equipments for sludge treatment THAT ARE NOT MENTIONED IN THIS LIST cannot be sold because they are shared with PM5.
All the pipes, valves, fittings, level transmitters, flow meters, temperature transmitters, consistency transmitters, pressure transmitters, other instrument, cables are included in the offer. Cable trays to be checked.
Stock preparation equipment summary
N°8 process pumps N°20 cleaners
N°5 screen
N°1 deflaker
N°1 refiner
N°4 chest
N°1 Vertical agitator
Water system
Fresh water tank for showers, stainless steel, 2 m3 Medium pressure pump KSB for showers
Motor KSB 5 kW, 1.500 rpm
2 high pressure pump KSB for high pressure nozzle/showers (1 in operation P216 +1 in standby P209), directly connected to the fresh water ring.
Motor VEM 22 kW, 3.000 rpm
White water ׀׀ pump Ahlstrom Motor VEM, 11 kW, 1.500 rpm
Water system equipment summary
N°4 pumps N°1 tank
Vacuum system
1 vacuum pump Siemens/Elmo Motor Siemens, 55 kW, 1.500 rpm 1 vacuum pump Siemens
Motor VEM, 22kW, 1.500 rpm
1 air exhaust collector for both vacuum pumps
2 water separator tank
2 extraction pump Krogh type Motors VEM, 11 kW, 1.500 rpm.
Yankee hood
The Yankee hood blows hot air (90°) on the paper. 1 inlet fan for hot air, with motor
1 heat exchanger steam/air
1 extraction fan for air exhaust, with motor Ducting

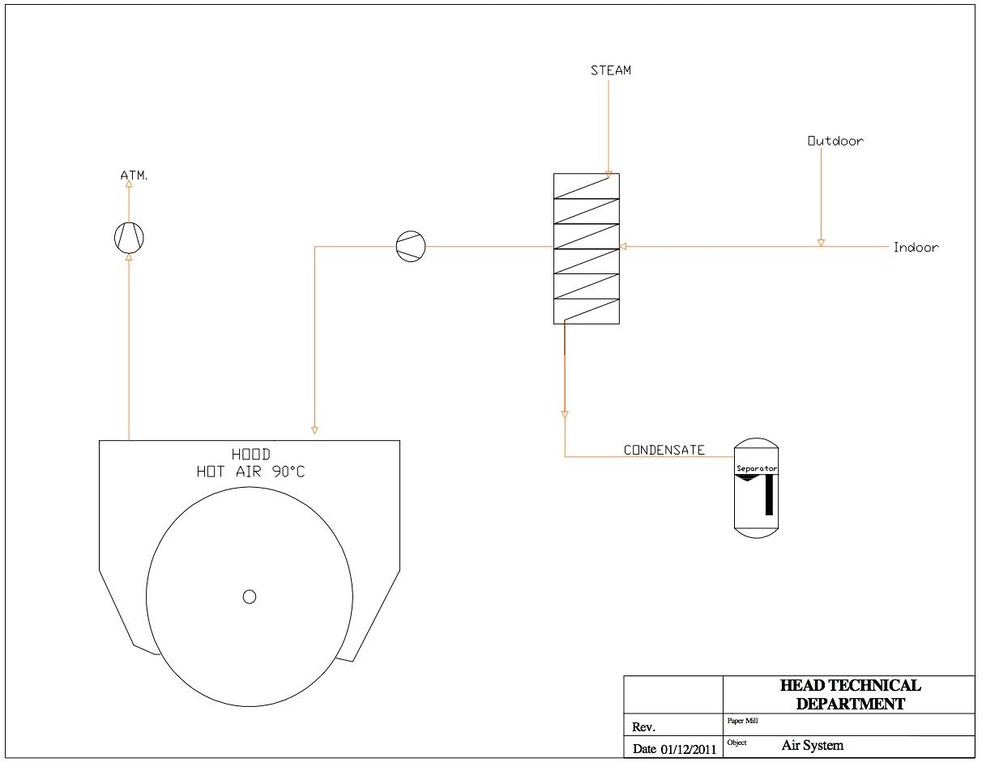

Air system
1 heat exchanger steam/air
1 inlet fan for hot air with motor
1 extraction fan with motor
Ducting

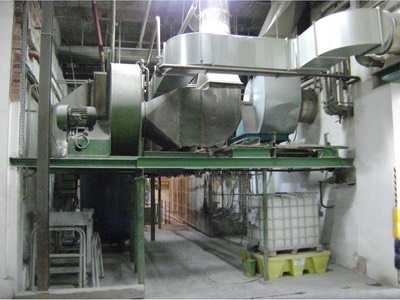

The air system and the yankee hood equipment are supported on heavy steel structure, for sale.

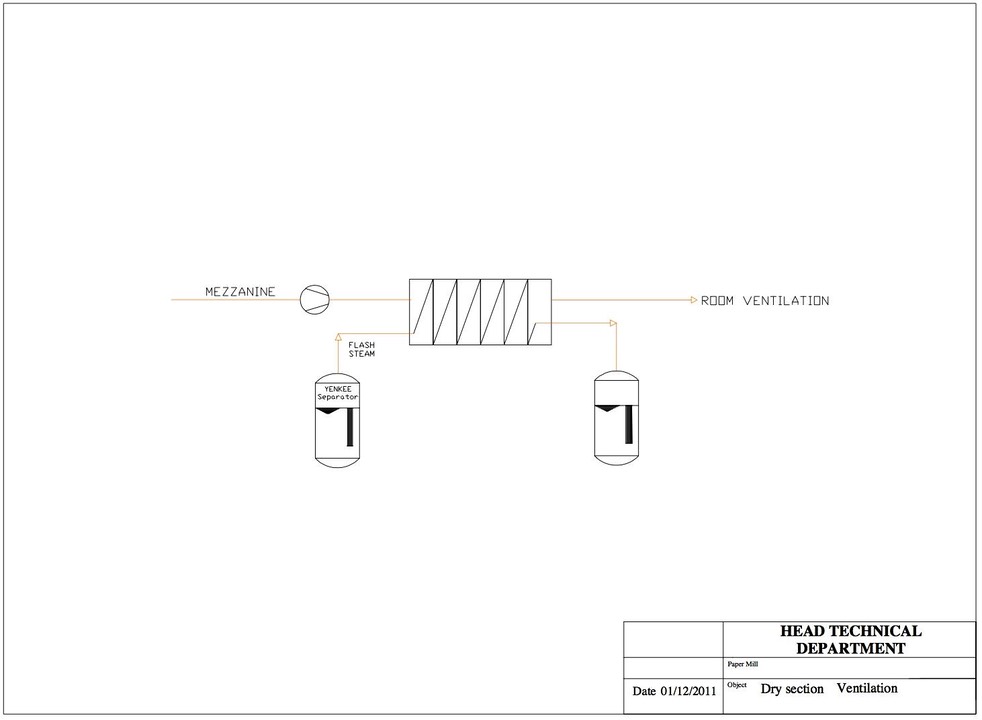

Ventilation
PM4 control system
PLC Siemens Simatic S7 (CPU416-2) (2009)
PM electrical drive system: Masterdrive Siemens for AC motors (2009) PM electrical drive system: Simoverg Siemens for DC motors (2009)

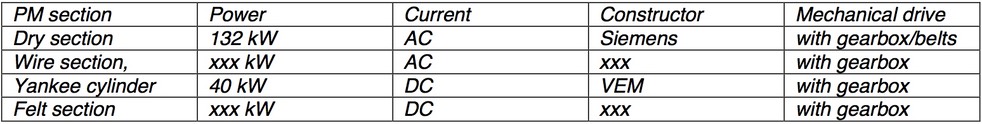

Part of PM electrical drive is with AC system, part is with CC system, according to the following table:
PM MCC cabinet Siemens for auxiliary system:
vacuum pumps, condensate pumps, doctors, fan pump, other pumps, fans. (2004)
PM MCC cabinet for stock preparation:
Integrated with PM5 cabinet, difficult to divided (not for sale).
Control room
Room prefabricated panels
1 operator panel
1 process control PC
1 engineering station PC 2 monitors 21”
PM section
- Power: 132 kW
- Current: AC
- Constructor: Siemens
- Drive: See table below
