SM0956

SM0956 - 2,550mm, paper machine, Voith, trim width 2,550mm, Speed 100-300m/min, 18-85gsm


For producing tissue, fine and cellolose papers

  • Manufacturer                   Voith
  • Grammage                       18 – 80 g/m²
  • Production                       17 – 25 t/day depending on quality and paper type
  • Working speed                 100 – 300 m/min
  • Working width                  2550 mm

Description

Stock preparation:

  • Pulper with motor 132 kW
  • High density pump Voith
  • Finckh Cyclon
  • Flat screen Voith

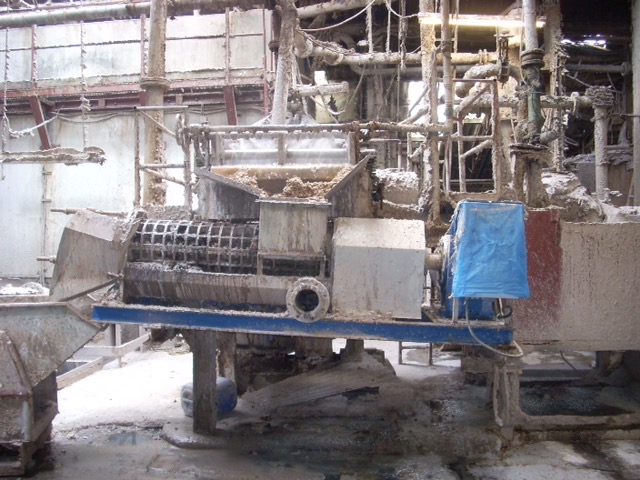

  • Screw extrusion press for reject


Papermachine:

  • High density pump
  • High density pump Cyclon
  • Proportioning pump Voith 360 m³/h: Motor: 55kW 1500 rotation/min
  • Suction Pump (Rohrsaugerpumpe) with Motor 55 kW
  • Vacuum pump suction roll with motor 30 kW
  • 5 primary tube cleaners: Size 2, Voith
  • Vertical screen: Size 1, Voith
  • High pressure head box Voith 5000l

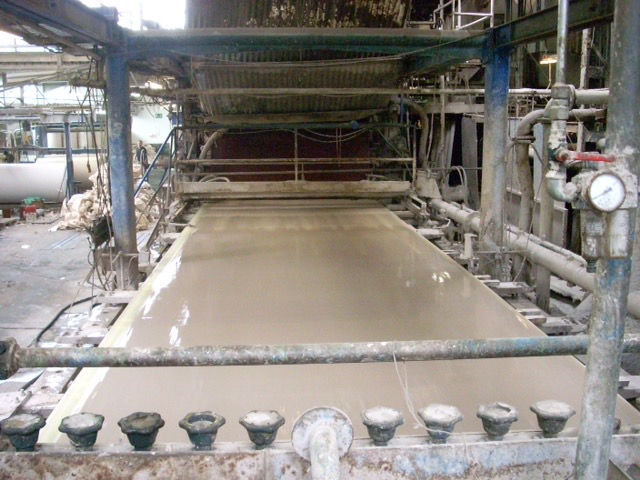

  • Wire section: working width max 2550 mm
  • Wire length: 22 m x 2,55m
  • Formation table,
  • Top side 18,0 m x 2,50 m
  • Base layer 10,0 m x 2,50 m
  • 1 HD shower pipe with movement in the top side
  • 1 shower pipe in the base layer
  • Suction press roll 690mm diameter, slits 3mm

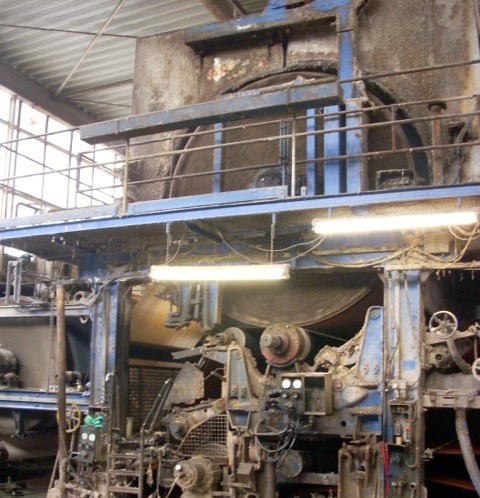

  • Glazing cylinder 3,2m x 2,55 m, with pressure roll and with heavy duty drying hood

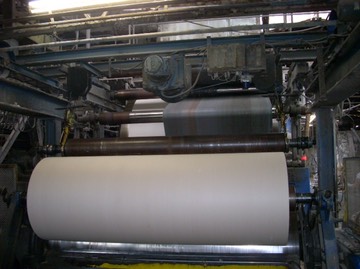

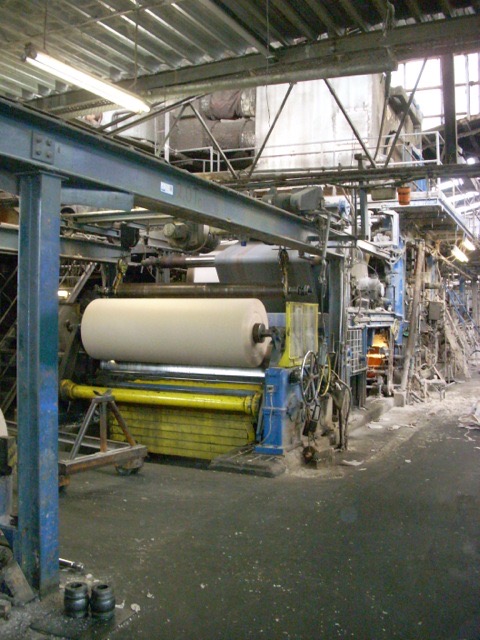

  • Popereeler with rope carrier and 10 reel drum


D.C. motor

  • Type:Lenze G250.480
  • 215 kW
  • 400 Volt = 1580 U/min
  • Excitation voltage: 310 Volt
  • IP23 Welle d: 95mm


Spareparts:

  • Pressure roll
  • Various leading roll
  • Suction roll
  • Various doctors
  • Spare motor (Pulper)
  • Pumps
  • Gear pump
  • Gear Pulper
