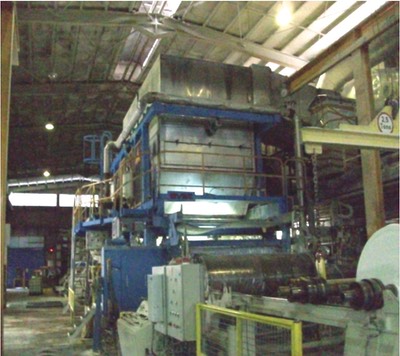

SM0790

TISSUE MACHINE, 2,500mm, Overmeccanica, 1,400m/min, 14-28gsm, 50TPD

SM0790-01
  • Supplier: Overmeccanica Start up: 1983
  • Width on reel (mm): 2550
  • Design speed (m/min): 1400
  • Grammage (g/m2): 14-28


Former:

SM0790 periformar
  • Type: c-wrap twin wire
  • Manufacturer: Overmeccanica
  • Year of manufacture: 1983 – upgrade 1993
  • Design speed (m/min): 1500
SM0790-03

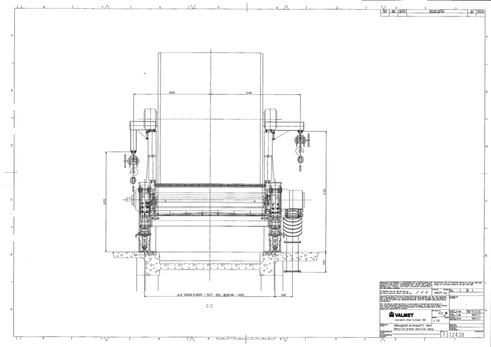

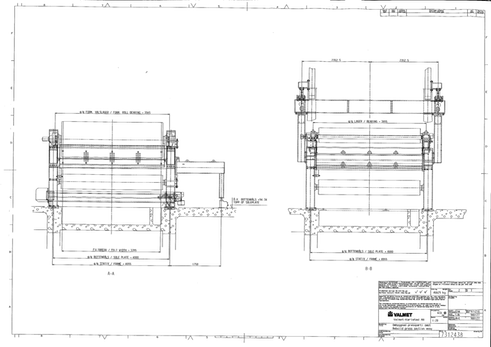

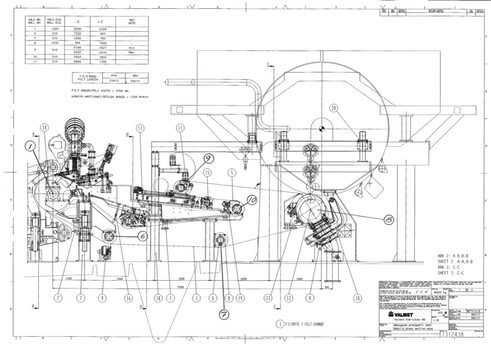

One suction press roll

  • Type:One blind press roll
  • Design speed (m/min) 1500
  • SPR diameter (m): 0,880 SPR Max load kN/m: 90
  • One spare shell BPR diameter               755mm
  • BPR Max load kN/m                              100
  • One spare SPR                                      complete
SM0790-04


Yankee:

  • Manufacturer: Overmeccanica
  • Year of manufacture: 1983
  • Diameter (mm): 3600
  • Width (mm): 2850
  • Construction: ribbed
  • Max operating pressure (bar): 7.2
  • Root shell thickness (mm): 37,9
SM0790-05


Yankee Hood:

  • Manufacturer: Brunsweiller
  • Year of manufacture: 1983
  • Upgrade: 1999
  • Fuel: LPG
  • Max air velocity(m/sec): 100
  • Max temp (Celsius): 450
SM0790-06


Refiner

  • Manufacturer: Andritz
  • Type: TWINFLO TF20 E
  • Year of manufacture:2004
SM0790-07


  • Manufacturer: Andritz
  • Type: TWINFLO TF1 E
  • Year of manufacture:2000

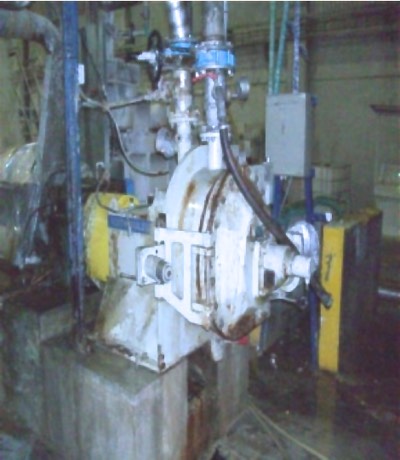

Screen 1

  • Manufacturer:Comer
  • Type: ECP 35
  • Year of manufacture:1983
SM0790-09


Vacuum pumps (5 x)

  • Manufacturer: AZMEC
  • Type: AL 65
  • Year of manufacture: 1998
SM0790-10


DCS System

  • Manufacturer: Sneider Electric
  • Year of manufacture: 1993
  • Overhauling : 2011
SM0790-11

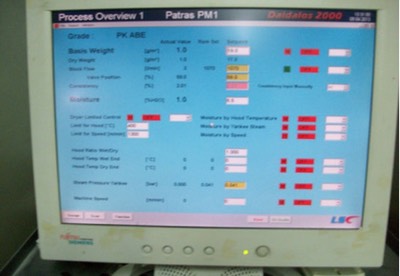

QCS system

  • Manufacturer: Voith/LCS
  • Type: Daidalos
  • Year of manufacture: 1985
  • Overhauling: 2003

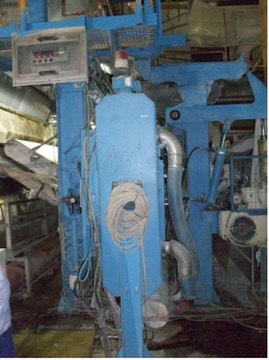

SM0790-13
