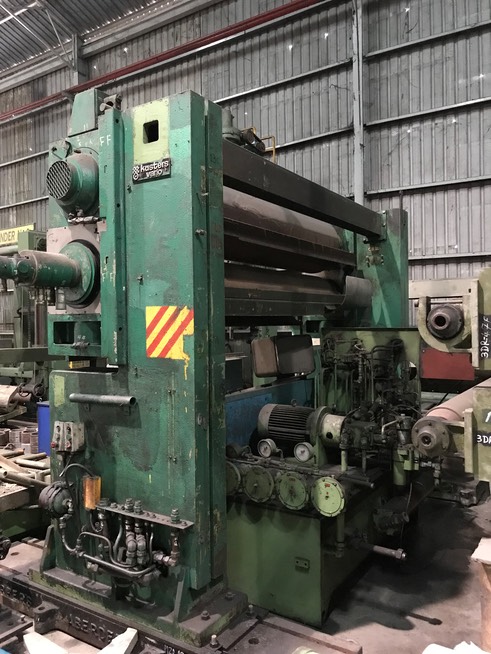

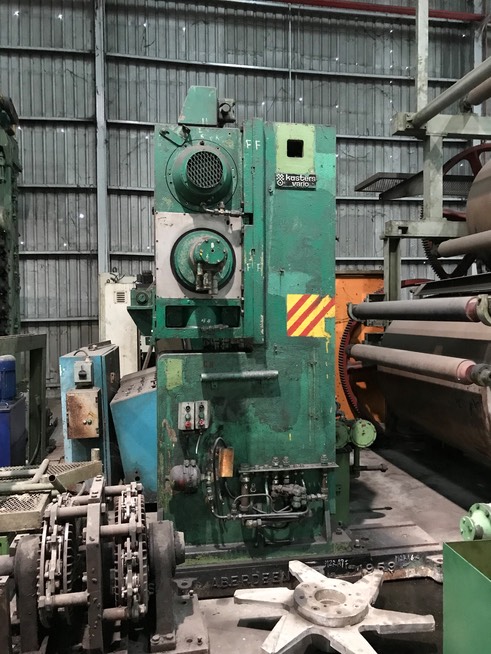

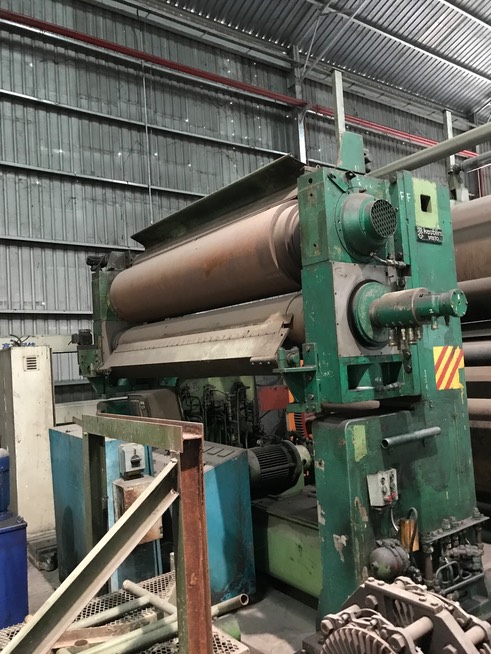

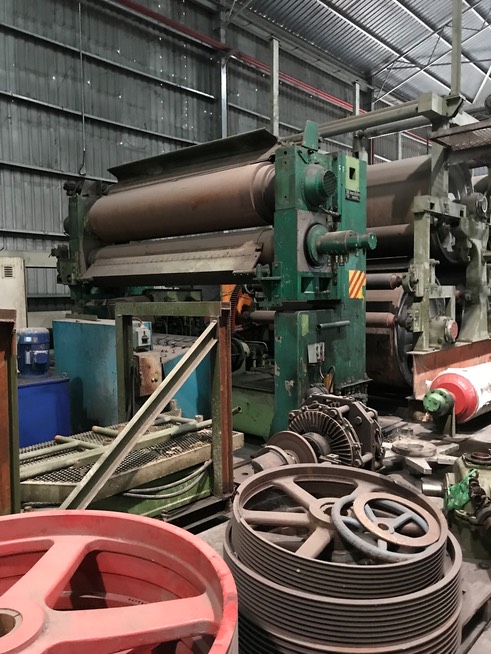

KUSTERS CALENDER
- Calender Rolls
- Vario-S-Roll Kusters, Type 24034
- Operating width = 2200 mm
- Support center distance = 3200 mm
- Linear Pressure bottom roll : 120 daN/cm
- Speed = 500 m/min
- Shell Material = Chilled Cast Iron
- Surface Hardnes = 555 HV ± 20
Status:
- Stored & still Erected on sole plates
- will be dismantled & sold within one month.
Scope of Supply:
- As inspected .
- It was driven by the paper machine line shaft.
- Hydraulic pump and control system are included.
