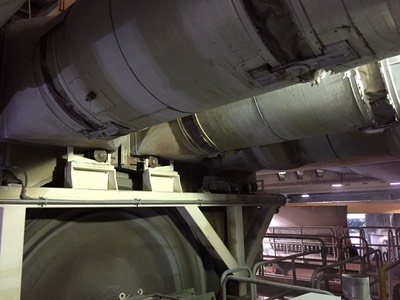

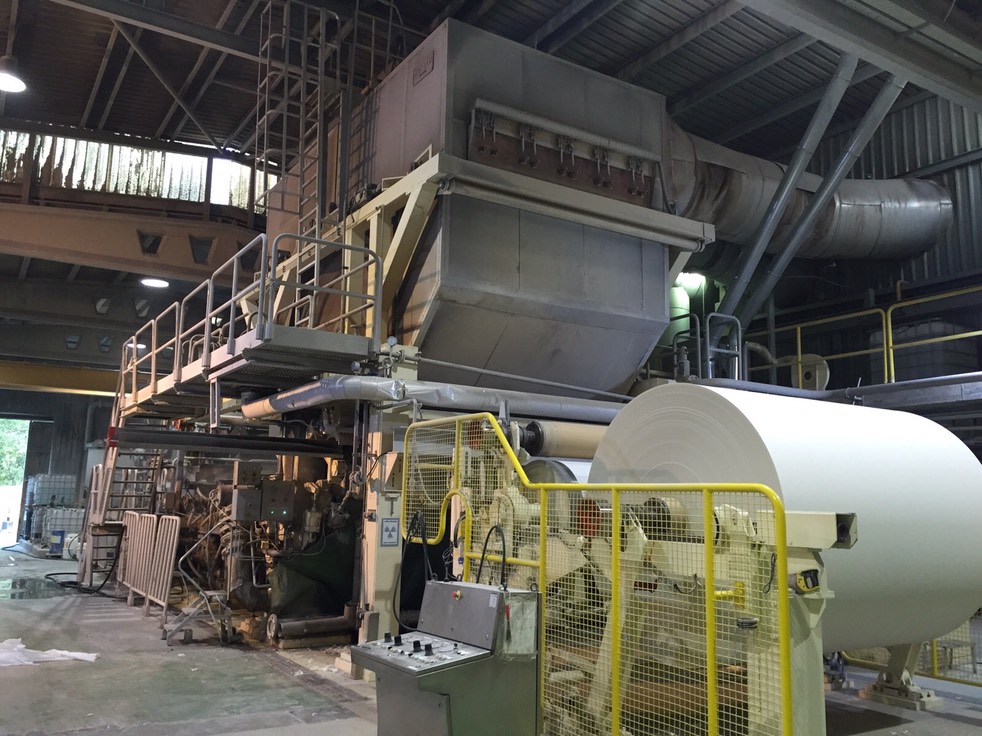

3.030mm face Yankee Cylinder, 3.600mm dia, 5.5bar.
Specifications of the machine:
- Machine in working condition, shut down in January 2016.
- Equipment available from January 7th 2016.
- Max speed 1200 mpm
- Grammages: 15-44 gsm
- Yankee´s wire width: 3030 mm
- Yankee´s Diameter: 3600 mm
- Yankee with bearings and bearing houses in perfect conditions (without hydraulic unit)
- Yankee´s maximum pressure 5,5 bars (4 condensate extractors revised in february 2015)

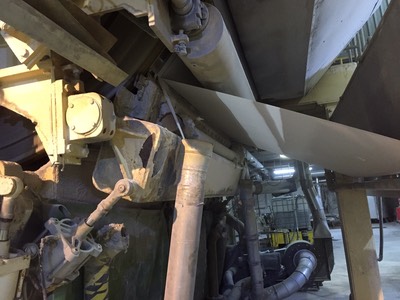

- Creping doctor (I don´t know the correct translation to english...) included, not the cleaning doctor.
- Steam system: 10 bars boiler, 5,5 T/H.
Recompressor regulated for 5 bars
Condensate tank (with level and pressure control)
2 condensate pumps
Regulation and control system
Security valves and rotary joints y perfect conditions

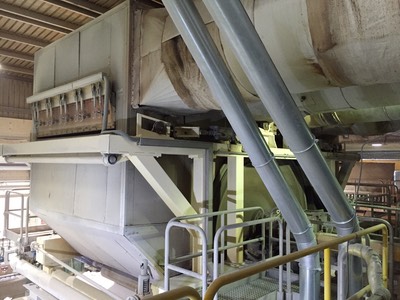

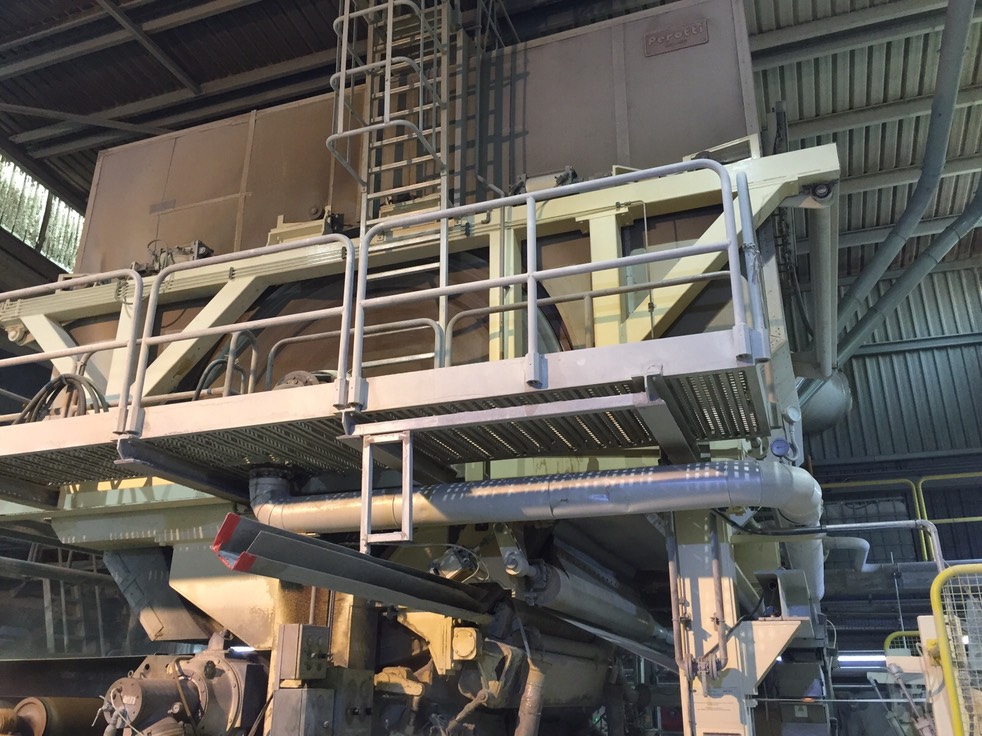

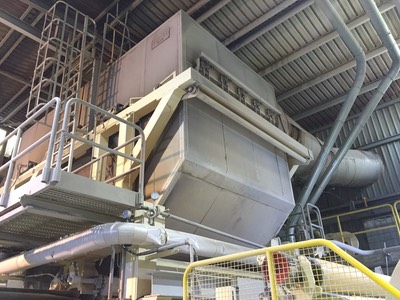

Hood: Perroti
Divided hood (wet part/dry part) with 2 circuits

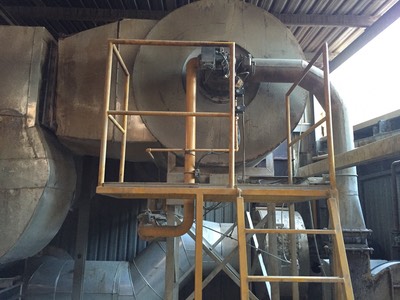

Ventilation and burners
Temperature controls
Technical documentation and drawings available.
The produced paper is first-class quality taking into account the european standards.
