SHOE PRESS 5,850mm, Metso, 225m/min, Manufactured 2006
MAIN TECHICAL DATA
- Designed Press Load 800 kN/m
- Matting Roll Æ 1.500 mm x 6.150 mm face
- Bearing center 7.650 mm
- Shoe width 5.850 mm
- Shoe module diameter 1.450 mm
- Year start-up 2006
- Year shutdown 2013
- speed 225 m / min
MAIN AVAILABLE COPMPONENTS:

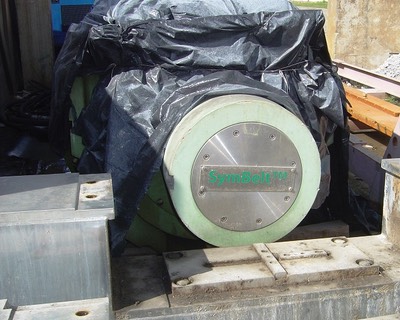

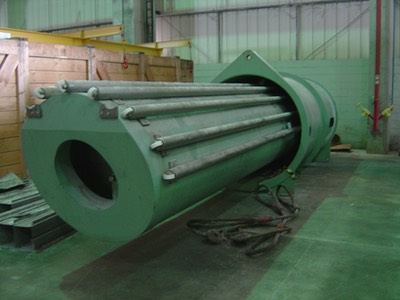

- 1 Shoe Module SymBelt type

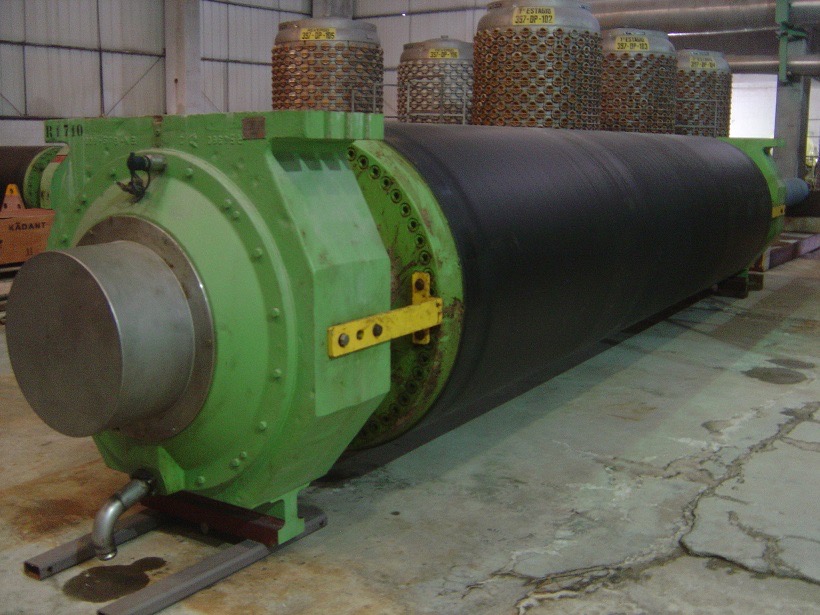

- 2 Matting Rolls (1 spare)
- Bearing housings and roller bearings
- Base frame and Support arms stainless steel

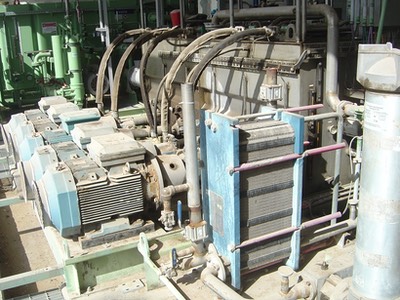

- Hydraulic Unit
- 1 Belt change device
- 3 Belts (New) 1 Metso + 2 Albany
- Stainless steel Shoe 1 spare

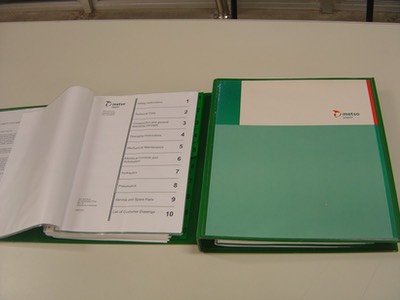

- Complete set of Operation and Maintenance Manuals
Spare components:
1 matting roll - Æ 1.500 mm x 6.150 mm face
1 Stainless Steel shoe
3 Synthetic belts
