SM0786

SM0786: 2,300mm trimmed width Paper Machine Printing & Writing, 160TPD

SM0786 – Paper Machine Printing & Writing 2,300 mm, trimmed width, 160TPD

Manufacturer: BELOIT
- Type: Fourdrinier with top former
- Width: 2,300 mm.
- Fabric Width: 2.640m/min.
- Design speed: 1,000 m / min
- Working speed: 800 m / min (for 70 g/m2)
- Weight: 50-150 g/m2
- Paper Type: Printing & Writing
- Production: 160 TPD
- 100% Production: 185 TPD

Virgin pulp PREPARATION: pulping
- Tape brand MORBO pulper feeding, 2005, consisting of:
- System desalambrado
- Feeding tape pulper
- Runway and desalambrador protection cap.
- Tri-dyne GLV Pulper, mod. Gross 5240.56 m3 / 37 m3 in operation
- Batch, capacity 180 BDT / d
- With hood
- 315 KW motor, gear drive
- Pumps, motors, instrumentation, control valves, manual on / off.

- YOM 1992. Rebuilt and upgraded  in 2005

- The machine stopped producing in 2010

Video of machine in production available on request

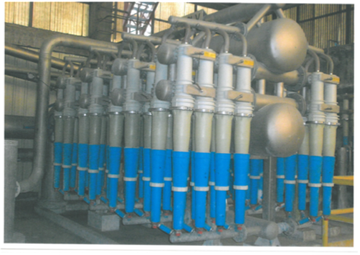

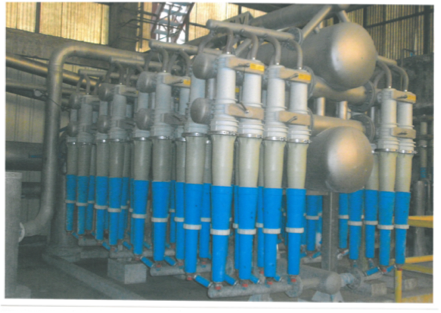

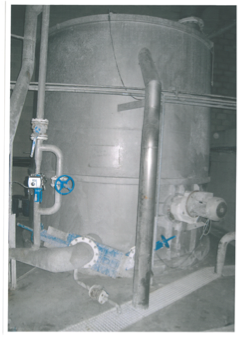

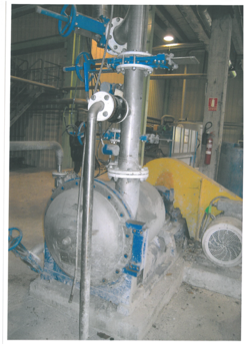

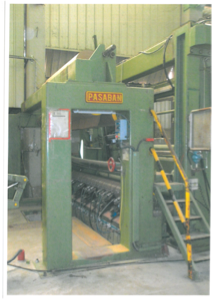

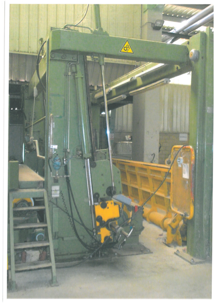

- Machine photos

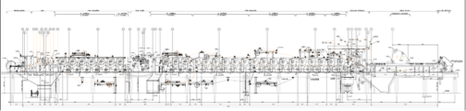

- Plan of the machine
