SM0749

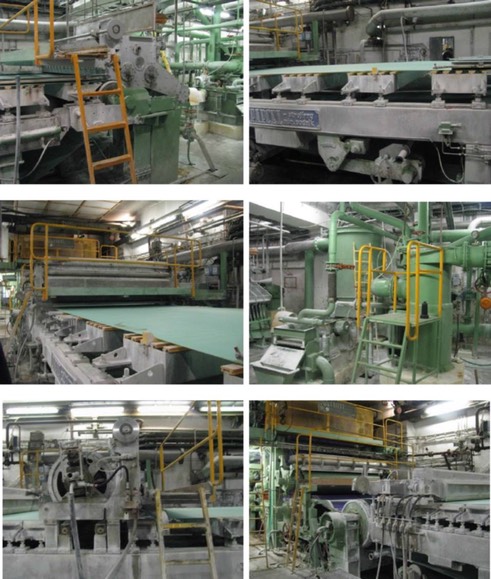

SM0749: 2,200mm PAPER MACHINE Papcel office graphic paper 45tpd

  • Production grades – Office graphic white papers
  • Basis weight range – 50-150 g/m2
  • Sheet width at reel - 2200 mm
  • Capacity – 45 t/d
  • Machine max speed – 245 m/min
  • Design Speed – 250 m/min.
  • Numbers of dryers 1500mm diam – 12/6
  • Year of build – 1983
  • Year of shut down – 2008
  • Manufacturer – Papcel

Main equipment :

  • - 2 conical refiners Andritz R3

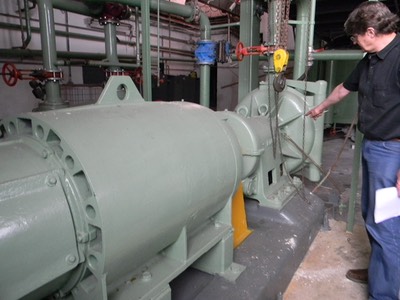

  • - 2 disc refiners Papcel D31
  • - 5 medium consistency cleaner Papcel

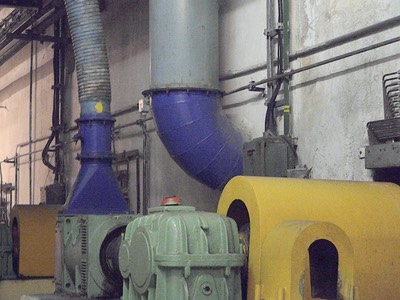

  • - complete approach flow loop with piping and valves
  • - fan pump – Andritz

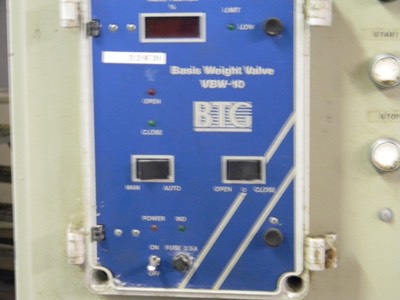

  • - Basis weight valve BTG
  • - Papcel pressure screen
  • - Papcel vibrating screen
  • - Papcel closed type headbox
  • - Papcel breast roll shaker
  • - fourdrinier with suction boxes with ceramic blades , wire length 23,65m

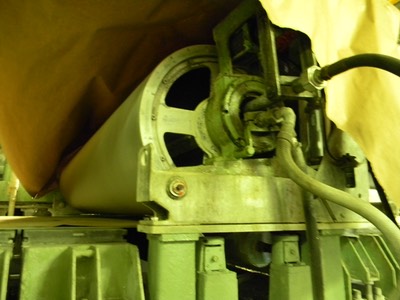

  • - dandy roll 700 mm diam.

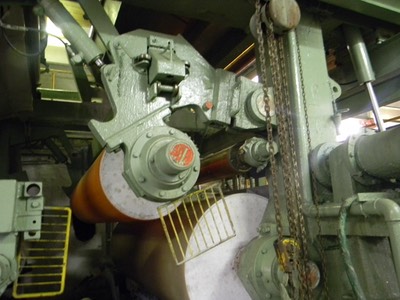

  • - press section - combipress with suction roll and blind drilled roll (970mm central roll Scapa Rock + Voith 3 chambers PU suction roll 830mm +Voith PU blind drilled press roll 600mm), + Papcel second ofset press with Scapa Rock + bottom roll 90 Sh

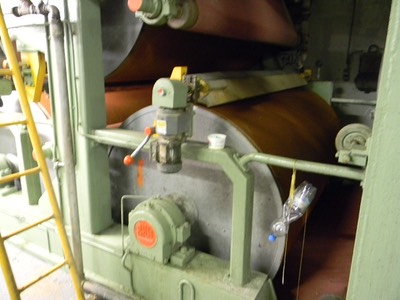

  • - dryer section - 12 predryers 1500mm diam.
  • - size Press - Bill Blade (used as size press)
  • - post dryer - 6 dryers
  • - ABB Smart platform QCS frame

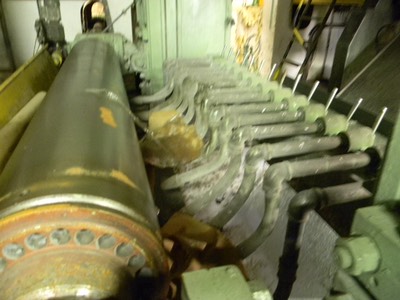

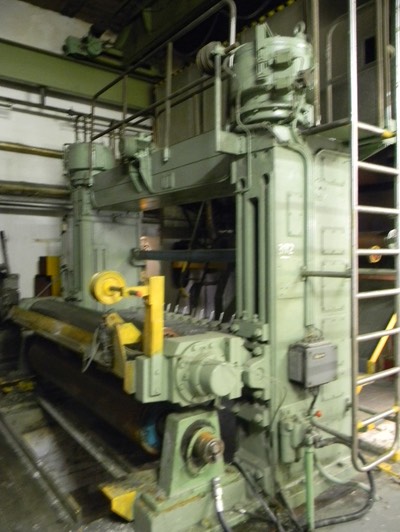

  • - calander - Kusters/ Voith rolls
  • - Papcel pope reel
  • - electrical and mechanical drives
  • - complete set of vacuum pumps with vacuum system
  • - Steam and condensate system with condensate tanks
  • - Set of documentation, drawings and manuals and match-marking.

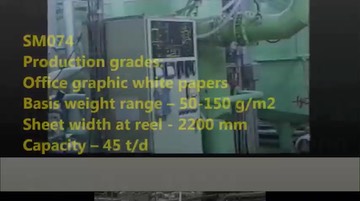

This browser cannot play the embedded video file.

This machine has been dismantled professionally and the overseeing supervisor can be sub-contracted to oversee the re-erection process.

Currently it is in covered, secure storage ready for shipment.
