PAPER MACHINE, 1,500mm 2 ply, Coated, 15-300gsm, Specialty grades
NB –– PAPER MACHINE SOLD FOR PARTS HEADBOX AND FORMER STILL AVAILABLE
Specification
- Deckle: 1,500 mm
- Speed range: 10-70 m/min
- Basis weight range: 15-300 g/m2
- Raw material: Cellulose and glass fibre, Latex
- Originally installed: 1993
- Major rebuild: 2000
Production grades:

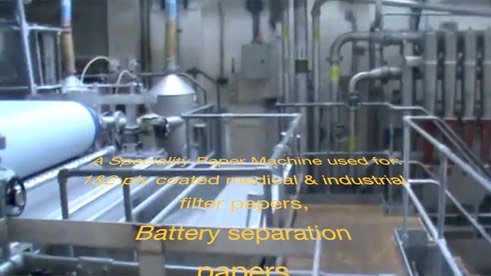

- 1 & 2 ply coated medical and industrial filter papers
- Battery separator papers
POTENTIAL FOR:
- Bank note papers
- Artist papers

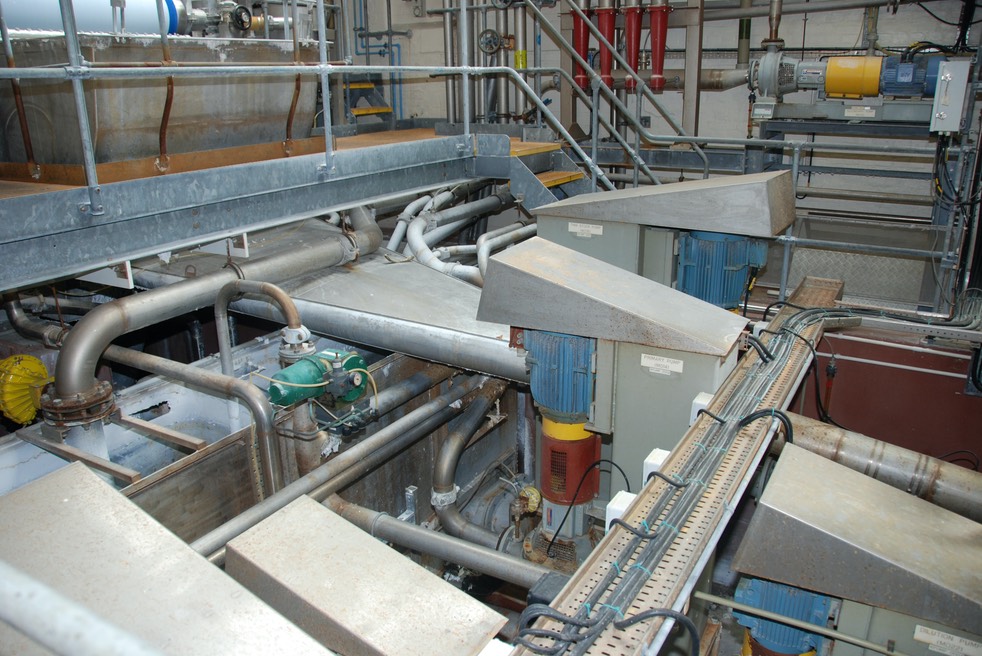

Approach System
- Dump chest and pump Machine chests and pumps for

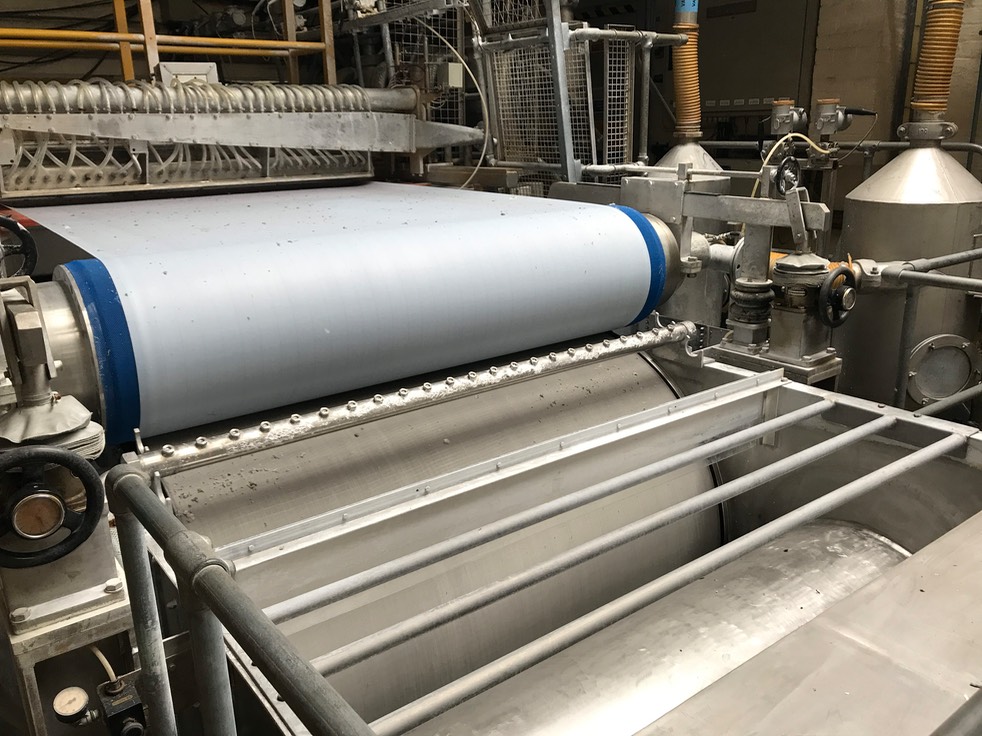

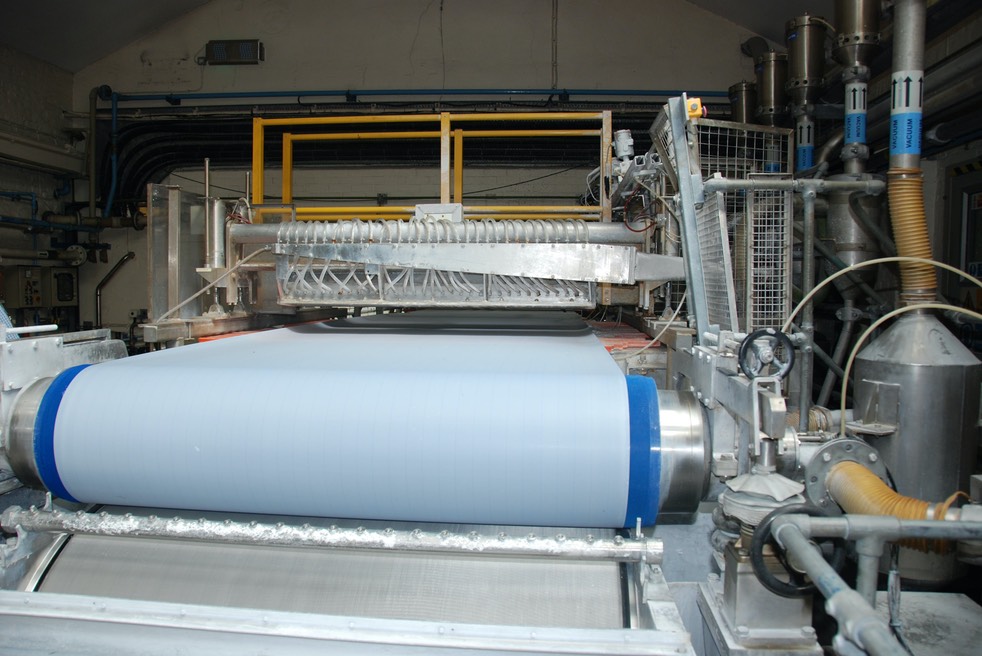

- Cylinder mould former

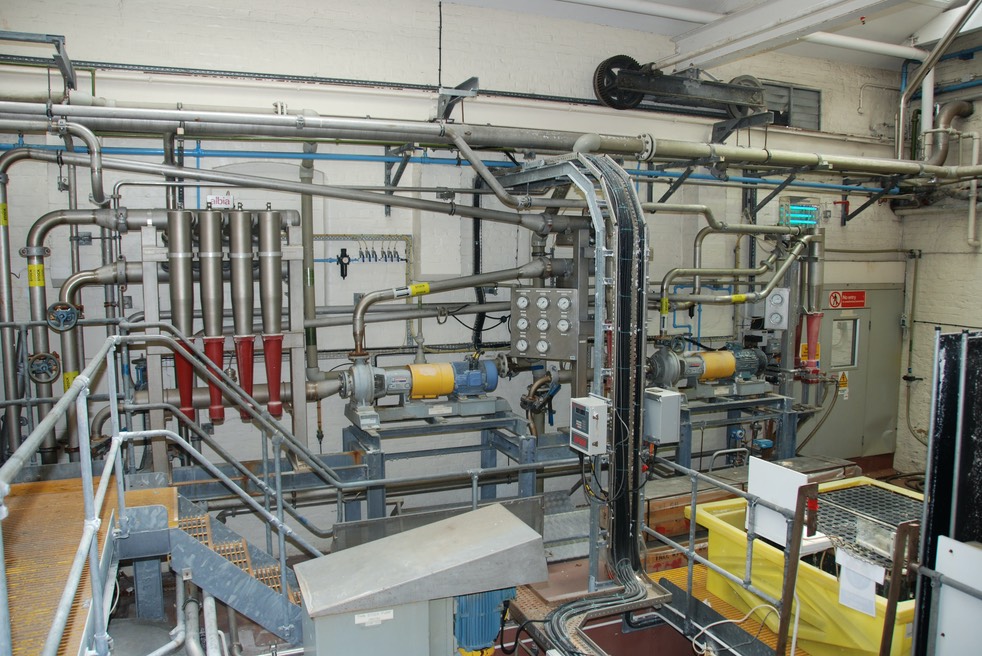

- Top headbox/former Albia 3 stage cleaning system and pumps

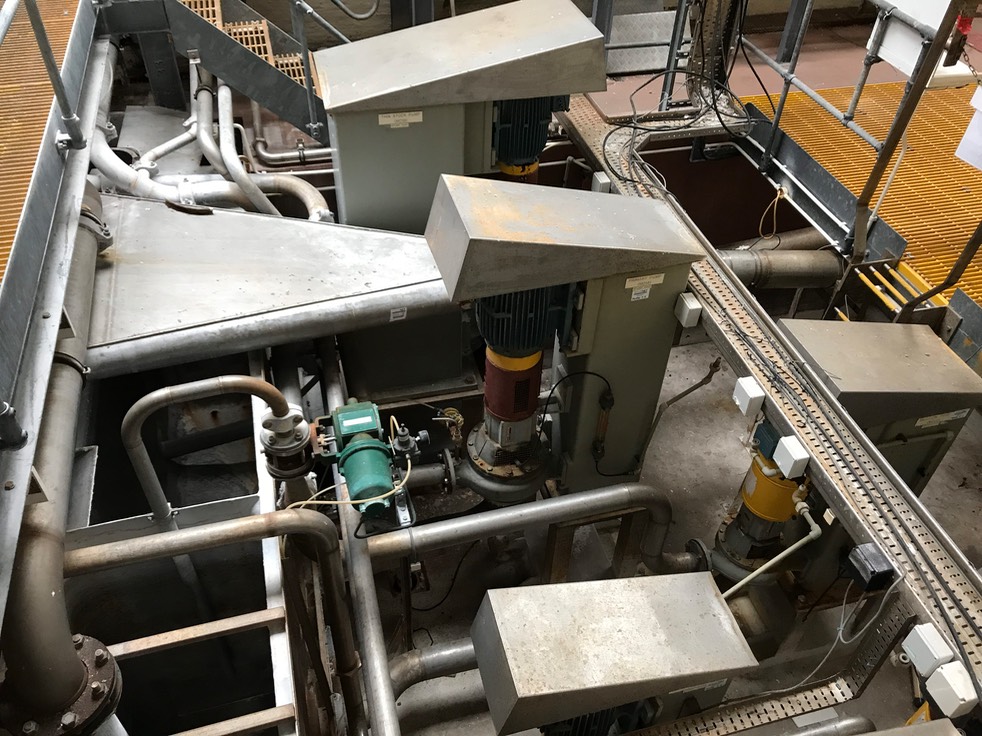

- Thin stock feed system 6 Pumps
- Feed tank

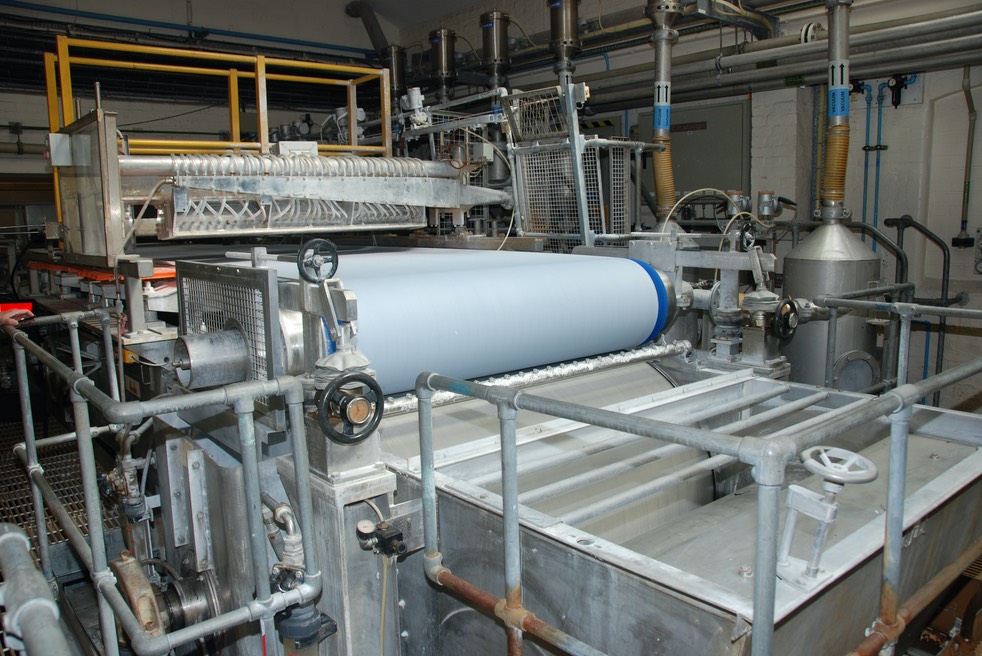

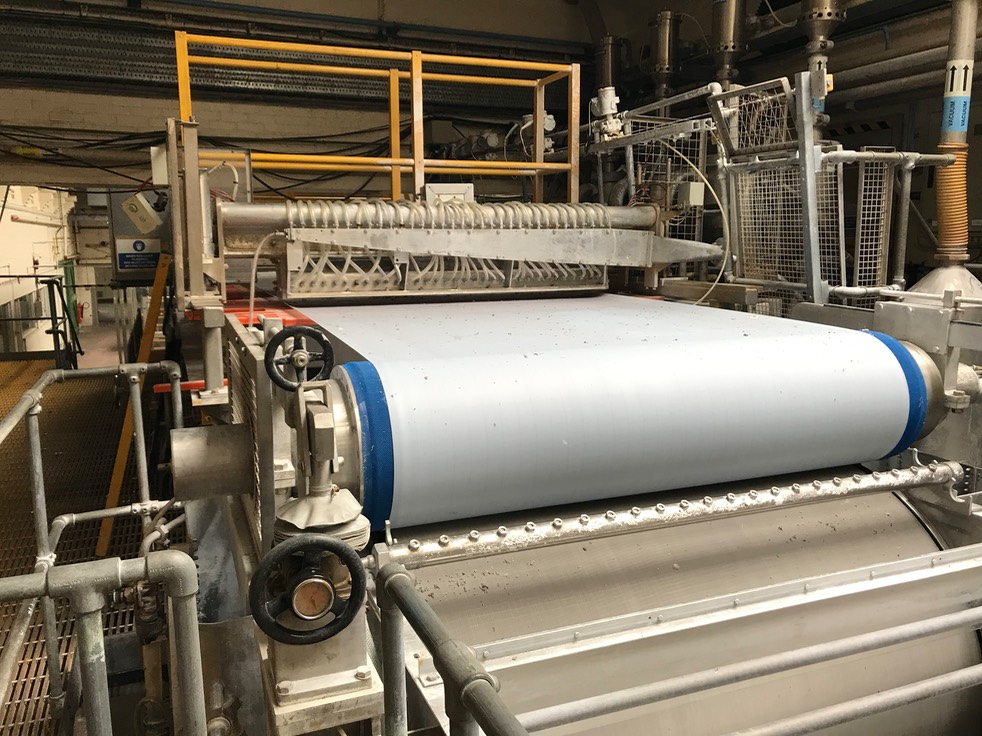

Vat former with couch roll

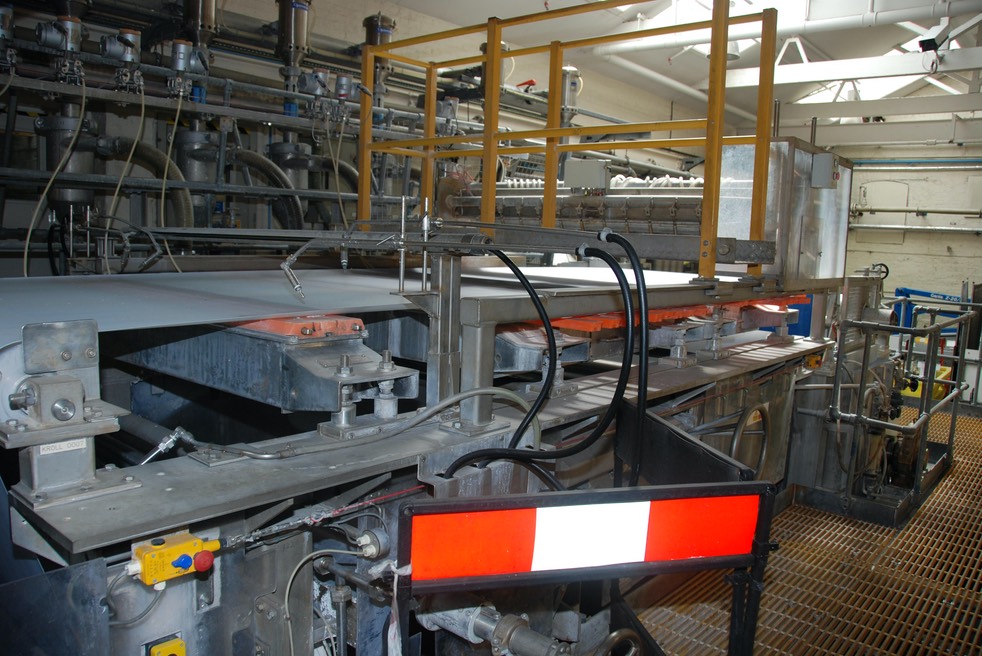

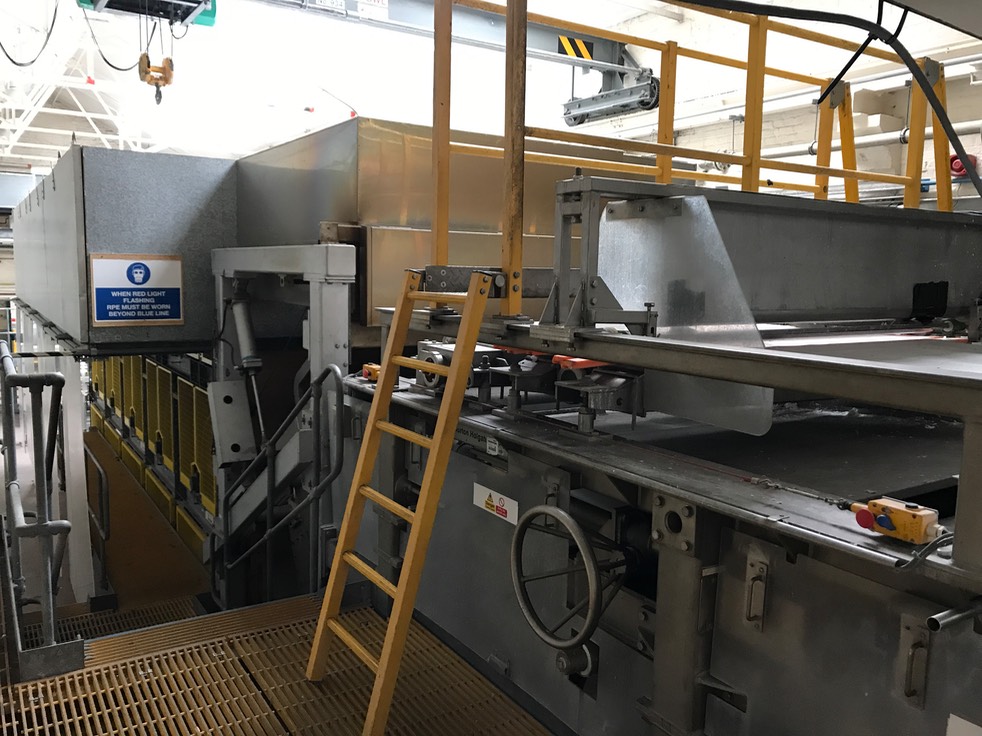

Wire Part – Formers & Coating Unit

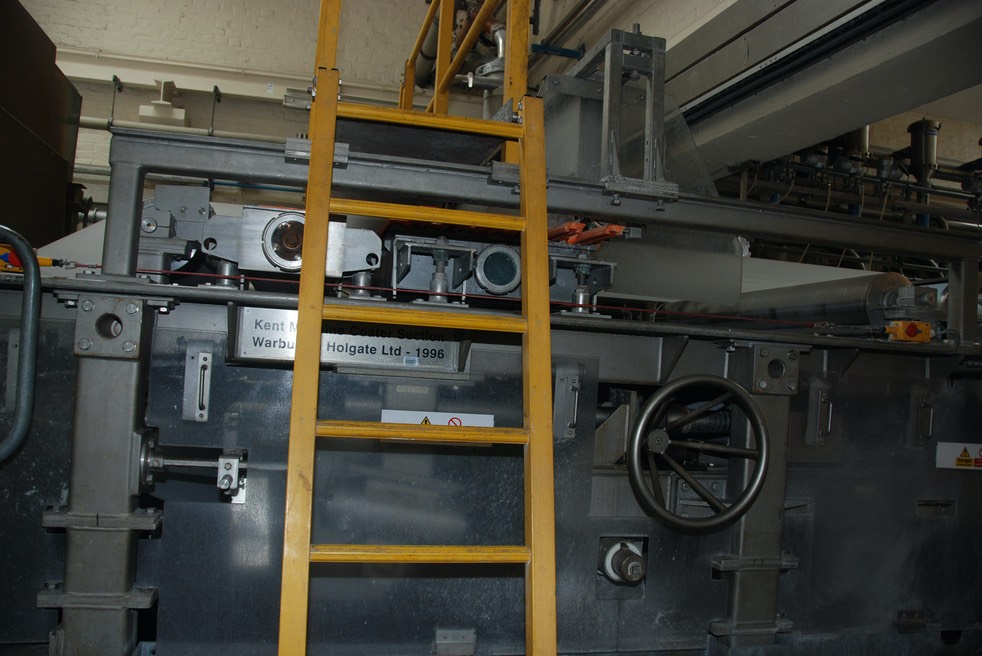

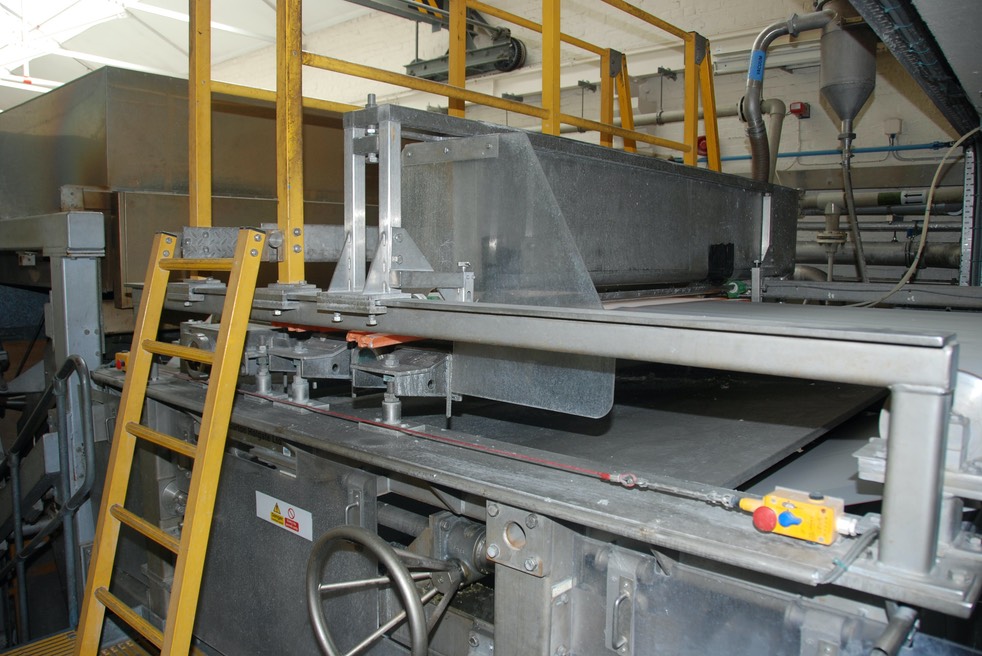

- 1st Wire with couch pick up and 2nd ply former/headbox

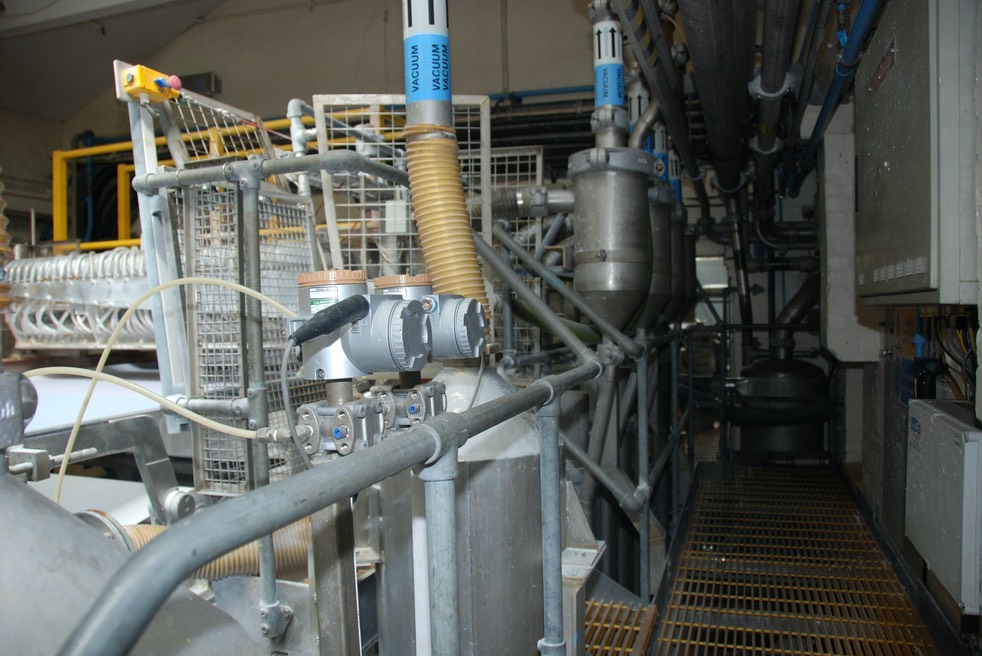

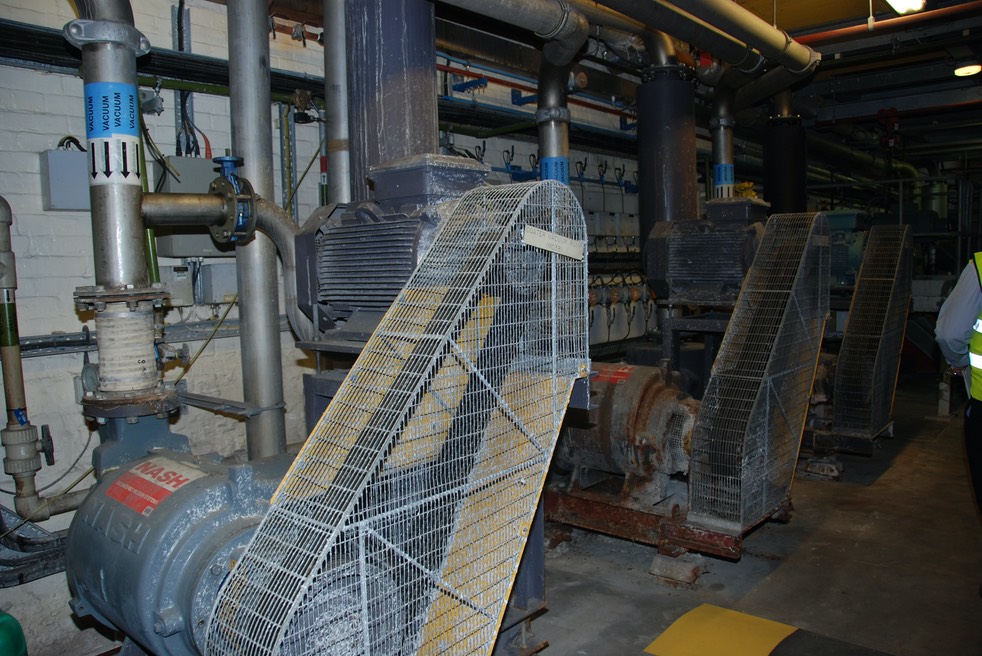

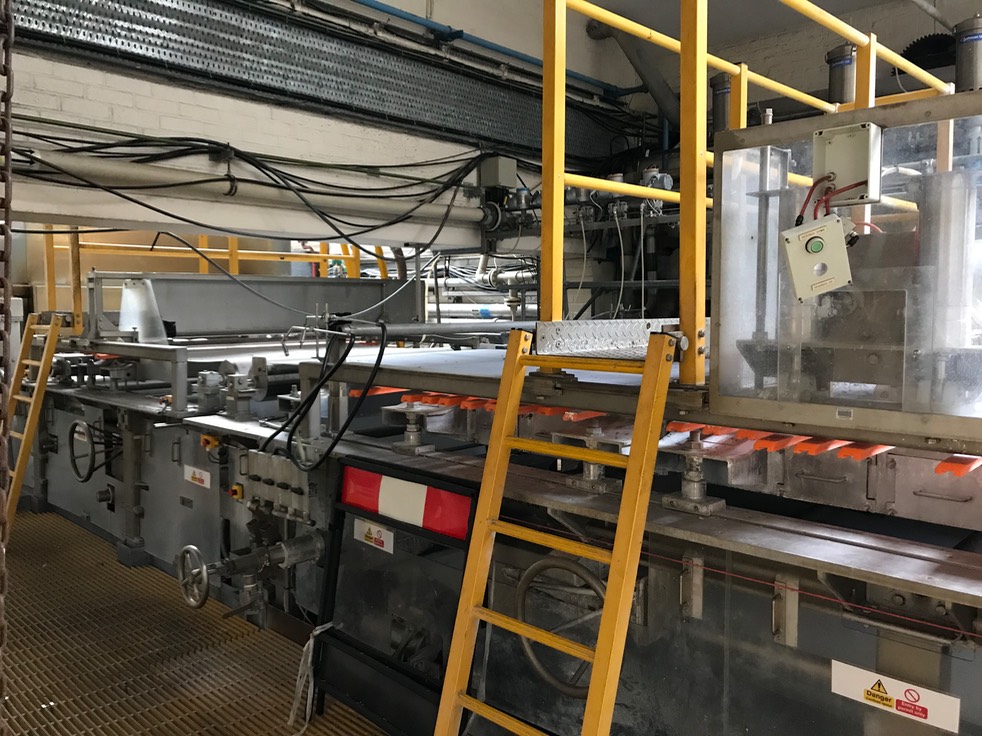

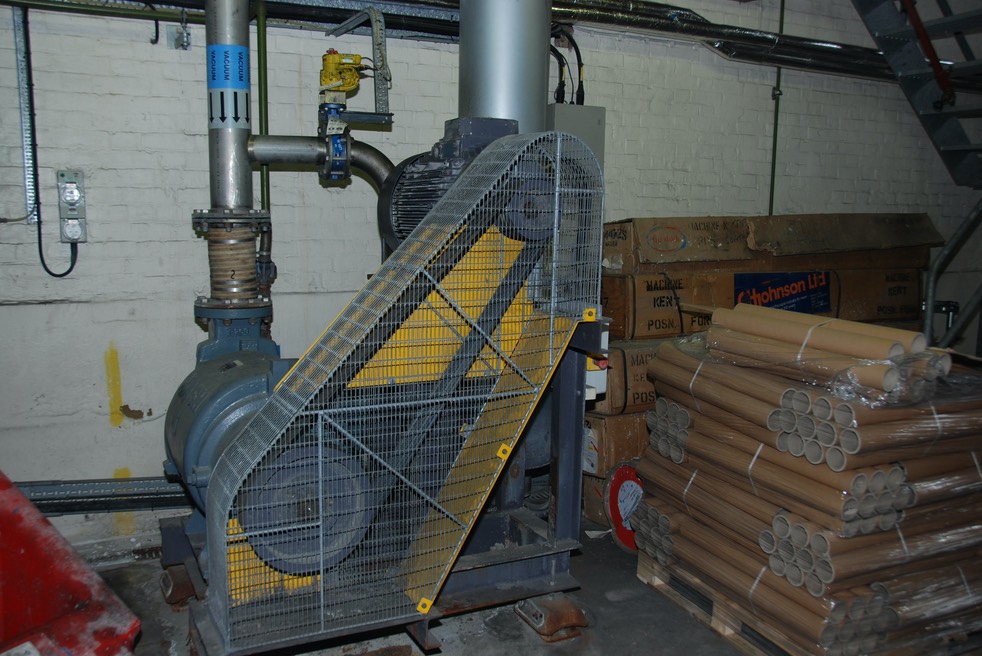

- Wire table with vacuum boxes and associated vacuum pumps
- 2nd Wire with overhead latex coating applicator and vacuum system
- Wire pit pulper

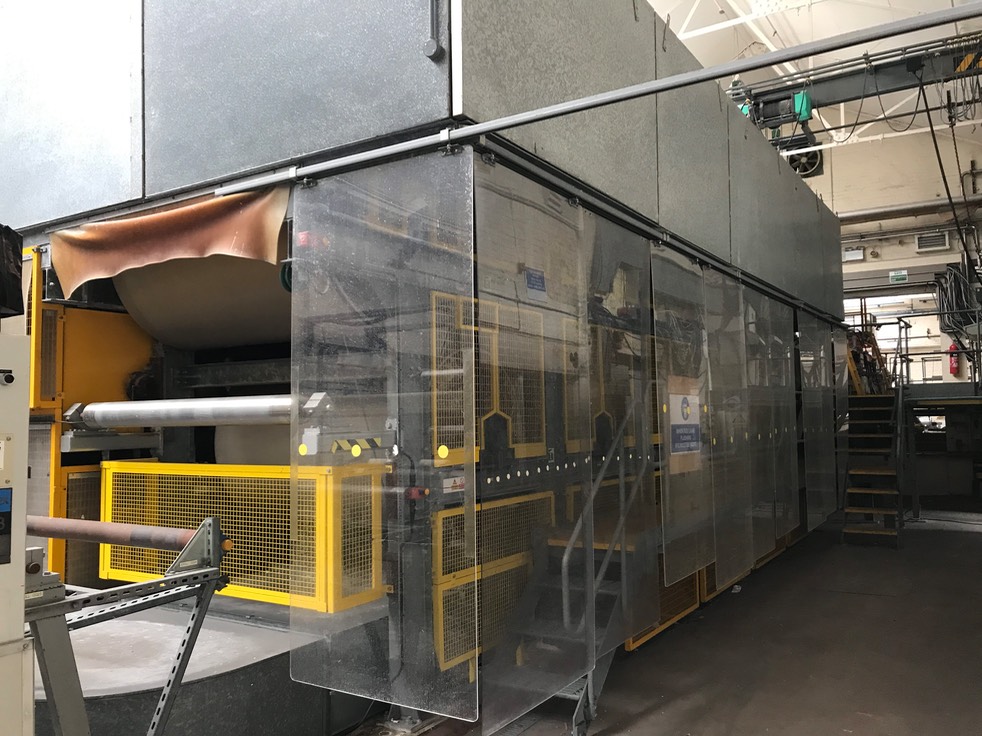

Drying – Infra Red & Drying Cylinders
- Infra red dryer and associated control panels

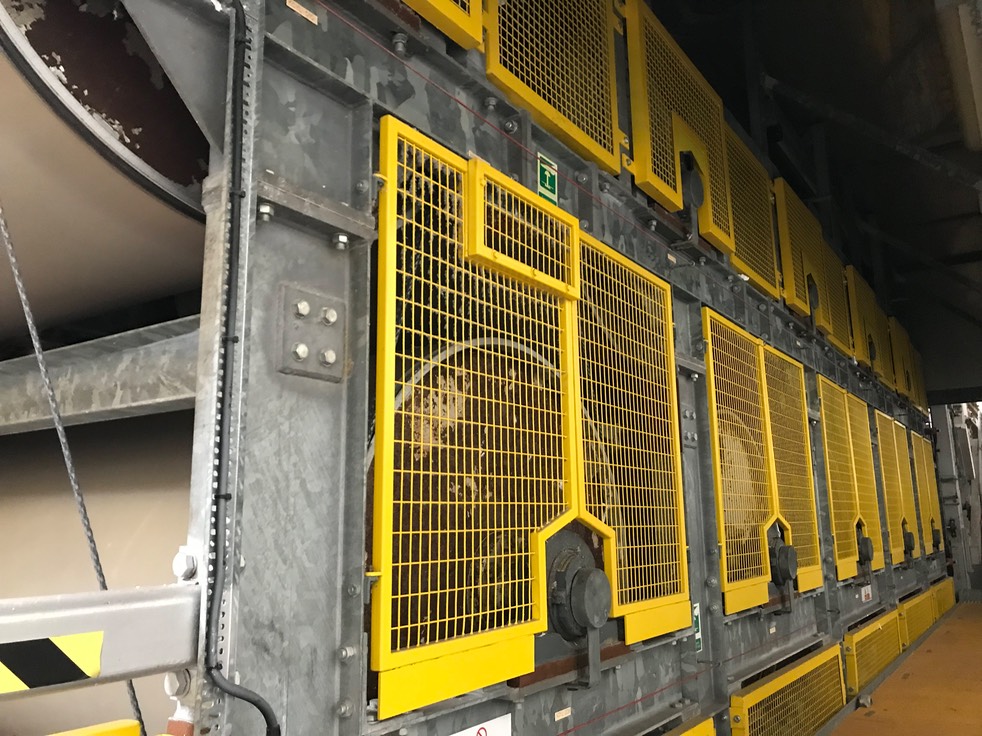

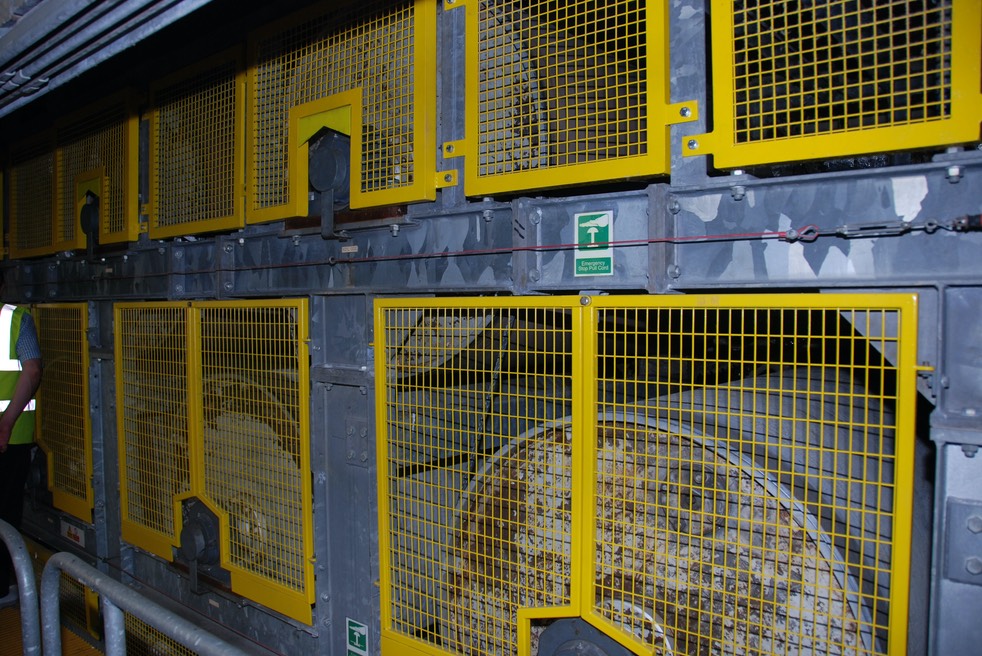

- Drying section with 10 drying cylinders

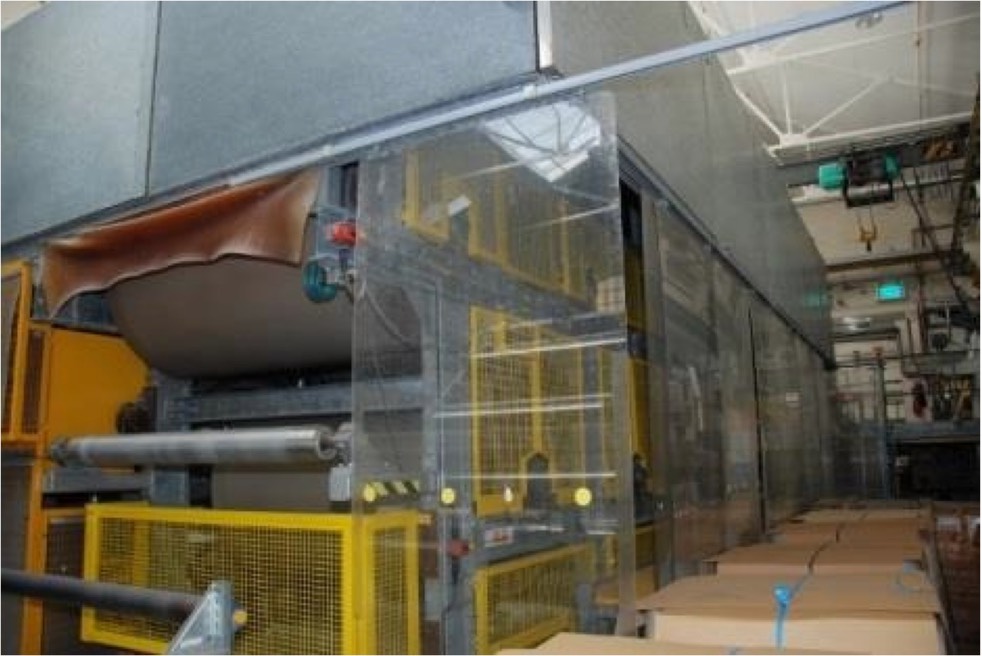

- Drying hood

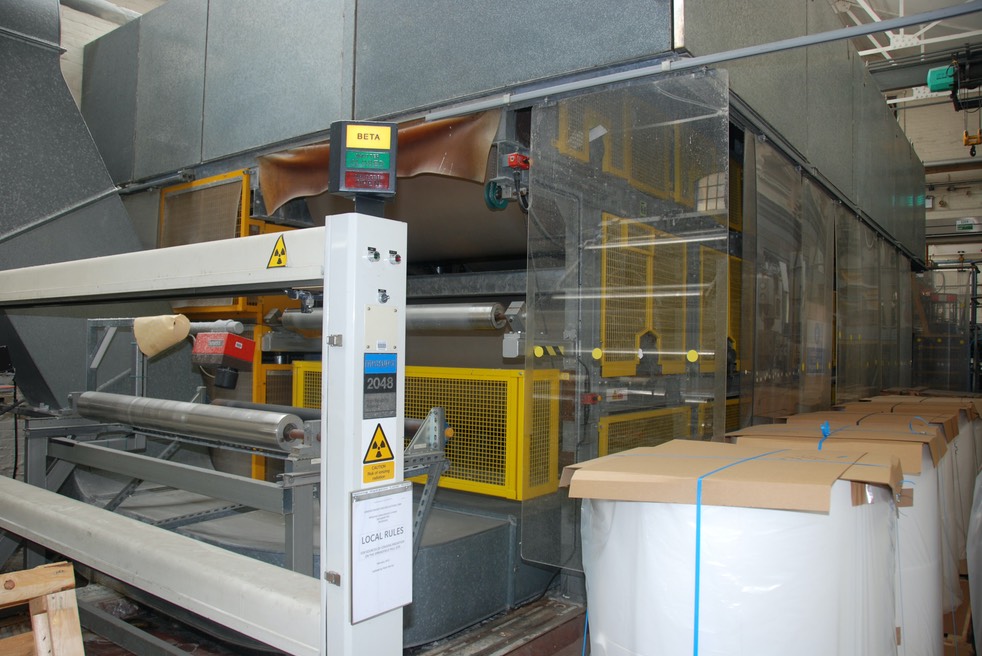

- Gauging and inspection system
Pope reel

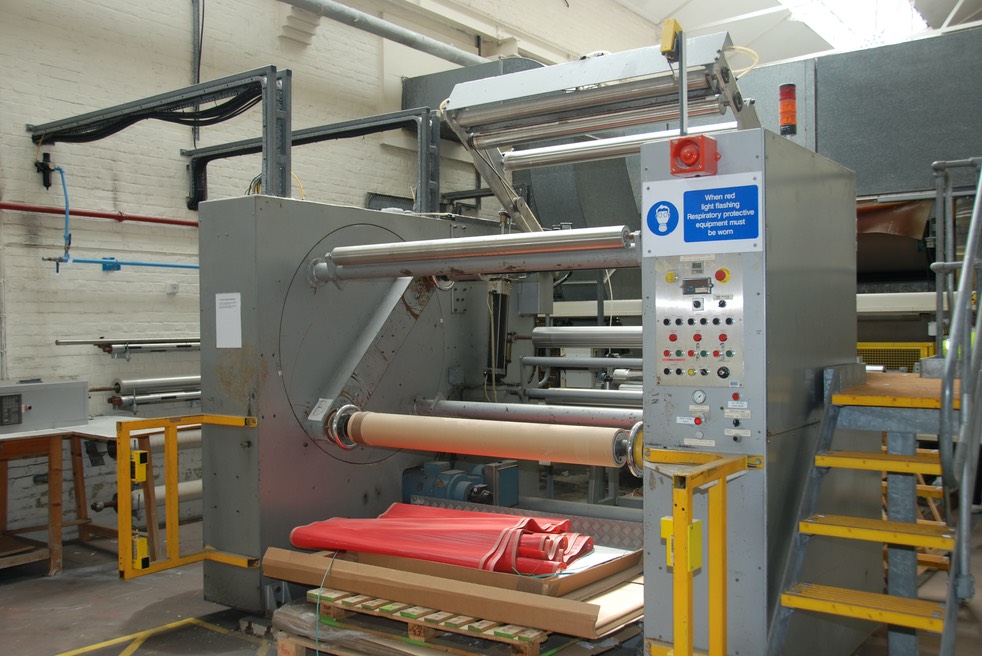

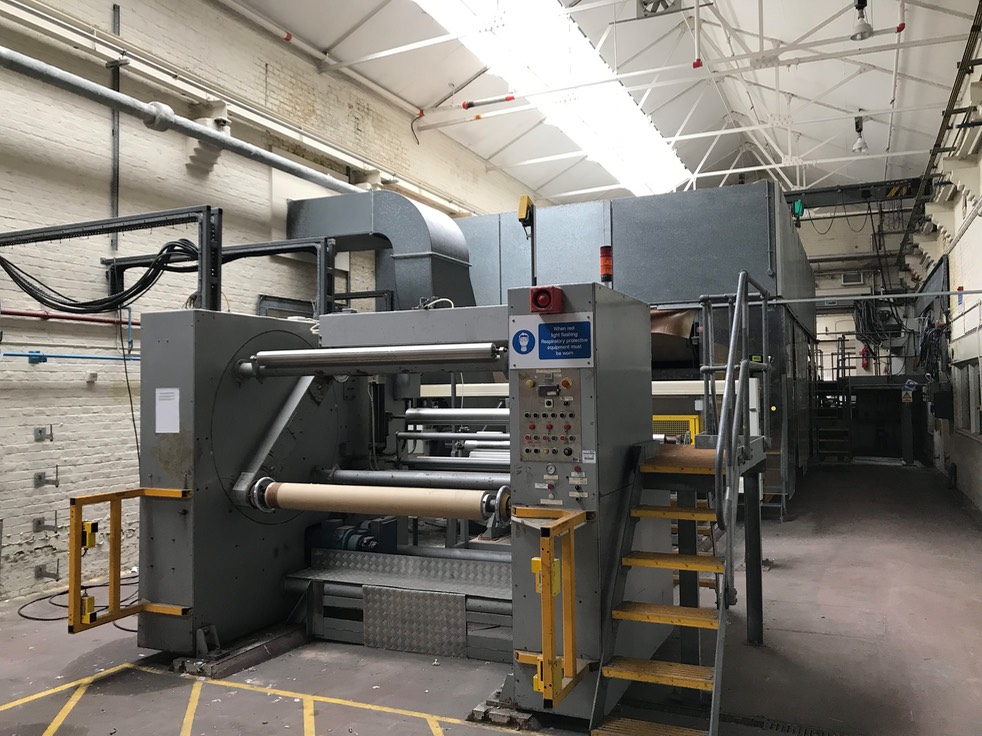

- Automatic Turret type flying pope reel unit
Laboratory
- Fully equipped test laboratory available if required.
Spare parts including
- • 12 items of machine clothing including mould covers and forming fabrics
- • 5 spare drives
- • Engineers stores spare parts stored on 20 sections of racking.
- • 4 drying cylinders
Drawings & Documents
- Wide range of drawings and manuals.
Electrical systems
- 50 Hz, 415 V
Dimensions of machine
- 45.0 m long 6.0 m wide 4.2 m high
