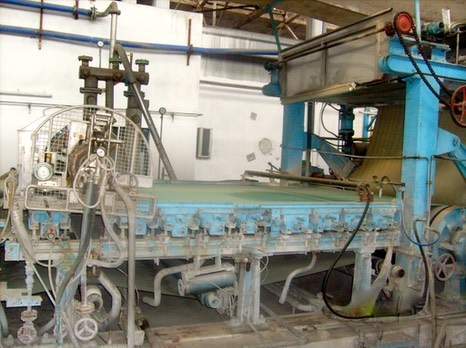

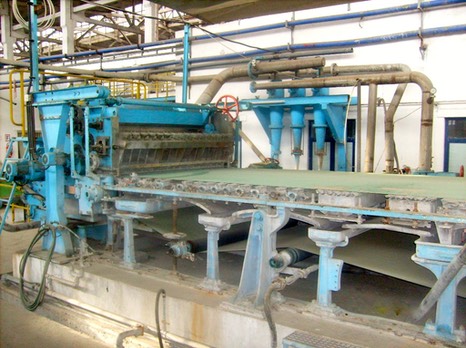

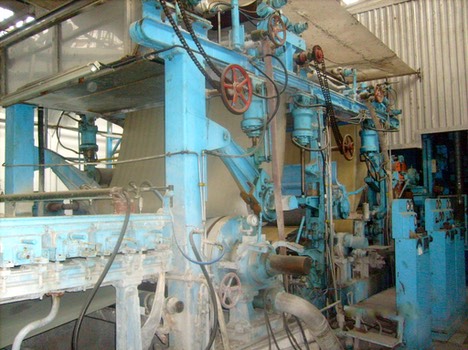

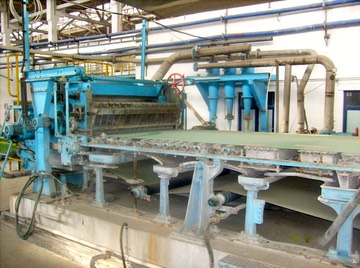

PAPER MACHINE 2.030mm, printing & offset papers, wrapping papers, V=250m/min
1 GENERAL TECHNICAL DATA
Gross machine width: 2.030 mm
Rewind width pope: 1.980 mm
Speed range: 110- 250 m/min
Max. current consumption: app. 700 kw/h
2 PRODUCT RANGE
- Wood free and mechanical fine printing papers for offset printing
- White and coloured
- Wrapping Papers
- Reels and sheets
3 BASIS WEIGHT RANGE
Paper grade Basis weight range
Envelope linings 28- 40 gsm
Manifold paper 35- 40 gsm
Thin letter paper 40- 45 gsm
Offset printing paper 30- 120 gsm
Opaque paper 35- 80 gsm
Laser printing paper 60- 80 gsm
Blotting Paper 80- 120 gsm
Paper for continuous forms 30- 80 gsm
Wrapping papers app to 220 gsm
4 PRODUCTION CAPACITY
Basis weight Speed Capacity
(gsm) (m/min) (kg/day)
30 250 21.000
40 225 25.000
50 195 27.000
60 175 29.000
70 160 31.000
80 140 31.000
90 120 31.000
100 110 32.000
110 100 32.000
120 100 32.000
