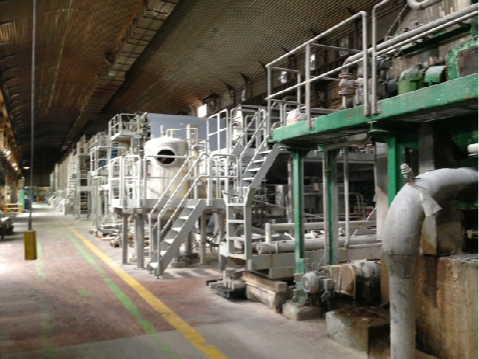

SM0809 - 3,750mm PAPER MACHINE, Escherwyss, rebuilt 2007, WFC, 42-65gsm, 300tpd
- Original Supplier : ESCHER WYSS
- Rebuild : 1995 by Valmet and 2007 by Metso, Voith, and Comecart
- Grade : WFC
- Paper support : 45 – 65 gr/m2
- Final Coated 58 – 100 gr/m2
- Speed max : 1,000 m/min
- Production: 222-300 T/24h
- Wire width : 4,270 mm
- Reel width : 3,750 mm
- Headbox : 2007 new by Voith
- Fourdrinier : 2007 by CoMeCart
- Top former : 2007 by CoMeCart
- Press : Bi Nip with separated pick-ip, 3rd press plain bottom felted (60 KN/m, 90 kN/m, 110 kN/m) with Nipco Roll on second and third position
- Dryer : 41 pre-dryers + 16 post dryer
- Sym sizer : rebuild 2007 by Metso
- Calender : Single Hard Nip ESCHER WYSS
- Hydraulic Reel : 1995 by CoMeCart with empty spool storage
- PM Drive: New drive by SAEL
Approach system
- Primary screen: Beloit M50
- Secondary screen: Voith MS08/08
- Tertiary screen: Beloit S.18 (already dismantled)
- CELLECO plant with 1 tanks,
- n° 1 Nash type CL 1502 e
- n° 1 Nash type SC-4, +
- N.° 5 stage with cleaners,
- N° 1 Fan pump SULZER type SM 501-500 and
- pump 1° stage SULZER type SM 501-500.
Fiber Recovery : (1) Beloit PDK
Vacuum System
- N.° 2 Voith sulzer type E19
- N.° 1 Voith sulzer type E14
- N.° 2 Nash type CL 6002
- N.° 1 Nash type CL 904L
- N.°1 Sulzer KRC 52-25/8
- N.°1 Sulzer KRC 52-25/5+5
