Folding Box Board Machine, 1,725mm, 135m/min, 130-400gsm, 80 tpd
Make: Kobayashi, Japan
Trimmed width: 1,720 mm at pope reel
Max. Operating speed: 135 m/min
Gramage: 130 to 400 gsm
Production capacity: 80 TPD
Products:
- Folding box board
- White line Chip Board
- Art Card / Art Paper
- Liquid Packaging Board
- Playing Card Board
Year of manufacture: 1987
Drive side: Right hand drive - from Head Box “paper going away”
DESCRIPTION:

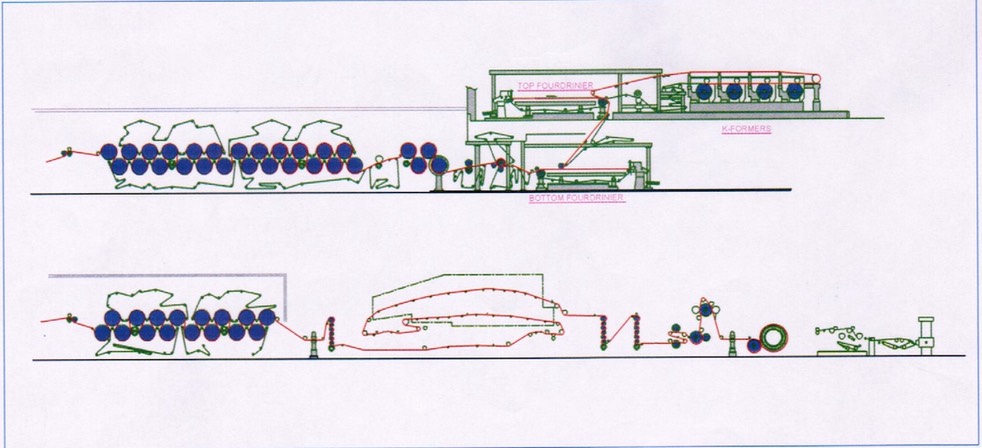

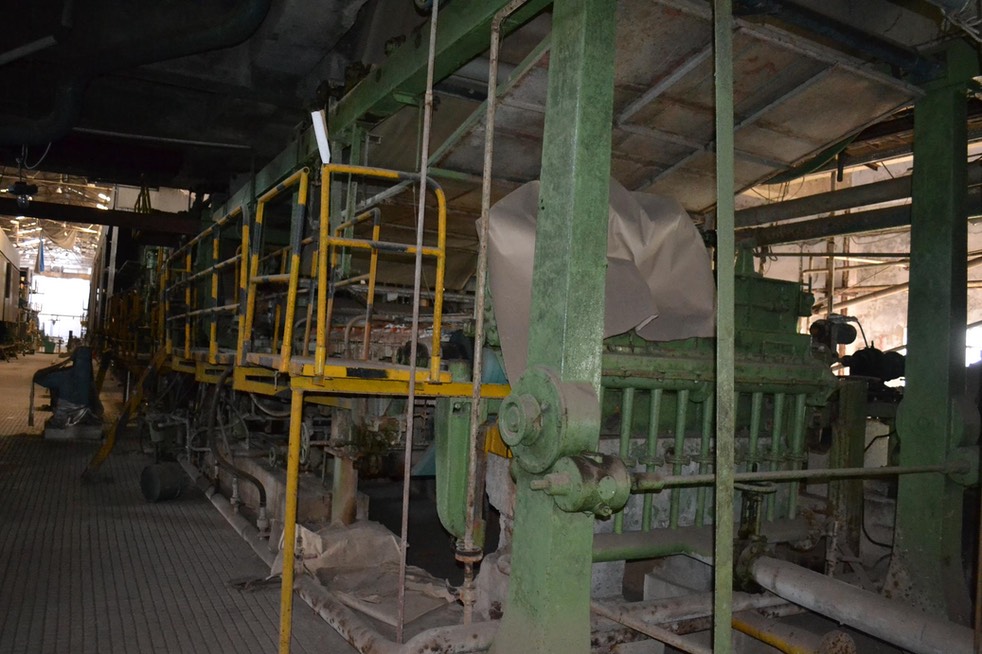

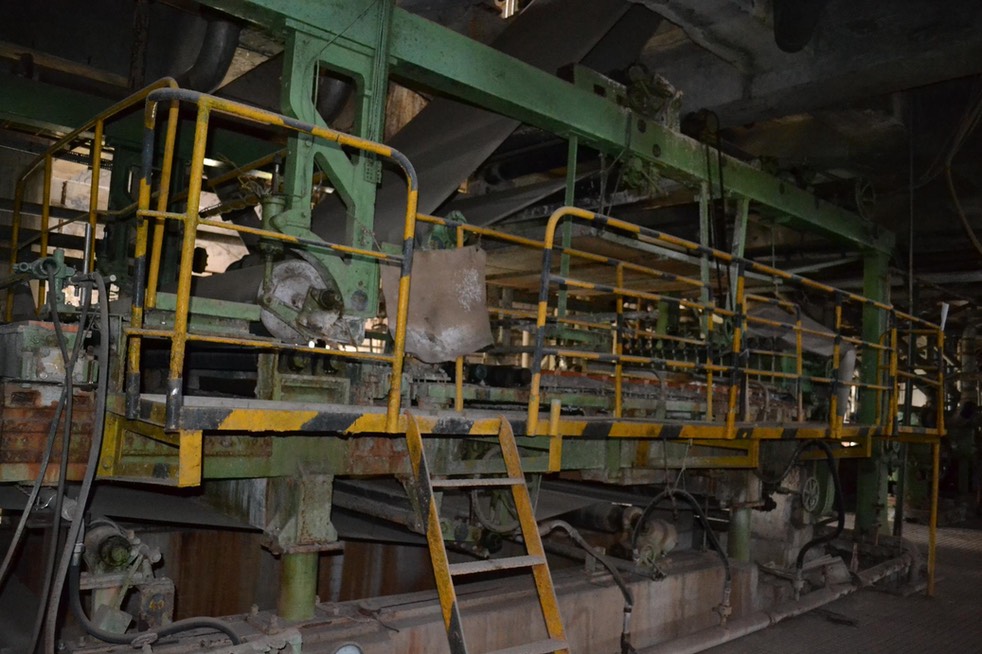

- Combination machine having 2 fourdriniers for top and bottom layers and 4 cylinder moulds for under & filler layers.

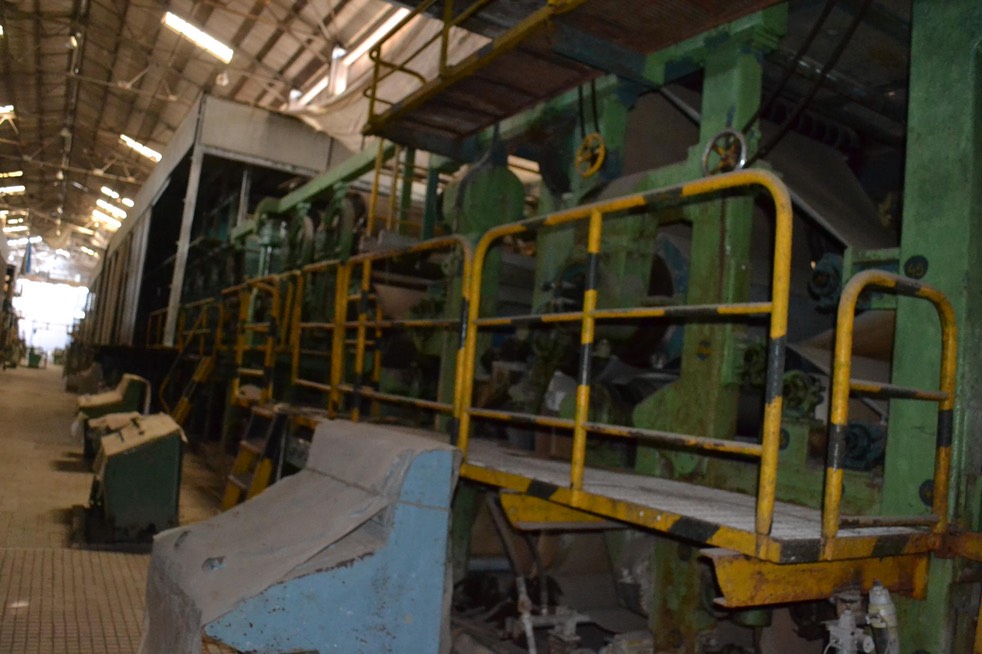

- No. of Presses - 4
- Bi-nip press with nip pressure - 50 lcclcm
- 3rd Press with nip pressure - 80 kg/cm
- 4th Press with 4 pre warming dryers - 100 kg/cm

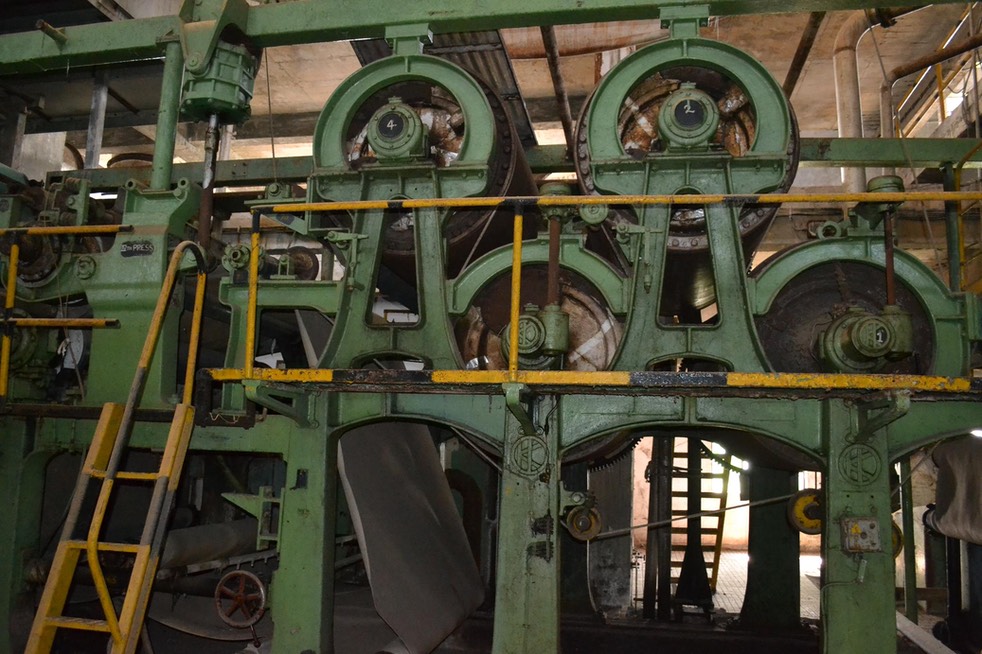

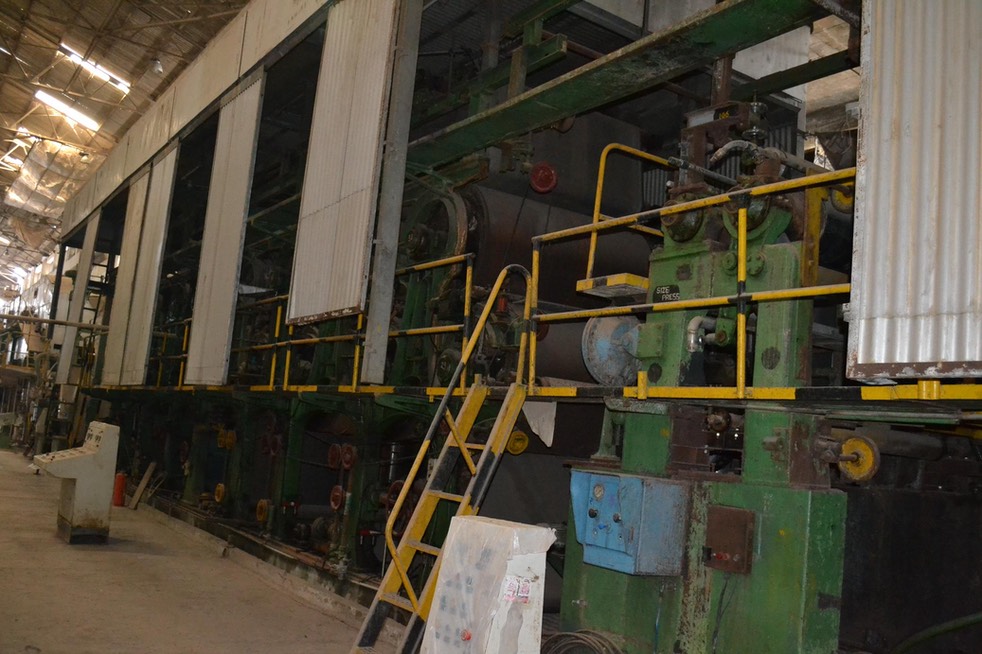

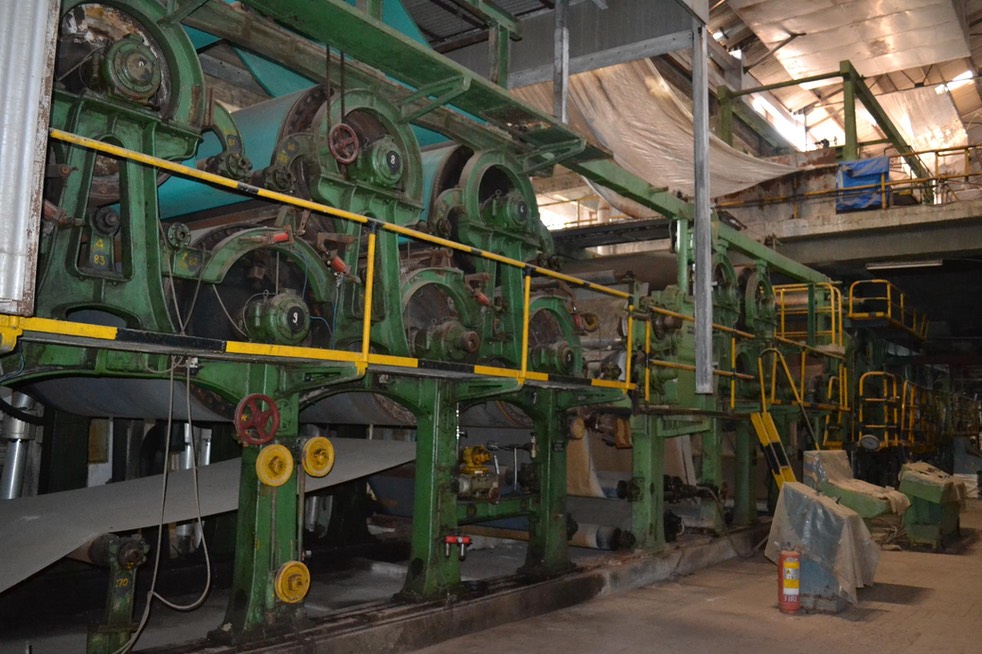

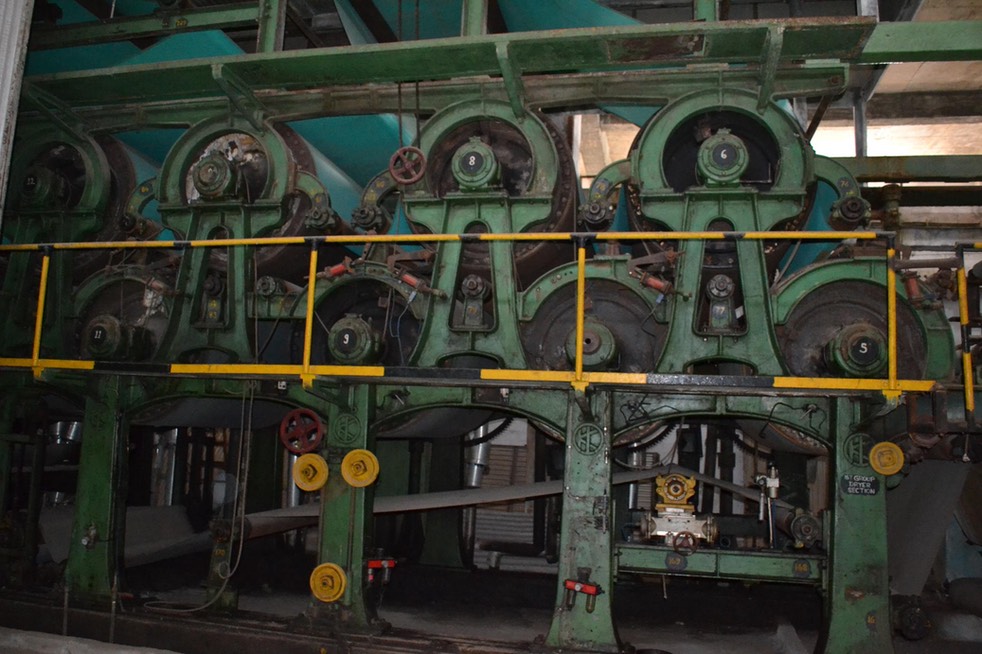

- Pre dryers - 24 nos, then Horizontal Size Press and then 16 nos of Post Dryers. Total Dryers - 44 nos (Dia.I220 mm)

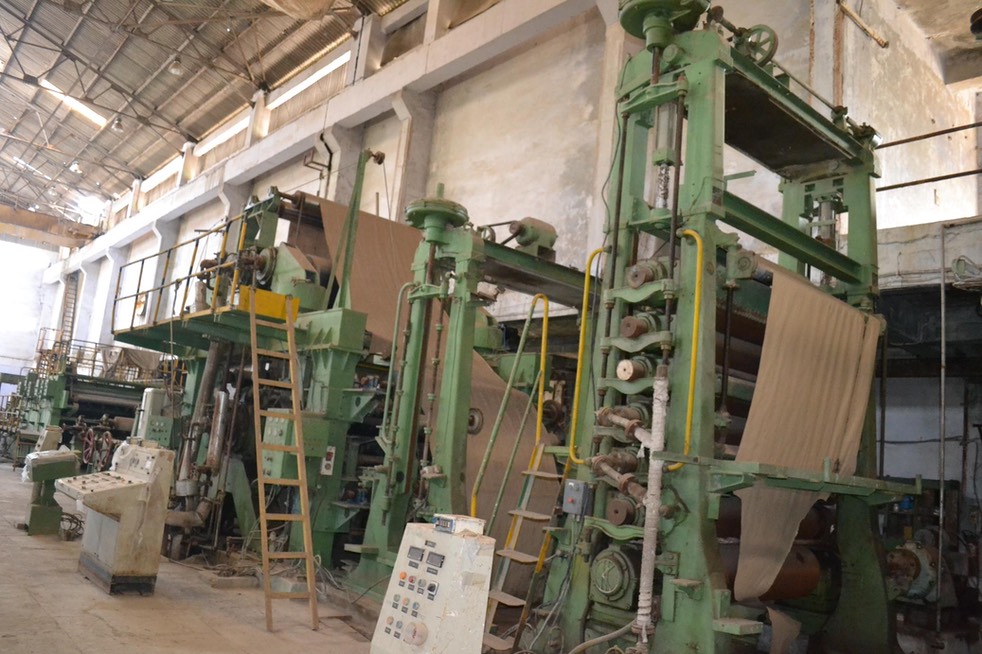

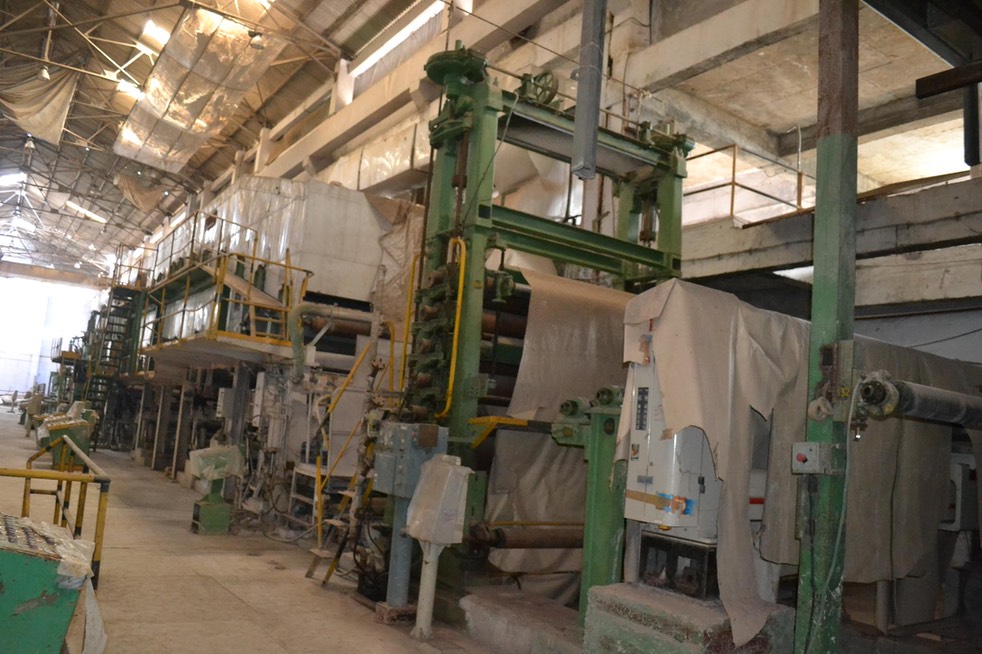

- Calendars - Total 3 stacks, One calendar stack before coater and 2 calendar stacks after coaters.

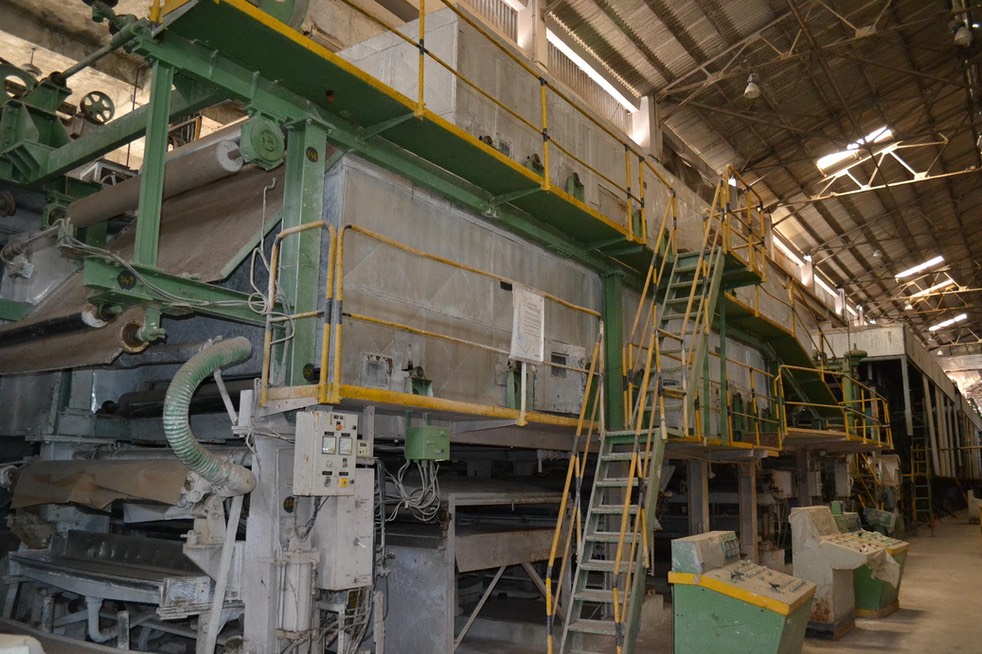

- Coating section - Two bar coater, top Sz bottom and two Air knife coater, one each for top & bottom side.
- Gloss Calendar - 2 nos, one each for top & bottom side with one touch roll each.

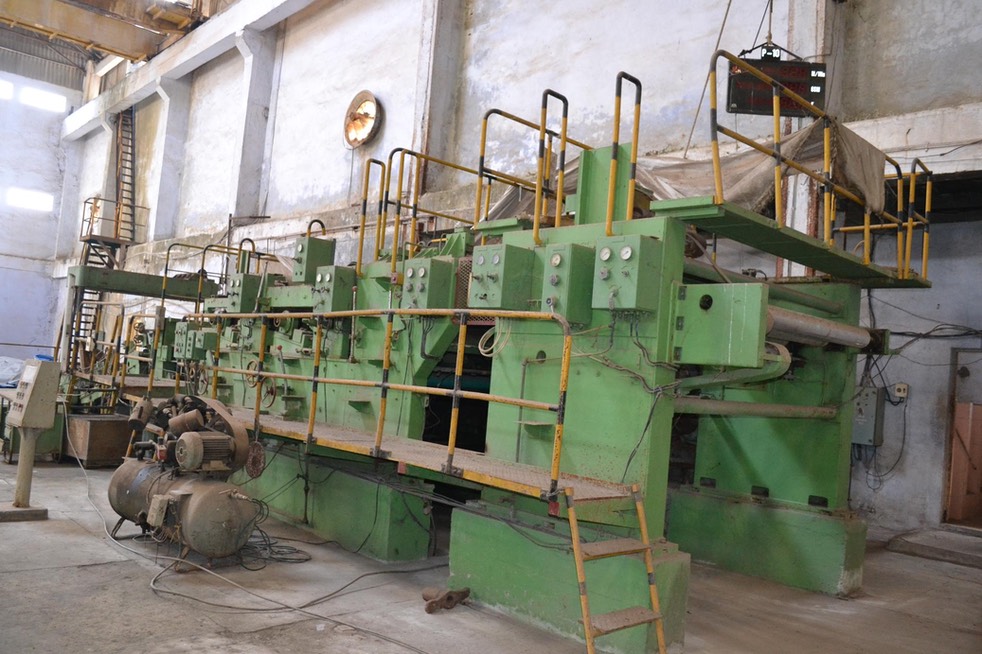

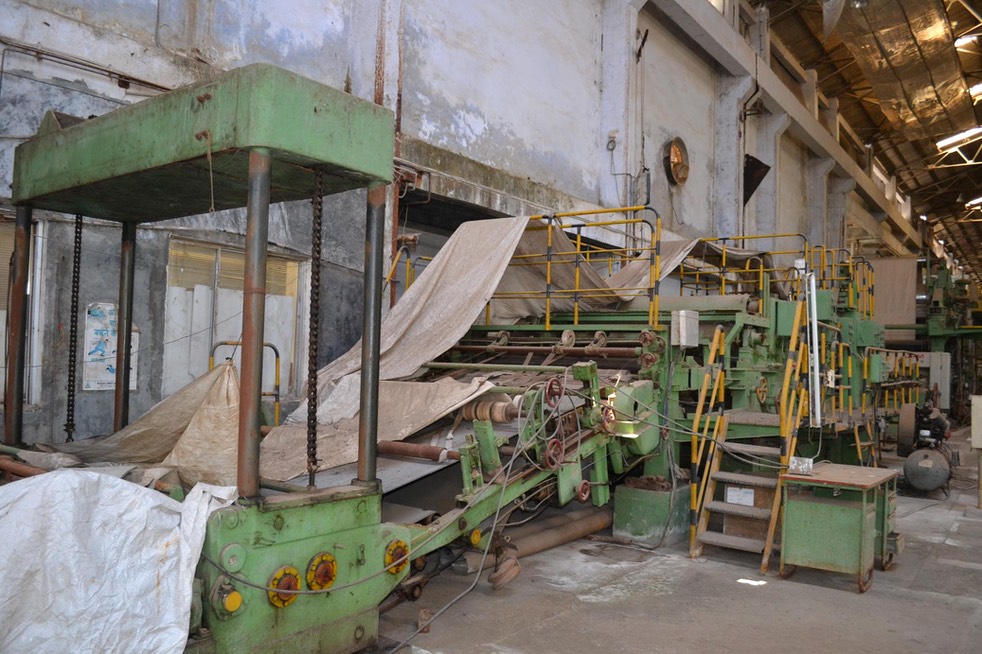

- Sheet Cutter - Duplex sheet cutter conventional type can be run on line or off line.
Drive type: Sectional drive
