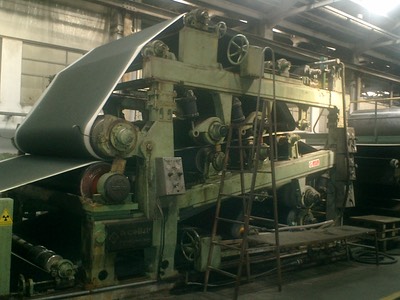

Thick Board Machine 2,900mm, Nebel, 1,000-3,000gsm, 10 tons per day
Machine manufacturer: NEBEL
Year of manufacture: 1973
TypeVat formation,
Production carton board
Basis weight:1000 to 3000 gsm
- Dry uncut sheet 2300 x 4500 mm
- Hourly production: kg . 400 / h
- Wheelbase 2900 mm slides machine
Formation section (wetend)
- 1 x drum maker - cash sector steel wheelbase 2900 mm slides
- more spare drum Ø 1250 mm
- 1 x suction pump
- 1 x tape strips and aspiring
- Press and forming cylinder with automatic cut sheet
- 3 x pairs Ø presses ? Mm wheelbase 3000 mm slides
- 1 x pair of press drums ( diameter less ? - Top dia ?)
Drying Section
- Oven TROMAG hot air , steam powered , dual stage
Sheet Cutter
2 x cutters for longitudinal and transverse
Auxiliary elements

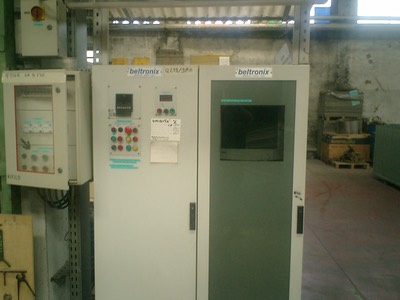

Beltronix computerized system for adjusting weight / humidity / thickness detection on the wetland and output furnace
Common Stock preparation Department for SM2085 and SM2086
1 x Bi - Pulper Pulper high density (15%) A.CELLI consists of:
- Tub and circular helix steel rotor, 25 cubic meters with the possibility of loading up to 2 tons
- Complete with electrical panel for
- 110 KW motor - drive inverter with Siemens
- 45 KW motor helix
- Pump discharge slurry 22 KW
- Platform for vertical load (optional) with tipper
1 x Bi - Pulper Pulper high density (15%) A.CELLI consists of:
- Octagonal and helix steel, 14 cubic meters with the possibility of loading up to 0.9 tons
- Complete with electrical panel for
- 75 KW motor - drive with star-delta
- Helix KW motor ?
- Pump exhaust mixture KW ?
1 x Pulper iron kg . 400 dry
- 12 cubic meter tilter with vertical load (used for internal scrap )
1 x Molazza granite double pulping mill to 600 Kg (Kollergang refiner stones)4500 kg each stone
1 x Turbo separator in steel with holes 50 KW
4 x Deflakers A.CELLI with spiral steel - 55 kW
no. teeth on the rings :
- rotating parts - motor - 8 - 50-68
- fixed part 38 - 90-144
- diam. 265 to 144 teeth
1 x Trommel for separating fibres from waste
1 x Turbo separator, tubes diam. 250
2 x Flotators Polo Stainless Steel 80 mc / h
- diam. 4700 - max 2.000/min litres
- for solids suspended up to 1,500 ppm
- complete with air tanks inhalation, flocculants and associated pumps
