SM2085

Board machine 2,250mm, Over, 200-1,000 gsm, speed 36m/min

Production of board from 350 to 650 gsm.

You can increase the range by up to 200 gsm and 1000 gsm with different felts .

Maximum speed: 36 m / min .

Machine manufacturer: OVER

Year of manufacture: 1963

Trim:2,250 mm


  • 5 x  Vat formers + 1 spare ( 2 drums sector covers x + 3 Deep )
  • 3 x  clamps
  • 3 x  presses
  • 1 x  super press CARCANO
  • 1 x  offset press
  • 2 x  small drying cylinders preheating

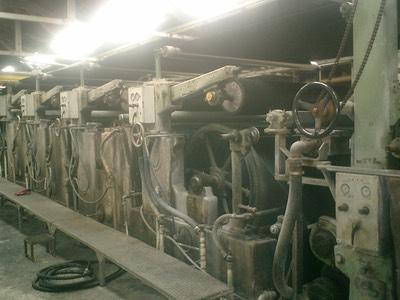

  • 8 x  large drying cylinders
  • 2 x  large drying cylinders Toschi
  • 1 x  BRUNNSCHWEILER heat extraction system

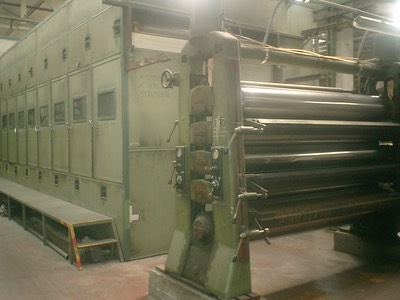

  • 1 x  hot air oven St. Lucia
  • 1 x  small smooth - 5-cylinder
  • 1 x  large smooth - 7 cylinders
  • 1 x  rotary cutter PIZZOLATO two transverse cuts

Common Stock preparation Department for SM2085 and SM2086

1 x Bi - Pulper Pulper high density (15%) A.CELLI consists of:

  • Tub and circular helix steel rotor, 25 cubic meters with the possibility of loading up to 2 tons
  • Complete with electrical panel for
  • 110 KW motor - drive inverter with Siemens
  • 45 KW motor helix
  • Pump discharge slurry 22 KW
  • Platform for vertical load (optional) with tipper

1 x  Bi - Pulper Pulper high density (15%) A.CELLI consists of:

  • Octagonal and helix steel, 14 cubic meters with the possibility of loading up to 0.9 tons
  • Complete with electrical panel for
  • 75 KW motor - drive with star-delta
  • Helix KW motor ?
  • Pump exhaust mixture KW ?

1 x  Pulper iron kg . 400 dry

  • 12 cubic meter tilter with vertical load (used for internal scrap )

1 x  Molazza granite double pulping mill to 600 Kg (Kollergang refiner stones)4500 kg each stone

1 x  Turbo separator in steel with holes 50 KW

4 x  Deflakers A.CELLI with spiral steel - 55 kW

        no. teeth on the rings :

  • rotating parts - motor - 8 - 50-68
  • fixed part 38 - 90-144
  • diam. 265 to 144 teeth

1 x  Trommel for separating fibres from waste

1 x  Turbo separator, tubes diam. 250

2 x Flotators Polo Stainless Steel 80 mc / h

  • diam. 4700 - max 2.000/min litres
  • for solids suspended up to 1,500 ppm
  • complete with air tanks inhalation, flocculants and associated pumps
