SM2327

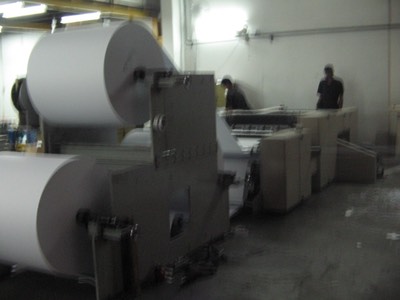

845mm SHEETER TIEARA-2 Cut size sheeter, twin unwind, 5-6 reams/min (A4)

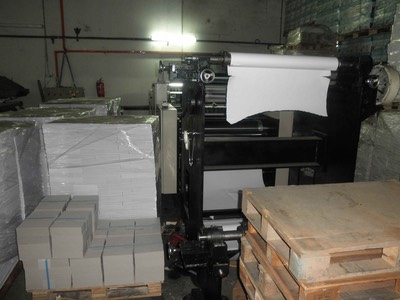

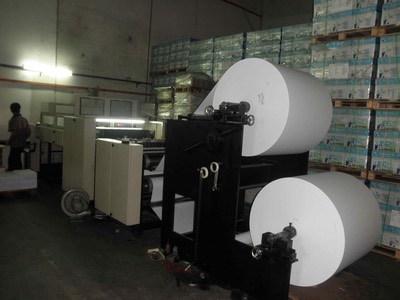

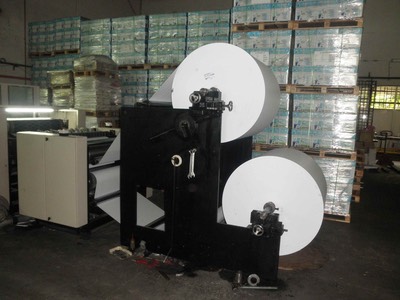

Reel  Stands  :           2 reel stand (Top & Bottom) with powder brake c/w manual controller

                                    4 sets of paper reel shaft c/w gear and chuck

                                    Shaft diameter 76 mm

Manual Lateral adjustment

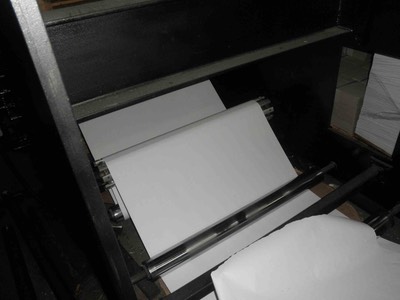

                                    2 x Decurler unit

                                    Reel diameter ( max )      : 1200 mm

                                    Paper Web width ( max )  : 845 mm

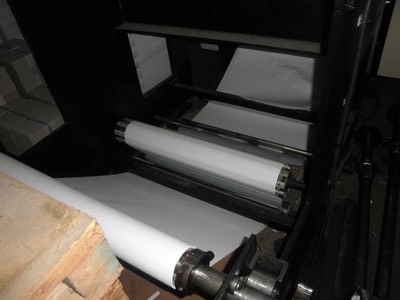

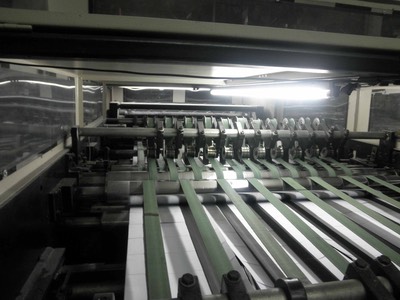

The Infeed, slitting  and stabilizing section :

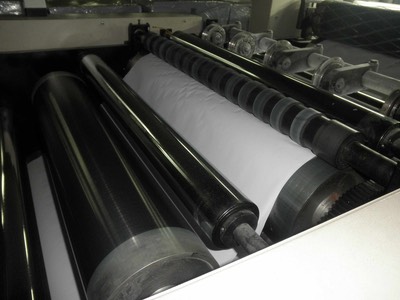

It consists of 2 infeed steel drum and 1 rubber nip rolls

5 sets of  slitting knife assembly and 1 air blower

Slitting Unit system : Fixed

Bottom knife material : Carbide

Top knife material : Hi speed

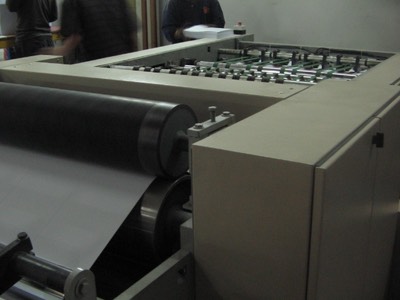

Cross Cutter :            Top and bottom rotary sheeting knife

                                    Knife Load ( max )  :  300 gsm

                                                      ( min )   :  50 gsm

                                    Bottom knife material : Carbide

                                    Top knife material : Carbide

                                    Air controller sheeting

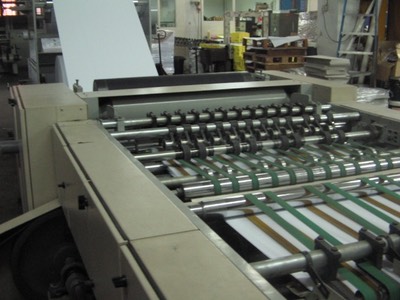

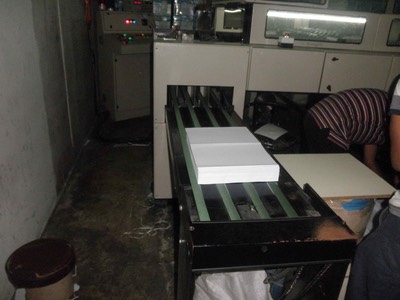

Paper Delivery and Collecting Section :

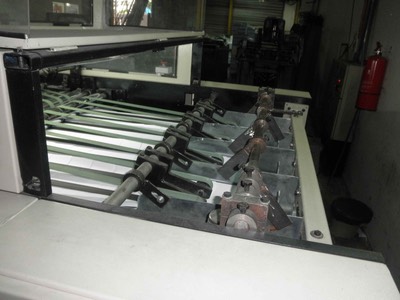

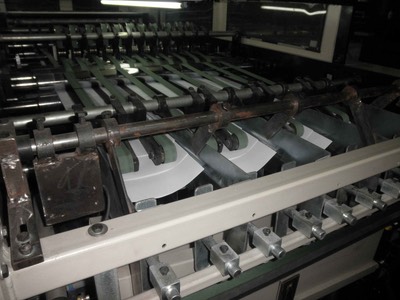

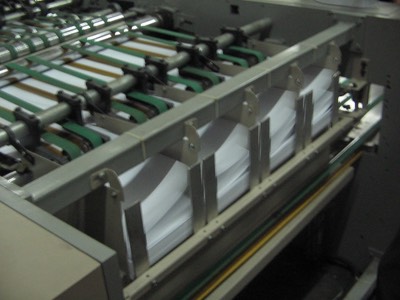

                                    Overlapping sheet  delivery system

                                    Ream counting by front finger inserting system.

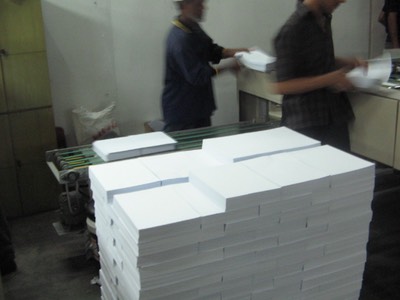

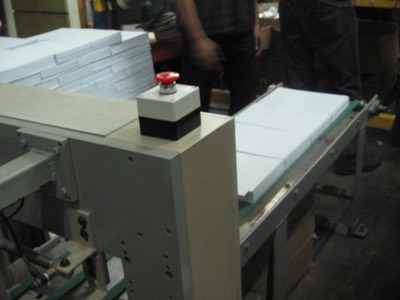

                                    Ream paper transported by side conveyor to packer.

                                    Auto ream stacking and side delivery



Cutting  Speed  :       Number of ream per minute :  5-6 reams  ( A4 – 500’s )



Electrical  Specifications :

                                    15 HP  3 Phase 415 V 50 Hz drive motor

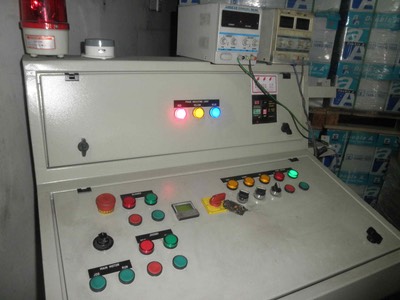

                                    1 console box c/w operation control panel and switches

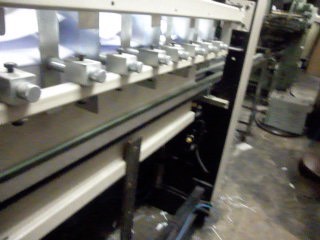

This browser cannot play the embedded video file.
