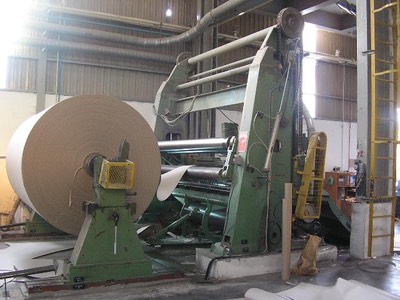

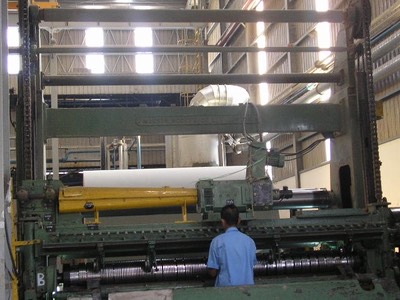

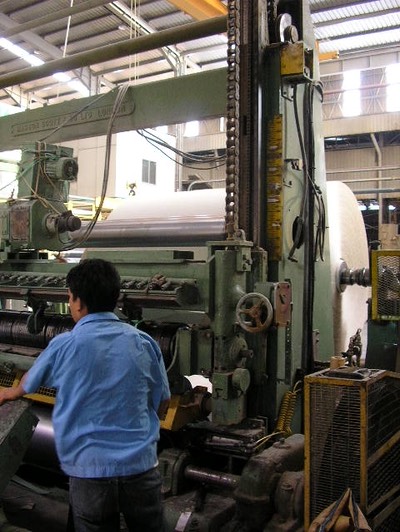

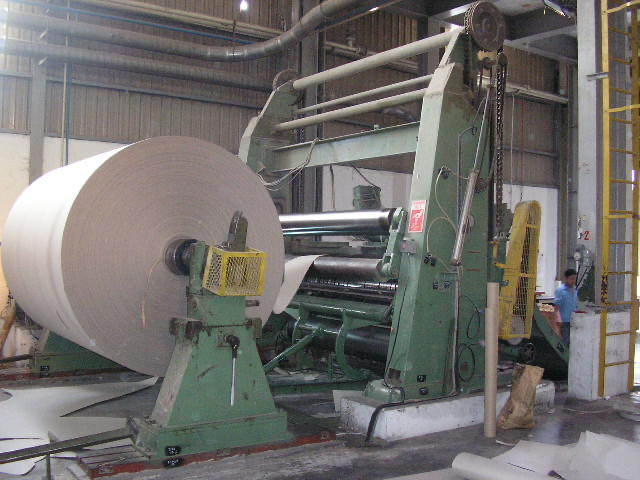

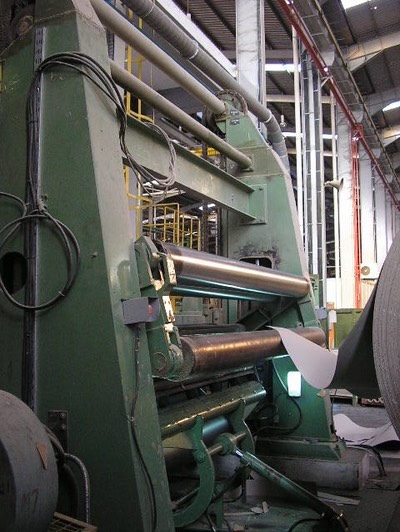

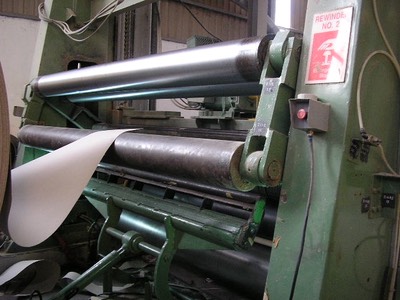

Rewinder, Masson Scott, 2,700mm, 150-700gsm, 600m/min
- Manufacturer : Masson Scott
- Year Made : 1960's
- Width : 2,700 mm
- Winder Drum face length : 3000 mm
- Winder drum diameter : 400 mm
- Max Operating Speed : 600 mlmim
- Grammage : 150 - 700 gsm
- Max rewind diameter : 1,400 mm
- Max Unwind diameter : 2,050 mm
- Gearbox ratio : 1 to 1

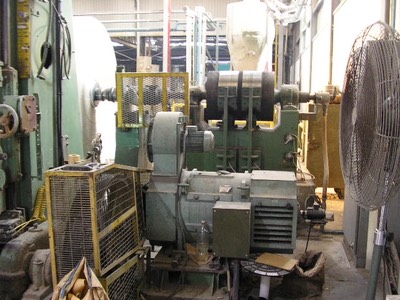

Main Motors : For heavy grammages from 150gsm up to 700 gsm
(a) DC motor 1
- Drive: M II 155R
- Motor: 180 kW x 1750 rpm
- Arm Volt: 400
- Arm Amp: 145
- Excit Volt: 110
- Tacho: Reo 444R
(b) DC motor 2
- Drive: M II 75R
- Motor: 21.5 kW x 1750 rpm
- Arm Volt: 440/460
- Arm Amp: 54.8/52.5
- Excit Volt: 330/360
- Tacho: Reo 444R
(c) DC motor1 blower
- 2.2 KW x 2,870 rpm
(d) DC motor 2 blower
- 0.75 KW x 2,780 rpm
(e) Hydraulic motor 1, 2 & 3
- 5.5kW x 1,440 rpm
(f) Unwind stand motor
- 1.1kW X 1,420 rpm

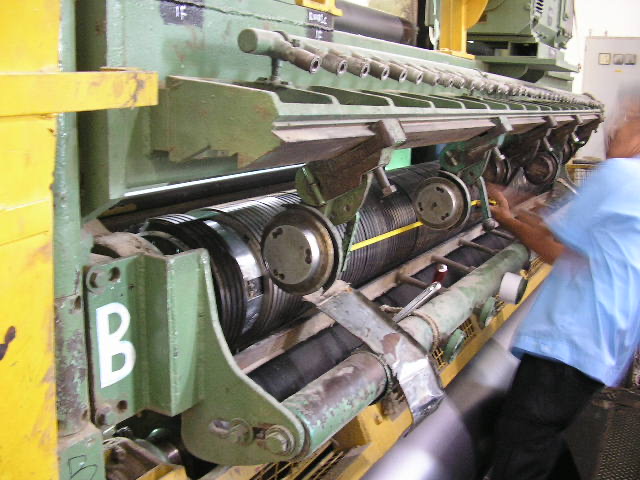

- N0. of slitter head : 5
- N0. of Up : 4
- Core diameter : 3"

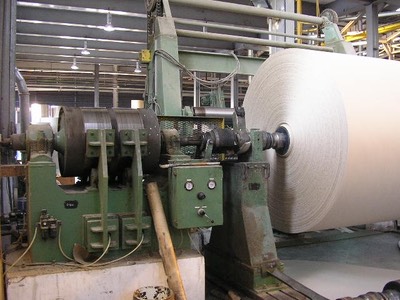

- Unwind stand : Water cooled drum brake
Others :
- Equip with hydraulic power pack,

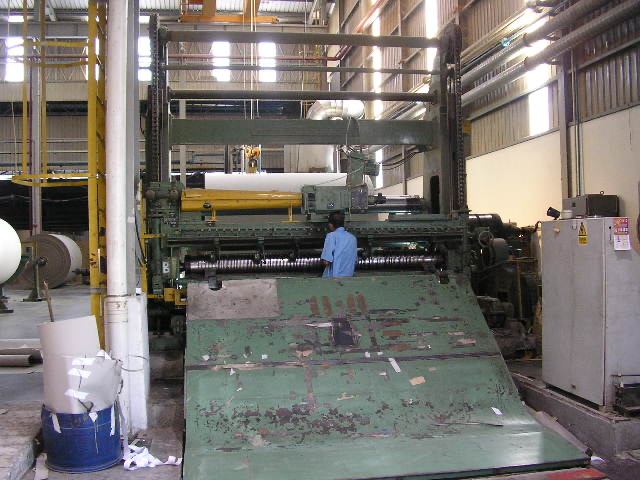

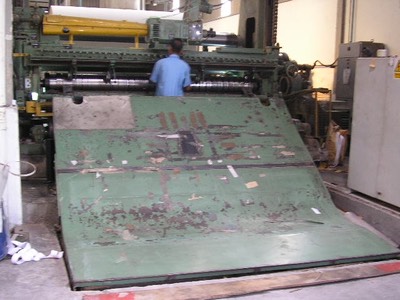

- unloading table,
- roll ejector,
- helper drive motor

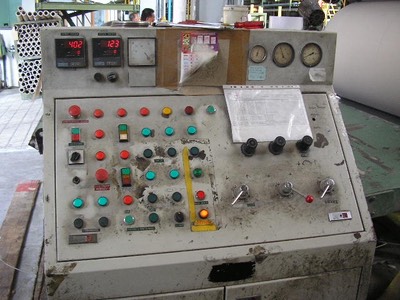

- operator control panel.
Note: Option
For lighter substance between 150-300 gsm, we recommended to use 70 HP x 4P main Motors. (available)
(a) DC motor1 (option)
- Drive: M II 155R
- Motor: 70HP x 1460 rpm
- Arm Volt: 400
- Arm Amp: 145
- Excit Volt: 110
- Tacho: Reo 444R
