SM2417

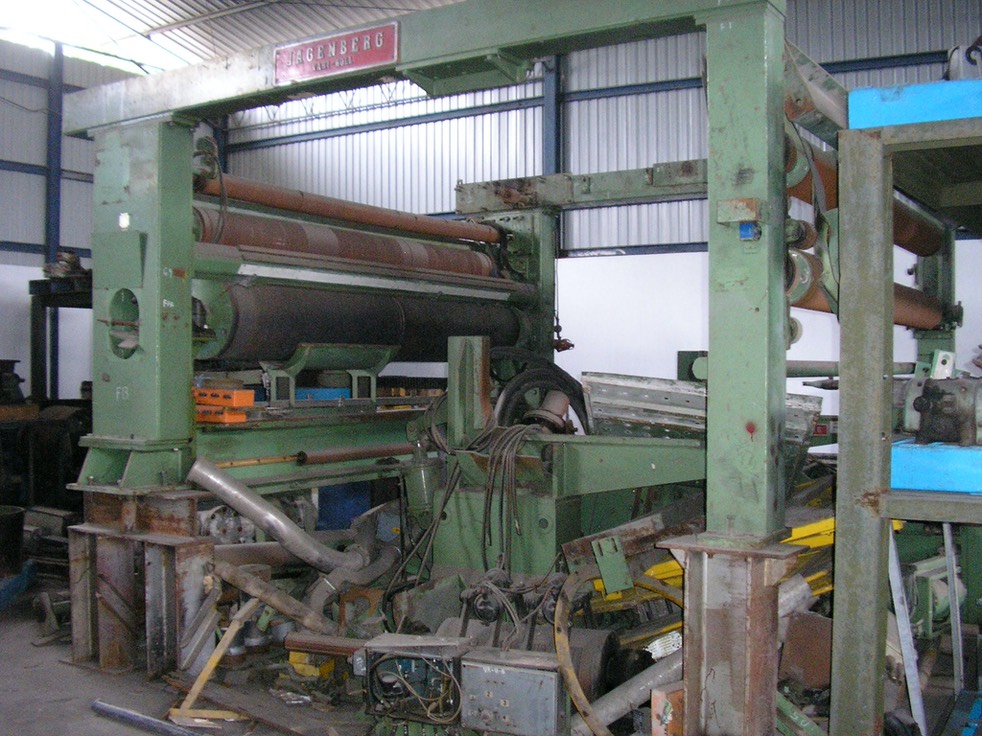

Rewinder, Jagenburg, Vari roll, 2,800mm, 1,000m/min, 60-250gsm, yom 1979 (dismantled)

SM2417-12



  • Manufacturer : Jagenberg
  • Year Made : 1979
  • Model : Vari roll
  • Type : 330-15AB 2800
  • SN : 3022975
  • Trim Width :                        2,800mm
  • Working Width :                  2,800mm
  • Substance : 60 – 250 g/m²
  • Speed : Up to 1,000 m/min
  • Rewind Roll Diameter : Max. dia. 1,500 mm, split to 2 roll only.
  • Unwind Roll Diameter : max. dia. 2,000 mm
  • Drum : single, dia. 500 mm
  • Gearbox Ratio : n1:1800, n2:955
  • Type of Brake : drum
  • DC Motor Specification : Bull Electric
  1.   Frame : 250/407 MK2
  2.   Output : 110 / 0.37 kw
  3.   Amature Volt : 440 / 26
  4.   Amature Amp : 273 A
  5.   Speed : 1800 / 12 rpm
  6.   Winding : Shunt
  7.    Field Coil : 280 V
  8.    Field Amp : 2.67 A
