SLITTER REWINDER, Jagenberg, Vari-Roll, 4,000mm, 44-300gsm, 2,200M/MIN
Manufacturer: Jagenberg
Model: VARI-ROLL 650-15
Manufacturing Year: 1990
Paper types: graphic papers, coated/uncoated
Paper basis weight range: 44-300 gsm
Main characteristics
•Basis weight: 0,75 - 1,4 gr/cm3
•Untrimmed width: 4,000 mm
•Trimmed width (min/max): 3,000 mm - 3,900 mm
•Winding speed (max) 2,200 m/min
•Rolls width (min/max): 548 mm - 2,200 mm
•Rolls diam (min/max): 600 mm -1.450 mm
• Knife pairs : 8
•Winding stands (min/max) 2-6
•Max width of the trims: 100 mm
•Unwind roll diam (max): 2,500 mm
•Unwind roll weight (ton): 30 tons
•Voltage: 380 +/- 10%, 3 ph, 50 Hz
•Motors/drives: Siemens
•PLC: Siemens S5-155U
Note 1
The winder was in operation until summer 2010
Note 2

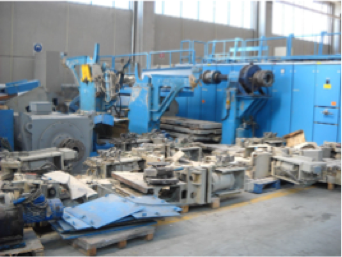

The winder has been dismantled with great care, there are no missing and/or damaged parts
Note 3
Inspections welcomed prior to written agreement with the Seller
Note 4
For commercial conditions please contact us
