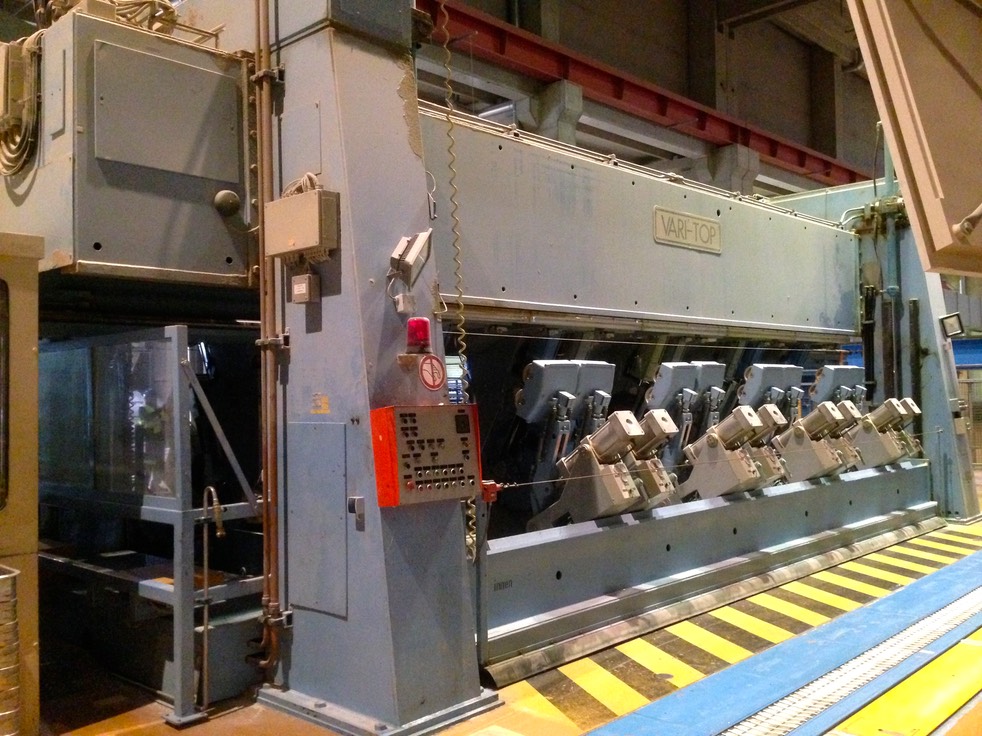

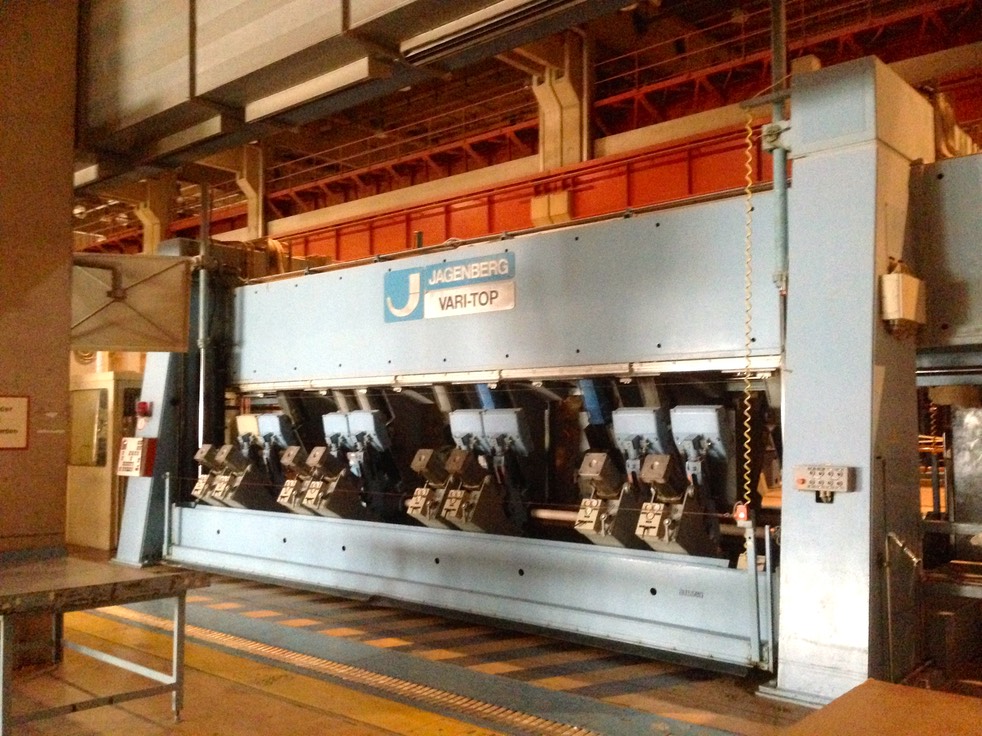

SM2077 - 7,400mm Slitter Rewinder, Jagenberg Varitop, >10 rolls, 1,500m/min
Manufacturer Jagenberg
Model Varitop
Width 7.400mm
Design speed 2.200m/min
Operating speed 1.300 – 1.500m/min
Draw max 800N/m
Roll numbers max 10
Roll width 400 - 3.800mm
Roll diameter max 1.500mm
Tambour storage max 4 Tambours
Tambour dimensions max 2.900mm / 34t
Slitters 11
Center drum WC – Steel roll
Rewinder stations 2 center winder
6 light-duty stations
PLS JagMatic
SPS Siemens S5
Drives Siemens SimadynD (GS;digital)
1985 Start up
1994 Center drive
Simadyn D
