SM2488 - EXCLUSIVE AGENCY - SOLD

 Bretting High-Speed Bulk Pack Quarterfold Napkin Folder - 2003

SOLD

INSTALLED, TEST RUN BUT NEVER PUT INTO PRODUCTION, NEW CONDITION !

DESCRIPTION:

One right hand tender (paper moving away) automatic six lane napkin folding line for the production of single-ply and quarterfold napkins. Single-ply paper is be delivered to an embossing unit featuring quick change “cassette type” embossing rolls before entering the folding head. The folding head offers adjustable cutoff and also features a modular cutoff system for added flexibility. A servo driven separator/transfer then transfers the quarter fold napkins directly onto a polywrapper in-feed conveyor

COMPLETE WITH:

  • Self-Lifting Hydraulic Unwind
  • Slitter/Turn Station
  • Flexographic Printer
  • Cassette Embosser
  • Quarterfold Napkin Folder
  • Bulk  Pack Separator
  • Single Station Compression
  • Christian Senning GmbH Wrapper


FOR CONFIDENTIAL DETAILS OF THIS VERY UNIQUE OFFERING

PLEASE DOWNLOAD THE CONFIDENTIALITY AGREEMENT (LINK),

THEN COMPLETE, SIGN, AND RETURN A SCANNED COPY

TO SAXON MACHINERY, THE EXCLUSIVE SALES AGENT:

 mark@saxonmachinery.comFor further information please complete and sign the  Confidentiality Agreement (click here) and return to mark@saxonmachinery.com

Components

  • Self-Lifting Hydraulic Unwind:
  • Slitter/Turn Station:
  •  Flexographic Printer:
  • Cassette Embosser:
  • Quarterfold Napkin Folder:
  • Bulk Pack Separator:
  • Singe Station Compression:
  • Christian Senning GmbH Wrapper:

Production

  • Type: Quarterfold Napkins
  • # Plies: 1-ply
  • # Lanes: 6
  • Printed: Yes

Parent Roll Specs

  • Parent Roll Diameter: 84"
  • Parent Roll Width
  1. Capable of: 72"
  2. Provisions for: 69" and 75"
  • Core Diameter 6"

Product Dimensions

  • Cutoff - As Supplied: 12"
  • Cutoff - Machine Range: 9.843" to 12.992"
  • Width - As Supplied: 12"
  • Provisions for:: 11.5" and 12.5"
  • Width - Machine Range: 9.843" to 12.992"

Production

  • Estimated Output: 6000 napkins/minute
  • Maximum Cycle Rate: 24 packages/minute
  • Package Configuration: Bulk Packs

Packaging

  • Equipment Purchased: Senning 524 SE Wrapper

Tonnage Calculator

  • Napkin Sheet BW, gsm: 22
  • Sheet Cutoff: 12
  • Sheet Width: 12
  • Uptime, % - Assumption: 80%
  • # of Plies: 1
  • Napkins/minute: 6000
  • Daily Tonnage, BDMT/day: 14.1
  • Daily Tonnage, ADMT/day: 15.7

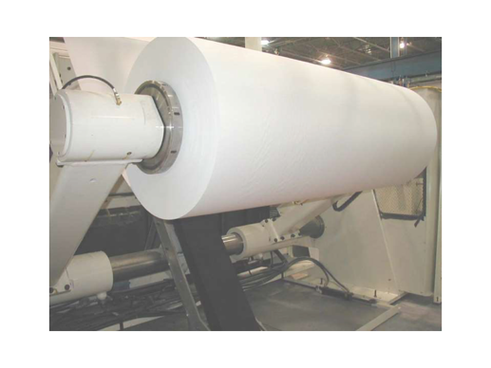

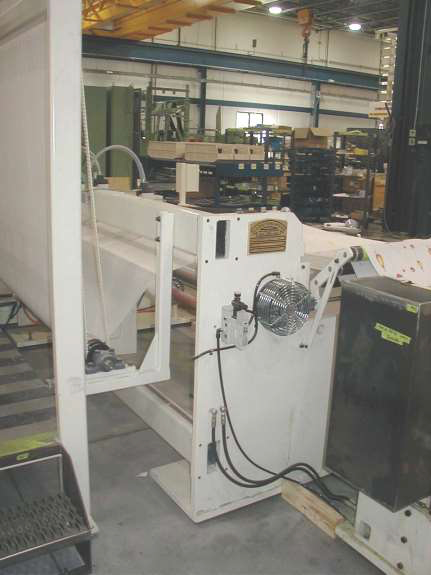

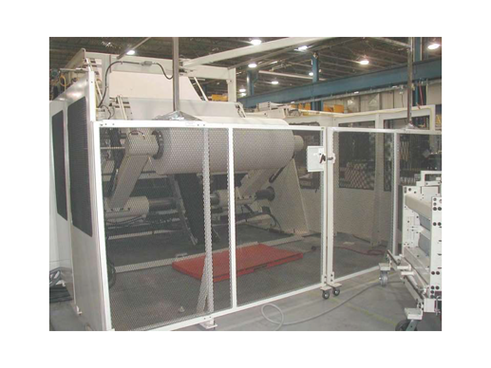

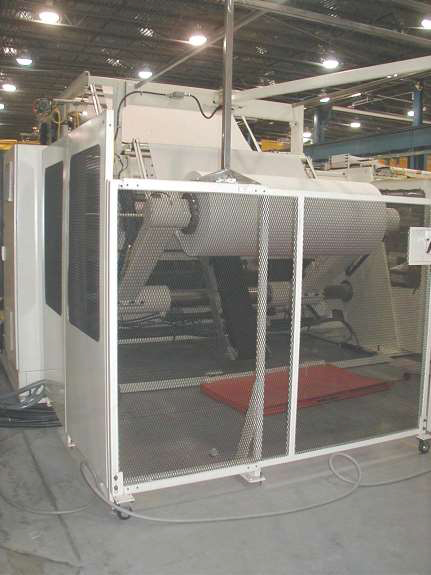

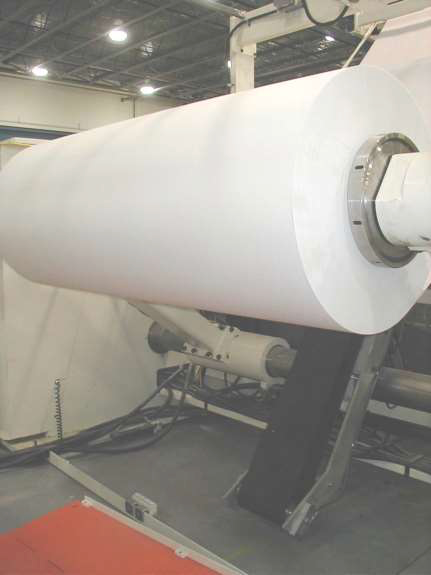

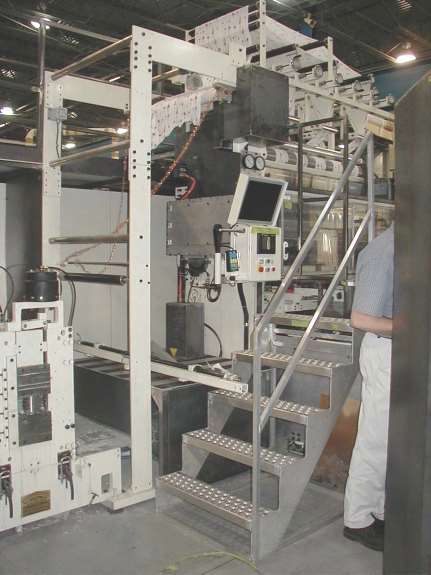

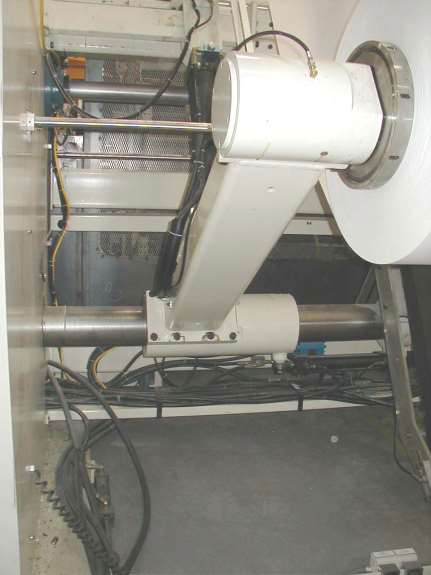

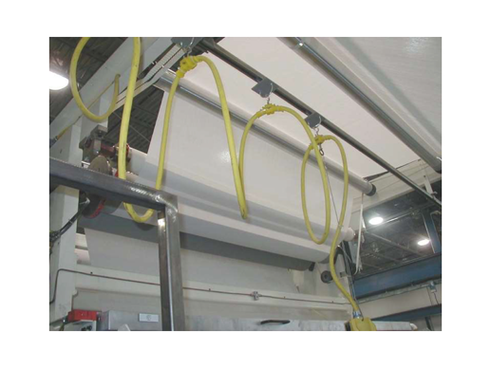

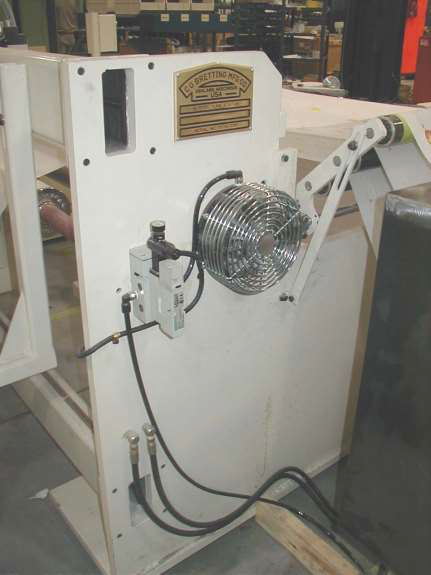

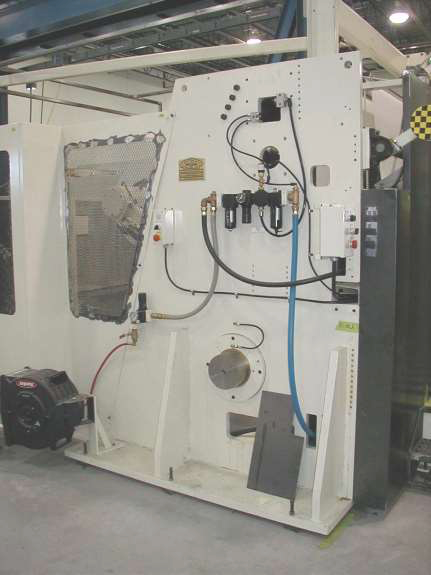

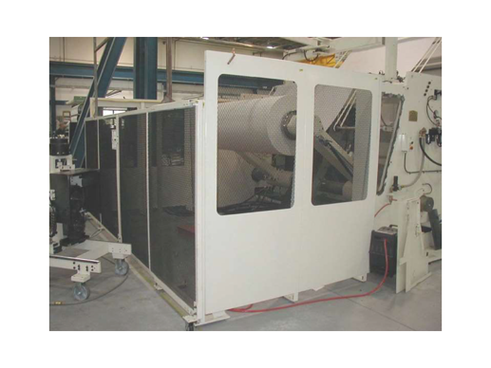

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

Unwind Stand

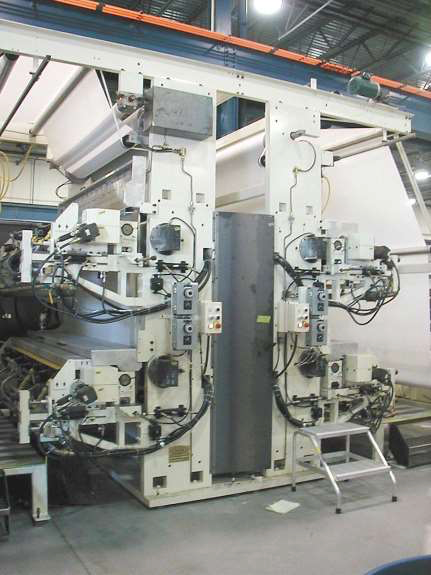

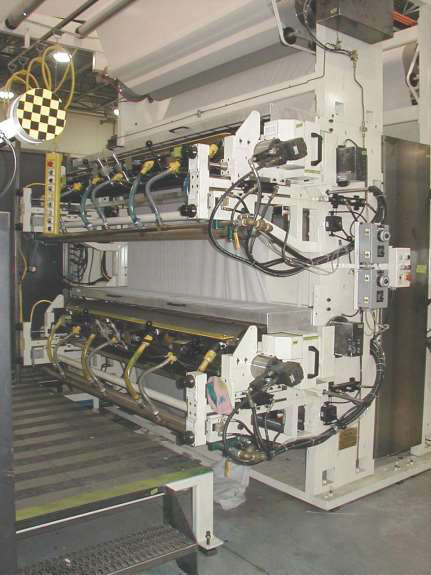

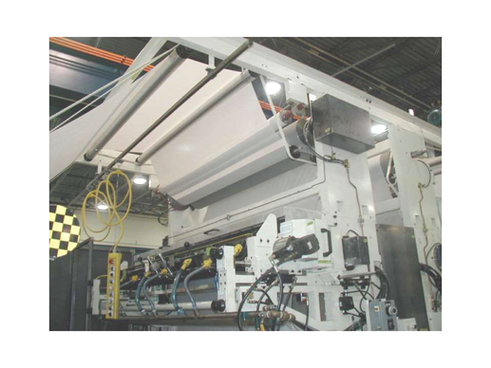

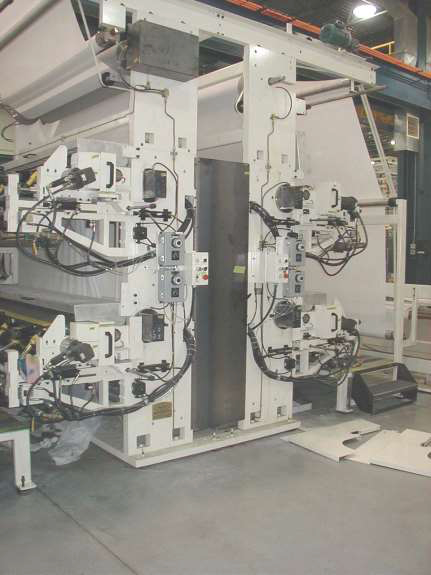

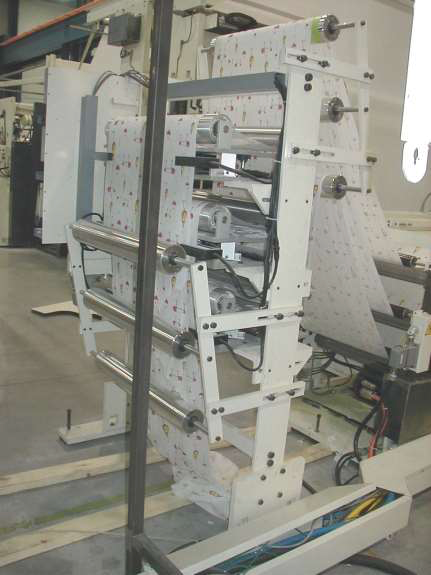

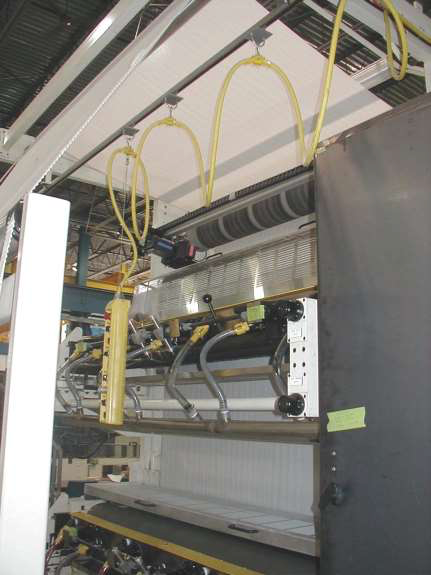

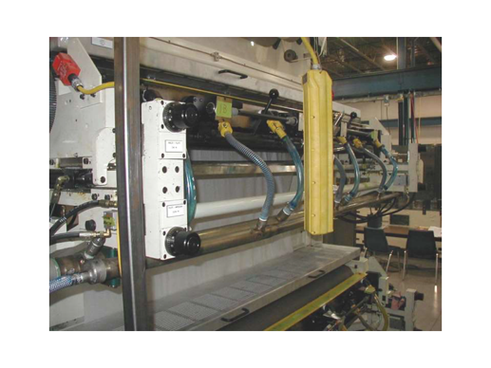

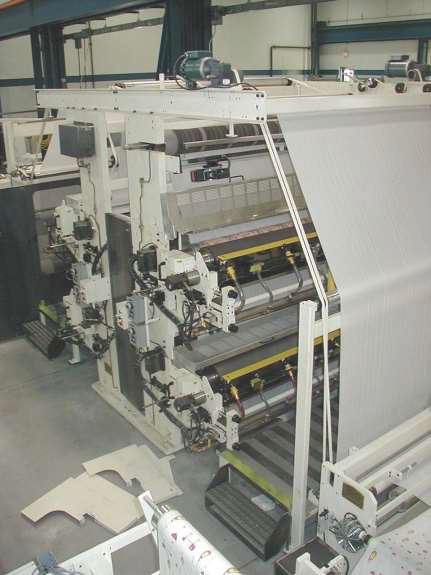

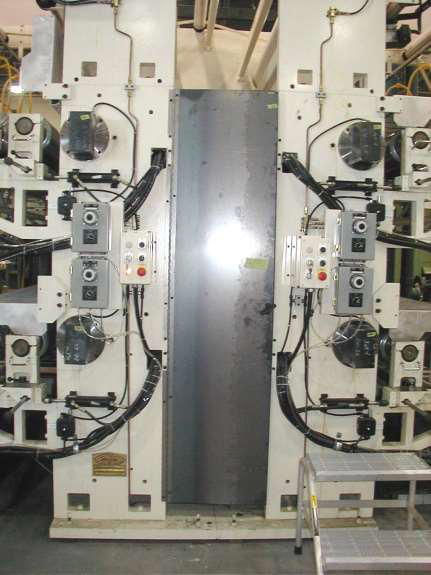

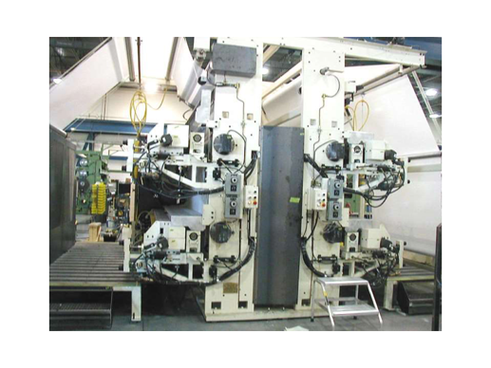

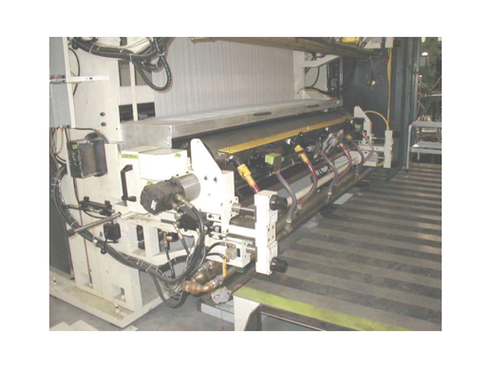

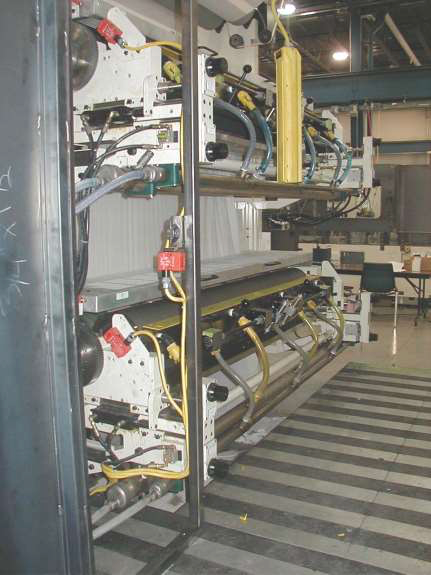

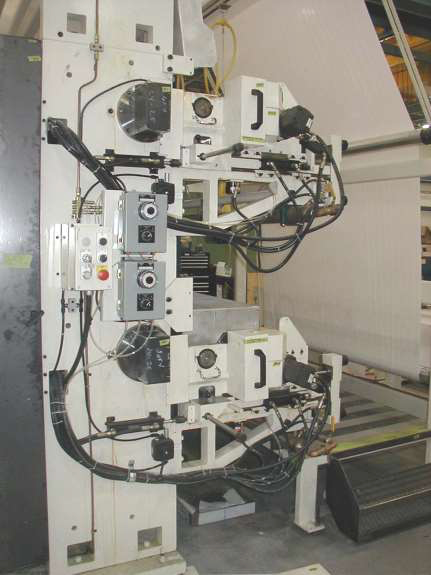

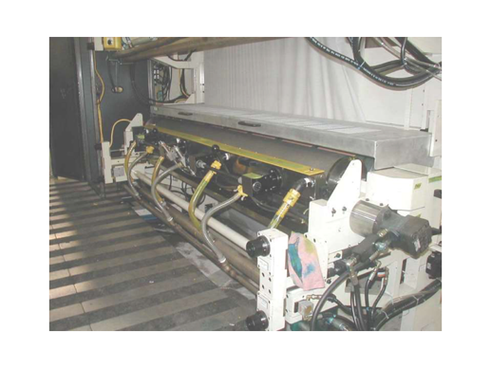

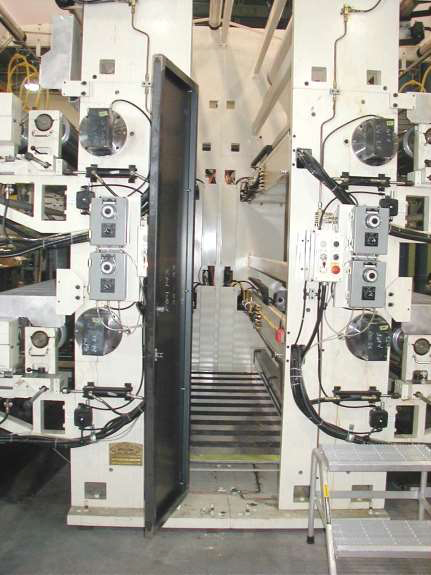

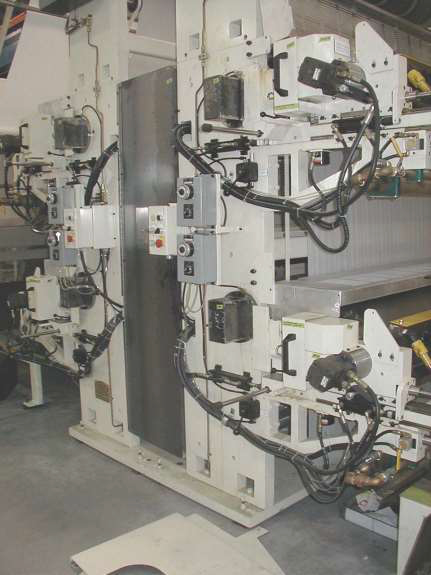

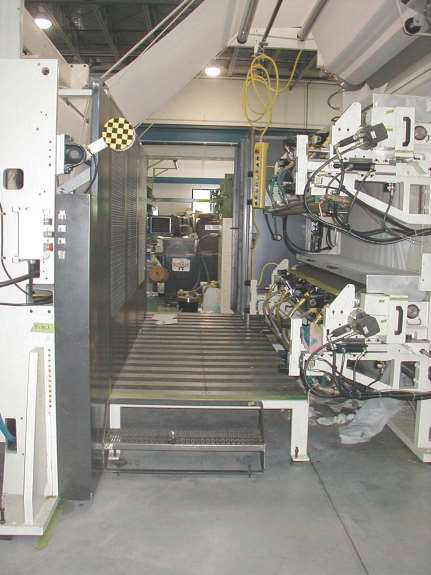

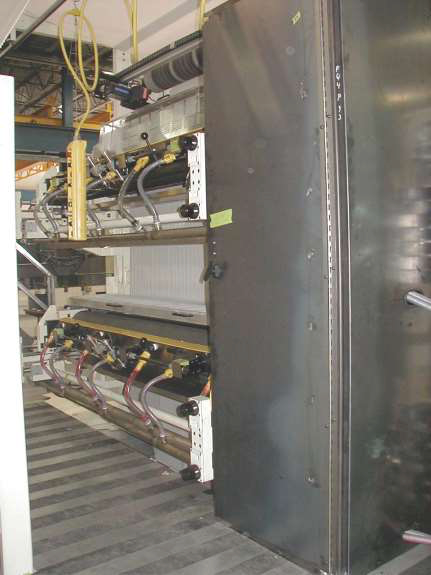

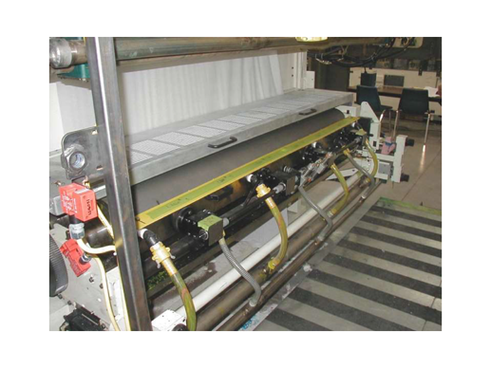

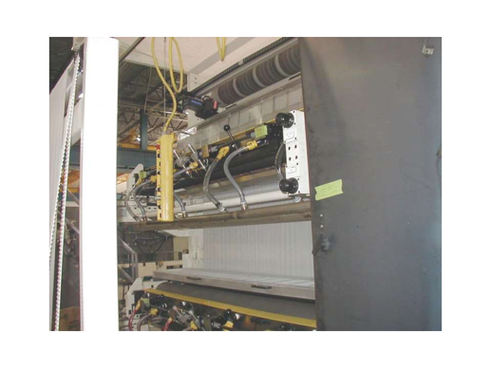

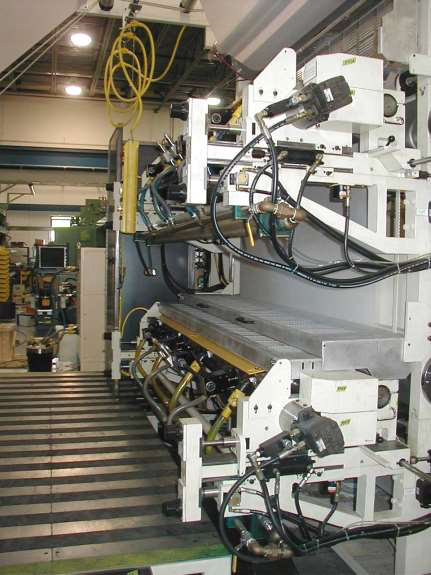

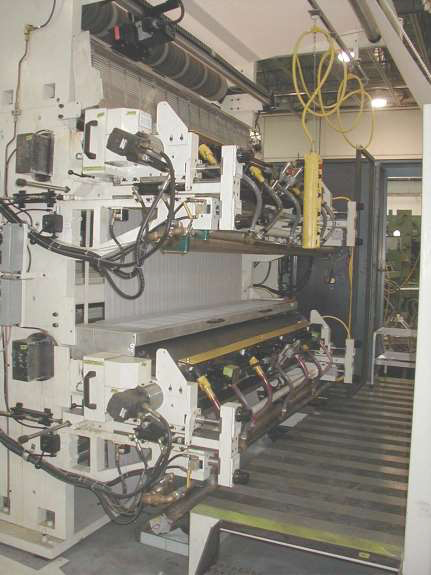

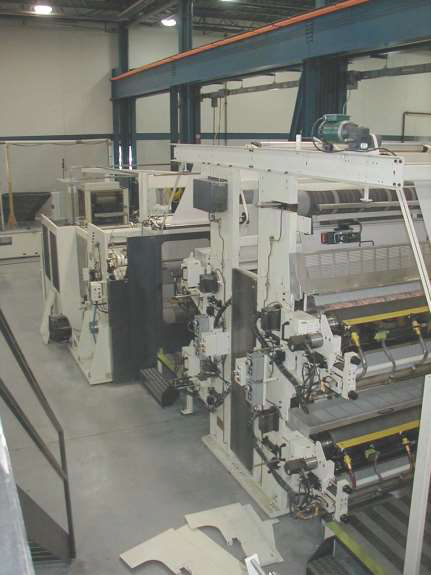

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers


Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

Flexographic Printers

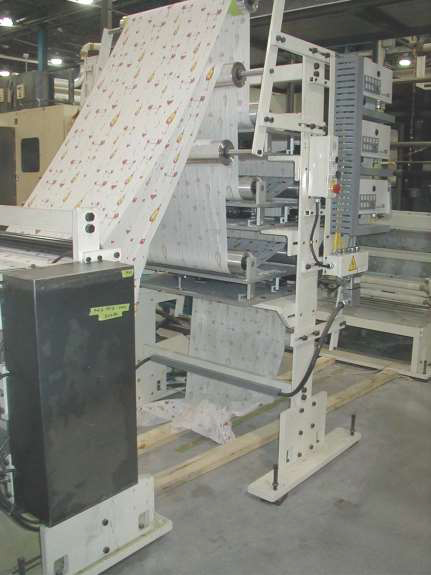

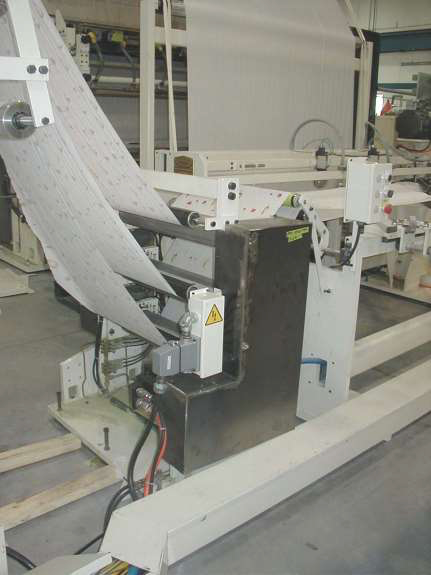

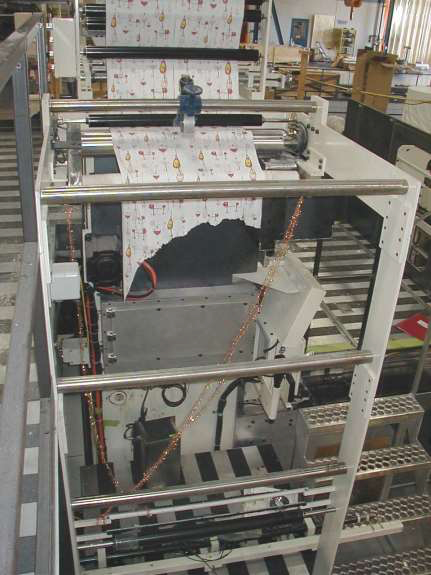

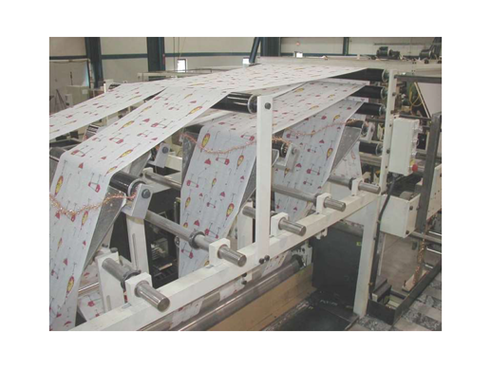

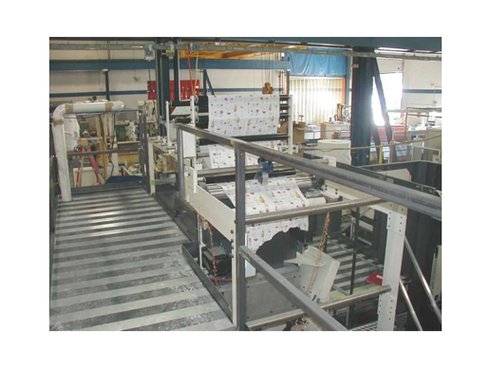

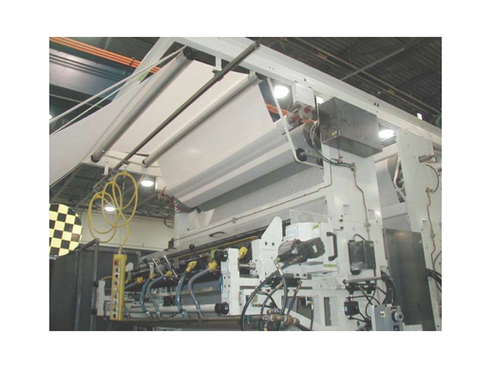

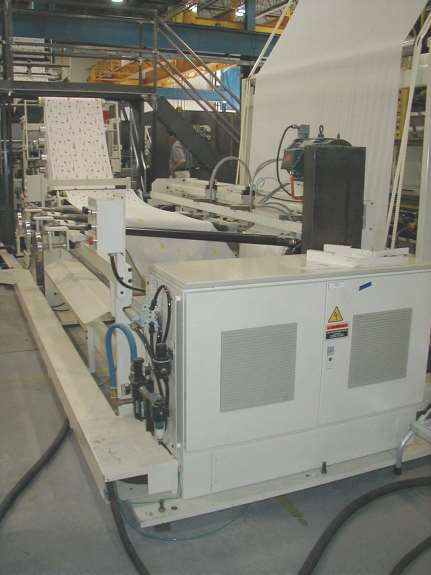

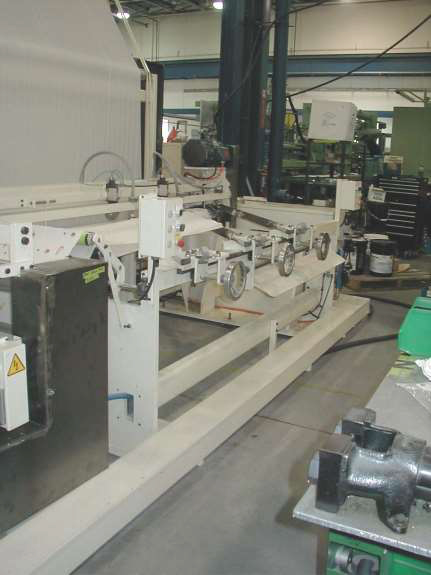

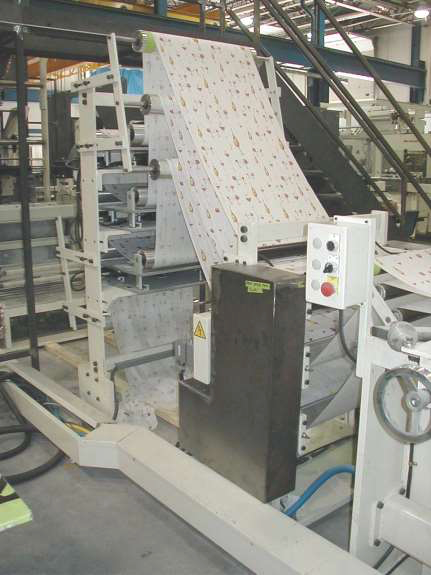

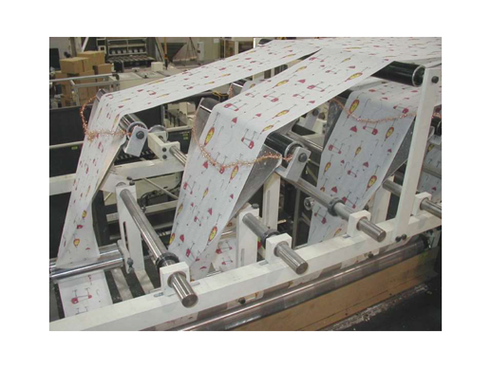

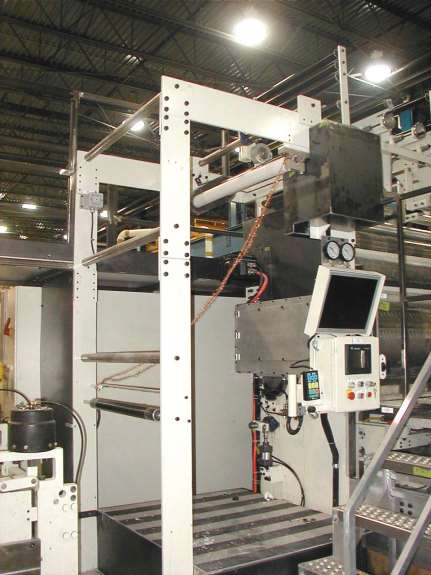

Slitter Turn Station

Slitter Turn Station

Slitter Turn Station

Slitter Turn Station

Slitter Turn Station

Slitter Turn Station

Slitter Turn Station

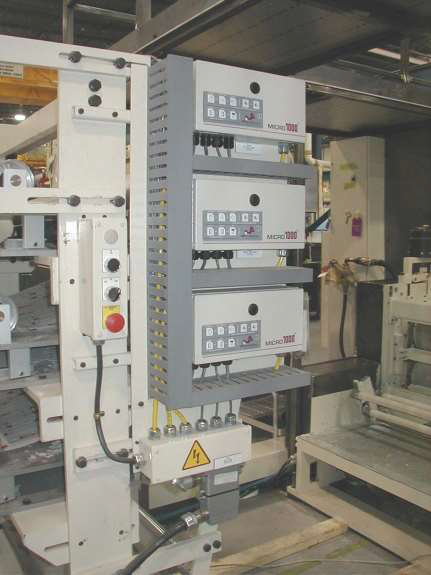

Fife

Fife

Fife

Fife

Fife

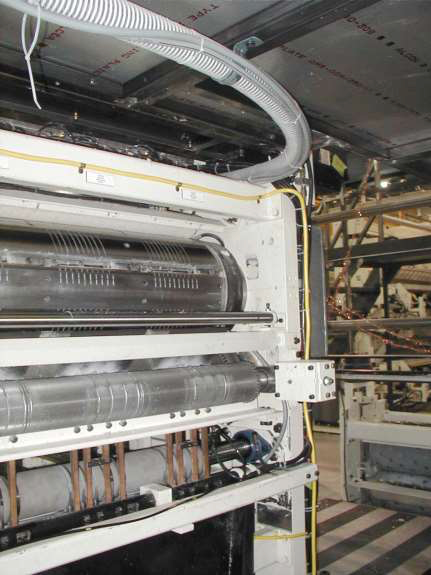

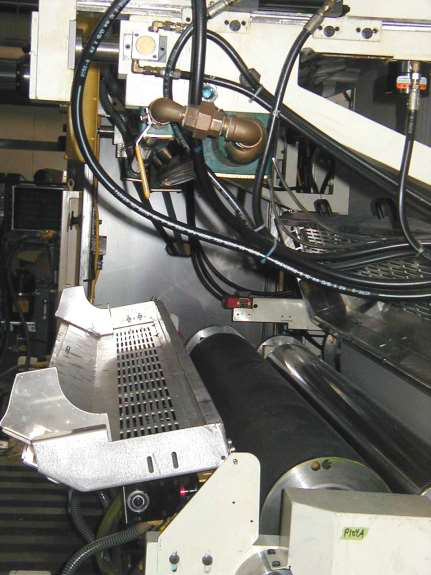

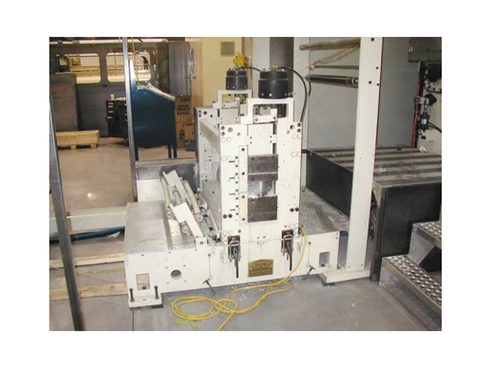

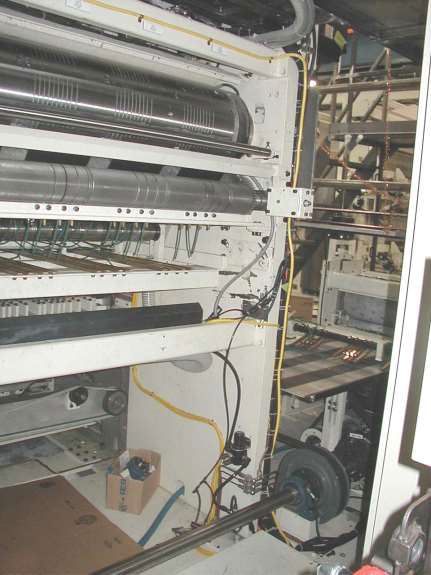

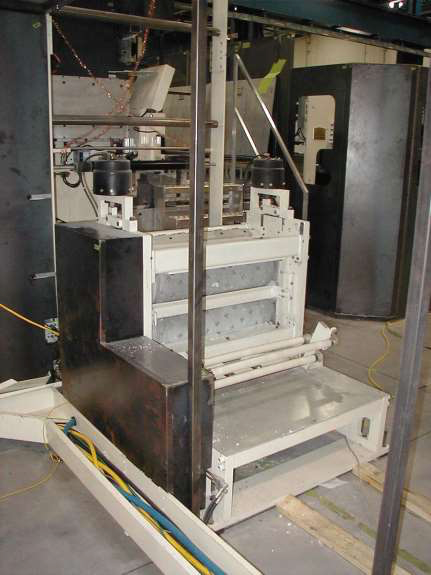

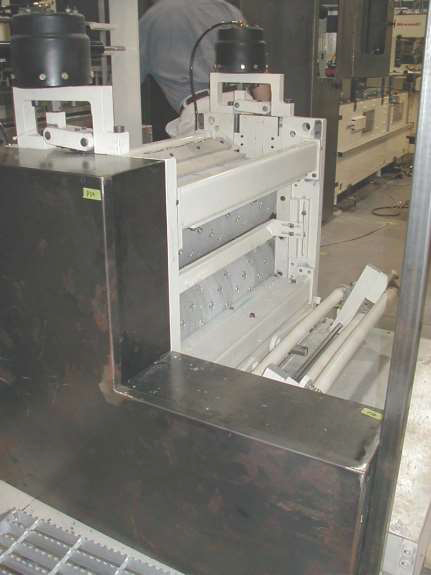

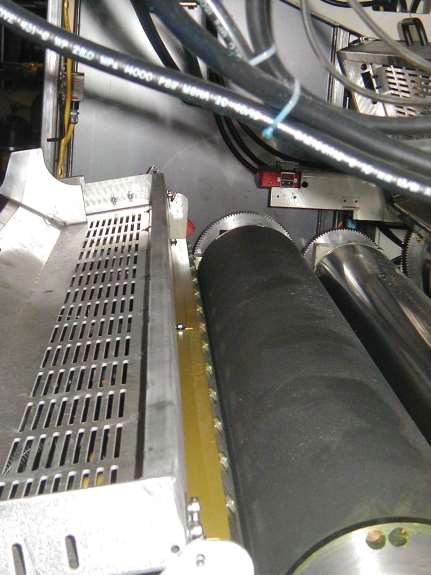

Embosser

Embosser

Embosser

Embosser

Embosser

Embosser

Embosser

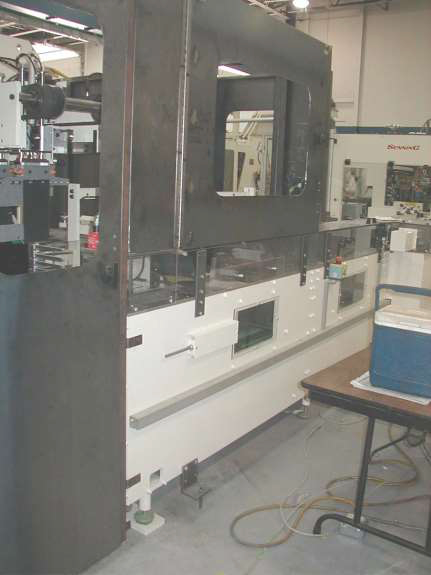

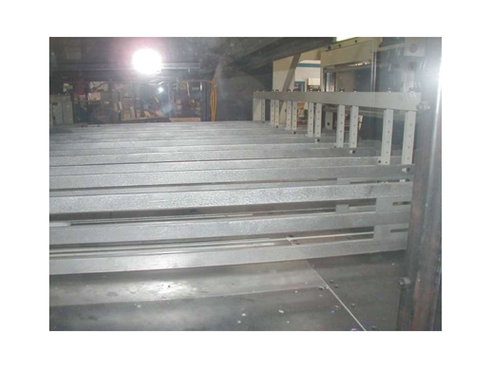

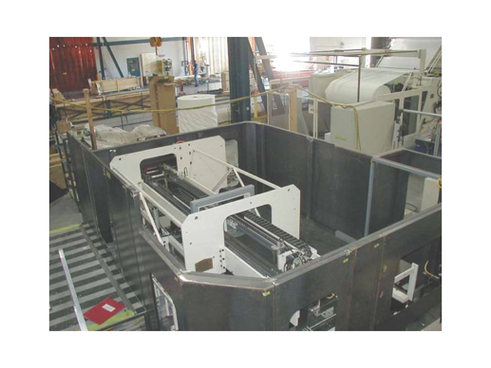

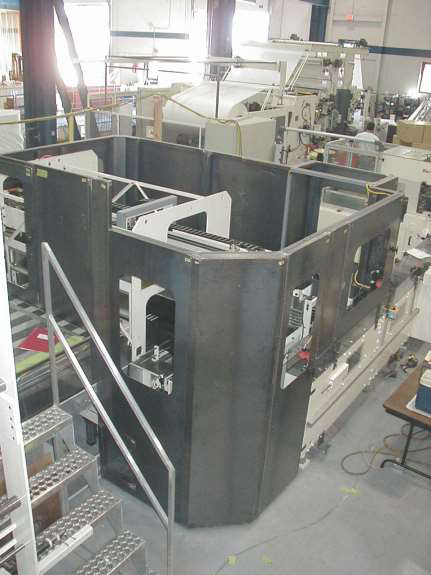

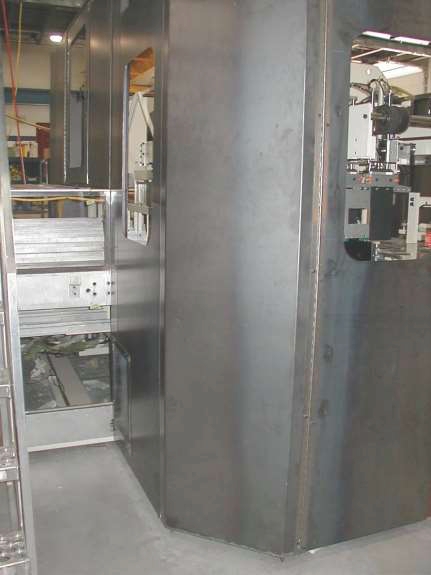

Folder Framework

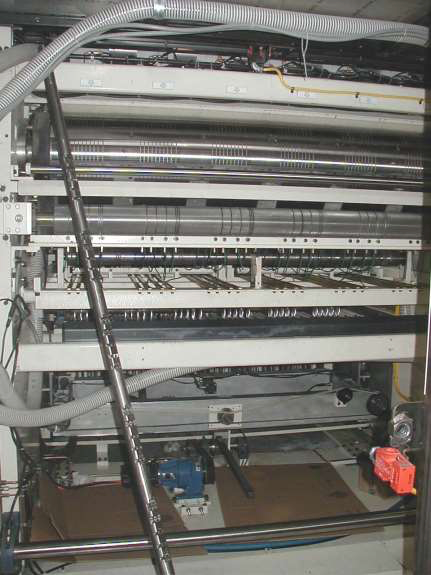

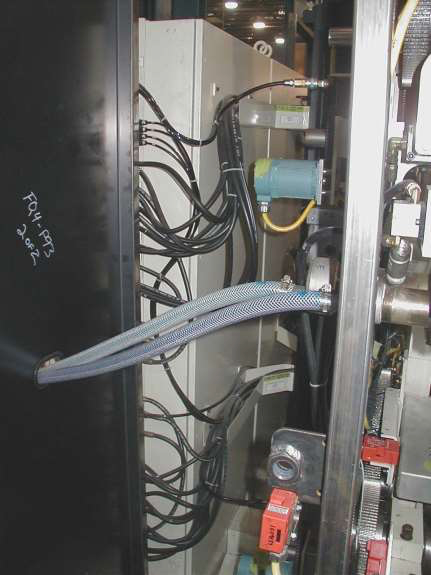

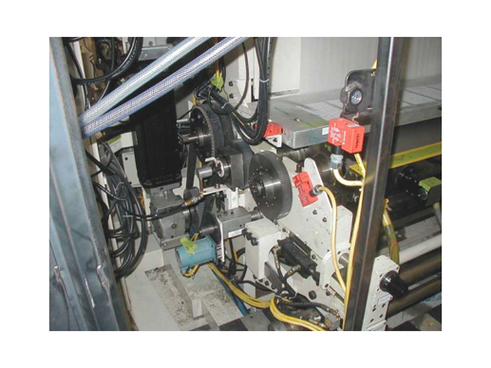

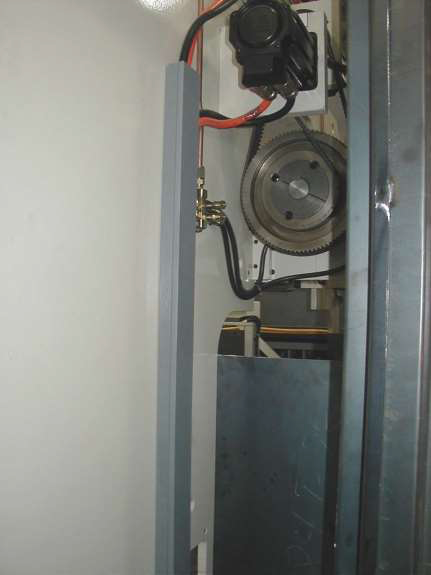

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

Back Side of Folder

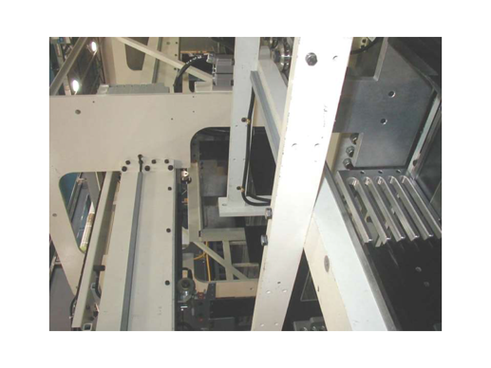

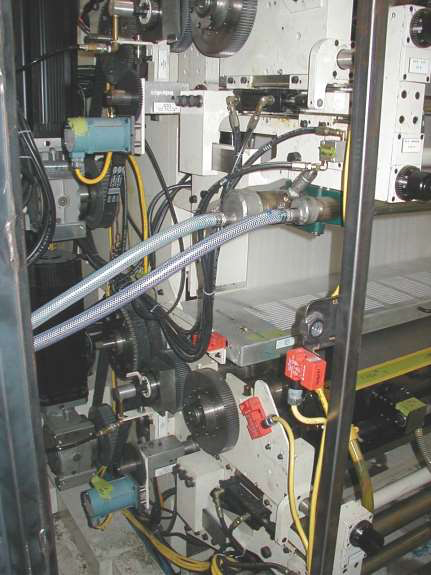

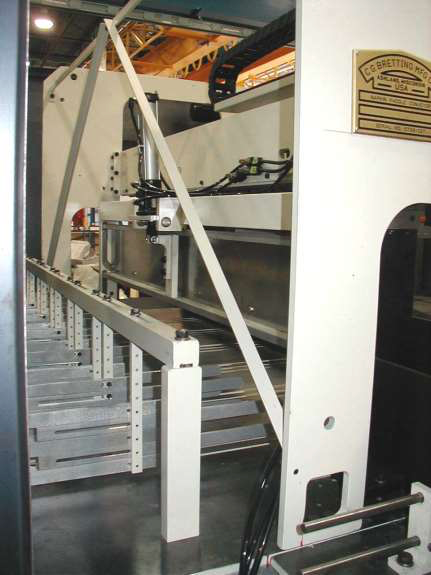

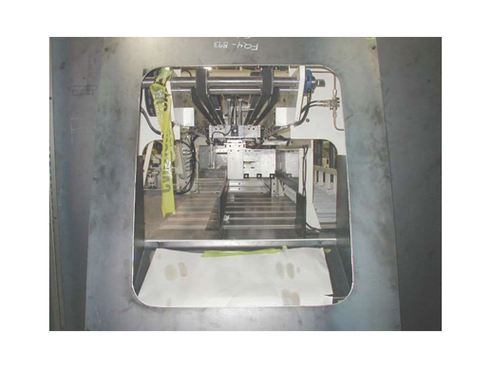

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

Folder

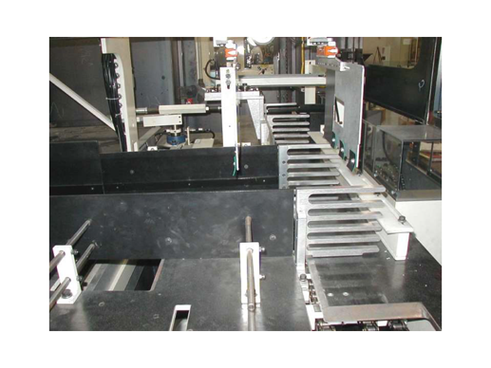

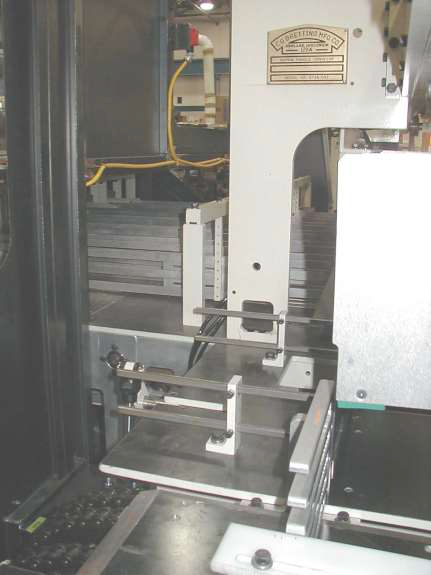

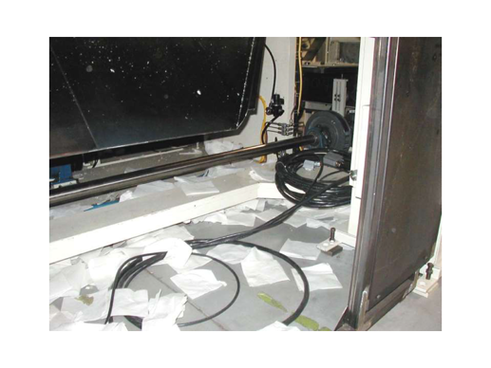

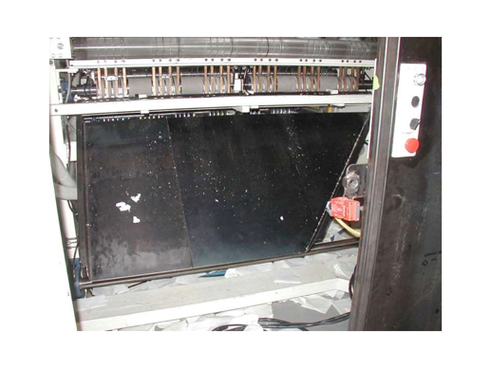

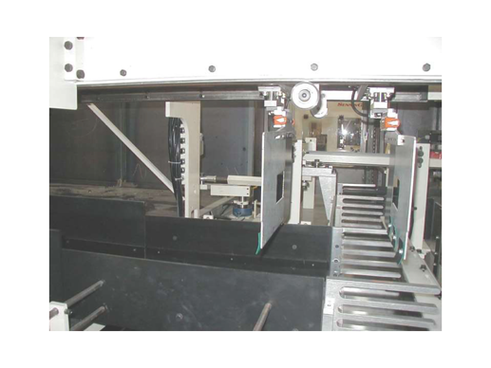

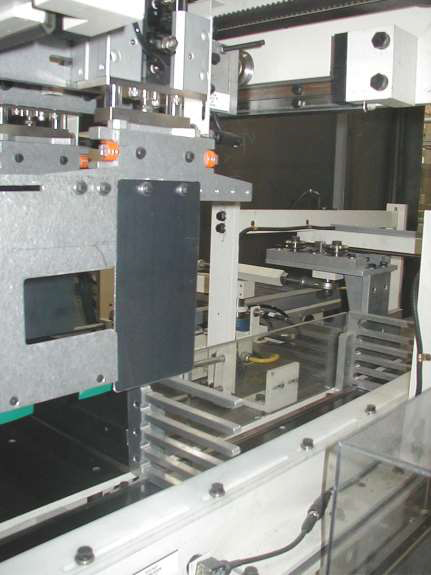

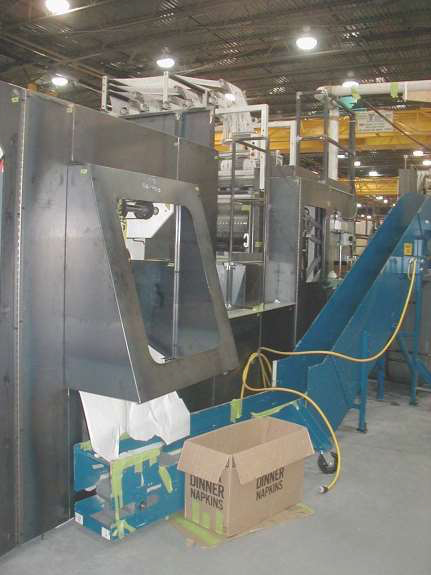

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

Separator

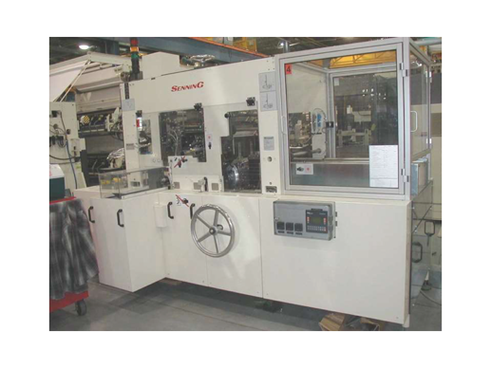

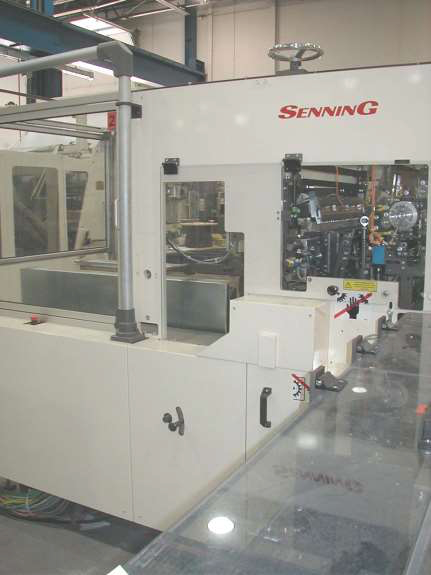

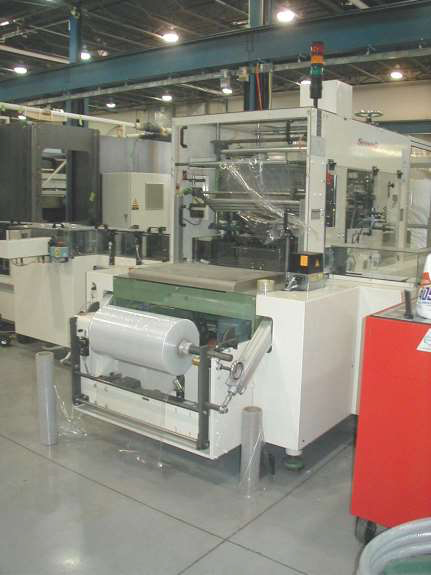

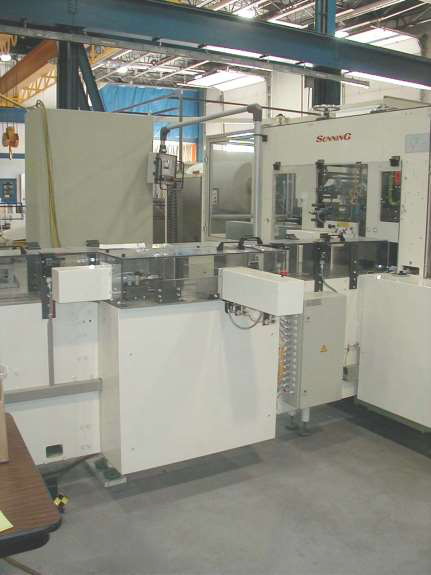

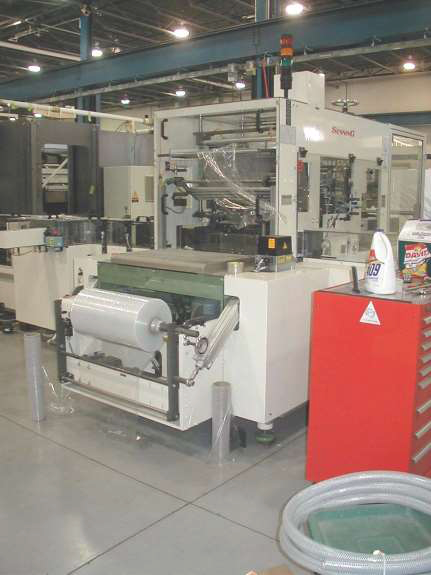

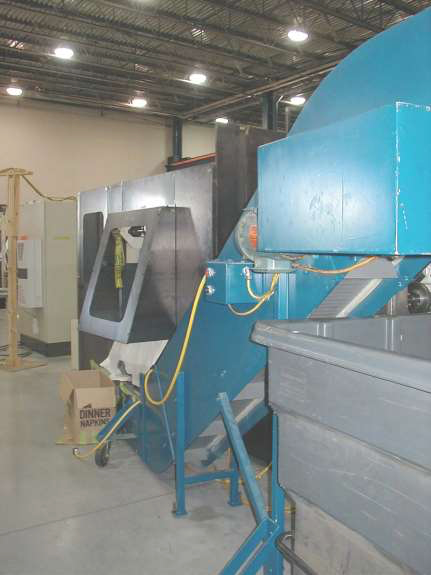

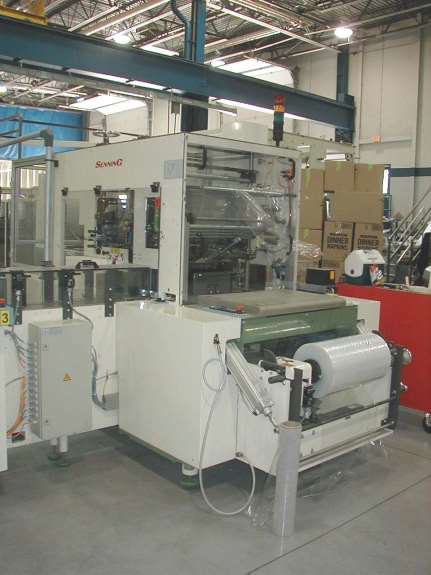

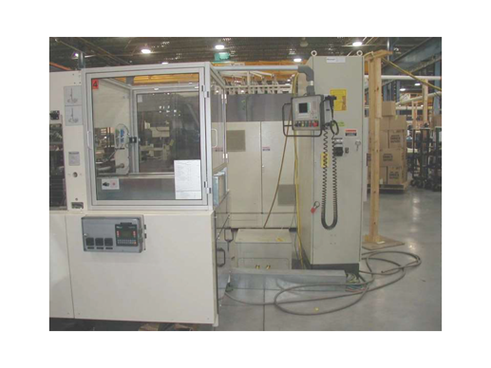

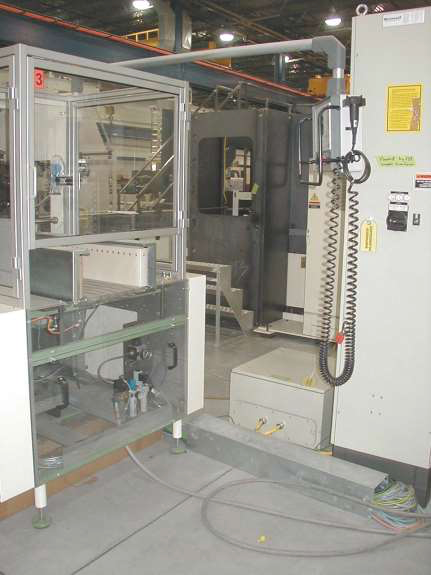

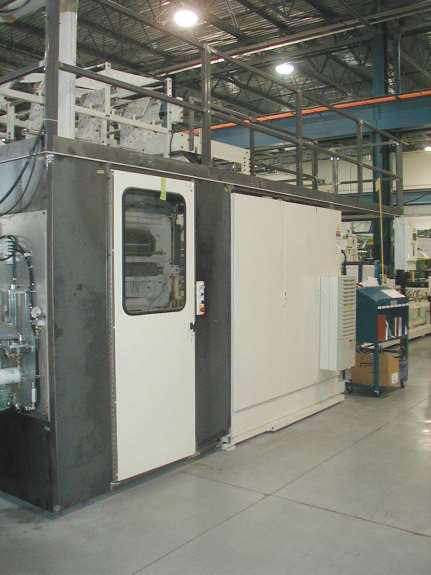

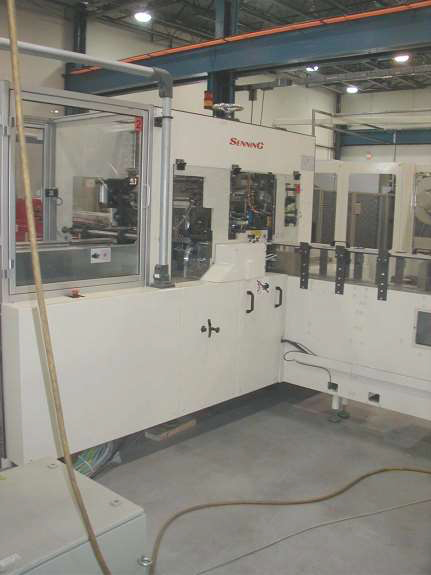

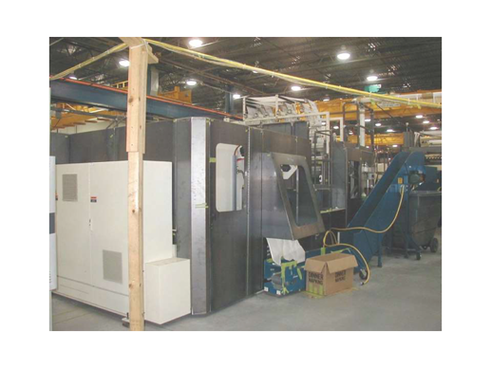

Wrapper

Wrapper

Wrapper

Wrapper

Wrapper

Wrapper

Wrapper

Wrapper

Wrapper

Wrapper

Wrapper

Wrapper
