SM0854: 2,100mm Tissue machine; 30 TPD; 15-30gsm; 900m/min
This, machine is a real opportunity buy for any producer in developing countries. The machine is located in Switzerland and until it’s shut-down has been perfectly maintained. Therefore it is in a condition that it can be restarted without any major repair and overhaul work. The machine produced initially sanitary tissue paper of all kind and finally high-quality deep-tone coloured napkins, grey crepe wipes and table clothing. Hence, unlike machines of actual design, this machine can cover a rather wide range of products. The seller in this case is willing – if required by the buyer - not only to sell the machine but to grant also know-how and recipes as well as support for the commissioning and re-start of the machine.
Make : BELOIT
Type : Suction-Breast-Roll-Fourdrinier
Year of make : 1957
Years of major rebuilds : 1973 installation of suction breast roll
1998 new QCS from Honeywell Measurex
Max. sheet width at Pope reel : 2100 mm
Max. Capacity : 30 t/24h
Max. operation speed : 900 m/min
Design speed : 1000 m/min
Product range : napkins, white and deep colour tone
Basis weight range : 15 – 30 g/m²
Drive side in paper run direction : right
Raw material : Virgin Pulp
Drive Voltage : 500 V
Consumption Data : Steam app. 2.5 t/t
Power app. 800 kWh/t
Fresh Water app. 10 m³/t
Scope of equipment:

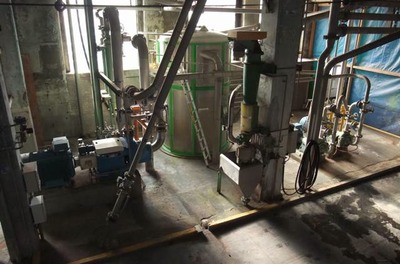

Stock Preparation

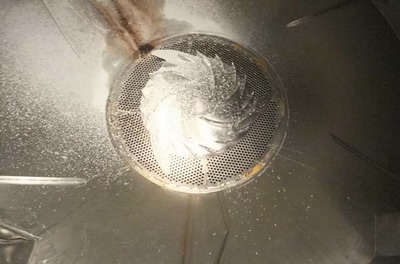

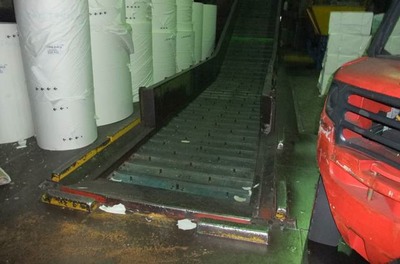

1 Pulper Conveyor Belt, including drive

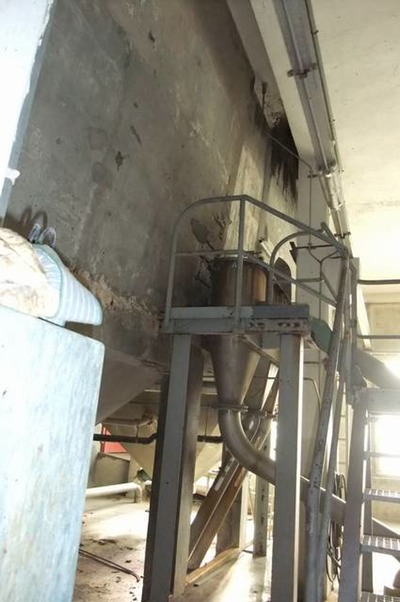

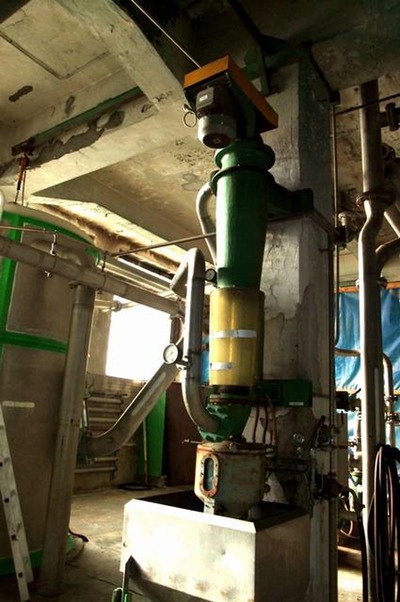

1 High-Consistency Cleaner, make BLACK CLAWSON, including drive
1 Double Disc Refiner, make SUNDS-DEFIBRATOR, type CONFLO J01, including drive

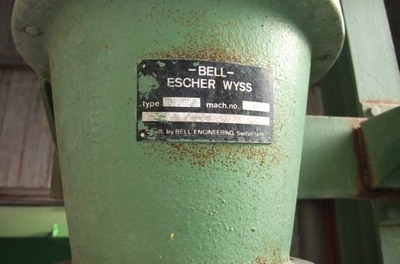

2 Deflaker, make ESCHER WYSS, type Gr.1, including drive

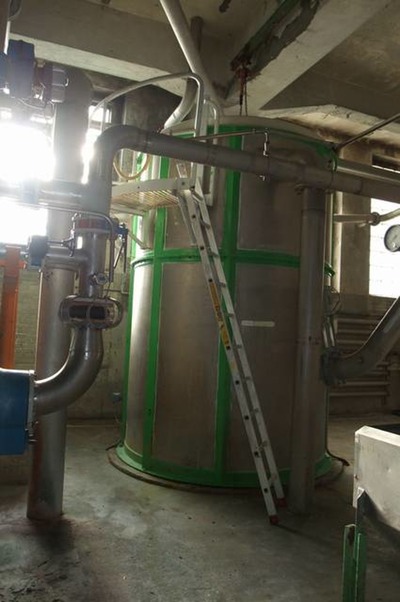

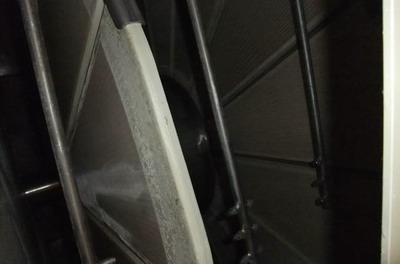

1 Disc-Filter, make BELOIT, type Polydisc, with 13 discs and 15.5 m² filter area. including drive Including all pipes, valves, pumps and instruments directly connected to the a.m. equipment.
Approach Flow System
Complete approach flow system from outlet of machine chest to inlet of headbox including

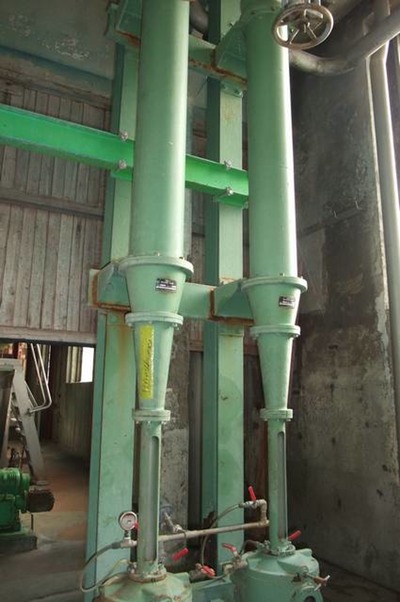

2 centrifugal cleaners

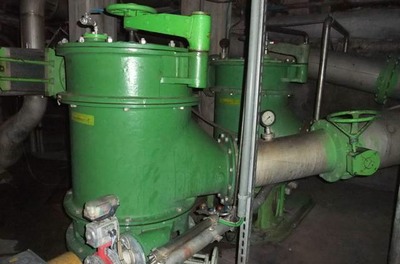

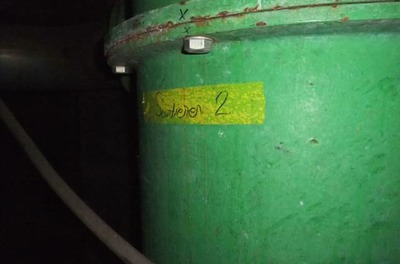

2 pressure screens, make BLACK CLAWSON, type Selectifier

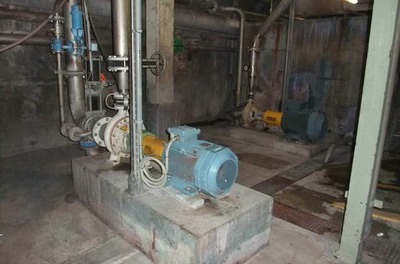

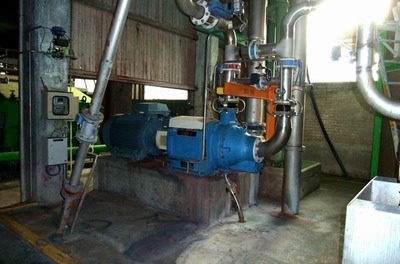

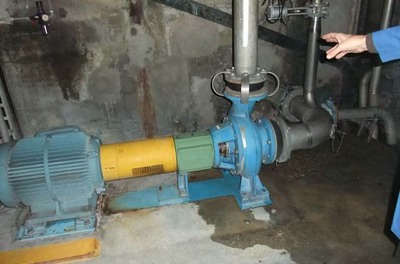

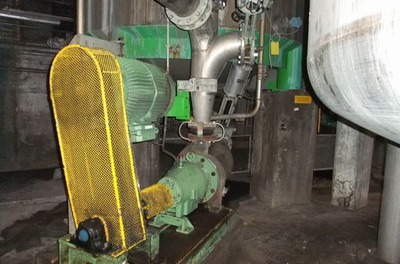

1 fan pump with drive. Including all stainless steel pipes, valves and instruments.
Vacuum System

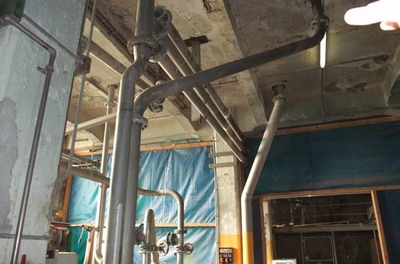

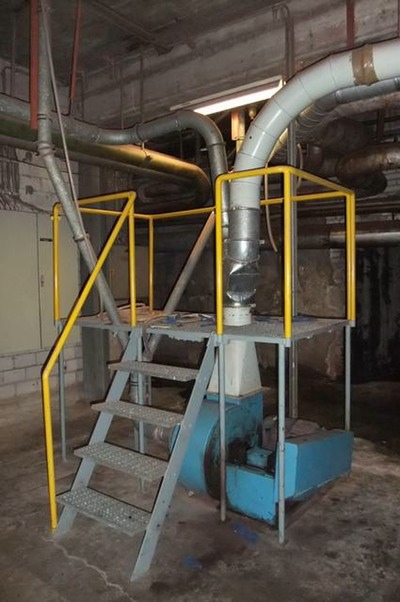

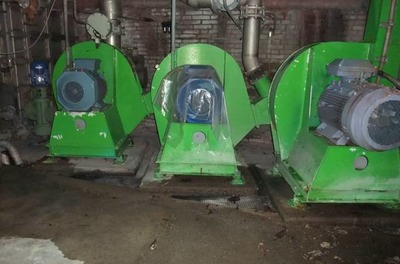

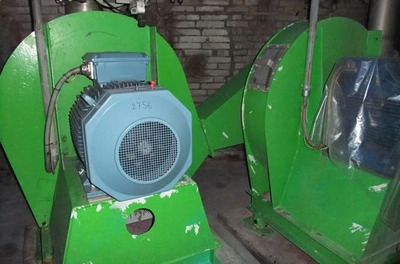

Complete vacuum system, including 3 vacuum fans, installed as cascade, with max. 137.3 m³/min and 3.6 m water column, separators, all stainless steel pipes, pumps, valves and instruments

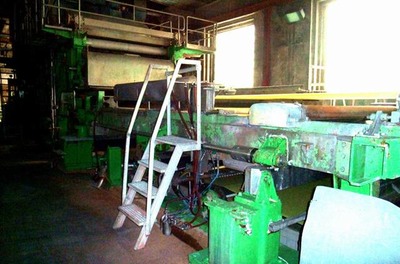

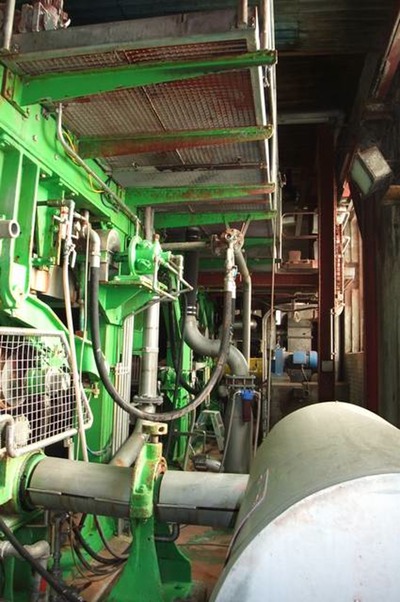

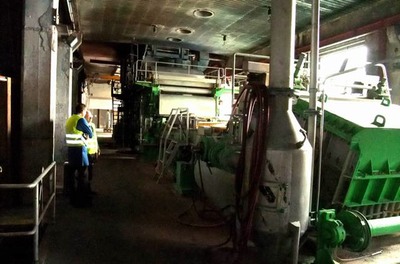

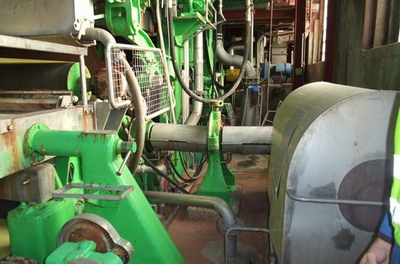

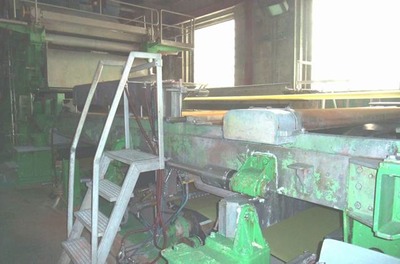

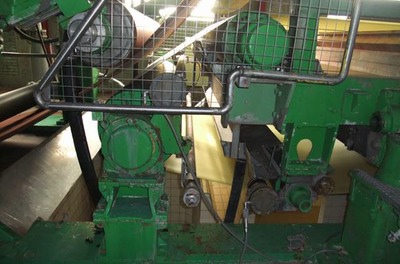

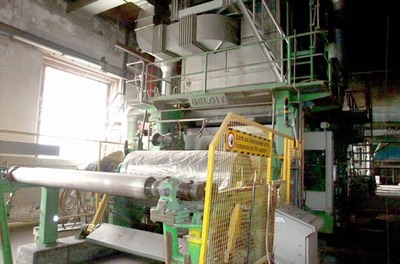

Paper Machine
1 Headbox, pressurized type, with manual cross profile adjustment, inside stainless steel polished

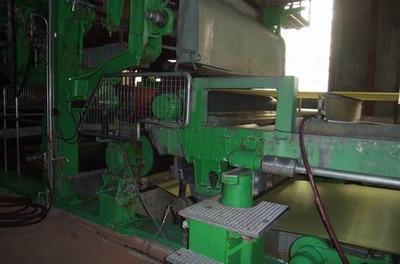

1 Wire part, cantilevered, made of fabricated steel, partly clad with stainless steel, including suction breast roll, all dewatering elements, wire drive roll, pneumatic wire guide, wire stretcher, high and low pressure cleaning showers.
1 Press part including 1 suction press roll 614 mm diameter with shell made of bronze and 1 blind drilled press roll including lowering and lifting equipment
1 Creping Part with 1 oscillating creping doctor, make KADANT-JOHNSON Conformatic and 2 cleaning doctors,
1 Yankee Dryer, 3642 mm diameter, steam pressure 7.53 bars gauge, material: high class cost iron coated with wear resistant a high-chromium alloy, type TSX with a thickness of actually 0,57 mm (on radius)
1 High-Performance Yankee-Dryer Hood, make BRUNSCHWEILER, steam fired with 12 bars steam pressure, temperature max. 160°C, including tube-type heat recovery system

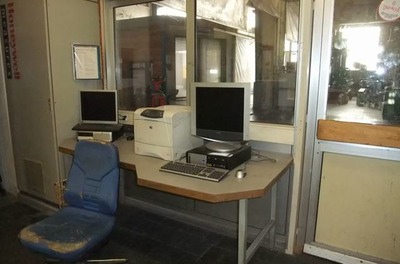

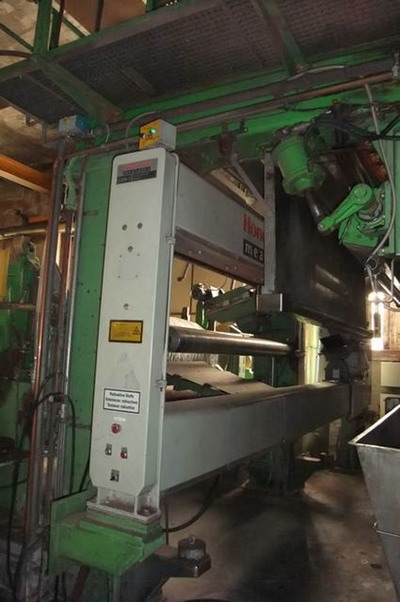

1 Quality Control Scanner (QCS), make HONEYWELL-MEASUREX, type MX Open for the measuring of basis weight and moisture cross profile as well as colour.
1 Pope reel, hydraulic type, designed for winding up reel to a max. diameter of 1.5 m

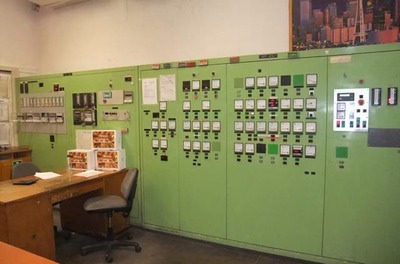

1 complete PM-Drive, including drive control

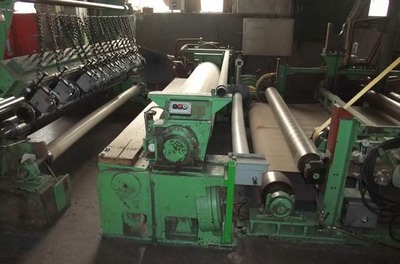

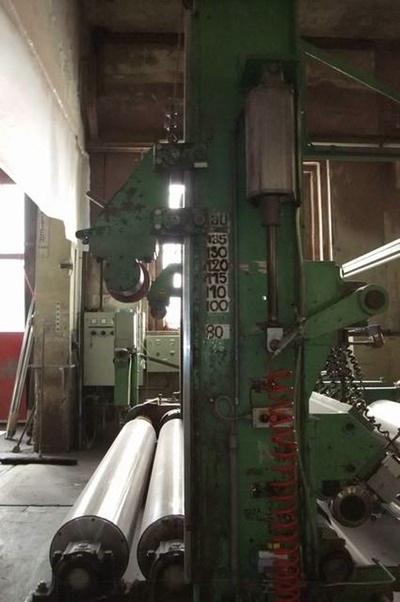

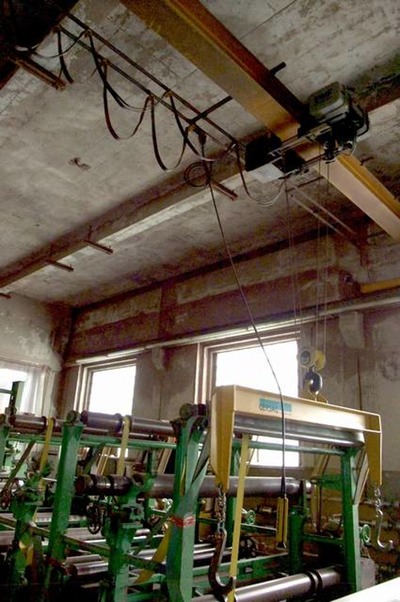

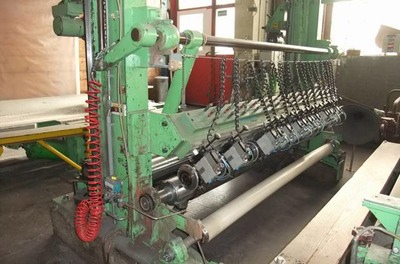

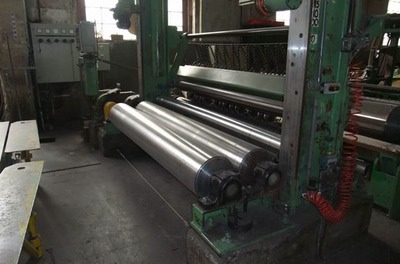

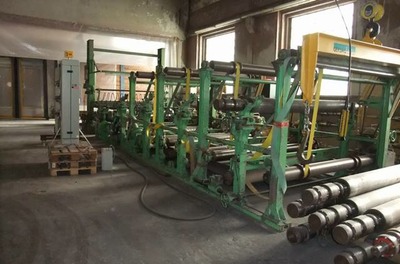

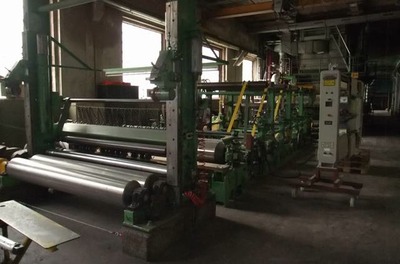

1 Doubling-Rewinder with 4 unwind stands, designed for 1 – 4 layer products. Max. rewind-diameter depending on number of layers between 1320 and 1500 mm. Complete including drive and drive control.

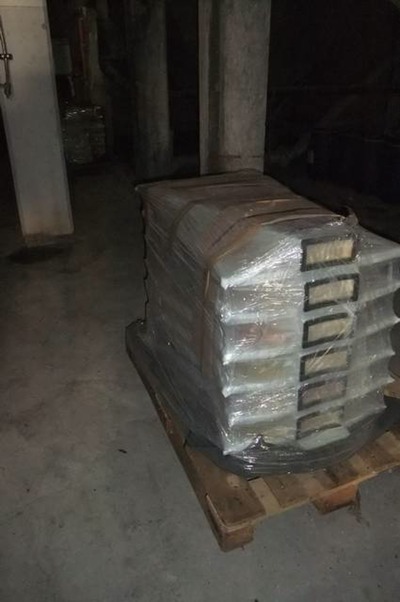

Spare Parts
Included as far as available
Technical Documentation
Included as far as available
Condition
Excellent. Machine was fully operational when shut in October 2011. After shut down it has been carefully cleaned and all parts sensitive to corrosion have been impregnated with corrosion protection material. In order to avoid deformation of rolls and cylinders the machine will be turned monthly.
