SM0838: 2,200mm PAPER MACHINE, 50-220GSM, 100-450M/min, 115TPD, copy, office paper, specialty papers
Paperline PM4
Built by BMB in 1975, reconstructed in 2002 & 2004 by Voith.
STOCK PREPARATION

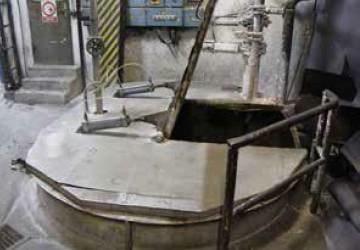

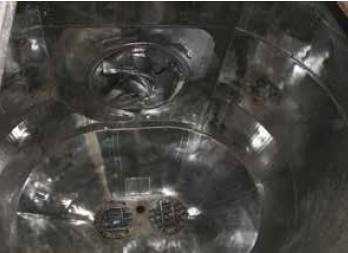

DISPERSING AND REPULPING: 3 pulpers

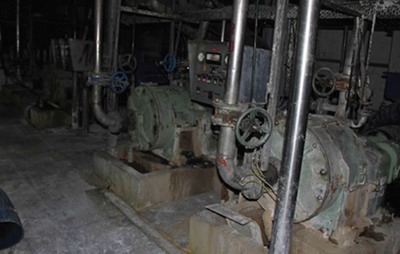

REFINING: 2 refining lines with 4 double disk refiners

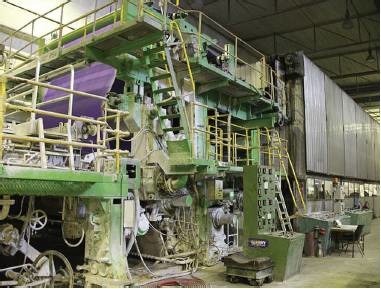

PAPER MACHINE

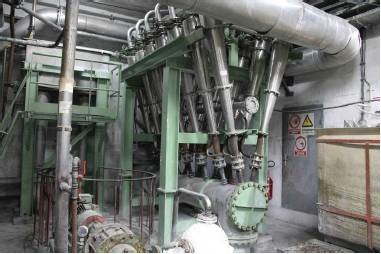

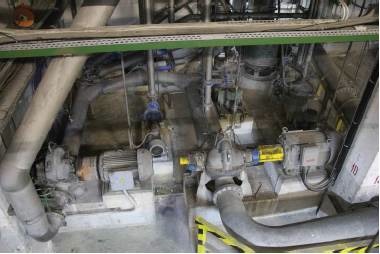

Approach flow
Head box with CD dilution basis weight profile control

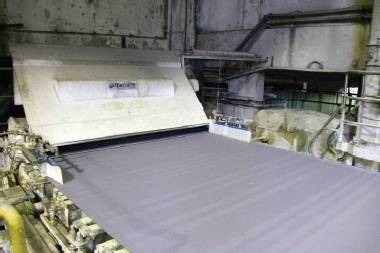

Fourdrinier machine with dandy roll
Press section with 3 hydraulic presses
Drying section
Size press
Post drying section,
2 cooling cylinders
On-line calender (4 steel rolls)
Pop-reel
QCS (2 frames)

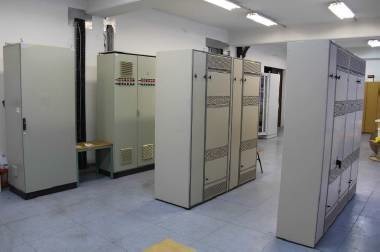

DCS
FINISHING

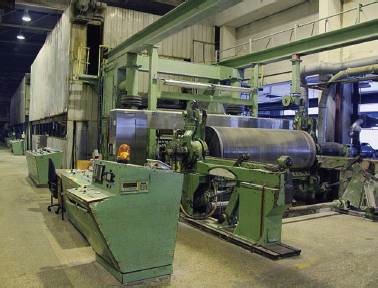

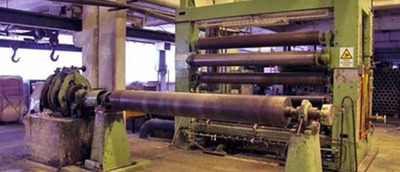

2 winders

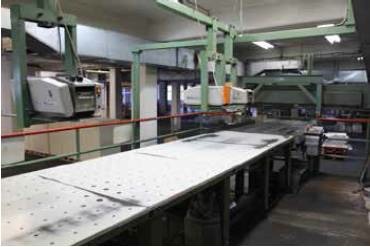

2 sheeters
Cut-size sheeting and wrapping line
Reem wrapping line
Palette straping and wraping line
PM4 LIST OF BASIC COMPONENTS
Paper machine PM4
Winder BMB
Winder Goebel

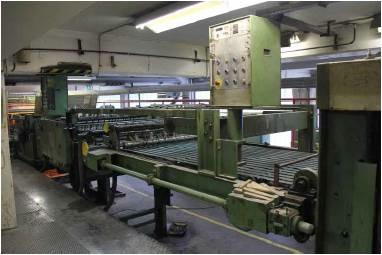

Sheeter Bielomatik No. 4
Sheeter Bielomatik No. 5
Cut size sheeting and wrapping line Bielomatic

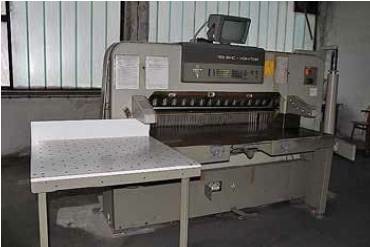

Guillotine cutting machine Polar
Ream wrapping line Lamb

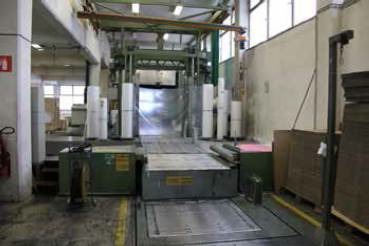

Palette straping and wraping line Reker

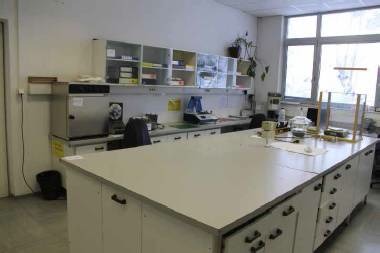

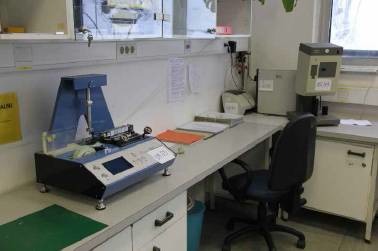

Laboratory with instruments for paper testing
