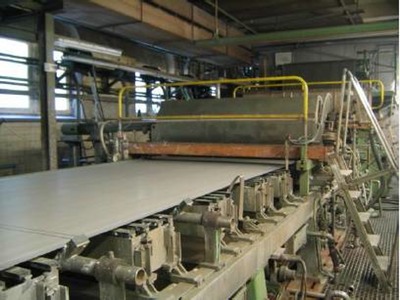

SM0792: 1,860mm Voith Paper Machine, 50-200gsm, 50tpd
Manufacturer : Voith
Year of manufacture : 30ies
Working width : 1,860mm at pope with 50-200gsm
speed : 70-230mpm
grammage range : 50-200gsm
production : base paper (e.g. for sandpaper)
capacity : up to 50tpd
Approach Flow System consisting of:
Paper Machine components:

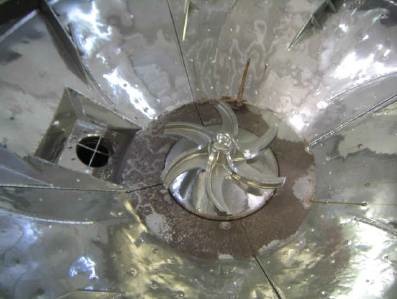

- - Voith Pulper with conveyer belt
- - 2 Voith horizontal pressure screen (0,35mm slots)
- - Finckh horizontal pressure screen HS3

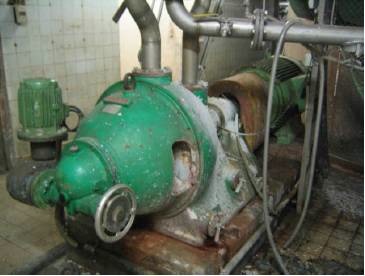

- - 6 Dörries steep conical refiner
- - Hogenkamp headbox
- - Couch roll
- - Dandy Roll
- - 1 straight-through press
- - 1 reversed press
- - Dryer section with 20 cylinders /1500mm
- - Infrared edge drying IRCON Sweden

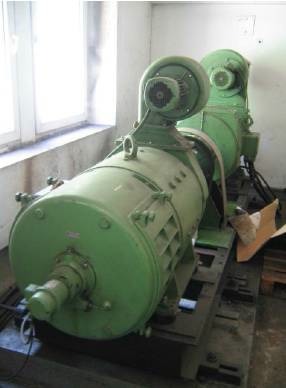

- - Tyrister Drive with lengthwise transmission (2 motors / one as redundancy)
- 1 circulatory oil lubricant
- Dry cylinders with bush bearing
- Manual cleanser lifting

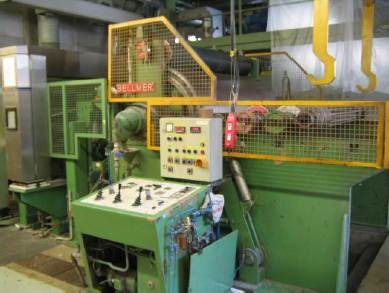

- Bellmer Poperoller
- Dry cylinders are driven over lengthwise transmission
- heat recovery
- Algas filter type 12W

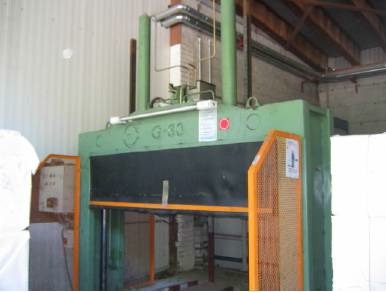

- Baling press Paal typ PACO-Mat 1

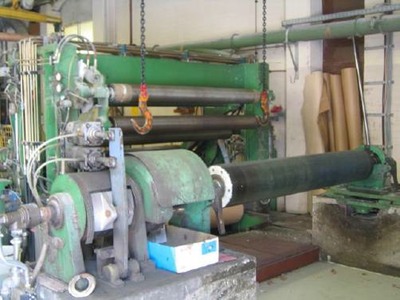

- Rewinder Goebel U16 with Rexroth hydraulic drive
- Manual reel wrapping
Location: GERMANY
Condition/Shape : in excellent operational shape!
Price : on application
Situation : erected, out of operation since may 2012
Available : immediately, subject a prior sale
Inspection : at any time
