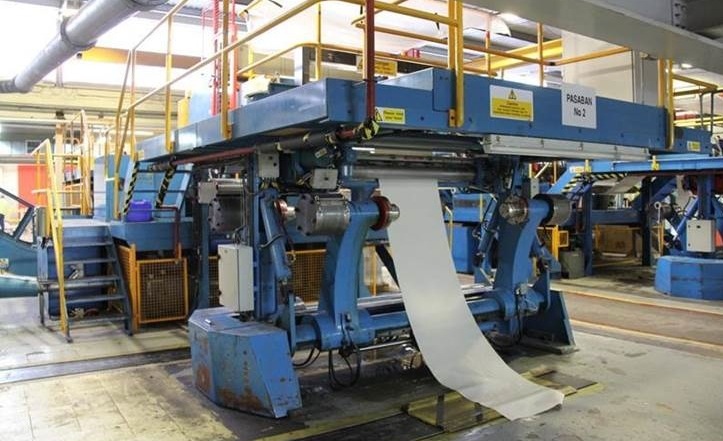

SM2004 - SHEET CUTTER 1,400mm, Syncho, Pasaban KSF, 60-185gsm, 250m/min.
Specification:
- Manufacturer: Pasaban
- Type: KSF 1400
- Cut: Syncho
- Year: 1989
- Working width: 1,400mm,
- Unwind diameter max : 1,500mm
- min : 400mm diameter
- Sheet length: 1,150-500mm,
- Sheet width: 14,00-250mm,
- Maximum speed: 250m/min,
- Basis weight range: 60-185 gsm (g/m2).
- Floor space required: 6m x 20m
Complete with:

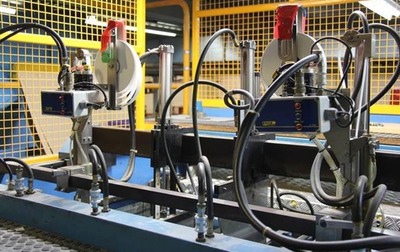

- 3 rotary slitters,
- 2 unwind stands (Shaftless),
- feed through belt conveyor system,
- trim fan reject system,
- The sheeter has a reject gate and conveyor feed for a baler
- 2 type CL-414B banding units,
- automatic stacking and squaring,
- roller lifting table (approx. 1600 x 1200mm),
- chain out-feed conveyor and pallet storage unit,

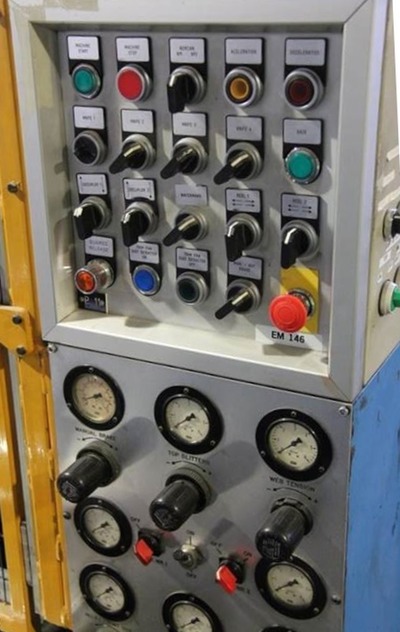

- operating control system,
- 9 door control cabinet,
- stairs and gantry.
