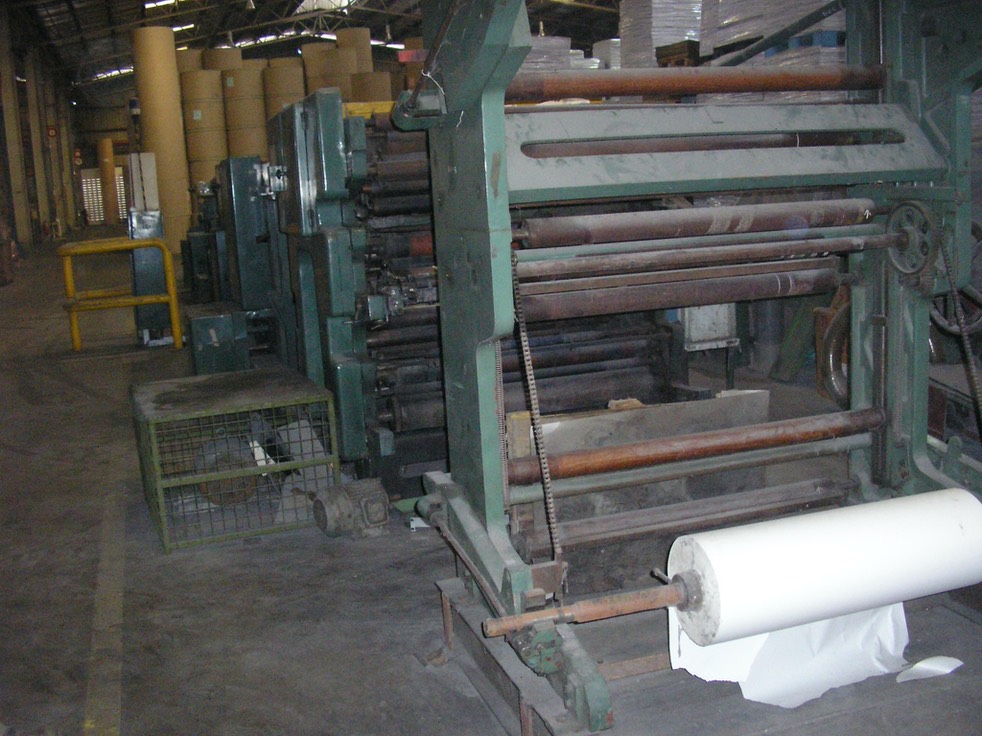

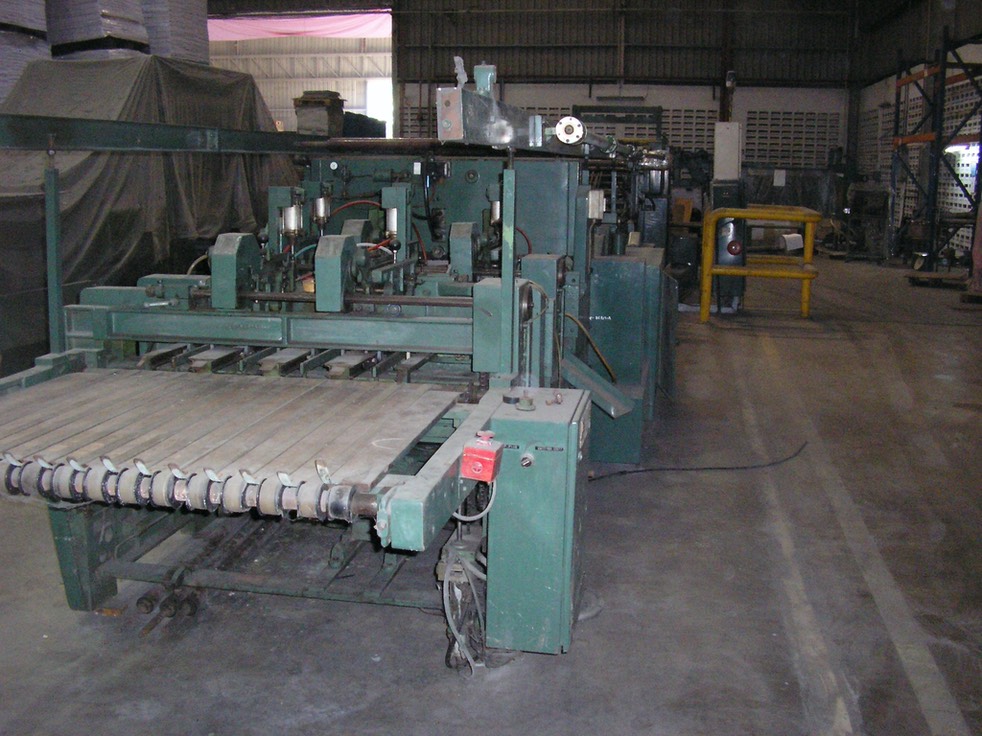

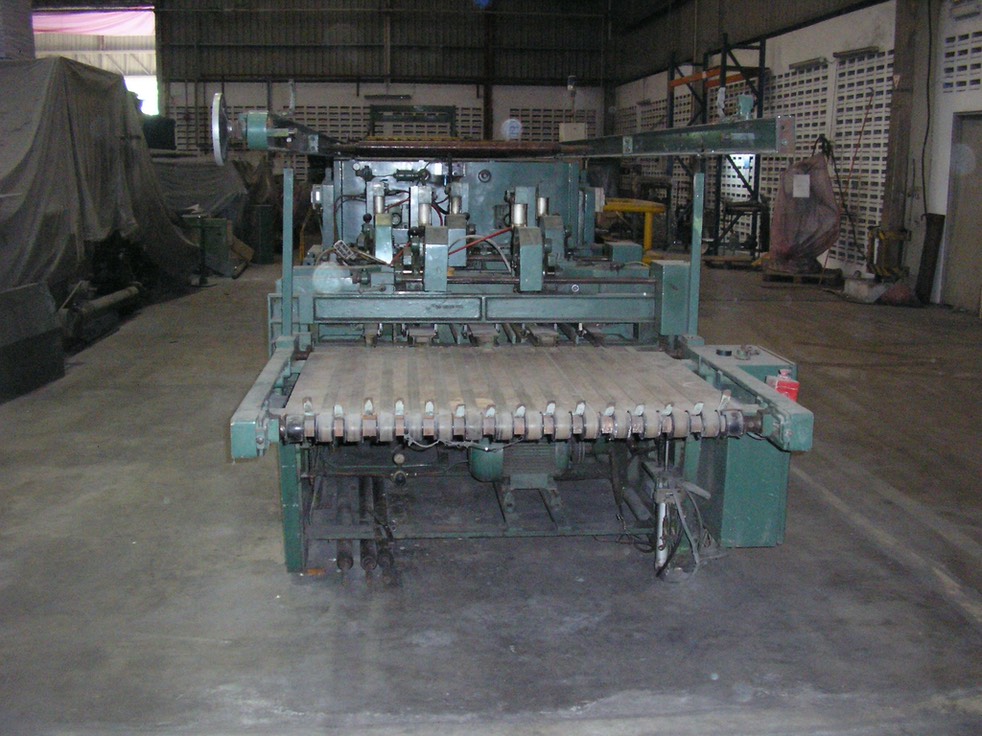

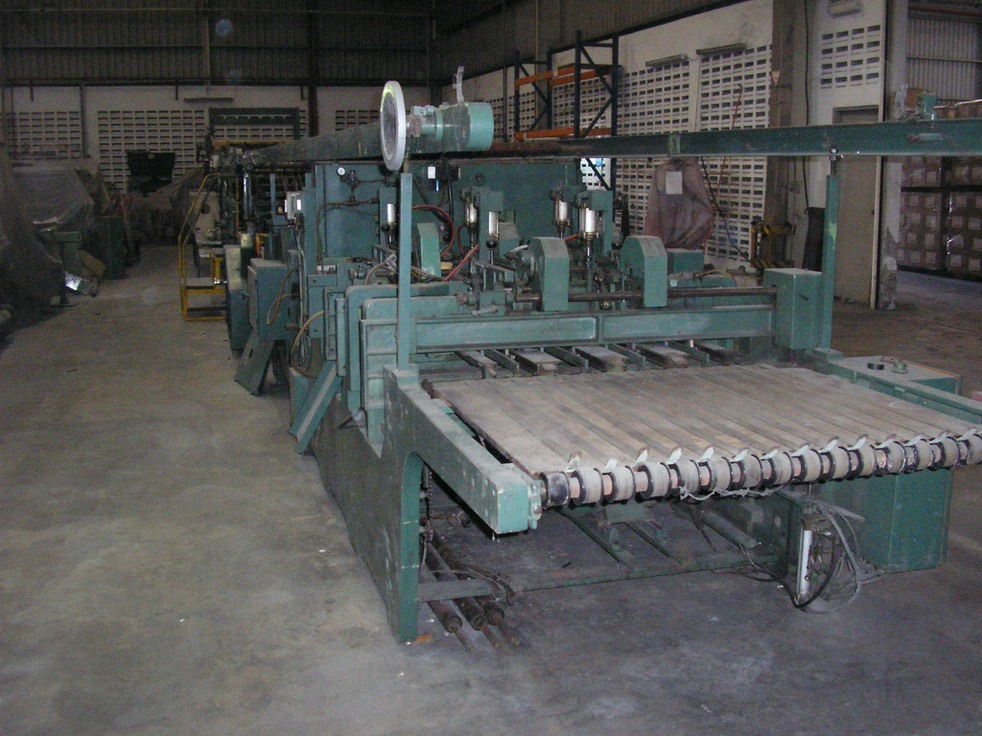

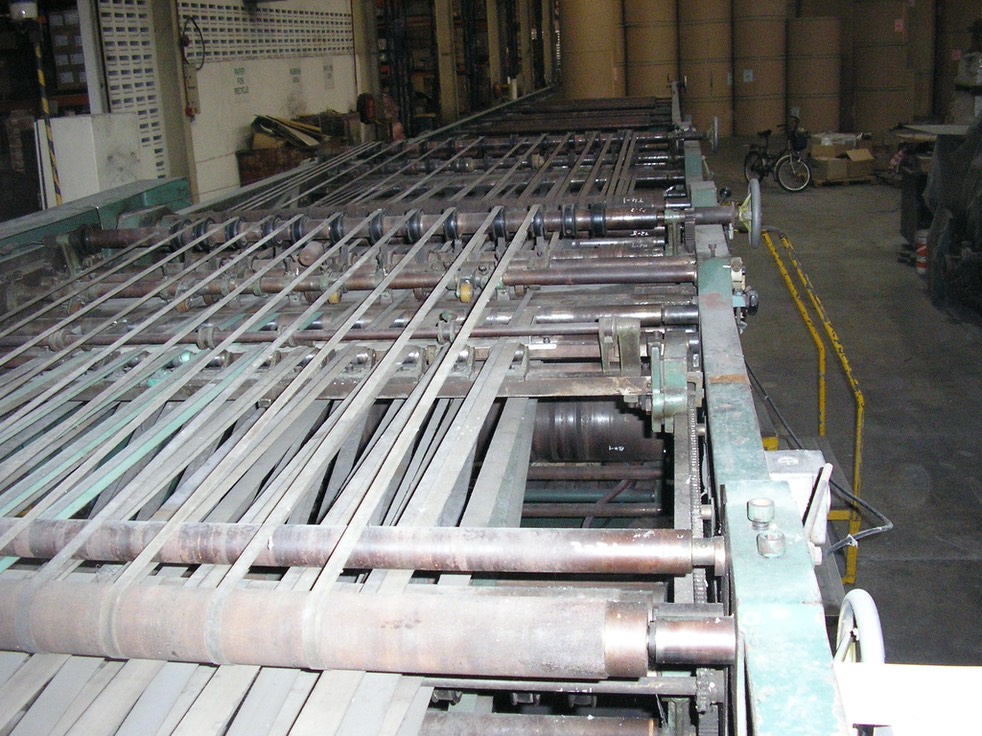

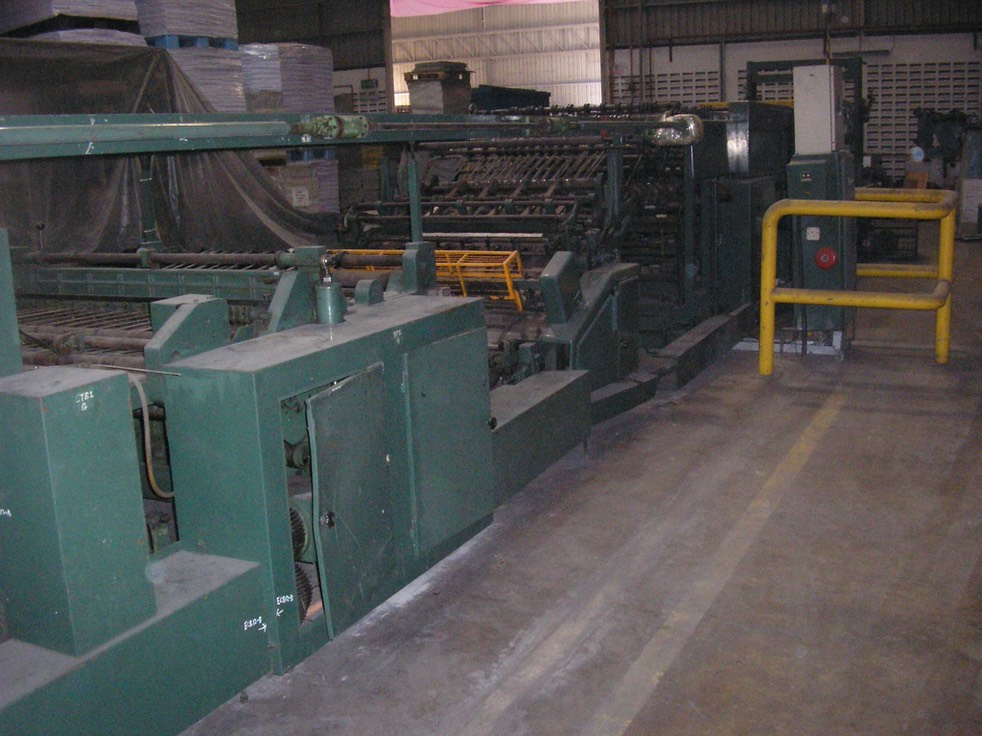

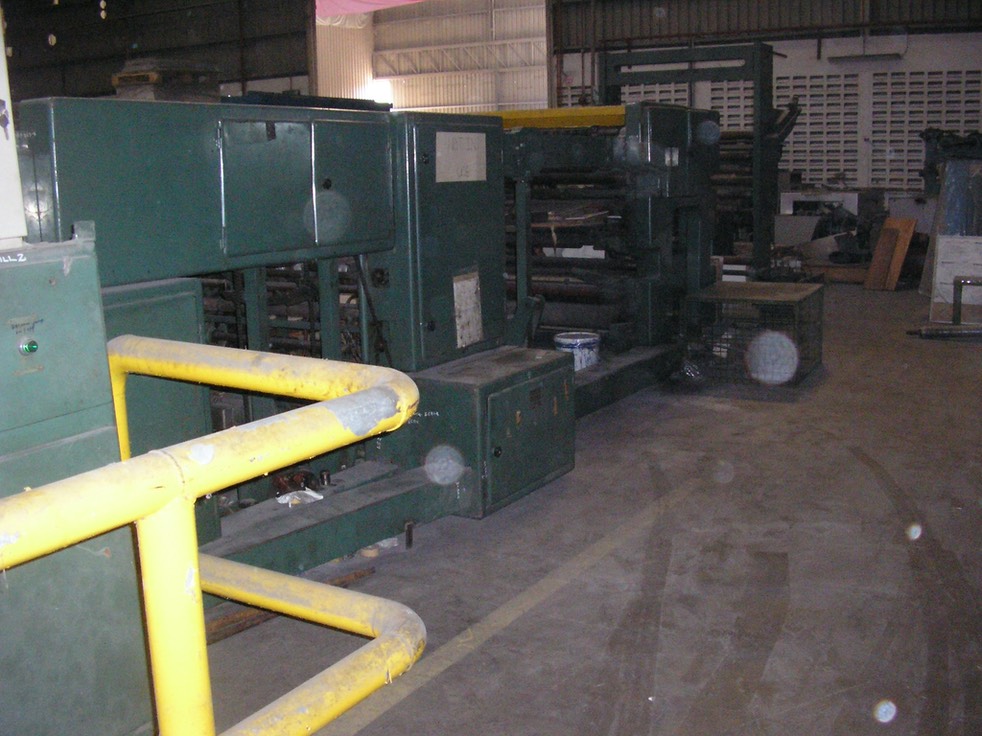

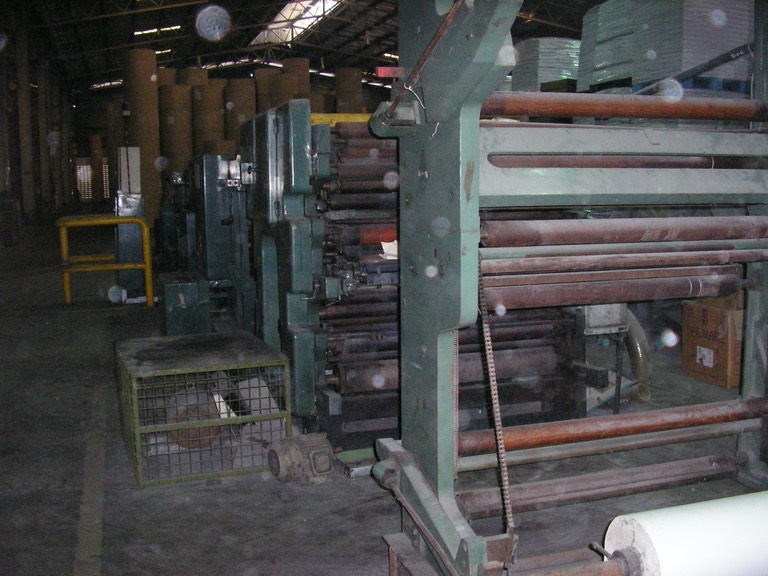

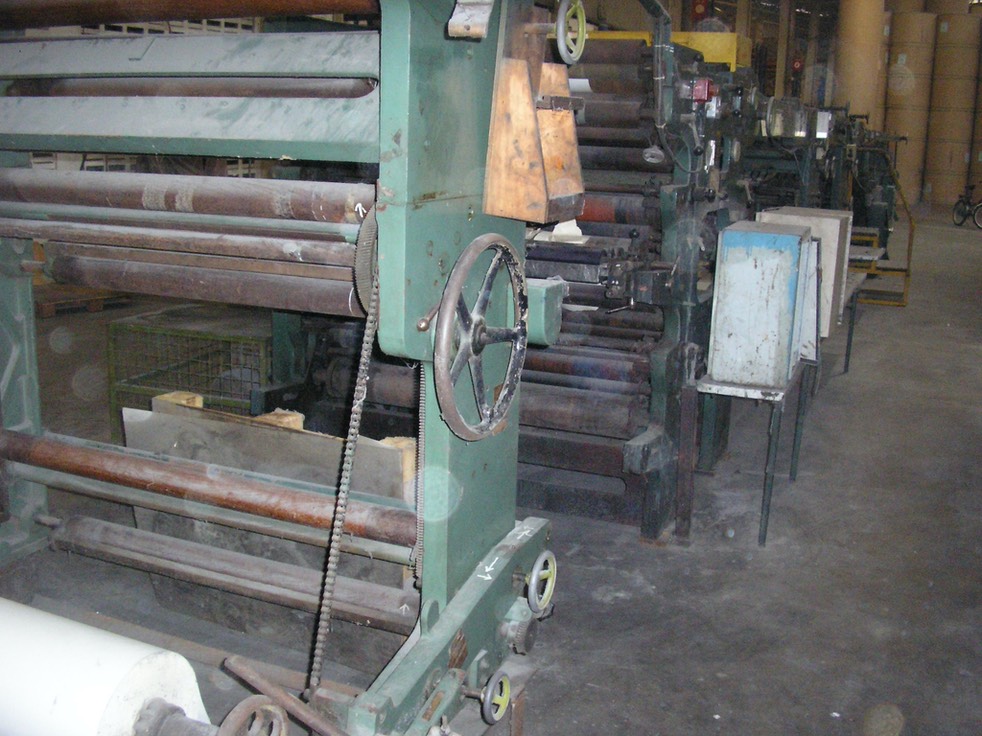

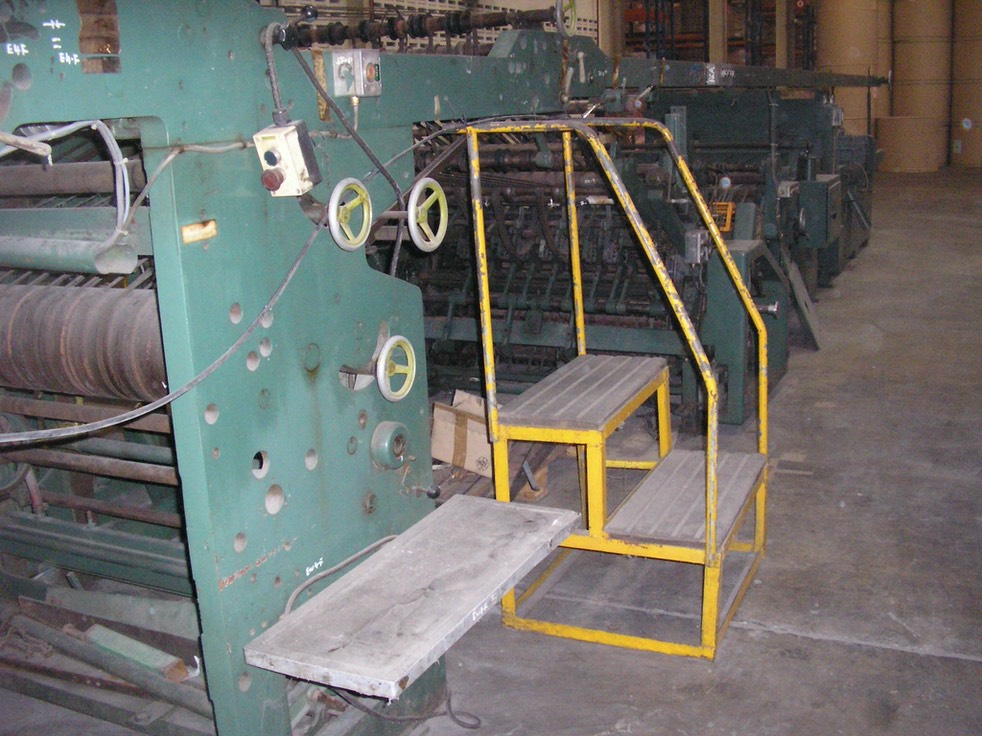

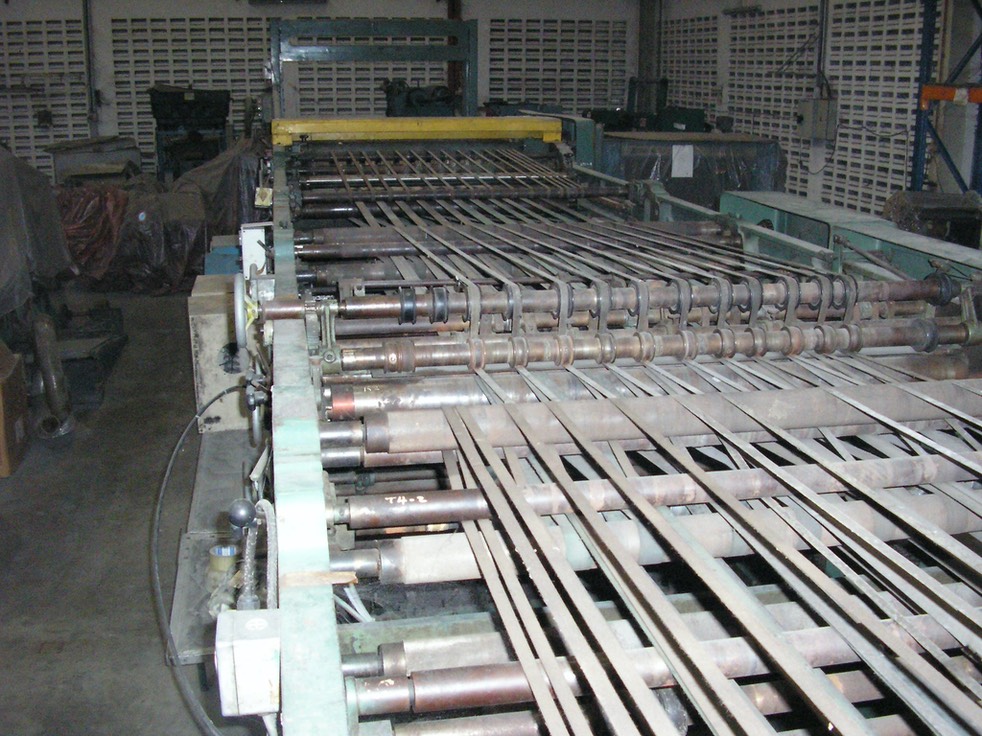

SM0583 - Exercise Book machine, 1,120mm, ECH Will, Type MZAK
- Book size: F5 (165mm x 210mm),
- Working width: 1,120mm,
- Operating speed:38mpm,
- Operating cycle: 8 strokes/min,
- Reel width: 600mm -1,130mm,
- Reel Diameter: Max 1100mm,
- cut length for book production: 330mm-430mm,
- Speed:Designed 107m/min, Operating 38 m/min
- Production capacity: ~27,650 books /day
- Flexo units: Yes
- Printing and cutting length: maximum: 430,
- minimum: 330 mm
- Reel width: maximum: 1130mm,
- minimum: 600 mm
- Reel diameter: 1100 mm
- Reel weight: 1,800 kgs
- Cutting frequency:max. 8 stroke/min
- Sheet count (unfolded) maximum:32
- minimum: 32, 4 sheets
- Cover (gsm) maximum: 210 gsm
- minimum: 130 gsm

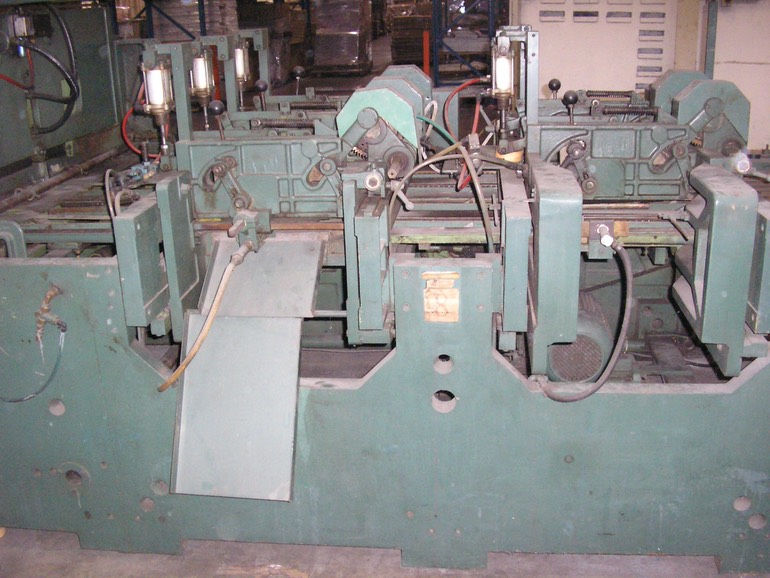

- Stitching heads: 8 units
- Weight (gsm) of paper: minimum: 50 gsm
- maximum: 100 gsm
- Year of manufacture:1970’s
- Status:in place
