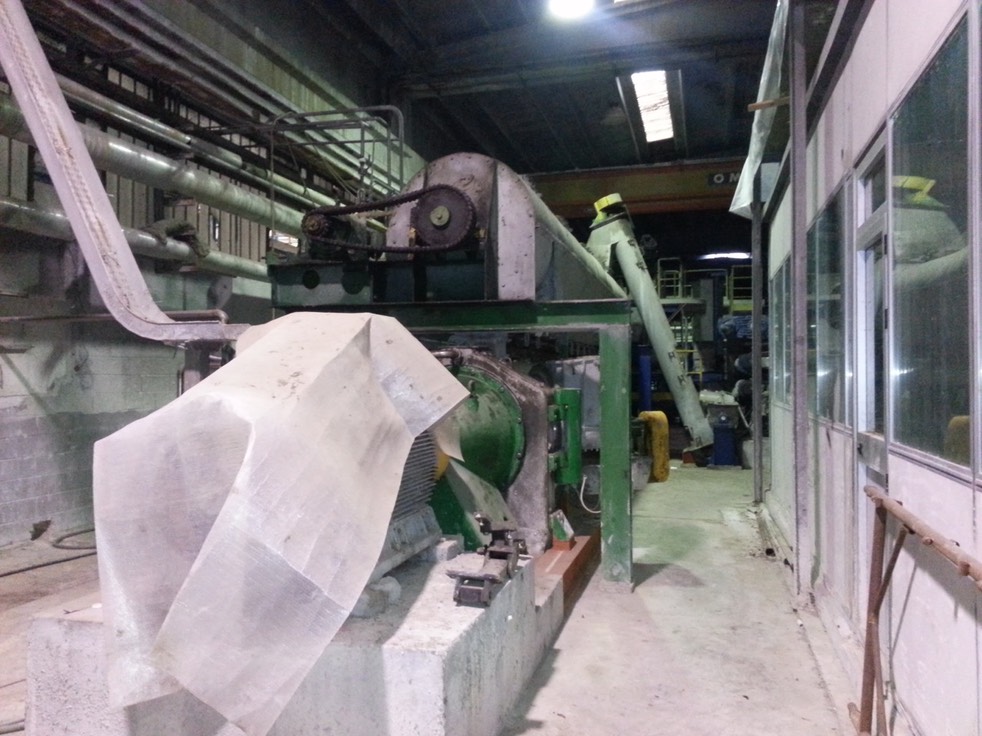

Hot Disersion plant, Escherwyss, 150tpd (bone dry)

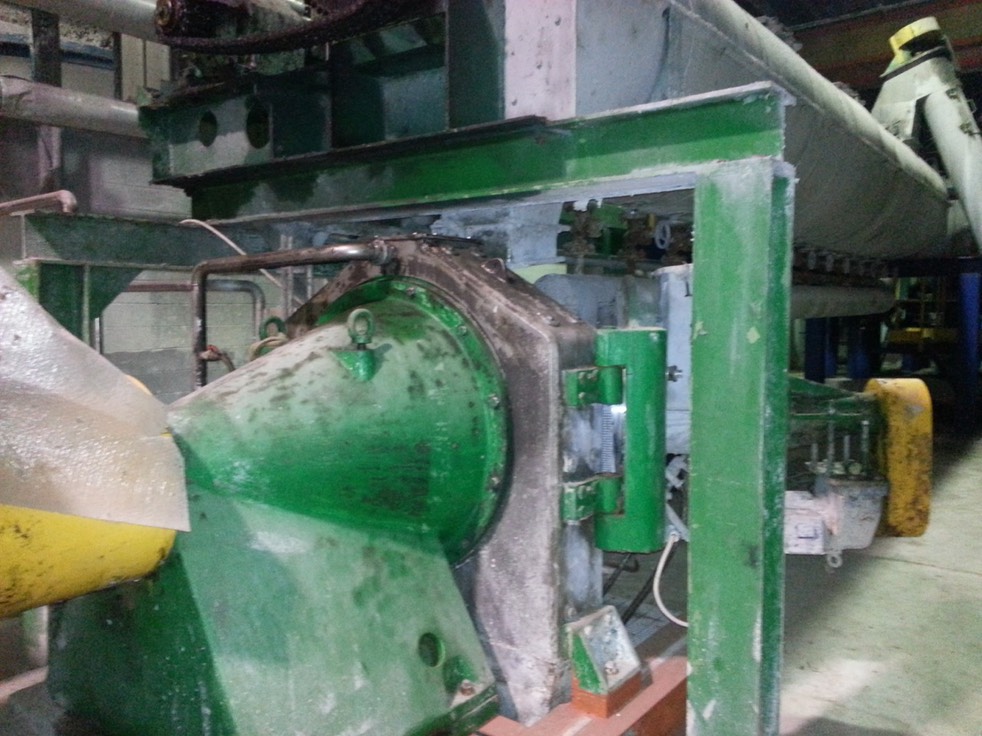

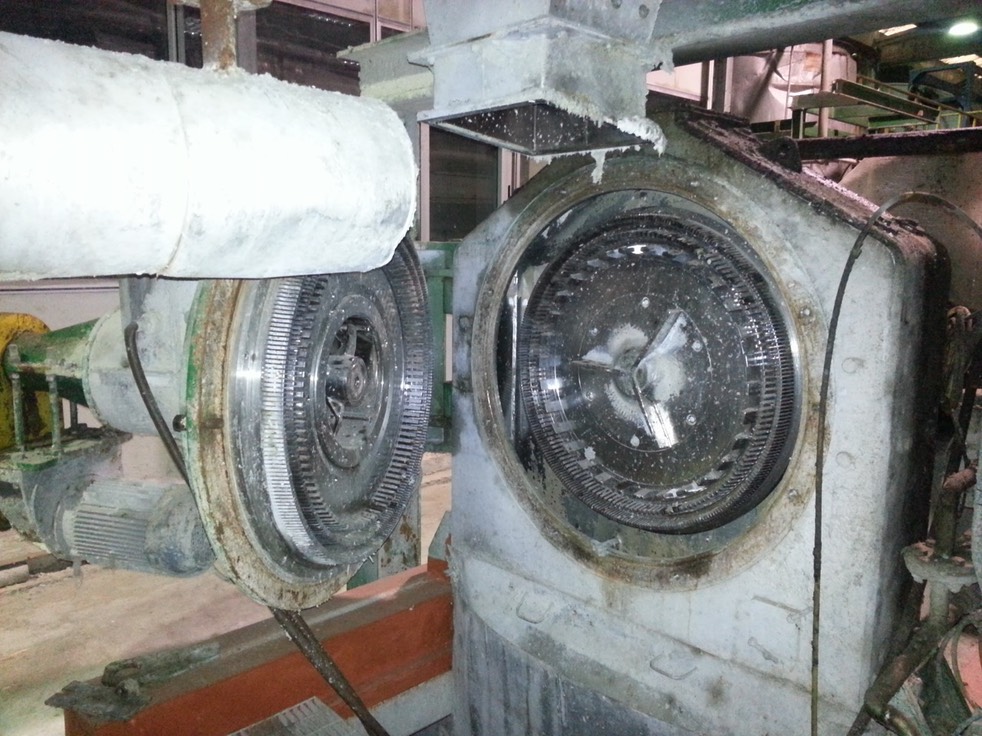

Main characteristics of theĀ disperger:
- maximum production fo 150 BDTPD (bone dry);
- inlet and outlet working consistency of 28 - 30% (bone dry);
- installed power of 750 kW (AC motor 750 kW @ 1000 rpm, 50 Hz);
- hot water consumption and pressure of 1800 lpm @ 5 bar;
- weight of the equipment 3850 kg;
- dynamic load for foundation, add a coefficient of 50%;
- brand ESCHERWYSS;
- exceptionally good mechanical conditions.

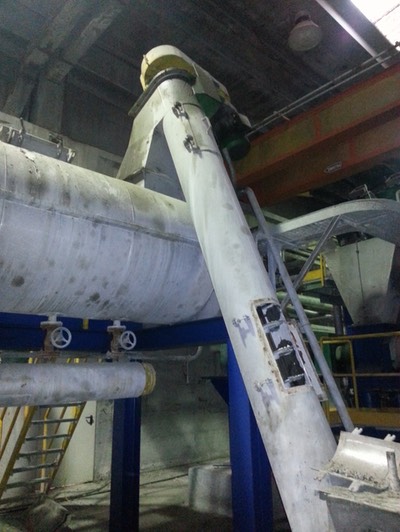

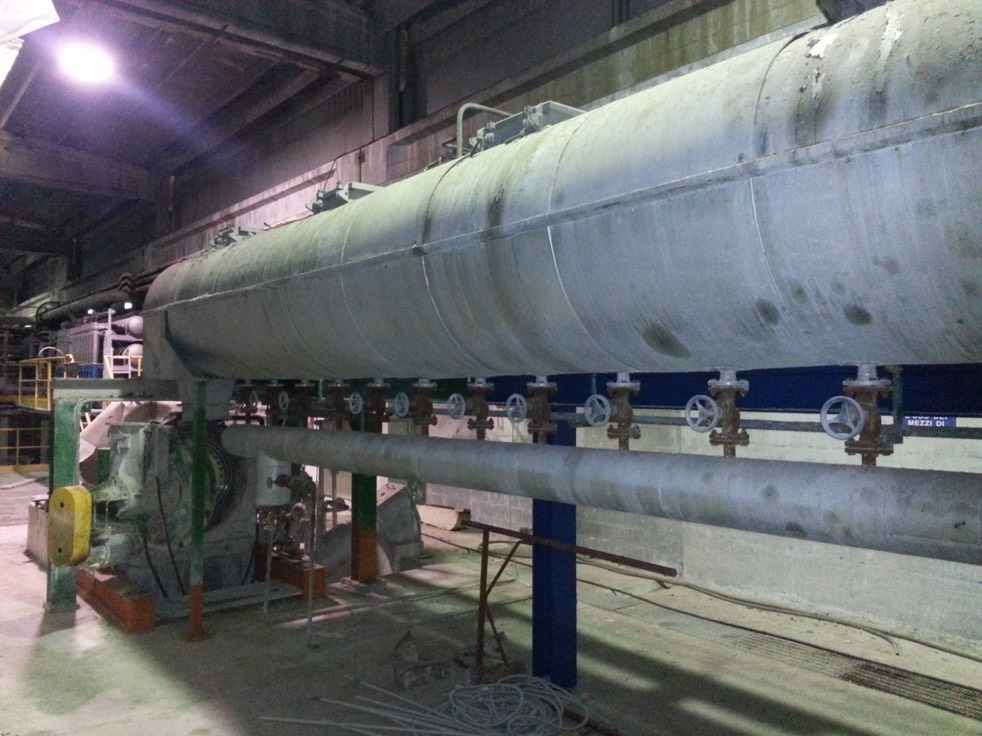

Main characteristics of theĀ steam tube:
- maximum production of 150 BDTPD;
- inlet and outlet working consistency of 28 - 30% (bone dry);
- installed power of 18,5 kW (AC el. motor of 18,5 kW @ 1500 rpm);
- operating steam pressure of 3 bar;
- weight of the equipment 6300 kg.
- brand ESCHERWYSS;
- exceptionally good mechanical conditions;
- completed of feeding screw.
