SM0853: 2,400mm PAPER MACHINE Banknote and high security feature paper UNDER OFFER
BASIC MACHINEDATA
- Width: 2400 mm
- Speed:
banknote paper 50 - 90 m/min (100% cotton pulp)
other security papers 50 - 120 m/min
- Furnish: Mix of cotton and chemical pulp.
- Annual capacity:
banknote paper 3600 T
other security papers 7000 T
- Substance range: 60 -120 gsm
What this machine does best is make paper. But not just any kind of paper:
- Security paper,
- paper for banknotes, protected paper,
- speciality paper,
- paper which most mills in the world cannot make.
When it comes to producing money, passports or other documents that resist counterfeiting, the right paper is the key. And this paper machine can make it. It makes paper with security features such as water marks, windows thread, UV fibres etc. which protect the paper's authenticity and make forgery almost impossible.
It can make various types of paper with several security features,which are presented in the following pages. All this is possible due to the updated paper machine with BAT (Best Available Technique)
STOCK PREPARATION
BLEACHING: 2 washing and bleaching devices
DISPERSING AND REPULPING: 2 pulpers
BEATING: 4 Hollander beaters

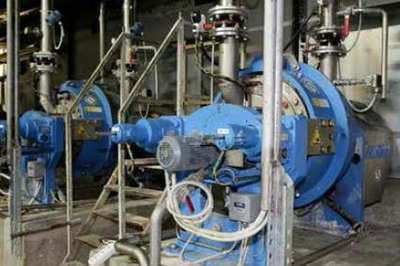

REFINING: 6 Papillon refiners serially
connected & 3 double disc refiners serially
Connected

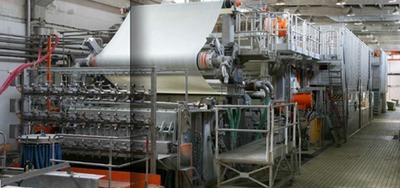

PAPER MACHINE

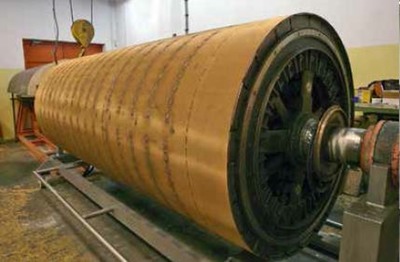

Cylinder mould former
Short-former
Press section with 3 presses
Drying section
Surface treatment device (combination of size
press with impregnation tub)
Post drying consisting of IR and cylinder
dryers
2 cooling cylinders
On-line soft calender (2 nips)
Pope-reel

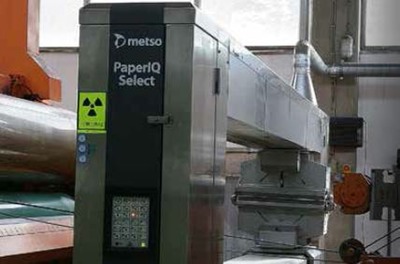

QCS (2 frames)

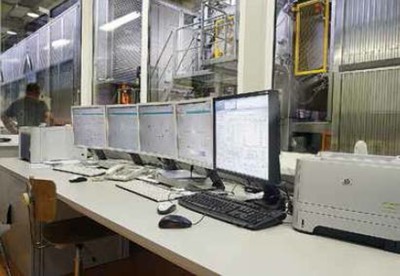

DCS
FINISHING

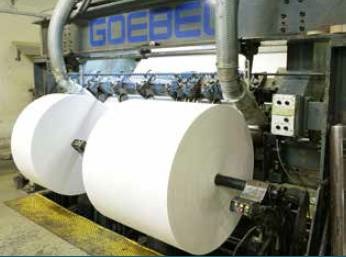

Winder

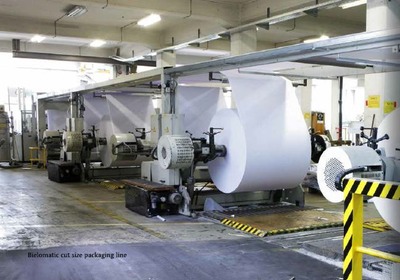

Sheeter with inspection system Converting
line Packaging line size
VAULT: Safe storage for finished goods
PRODUCTION GRADES
IDENTIFICATION PAPERS
- Passports
- Licenses
- Certificates
- Visa stickers
VALUE PAPERS
- Banknote papers
- Paper for checks
- Shares, bonds
- Coupons, vouchers

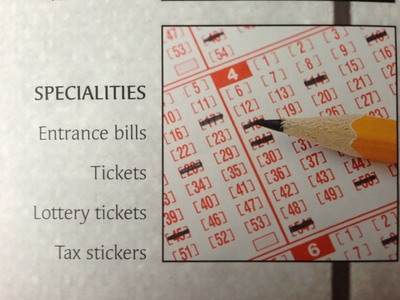

SPECIALITY PAPERS
- Entrance bills
- Tickets
- Lottery tickets Tax stickers
The mill produces:
- Paper for car licences: for three states in the USA
- and one entire country.
- Paper for elections: for five countries
- Paper for tax stamps: for six countries
- Paper for cheques: for seven banks
- Paper for university diplomas: four countries
- Paper for documents: for four countries
- Paper for passports: for nineteen countries
- Paper for banknotes: for eighteen countries
- and for thirty six denominations
Watermark
Aspect:
- Monotonal light or dark
- Duotonal
- Multitonal with impression of image
- Electrotype
Positioning: Continuously / In stripes / Registered

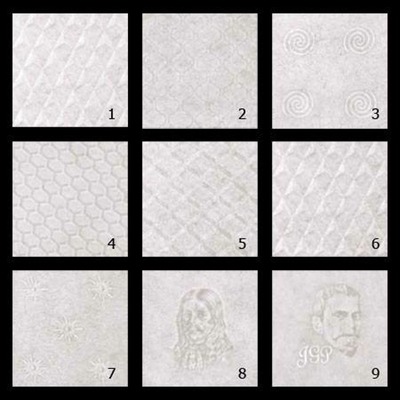

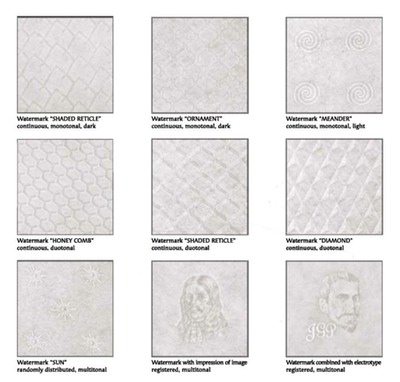

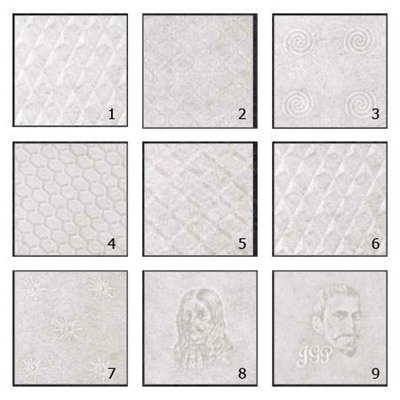

Types
- Watermark “shaded reticle”, continuous, monotonal, dark
- Watermark “ornament”, continuous, monotonal, dark
- Watermark “meander”, continuous, monotonal, light
- Watermark “HONEY COMB”, continuous, duotonal
- Watermark “shaded reticle”, continuous, duotonal
- Watermark “diamond”, continuous, duotonal
- Watermark “sun”, randomly distributed, multitonal
- Watermark with impression of image, registered, multitonal
- Watermark combined with electrotype, registered, multitonal

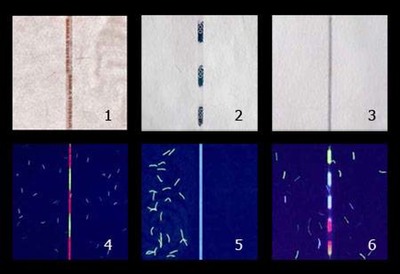

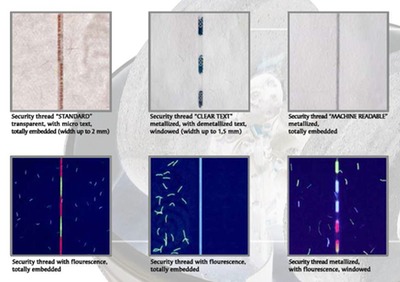

Security thread
Aspect:
- Transparent, possible with micro text and flourescence
- Metallized, possible with demetallized text and flourescence
Incorporation: Totally embedded or Windowed
Types

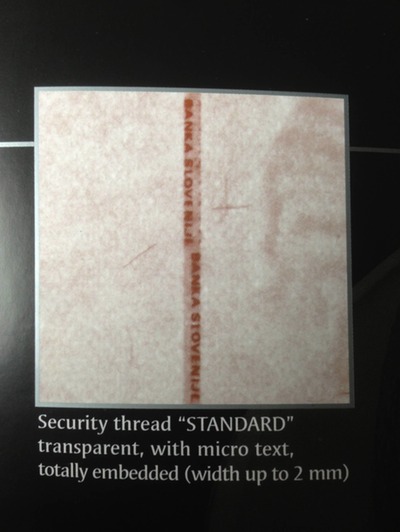

- Security thread “standard”, transparent, with micro text, totally embedded (width up to 2 mm)

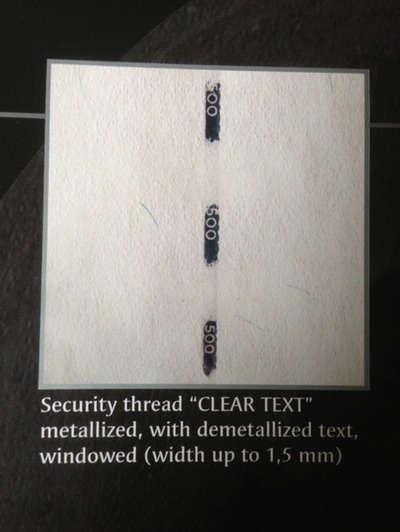

- Security thread “clear text”, metallized, with demetallized text,windowed (width up to 1,5 mm)
- Security thread “machine readable”, metallized, totally embedded

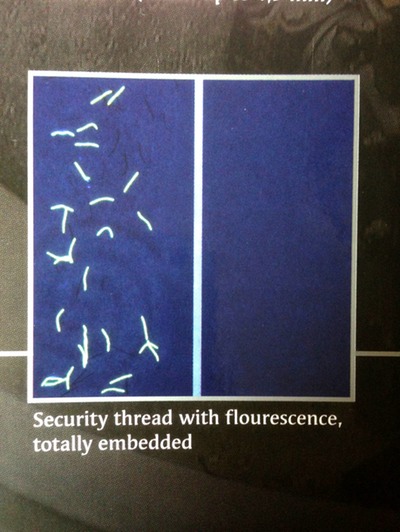

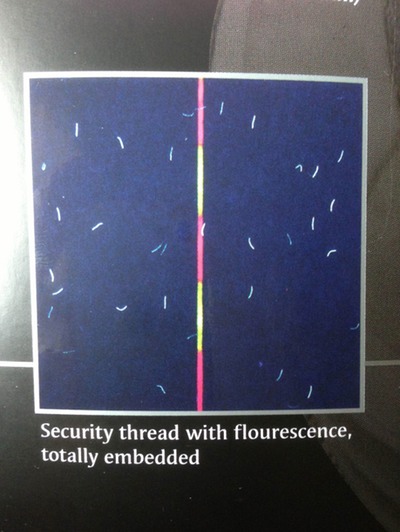

- Security thread with flourescence, totally embedded
- Security thread with flourescence, totally embedded

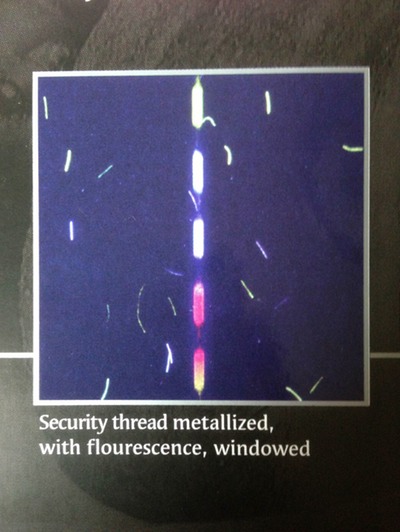

- Security thread metallized, with flourescence, windowed

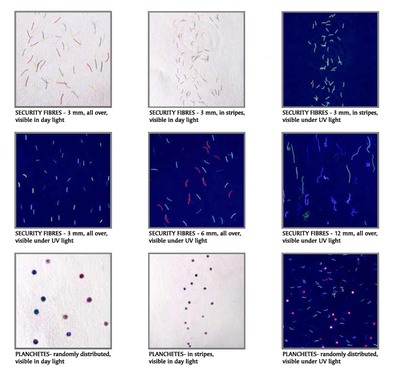

SECURITY PARTICLES
Form
- Fibres (3 mm, 6 mm, 12 mm)
- Pigment particles
- Planchetes
Distribution:
- All over
- In stripes
Aspect
Fibres monocolour, Duocolour, multicolour
• Visible in day or / and under UV light

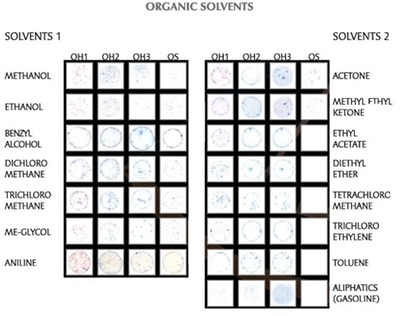

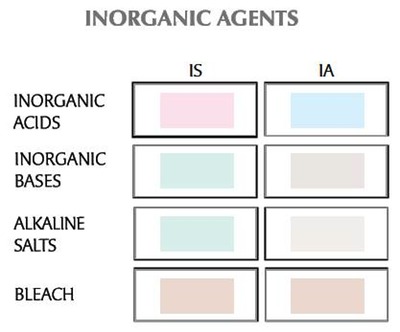

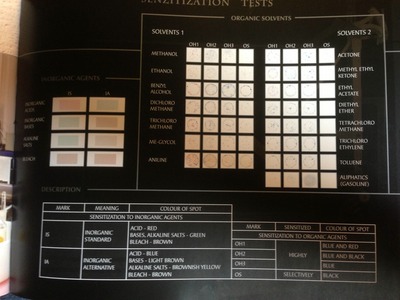

Chemical sensitization
Reactions to:
- Acids
- Bases
- Bleach
- Polar solvents
- Non polar solvents
PLEASE NOTE THAT NO FURTHER INFORMATION CAN BE ISSUED UNTIL FULL DISCLOSURE OF THE INTERESTED PARTY IS RECEIVED AND A SUBSEQUENT NON-DISCLOSURE AGREEMENT HAS BEEN SIGNED AND RETURNED.
