SM0866 - 2,550mm FINE PAPER MACHINE, Voith, 18-65gsm, tissue and cellulose papers, 100-300m/min, 17-25 tpd,
Products: tissue and cellolose papers
Manufacturer: Voith
Grammage: 18 – 65 g/m²
Production: 17 – 25 t/day depending on quality and paper type
Working speed: 100 – 300 m/min
Working width/Wire width: 2550 mm
Assembly of the equipment
Stock preparation:
Pulper with motor 132 kW
High density pump Voith
Finckh Cyclon
Flat screen Voith
Screw extrusion press for reject
Constant section:
High density pump
High density pump Cyclon
Proportioning pump Voith 360 m³/h: Motor: 55kW 1500 rotation/min
Suction Pump (Rohrsaugerpumpe) with Motor 55 kW
Vacuum pump suction roll with motor 30 kW
5 primary tube cleaners: Size 2, Voith
Vertical screen: Size 1, Voith

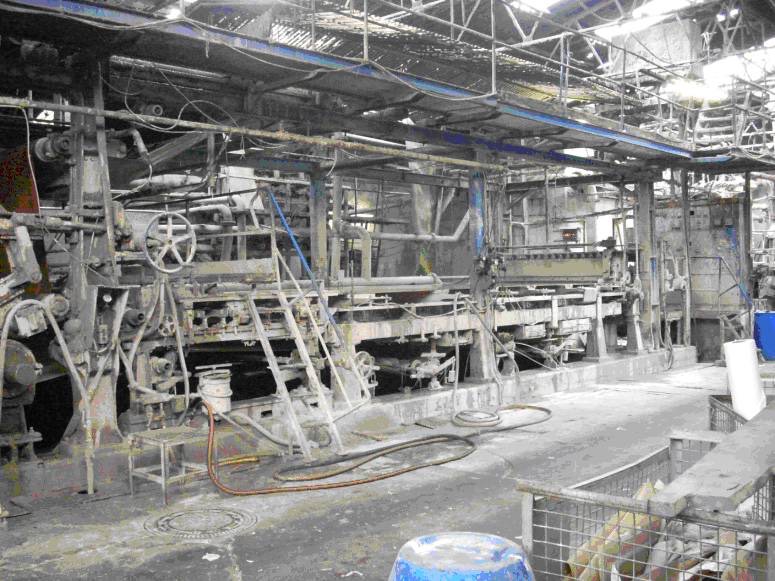

Papermachine:
High pressure head box Voith 5000l
Wire section: working width max 2550 mm
Wire length: 22 m x 2,55m
Formation table,
Top side 18,0 m x 2,50 m
Base layer 10,0 m x 2,50 m
1 HD shower pipe with movement in the top side
1 shower pipe in the base layer
Suction press roll 690mm diameter, slits 3mm
Glazing cylinder 3,2m x 2,55 m, with pressure roll and with heavy duty dryin hood

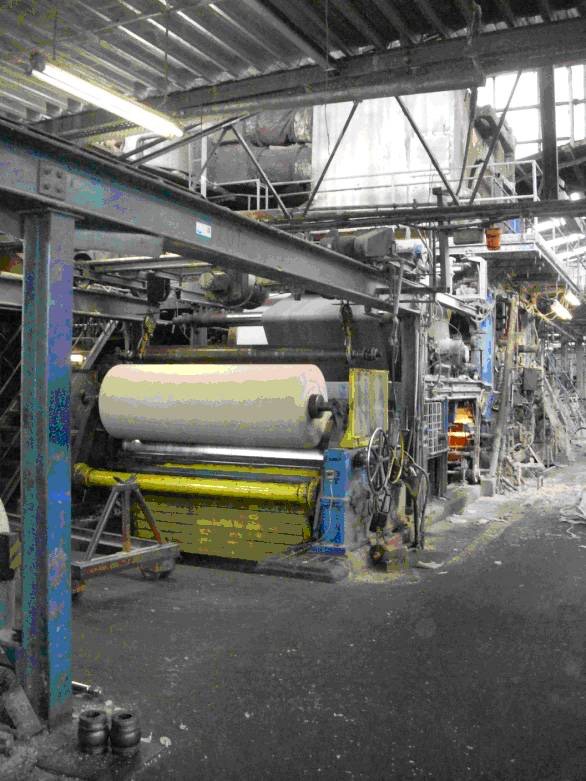

Popereeler with rope carrier and 10 reel drum
D.C. motor
Type:Lenze G250.480
215 kW
400 Volt = 1580 U/min
Erregerspannung: 310 Volt
IP23 Welle d: 95mm
Spareparts:
- Pressure roll
- Various leading roll
- Suction roll
- Various doctors
- Spare motor (Pulper)
- Pumps
- Gear pump
- Gear Pulper
